L2 Multicast VLAN Instance: Understanding Per-VLAN Multicast Domains Through a Real Topology
Introduction
Multicast inside Layer-2 networks becomes significantly more complex as VLAN counts grow, subscribers increase, and data-center or carrier networks introduce MPLS, EVPN, or VXLAN overlays. Without proper isolation, multicast quickly becomes broadcast — flooding every switch and every port, regardless of who actually needs the stream.
This is why modern networks rely on the concept of an L2 Multicast VLAN Instance: a dedicated per-VLAN multicast forwarding context that keeps group membership, replication behavior, and multicast state isolated within a specific VLAN.

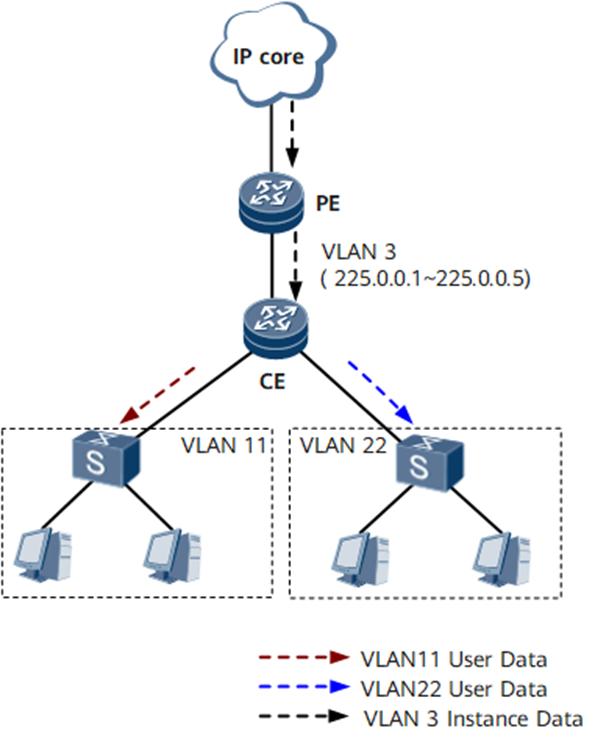

The diagram (described below) illustrates exactly why this isolation is crucial.
1. VLAN 11: L2 Multicast Instance 11
Contains:
- Red user devices
- Red multicast groups
- IGMP joins only from VLAN 11
- Red multicast flows (e.g., 239.11.x.x)
- Replication only to VLAN 11 ports
- Nothing from VLAN 11 enters VLAN 22.
2. VLAN 22: L2 Multicast Instance 22
Contains:
- Blue users
- Blue multicast streams
- Blue IGMP membership table
- Blue replication lists
- Again fully isolated from VLAN 11.
3. VLAN 3: The Service/Transport Instance
Key details:
- Used between PE ↔ CE
- Carrying multicast in the 225.0.0.1 – 225.0.0.5 range
- Not a customer VLAN
- Its multicast instance handles PE–CE communication only
- This instance ensures:
- The provider network transmits multicast efficiently
- User VLAN membership does not affect service VLAN behavior
- Each user VLAN’s multicast is wrapped or mapped into this service instance
- This is especially common in:
- MPLS VPNs
- L2VPN/VPLS
- IPoE + IPTV access networks
- Carrier-grade multicast deployments
the Problemes that may be consider dangers
When you break down what L2 multicast VLAN instances actually fix, it comes down to a few very practical issues. The first one is pretty simple: you don’t want multicast traffic from one VLAN leaking into another. If VLAN 11 is watching a stream, there’s no reason for anyone in VLAN 22 to see it. Without separate multicast instances, that kind of bleed-over can happen, and the topology makes it obvious why that would be a problem.
The second benefit is about not wasting bandwidth. Switches only forward multicast inside a VLAN where receivers have actually expressed interest through IGMP. If nobody in a VLAN wants the stream, it shouldn’t be replicated there. Keeping things separated per-VLAN cuts down on the amount of unnecessary traffic flying around.
There’s also a clean separation between what the provider handles and what the customer handles. VLAN 3 in this setup is basically a transport lane used between the PE and CE. It’s there for the provider’s own multicast delivery and has nothing to do with the user networks in VLAN 11 and VLAN 22. Each of those access VLANs runs its own multicast environment completely apart from whatever is going on in VLAN 3.
And finally, the PE and CE each get to do their jobs without stepping on each other. The PE simply sends multicast down VLAN 3, while the CE sorts everything out locally and keeps separate multicast states for each customer VLAN. The PE doesn’t need to know anything about who sits behind VLAN 11 or VLAN 22 — that’s all handled on the CE side.
Conclusion
In the end, the whole setup makes it pretty clear why having separate L2 Multicast VLAN Instances matters so much. When each VLAN handles its own multicast state, things just work the way they’re supposed to. Different user groups stay completely isolated, so traffic meant for one set of subscribers doesn’t end up somewhere it doesn’t belong. Switches also only replicate multicast where there are actual receivers, which keeps the network from getting flooded with pointless copies of the same stream.
It also makes multicast delivery a lot more predictable and scalable. The PE and CE can pass multicast back and forth without mixing up customer traffic, and the provider transport VLAN stays independent from whatever the user VLANs are doing. Even if everything shares the same switches or uplinks underneath, each VLAN basically has its own little multicast world. That separation is what prevents leaks, keeps performance stable, and avoids wasting bandwidth.
