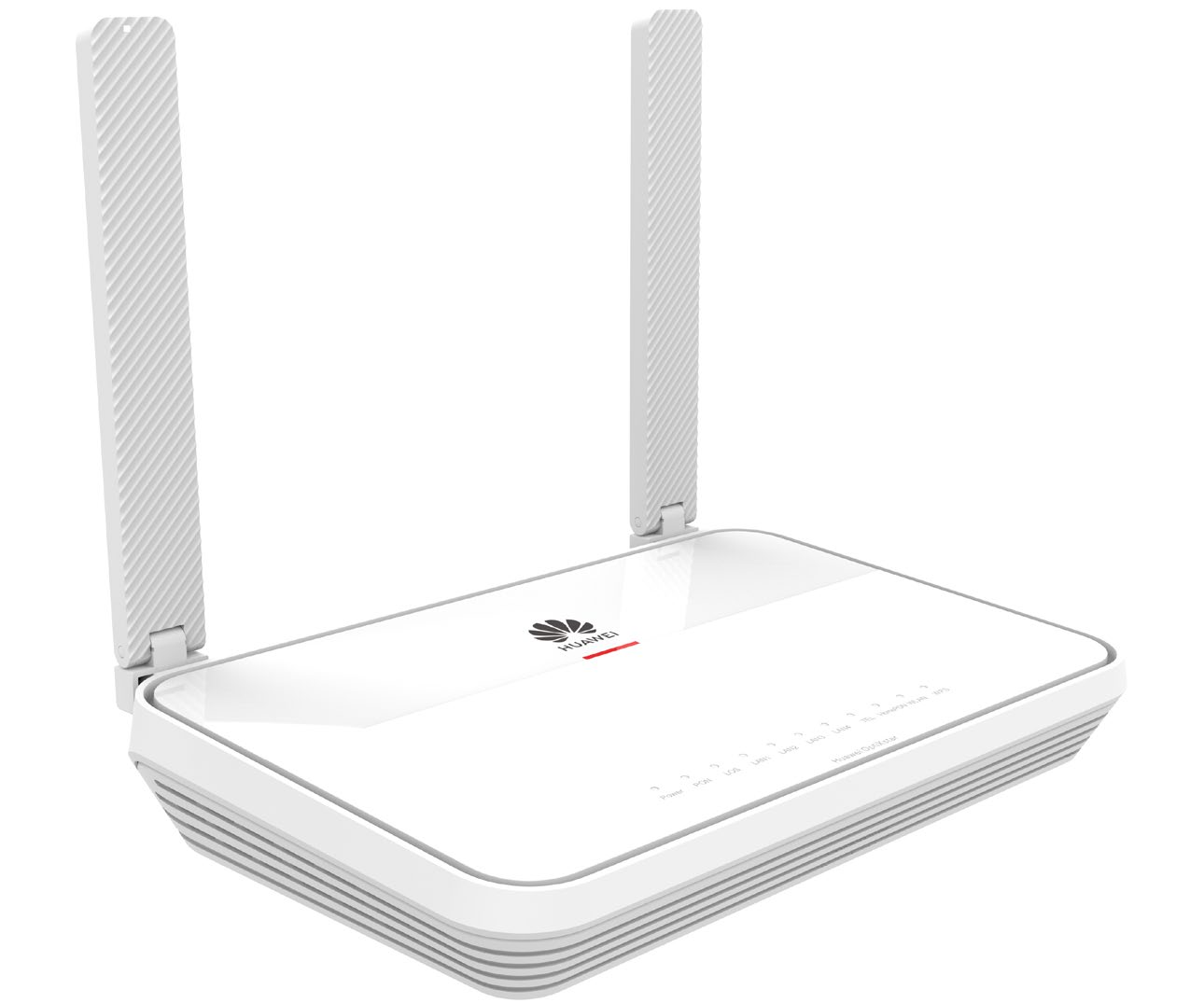

Huawei EG8141XR ONT Overview
Introduction
The Huawei OptiXstar EG8141XR-10 is a GPON and Wi-Fi 6 Master FTTR Unit for FTTR all-optical Wi-Fi solution. It uses the GPON and Wi-Fi 6 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal alloptical access solution and future-oriented service support capability.
Key Feature
-
Ultra gigabit to room
-
Seamless roaming throughout the house
-
Remote management, maintenance app and user app management
Huawei EG8141XR ONT Datasheet
Device Parameters
| Dimensions | 240mm x 151mm x 40mm(Without foot pads) |
Power adapter input | 100V to 240 VAC, 50/60 Hz | |||||
| Weight | <700 g |
System power supply |
12 V DC, 1.5 A | |||||
| Installation mode | Desktop placement |
Maximum power consumption |
16.6 W | |||||
| Memory | 256MB Flash,512MB RAM | NNI | GPON | |||||
| Operating temperature | 0°C to 40°C | UNI | 4xGE+1x POTS+2.4GHz&5GHz Wi-Fi 6+1xoptical port |
|||||
| Operating humidity | 5% RH to 95% RH (non- condensing) |
Optical connector | NNI: SC/APC UNI: SC/UPC |
|||||
Interface Parameters
| GPON | Wi-Fi | |||||||
| Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) Flexible mapping between GEM Port and TCONT Authentication:SN/Password/SN+Password Upstream and downstream FEC SR-DBA and NSR-DBA Upstream and downstream rate:1.244 Gbit/s upstream, 2.488 Gbit/s downstream (GPON) |
IEEE 802.11 b/g/n/ax (2.4GHz) IEEE 802.11 a/n/ac/ax (5GHz) 2×2 MIMO (2.4GHz&5GHz) WMM(Wi-Fi Multi Media) Multiple SSIDs WPS Air interface rate: 574 Mbps (2.4GHz),2402 Mbps (5GHz) |
|||||||
| Ethernet port | ||||||||
| Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limitation on the number of learned MAC addresses MAC address learning Supporting 10 Mbit/s, 100 Mbit/s and 1000 Mbit/s auto-adaptation |
||||||||
| POTS port | Downstream opticalport | |||||||
| Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
Ultra-Gigabit optical port Plug-and-play of the Slave FTTR Unit for FTTR all-optical Wi-Fi solution |
|||||||
Product Function
| Smart interconnection | Smart O&M | Multicast | Layer 3 features | |||||
| Smart Wi-Fi coverage SIP/H.248 auto-negotiation Any port any service Parental control |
IPTV video quality diagnosis(VMOS&eMDI) Rogue ONT detection and isolation from the OLT WLAN simulation PPPoE/DHCP simulation testing |
IGMP v2/v3 snooping IGMP v2/v3 proxy MLD v1/v2 snooping |
PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI Static/Default routes Multiple services on one WAN port |
|||||
| Security | Common O&M | QoS | Power saving | |||||
| SPI firewall Anti-DOS attack Filtering based on MAC/IP/URL addresses |
OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback |
Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation |
Indicator power saving COC V7.1 |
|||||
| Home Network | Home network management | |||||||
| As the Master FTTR Unit for FTTR all-optical Wi-Fi solution Fibers without electromagnetic interference and low latency Home Network visualized management User-defined bandwidth allocation Wi-Fi channel optimization within the home network Wi-Fi roaming (802.11k/802.11v) within the home network |
Supported the following functions with NCE: Remote management and maintenance Local Installation Assistant APP** Management User mobile app** management: Installation guide Home network topology visualization One-click diagnosis Wi-Fi Configuration Wi-Fi timing switch Parental Controls |
|||||||
| *: Supported when the STA supports 802.11k or 802.11v. | ||||||||
