Huawei HG8010 ONT Overview



Introduction

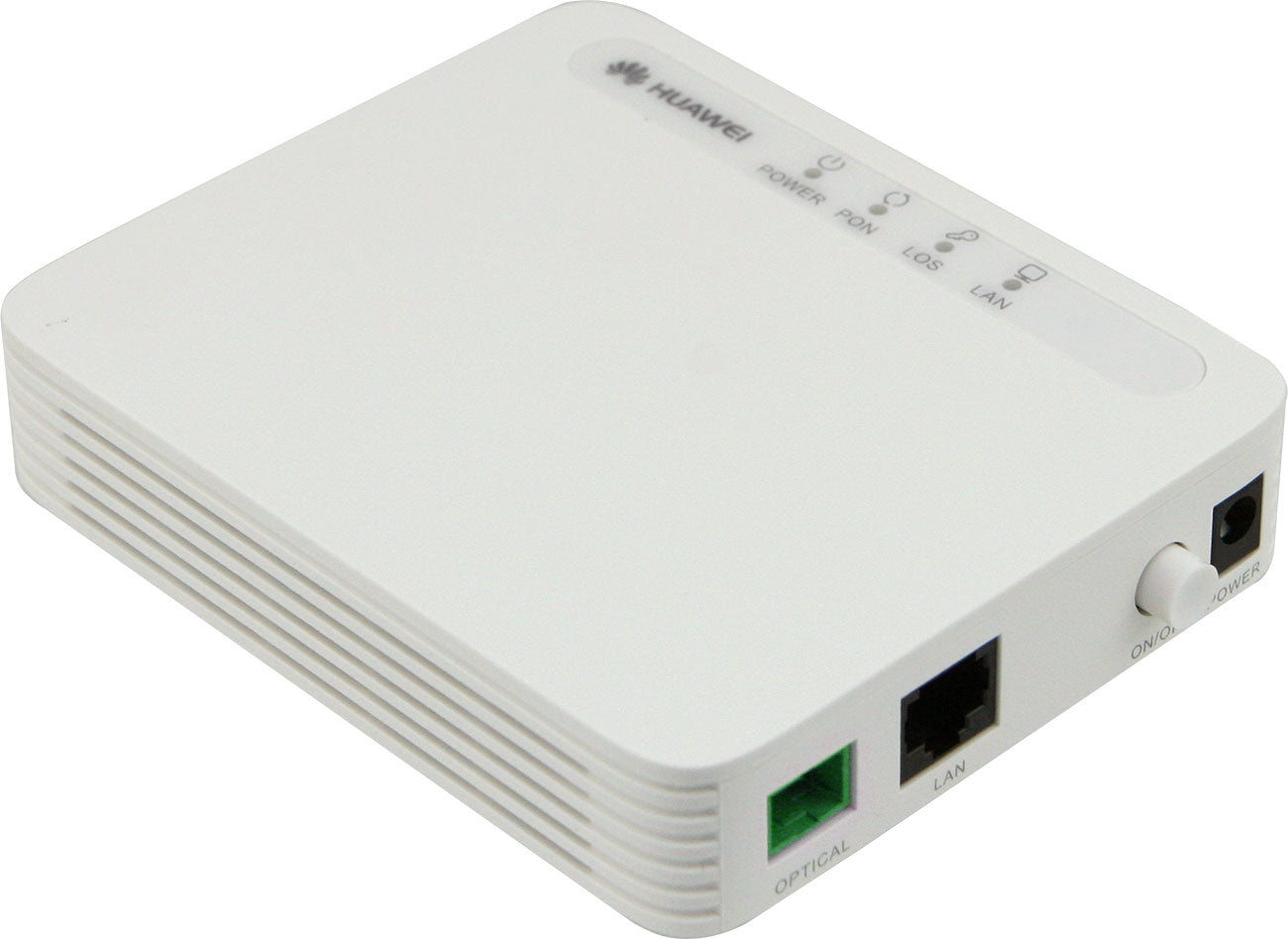

The HG8010 GPON terminal (hereafter referred to as the HG8010) is an indoor optical network terminal (ONT) designed for home users and small office and home office (SOHO) users. Its upper shell adopts the natural heat dissipation material, and its optical port adopts the dust-proof design with a rubber plug. The HG8010 is eye-pleasing and energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users' deployment requirements in different scenarios.

By using the Gigabit-capable Passive Optical Network (GPON) technology, the HG8010

provides a high-speed data channel through a single optical fiber with an upstream rate of 1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy the high-speed data service, quality voice service, superior video service. As an ONT, the HG8010 provides the more convenient and efficient remote management function. It supports the ONT Management and Control Interface (OMCI) protocols and manages all home terminals in a unified manner, implementing remote fault diagnosis, service provisioning, and performance statistics.

The HG8310M can be applied to MA5600T and MA5800 series OLTs.



Key Feature

The HG8010 applies the TR-069 and OMCI management, manages terminal services without additional IP networks, which facilitates automatic provisioning, maintenance, and management of the remote service. The remote service management of the HG8010 has the following features:

  • Supports configuring the global profile and issuing the XML configuration file on the NMS. To provision ONT services in batches and adjust the network, only a few changes are required.
  • Supports user-defined upgrade policies configured through the NMS. The device is automatically upgraded after being powered on and no manual operation is required.
  • Supports remote performance management of the HG8010 through the NMS. By collecting the performance data, the network performance exception can be monitored in real time.
  • Supports remote fault locating of the HG8010 through the NMS. Through alarm reporting and remote loopback diagnosis, the fault can be located remotely, which decreases the maintenance cost.



Technical Datasheet



Parameter Specifications
Transmission rate Rx: 2.488 Gbit/s
Tx: 1.244 Gbit/s
Port mode Single mode
Connector SC/UPC
Maximum reach 20 km
Standard compliance ITU-T G.984.2 CLASS B+
Center wavelength Tx: 1310 nm Rx: 1490 nm
Tx optical power 0.5 dBm to 5.0 dBm
Extinction ratio > 10 dB
Minimum receiver sensitivity -27 dBm
Maximum overload optical power -8 dBm
Power adapter input 100–240 V AC, 50–60 Hz
System power supply 11–14 VDC, 1A
Maximum power consumption 6 W
Operating temperature 0ºC – 40ºC
Environment humidity 5% – 95% (non-condensing)
Dimensions (Length x Width x Height) 143 mm x 115 mm x 30 mm
Weight (including power adapter) about 250 g
