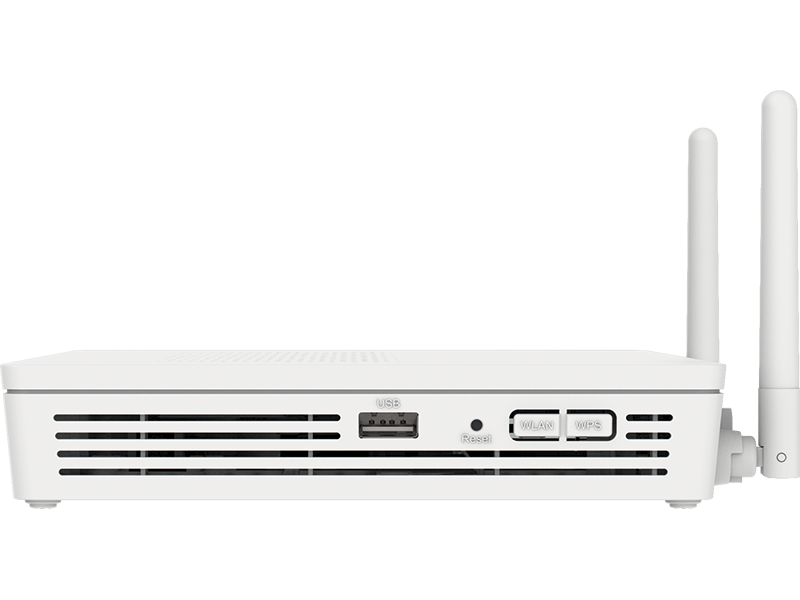

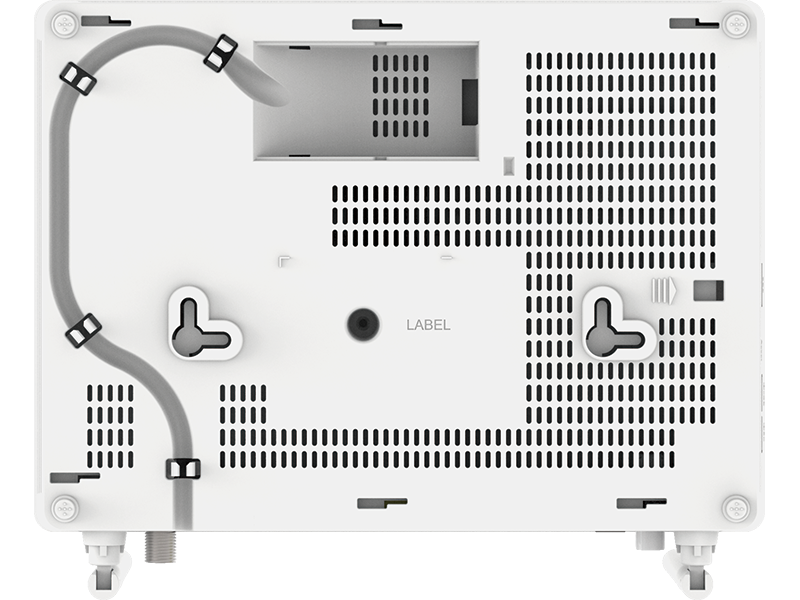

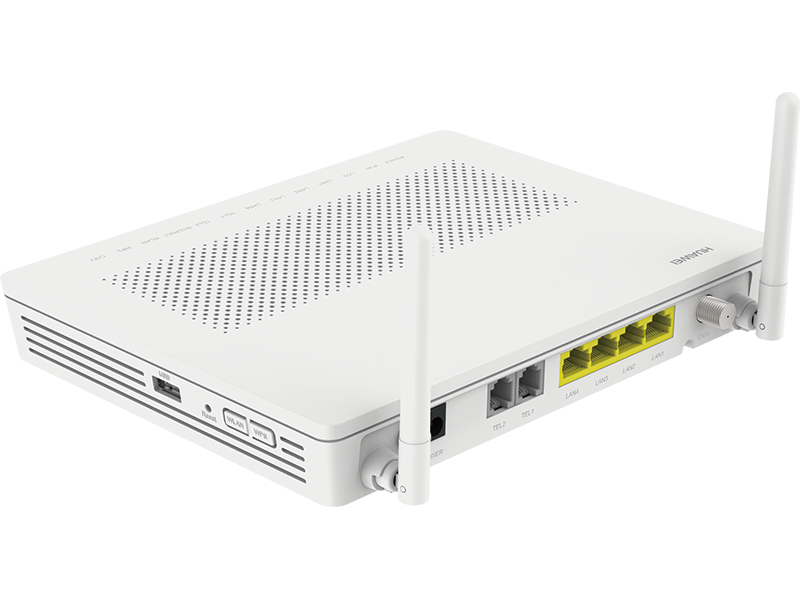

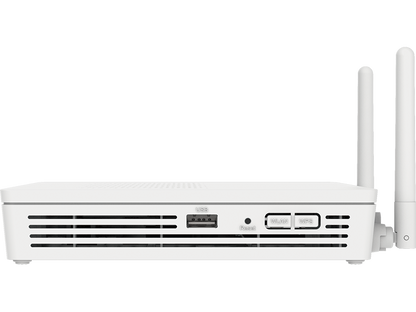

Huawei HG8247H ONT

$0.00
$0.00
Availability: 8000 in stock
Tags:
Collections:

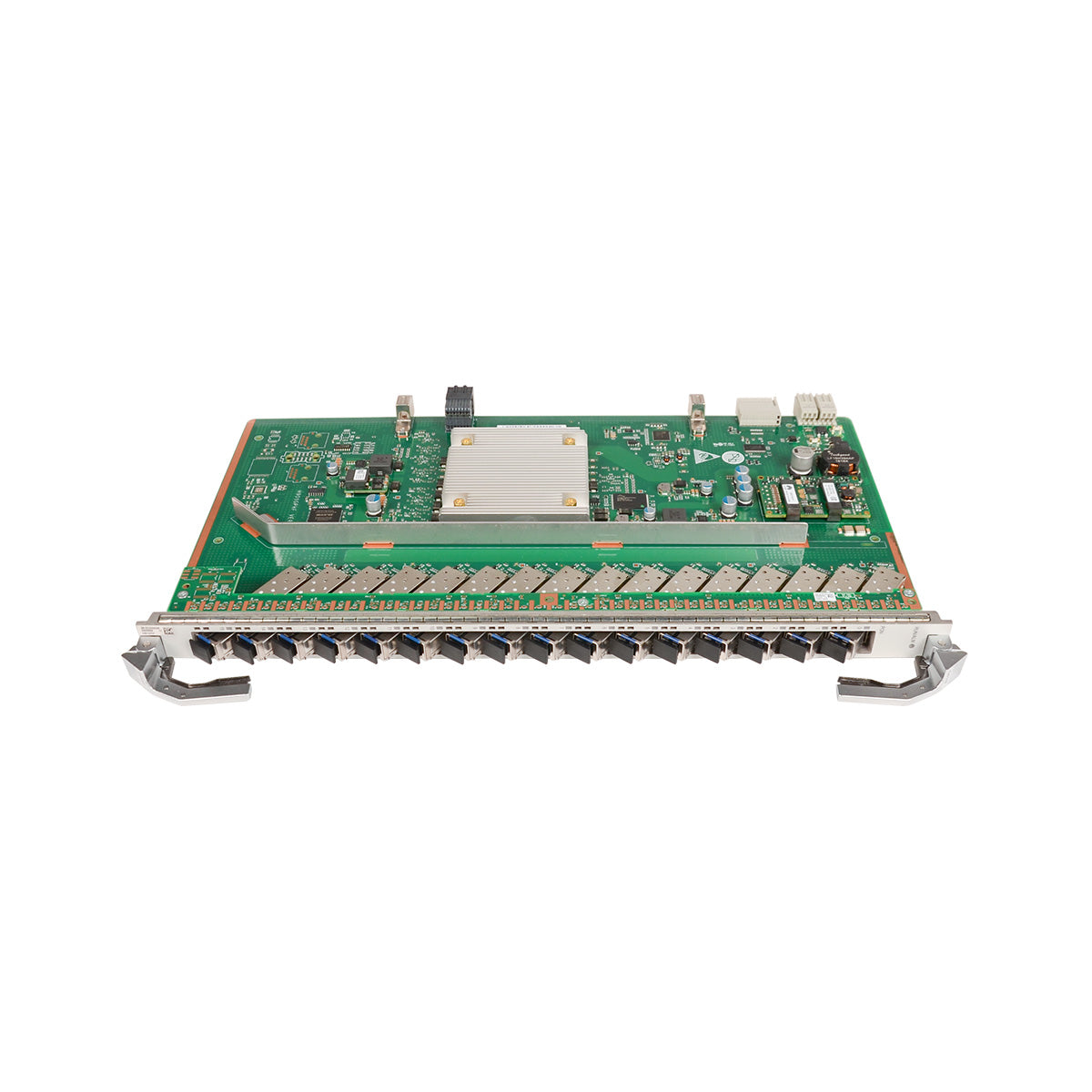

HuaweiHuawei H901GPHF Board
Huawei H901GPHF Board
HG8245H
HuaweiHuawei HG8245H ONT
HG8247H
$0.00
$0.00

Huawei HG8247H ONT Overview



Introduction

The Huawei EchoLife HG8247H is an routing-type ONT used in the Huawei all-optical access solution.It uses GPON technology to provide ultra-broadband access for users.
It provides 4 GE+2 POTS+1 USB+1 RF+2.4G WiFi(4 GE Ethernet ports,2 POTS ports, 1 USB port, 1 RF port and 1 2.4G WiFi port). High-performance forwarding provides voice, data, CATV and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.

The HG8247H ONT can be applied to MA5600T and MA5800 series OLTs.



Key Feature



GPON Port

Class B+

Receiver sensitivity: -27dBm

Wavelengths: US 1310 nm, DS 1490 nm

Wavelength blocking filter (WBF)

Flexible mapping between GEM Port and TCONT

GPON: consistent with the SN or password authentication defined in G.984.3

Bi-directional FEC

SR-DBA

Ethernet Port

Ethernet port-based VLAN tags and tag removal

1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

QinQ VLAN

Limit on the number of learned MAC addresses

MAC address learning

CATV Port

Bandwidth 54-870 MHz

Output resistance 75 ohms

POTS Port

Maximum REN: 4

G.711A/, G.729a/b, and G.722 encoding/decoding

T.30/T.38/G.711 fax mode

DTMF

Emergency calls (with the SIP protocol)

USB Port

USB2.0

FTP-based network storage

WLAN

IEEE 802.11 b/g/n

2 x 2 MIMO

Antenna gain: 2 dBi

WMM

Multiple SSIDs

WPS

Air interface rate: 300 Mbps

Smart interconnection

Smart Wi-Fi coverage (V300R015C10)

SIP/H.248 auto-negotiation

Any port any service

Parental control (V300R015C10)

L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

Smart Wi-Fi sharing:

Portal/802.1x authentication (V300R015C10)

SoftGRE-based sharing (V300R015C10)

Association of one account with two POTS ports

Smart O&M

Variable-length OMCI messages

Active/Passive rogue ONT detection and isolation

Call emulation, and circuit test and loop-line test

PPPoE/DHCP simulation testing

WLAN emulation

Layer 3 Features

PPPoE/DHCP simulation testing

WLAN emulation

PPPoE/Static IP/DHCP

NAT/NAPT

Port forwarding

ALG, UPnP

DDNS/DNS server/DNS client

IPv6/IPv4 dual stack, and DS-Lite

Static/Default routes

Multiple services on one WAN port

Multicast

IGMP v2/v3 proxy(V300R015C00)/snooping

MLD v1/v2 snooping

Multicast services through Wi-Fi

QoS

Ethernet port rate limitation

802.1p priority

SP/WRR/SP+WRR

Broadcast packet rate limitation

Security

SPI firewall

Filtering based on MAC/IP/URL addresses

Common O&M

OMCI/Web UI/TR069

Dual-system software backup and rollback

Power Saving

Indicator power saving

Scheduled Wi-Fi shutdown (V300R015C00)

Technical Datasheet



Model HG8247H
WAN Side Port SC/APC
Dimensions
 (L x W x H)  220 mm x 160 mm x 32 mm(without an external antenna)
Operating humidity
 5% RH to 95% RH (non-condensing)
Operating temperature
 0°C to 40°C
Power adapter input
 100–240 V AC, 50/60 Hz
System power supply 11–14 V DC, 2 A

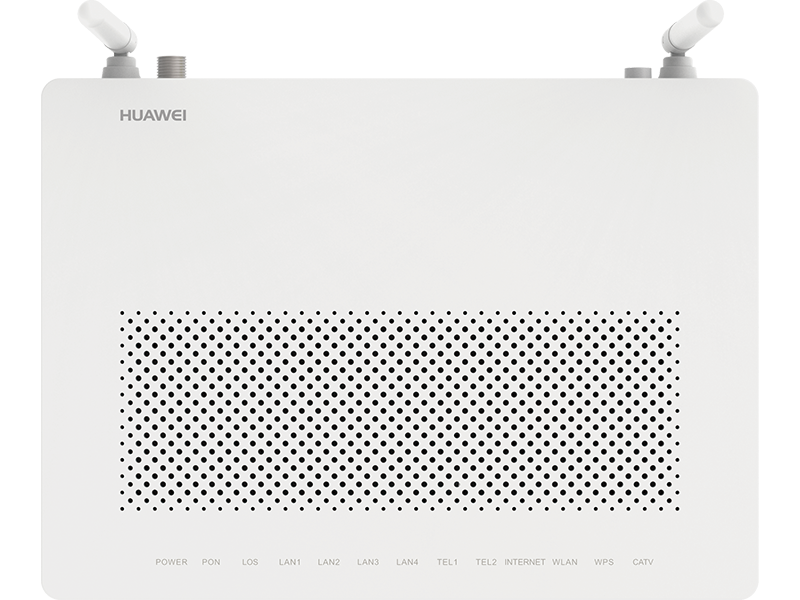

Indicators
 POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

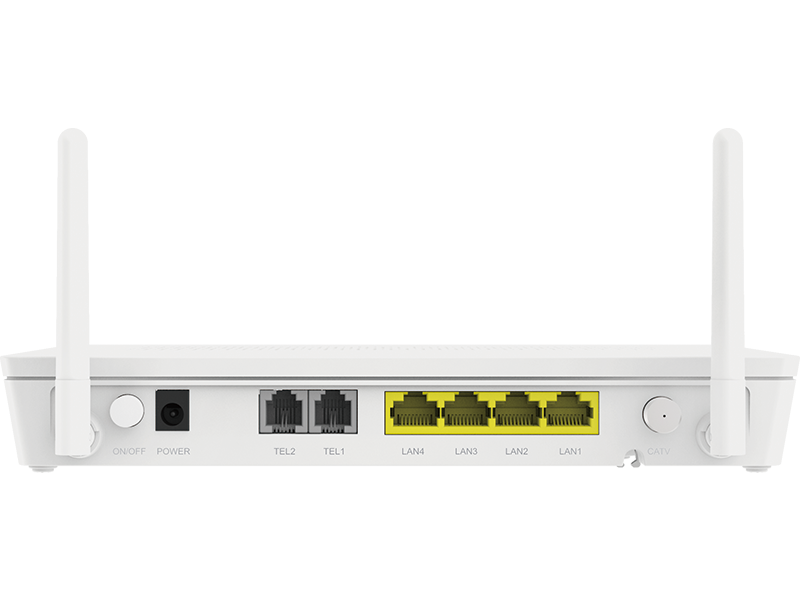

User Side Ports 2POTS + 4GE + CATV + Wi-Fi + USB
Static power consumption
  7.5 W
Maximum power consumption
 18 W
