ZTE ZXHN F663NV3a ONT Overview
Introduction

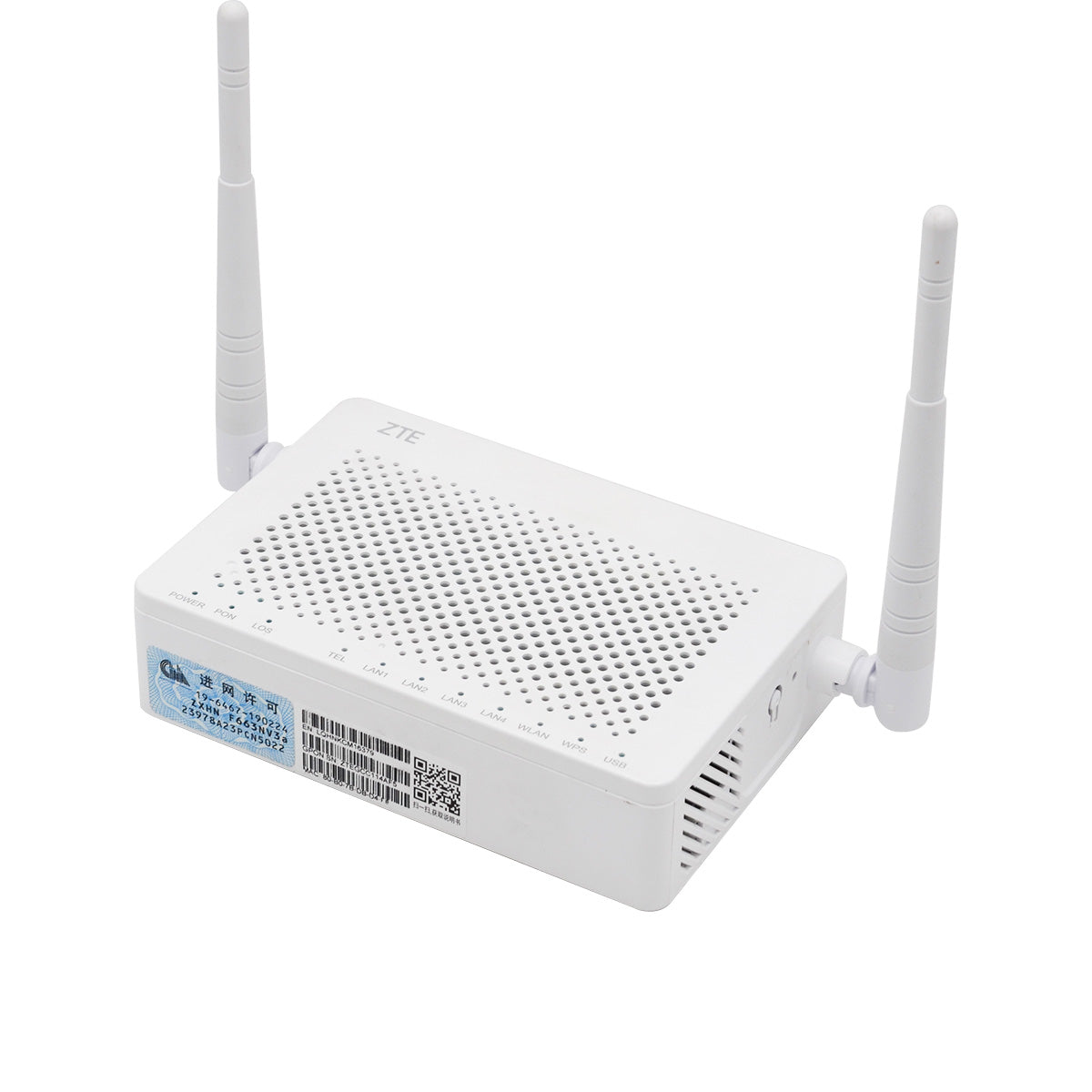

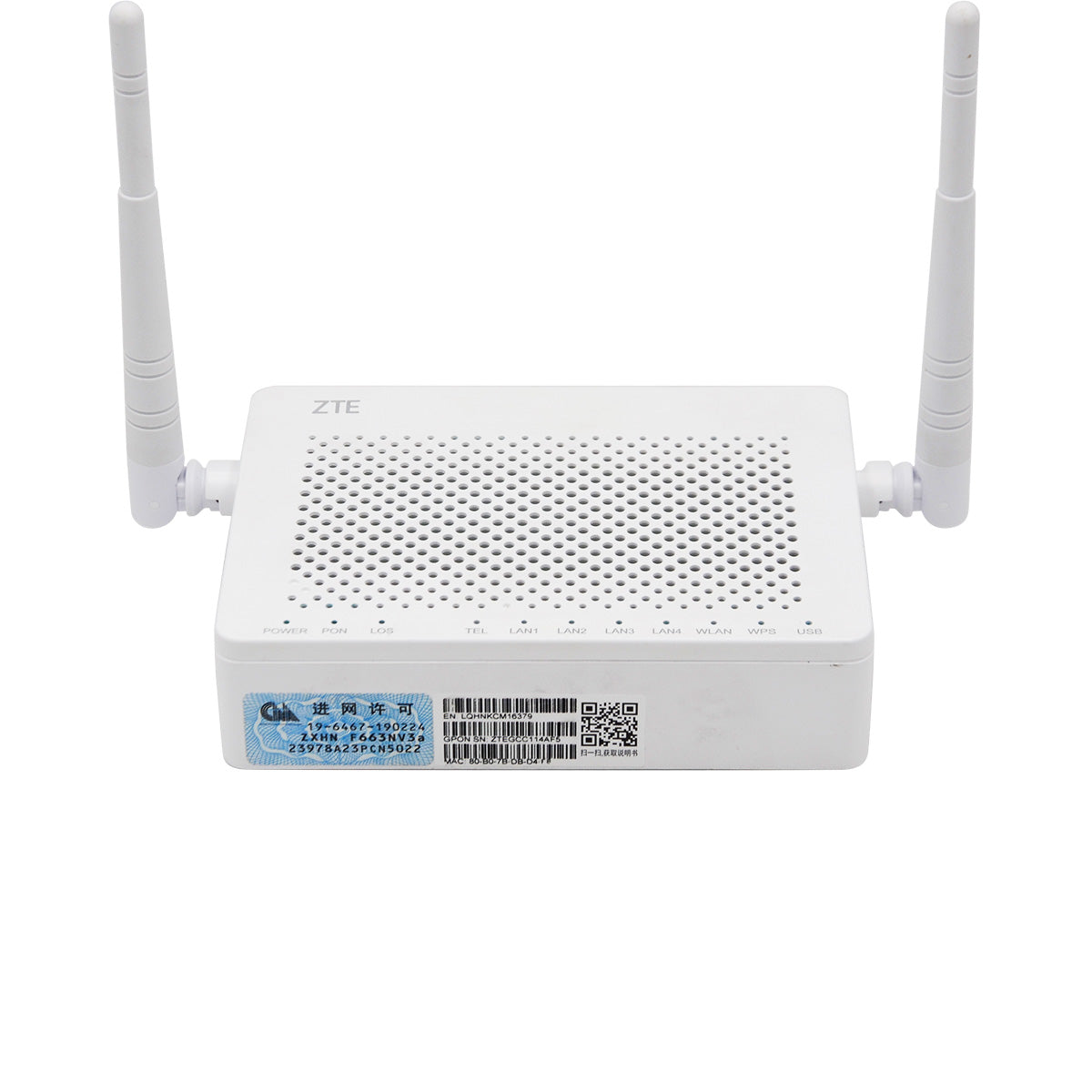

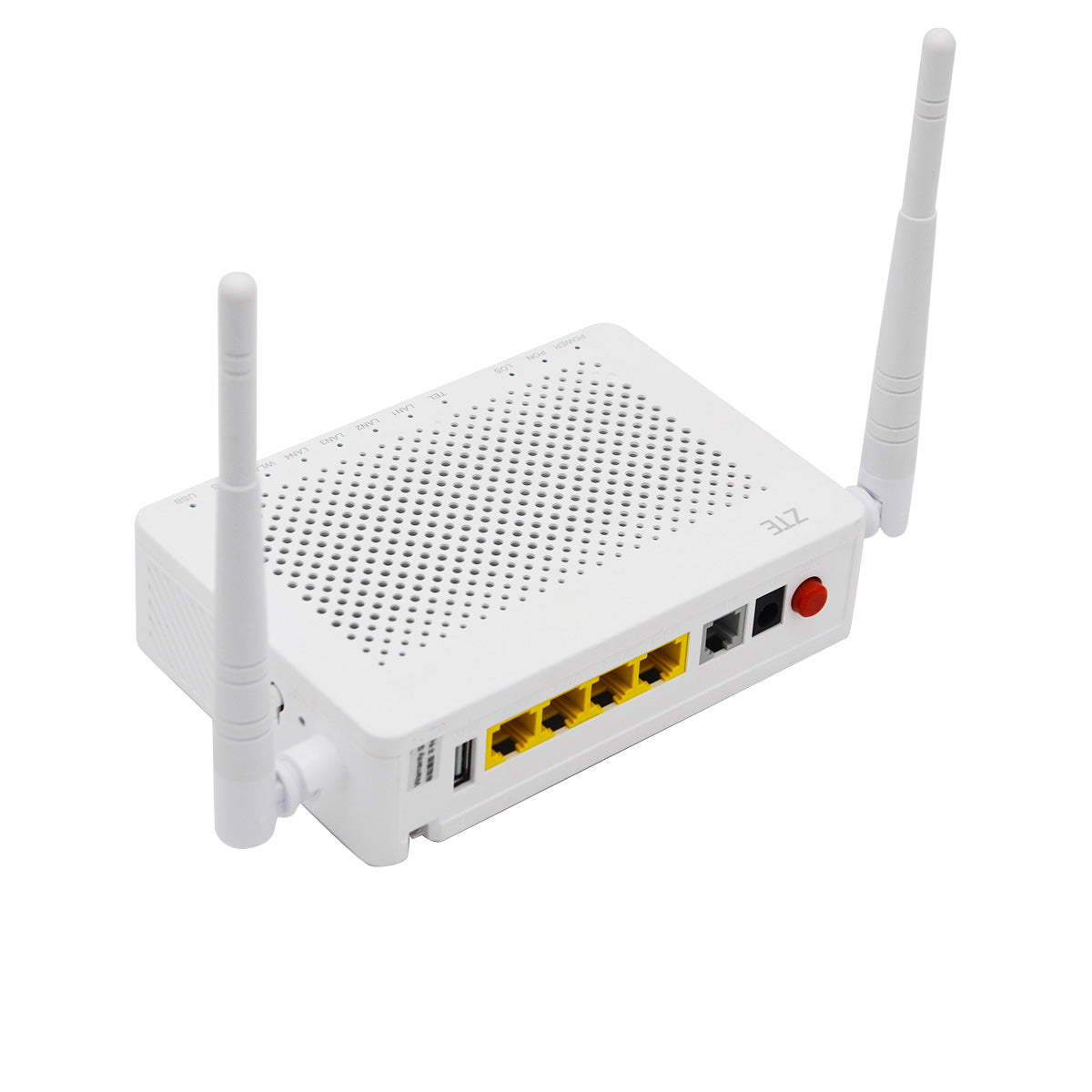

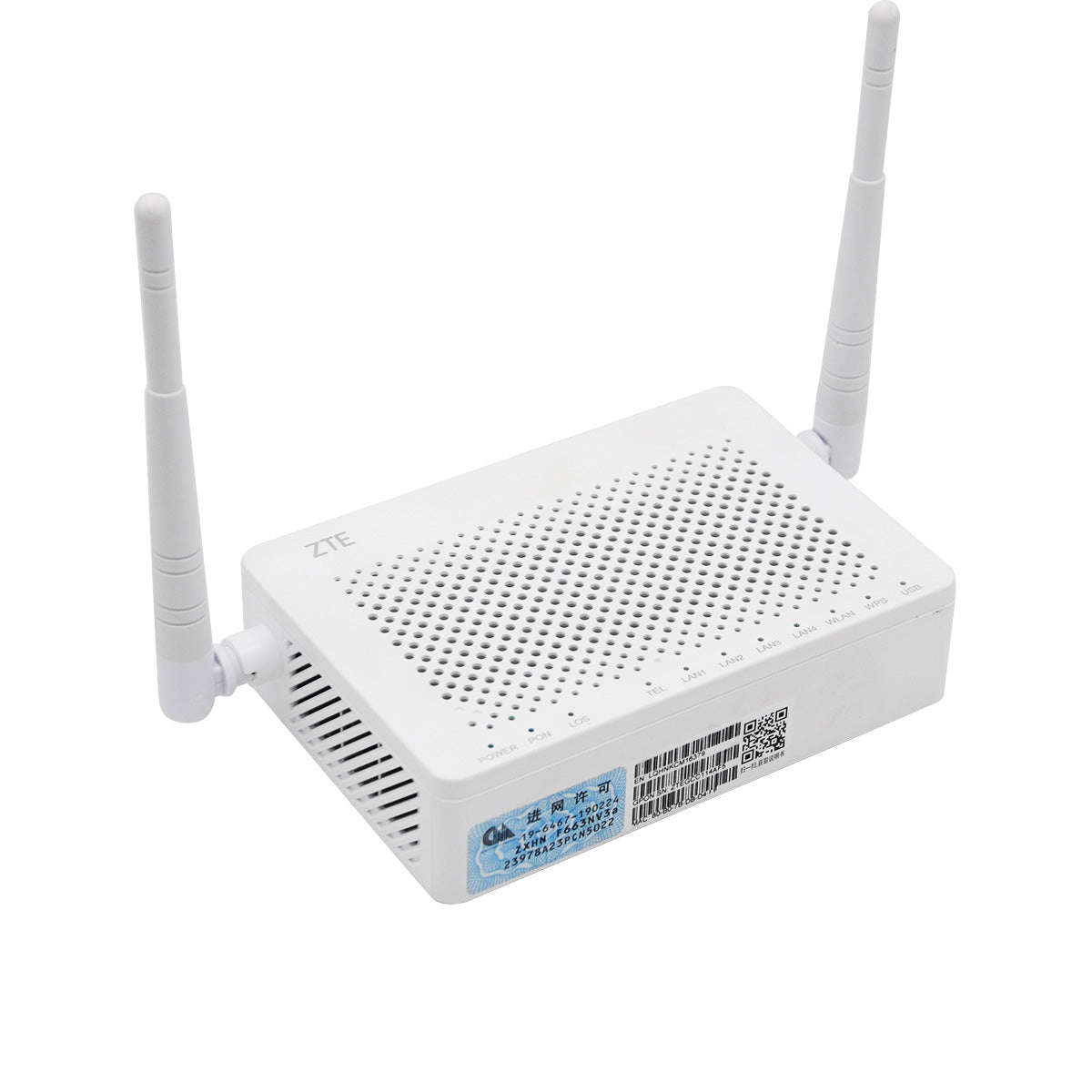

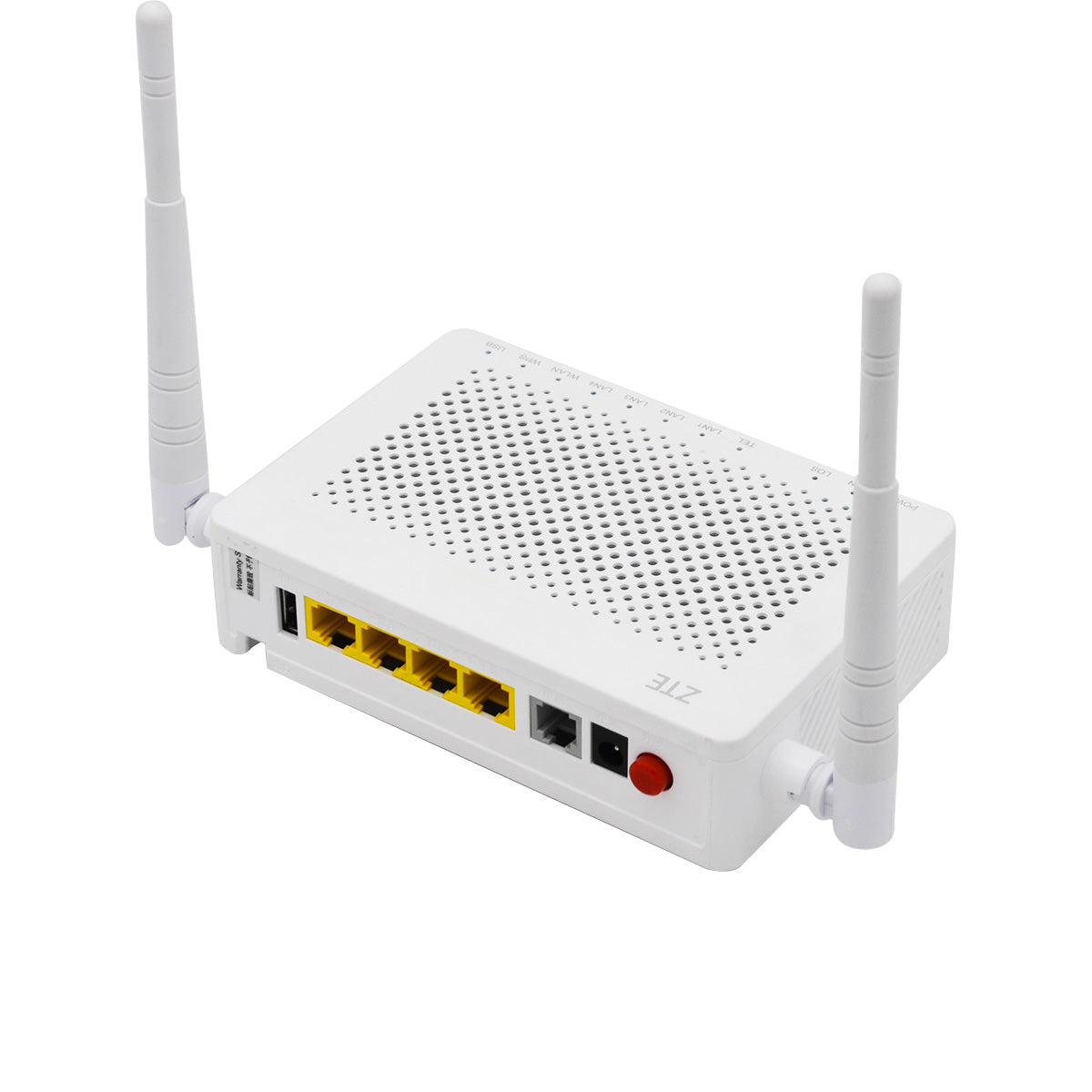

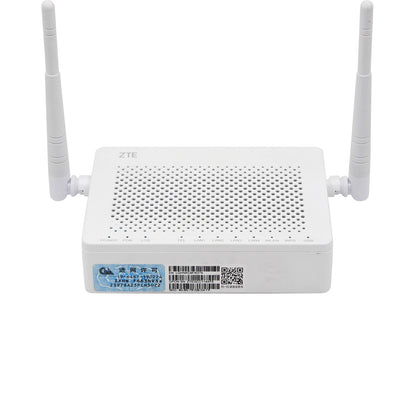

ZTE ZXHN F663NV3a ONT 1GE+3FE+1TEL+1USB+2.4G WIFI Ports
ZXHN F663NV3a provides 1GE and 3FE Ethernet ports, one TEL port, and one USB port, 2.4G WIFI supported.
The ZXHN F663NV3a is a single-band economical smart gateway that uses a new generation of self-developed chips, is equipped with an intelligent operating system, supports dynamic loading of plug-ins, and provides users with rich home services; stable wireless performance provides smooth Wi-Fi for the family; and a unique open application platform creates a smart home application ecosystem dominated by operators and centered on users.
Technical Datasheet
Technical items | Descriptions |
Model | ZXHN F663NV3a |
Fiber interface | SC/UPC |
Fiber port | 1 GPON interface, 1GE+3FE+1POT+1USB+WIFI,SC single-mode, |
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps | |
Wavelength | Tx 1310nm, Rx 1490nm |
Voice protocol | SIP, H.248 |
RX sensitivity | <-27dBm (1490nm) |
WLAN | IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI, external antenna |
Net weight | ≤0.6Kg |
Configuration method | NMS, Web, or TR069 |
Power | ≤8W |
DC power | Adapter input: 100-240 V AC, 50 – 60 Hz ; |
Adapter output: 11 – 14 V DC, 1 A | |
Button | Reset, power |
Operation | Working temperature: -0-+40℃ |
working humidity:5-95%(non-condensation) | |
Dimension | 250*220*65mm(length*width*height) |
L2 forwarding capability | Forwarding packets of any length at wire speed |
IPv4 L3 forwarding capability | 2Gbit/s with any length packets in the downstream direction |
1Gbit/s with any length packets in the upstream direction | |
IPv6 L3 forwarding capability | 2Gbit/s with any length packets in the downstream direction |
1Gbit/s with any length packets in the upstream direction | |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
