FTTH OR16 Optical Receiver

$0.00
$0.00
Availability: In stock
Tags:
Collections:
HuaTelecomFTTH OR18B Optical Receiver
WS-FTTH-OR18B-1
WS-FTTH-OR19P-1
HuaTelecomOR19P Passive Mini Optical Receiver
WS-FTTH-OR16-1
$0.00
$0.00
Hardware Description
Introduction

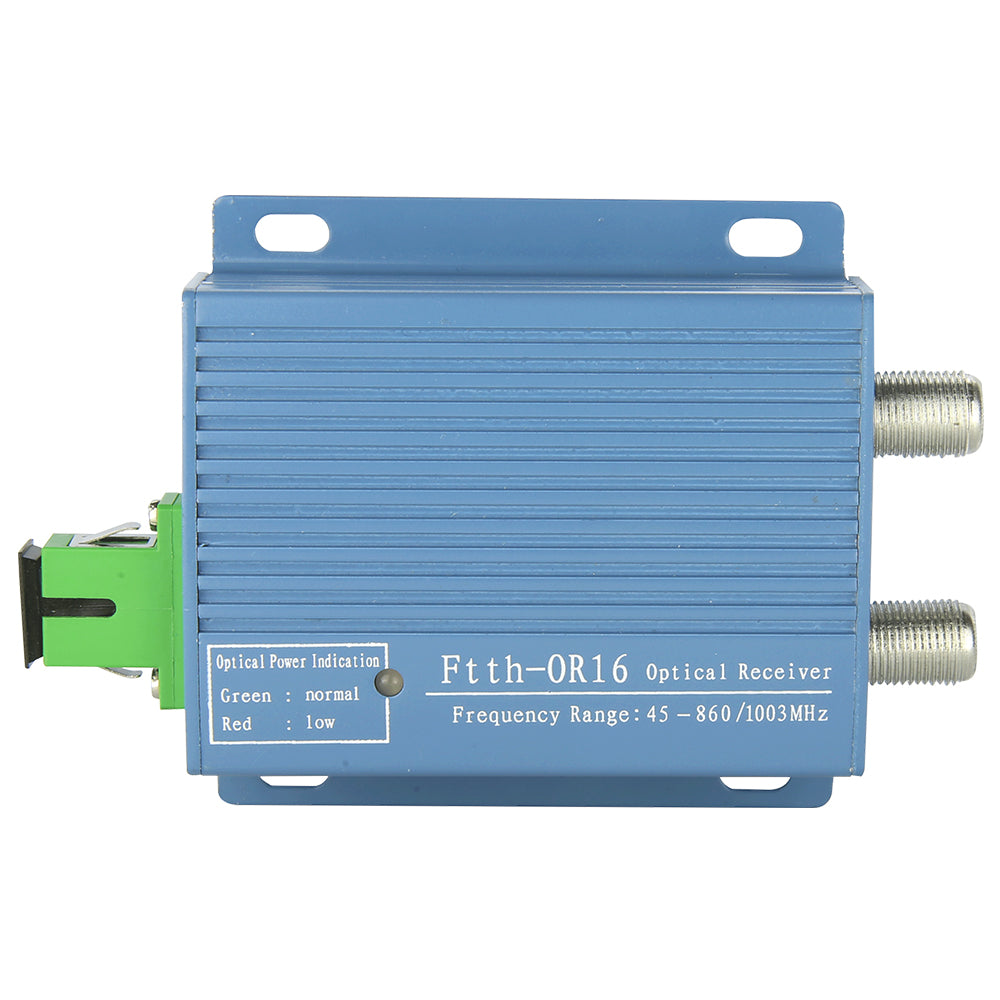

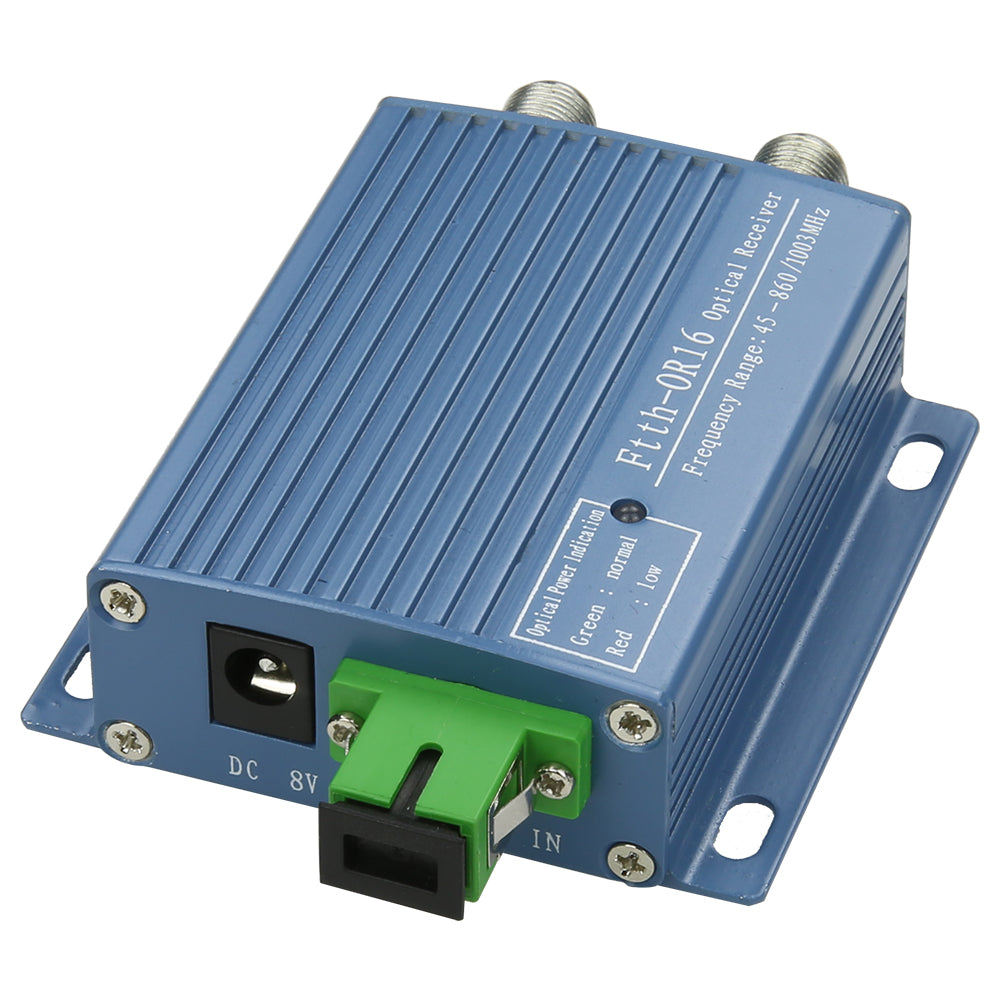

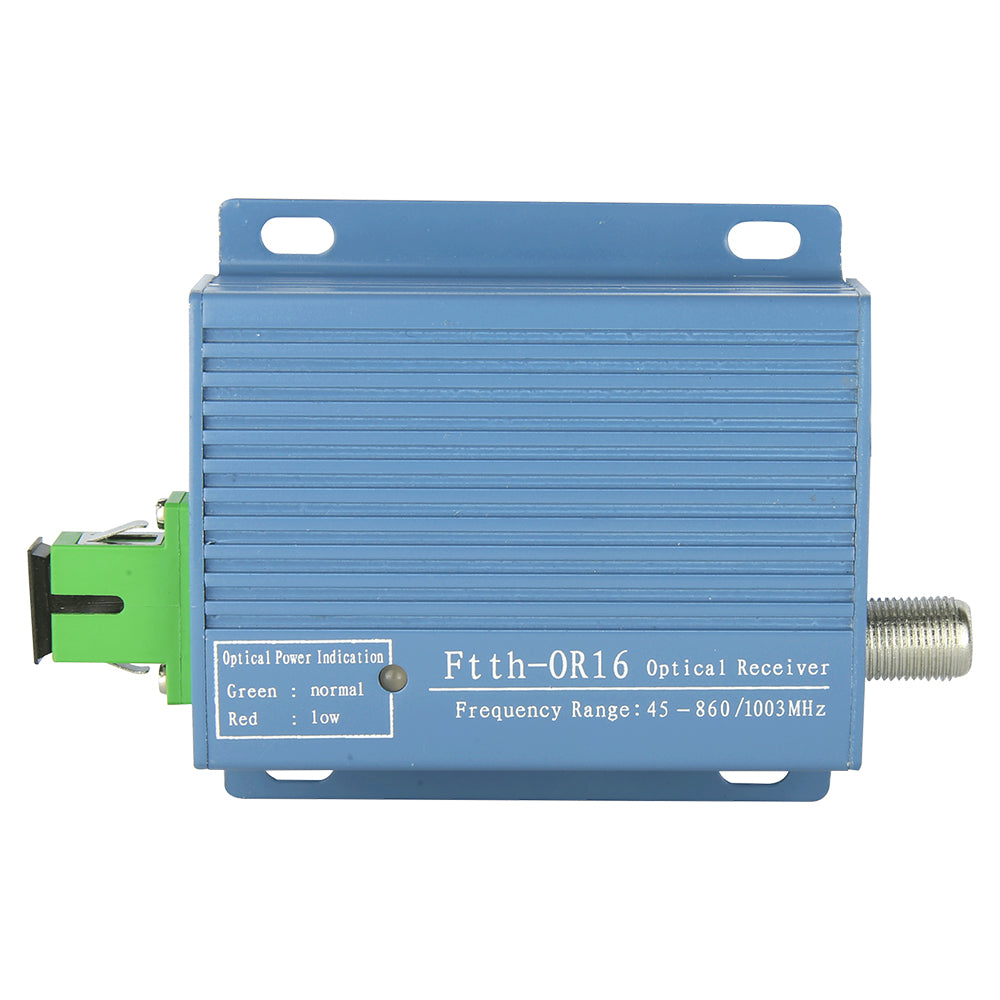

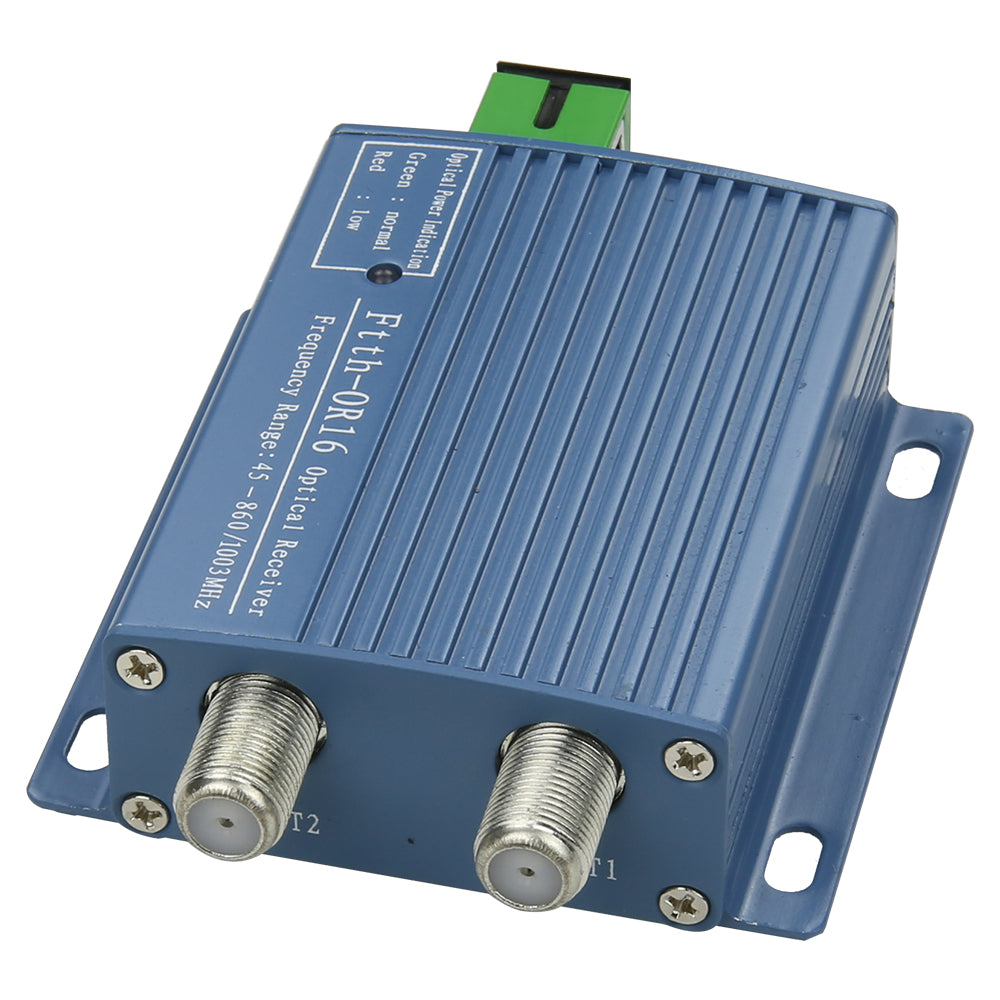

CATV FTTH OR16 Optical Receiver.
FTTH optical node is specifically designed for CATV FTTH network. Its main feature is low powerconsumption, optical input -3~-12dBm(AGC range can be customizable), optical constant level output, smallVolume and high reliability. Adopting aluminum casing, compact structure and external modular power supplymake the installation and debugging very convenient. It is an ideal product to build FTTH CATV network.
OR16 Performance Characteristics
  • Aluminum casing with good heat dispersion.
  • Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach.
  • AGC control range -3~-12dBm, output level keeps unchanged.
  • Low consumption design and total consumption ≤3w, high reliable switching power supply.
  • supply with optical inspection circuit.
  • SC/APC or FC/APC optical connector
  • Realize the 8V input port feeding way of power supply.
Technical parameters of the OR16

Item

Unit

Paramter

Remark

Optical wavelength

(nm)

1100~1600&1550



Optical input range

(dBm)

0~-10

Analog TV





0~-15

Digital TV

Output return loss

(dB)

≥45



Bandwidth (MHz)

MHz

47~862&1000MHz



Flatness (dB)

dB

±1



RF output level

(dBuv)

≥80dBuv（1 port）

≥76dBuv（2ports）

Pin: -3~-12dBm

AGC range

(dBm)

-3~-12



Output return loss

(dB)

≥14

Pin: -3.0~-12.0dBm

Output impendance

(Ω)

75



CNR (dB)

dB

≥51

47-1006MHz

CTB (dB)

dB

≥65



CSO (dB)

dB

≥62



Power supply (V)

V

AC110V or AC220V or customized



Power consumption

W

≤3



Operating temperature

(℃)

-20~+60



Dimension

mm

105*67*24
