Hardware Description
Introduction

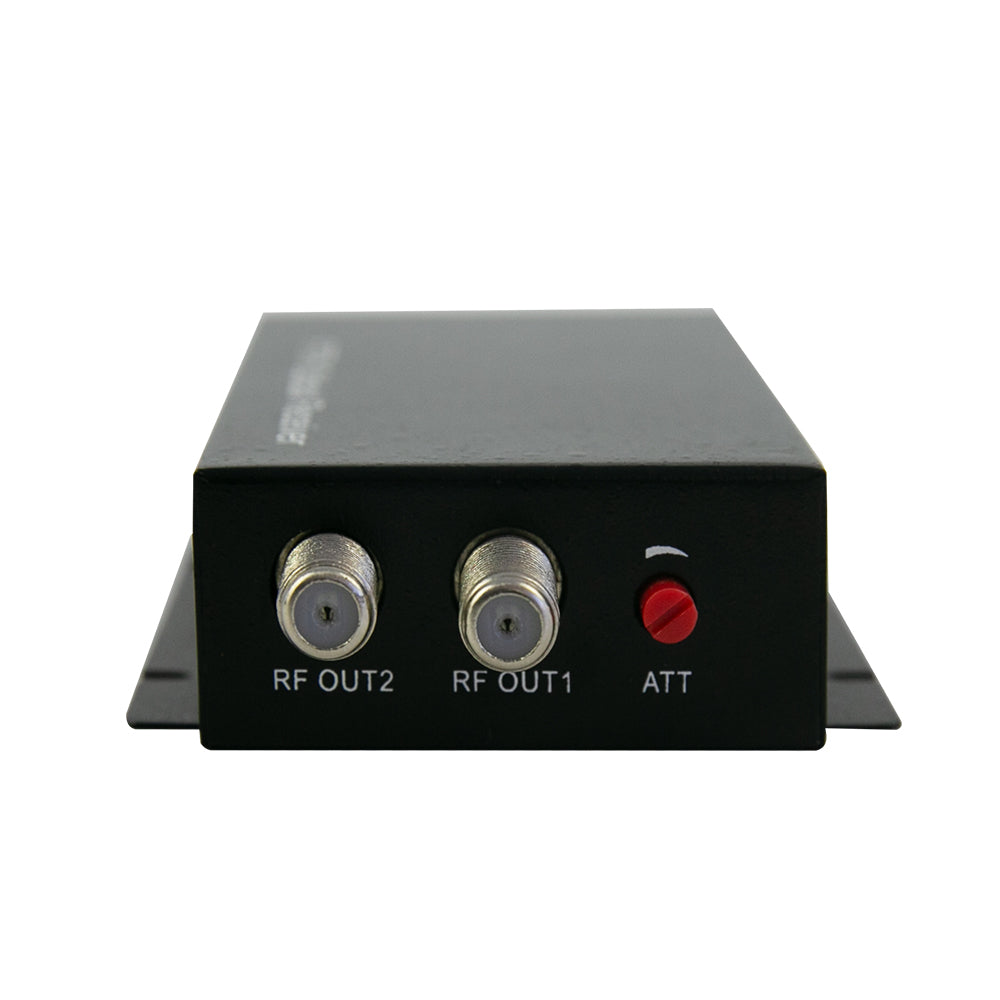

CATV FTTH OR20 Optical Receiver.

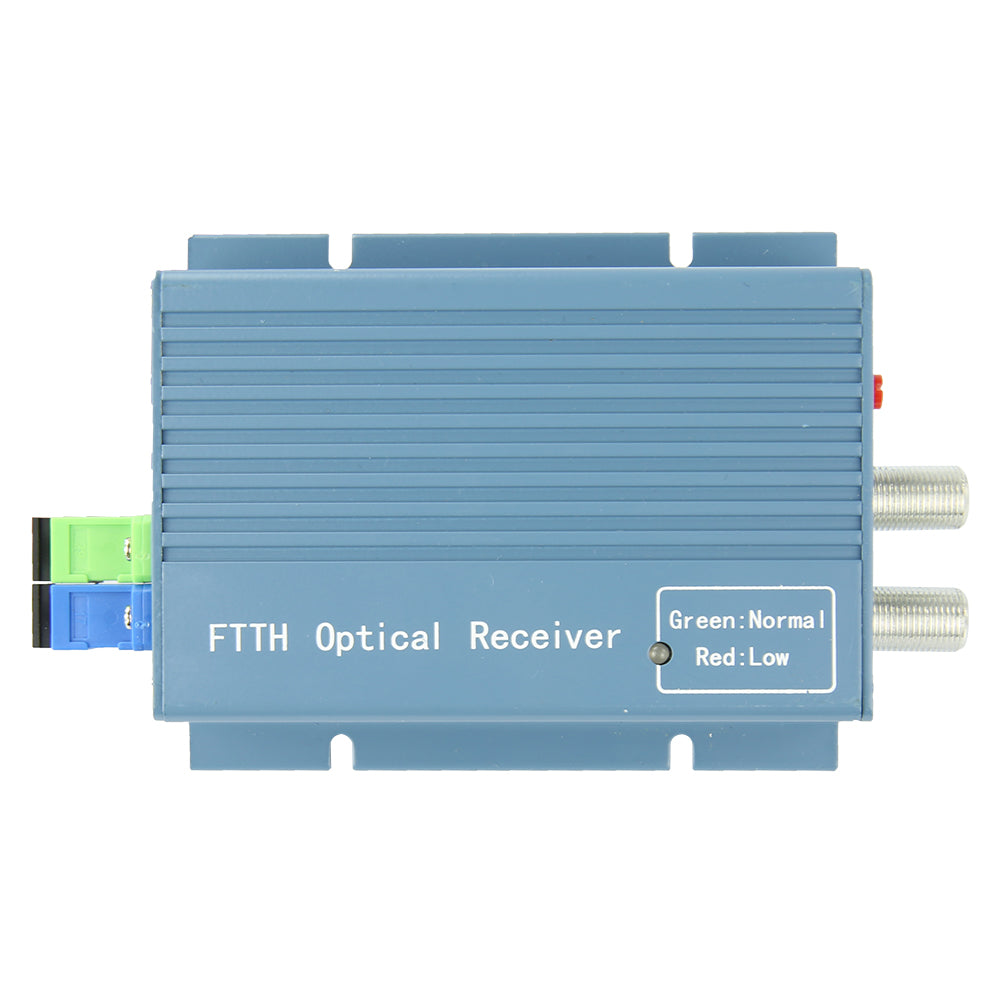

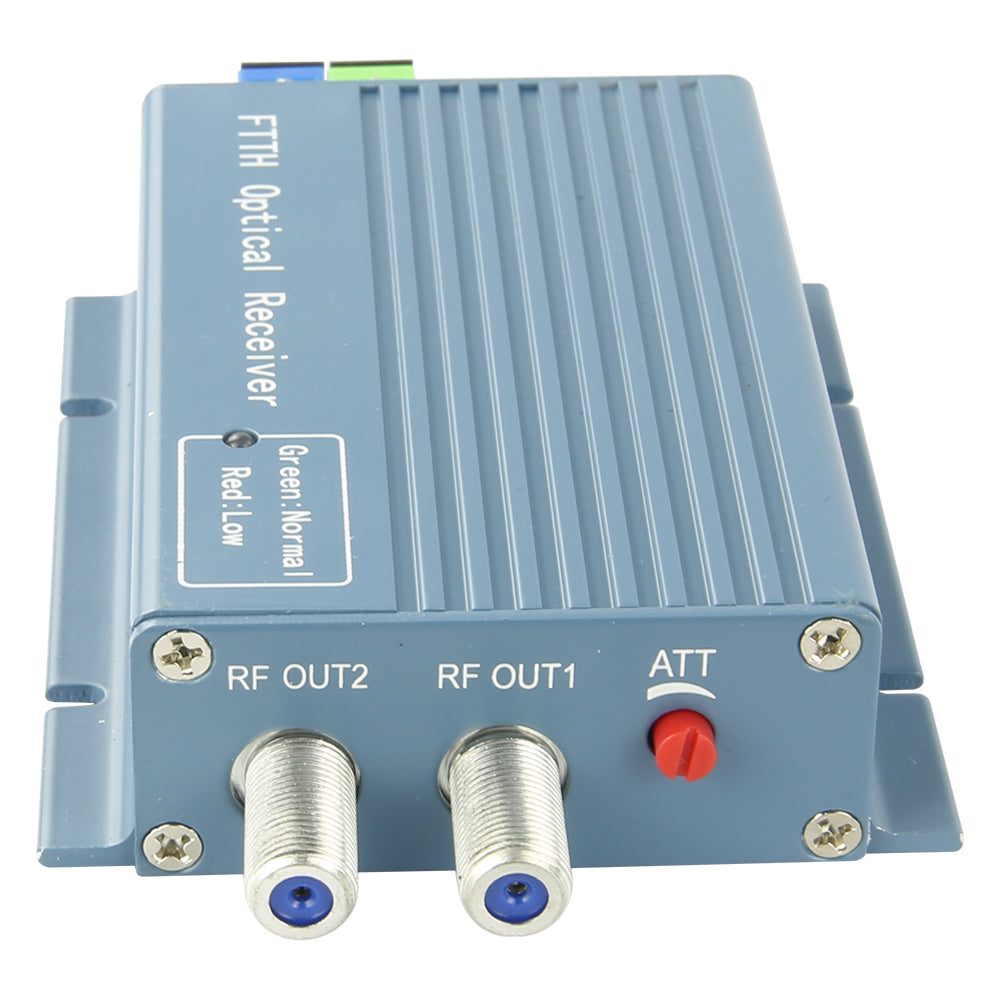

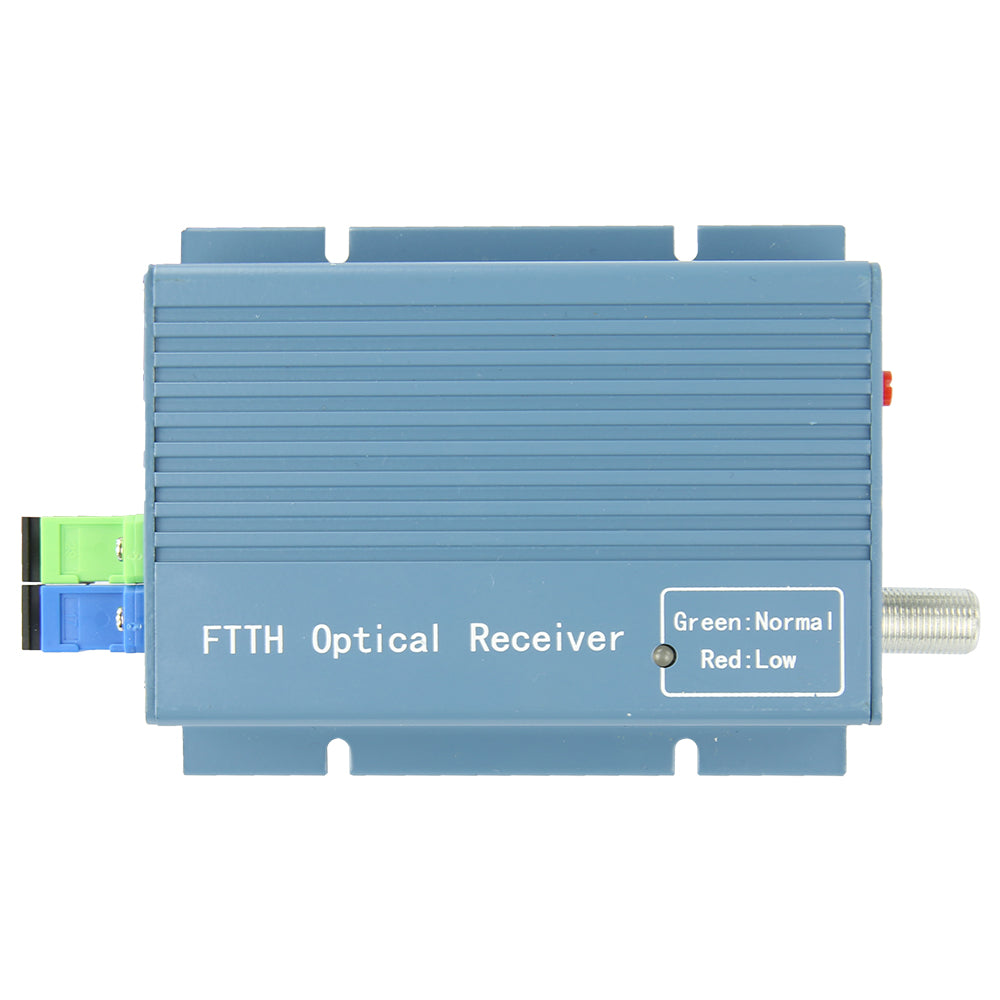

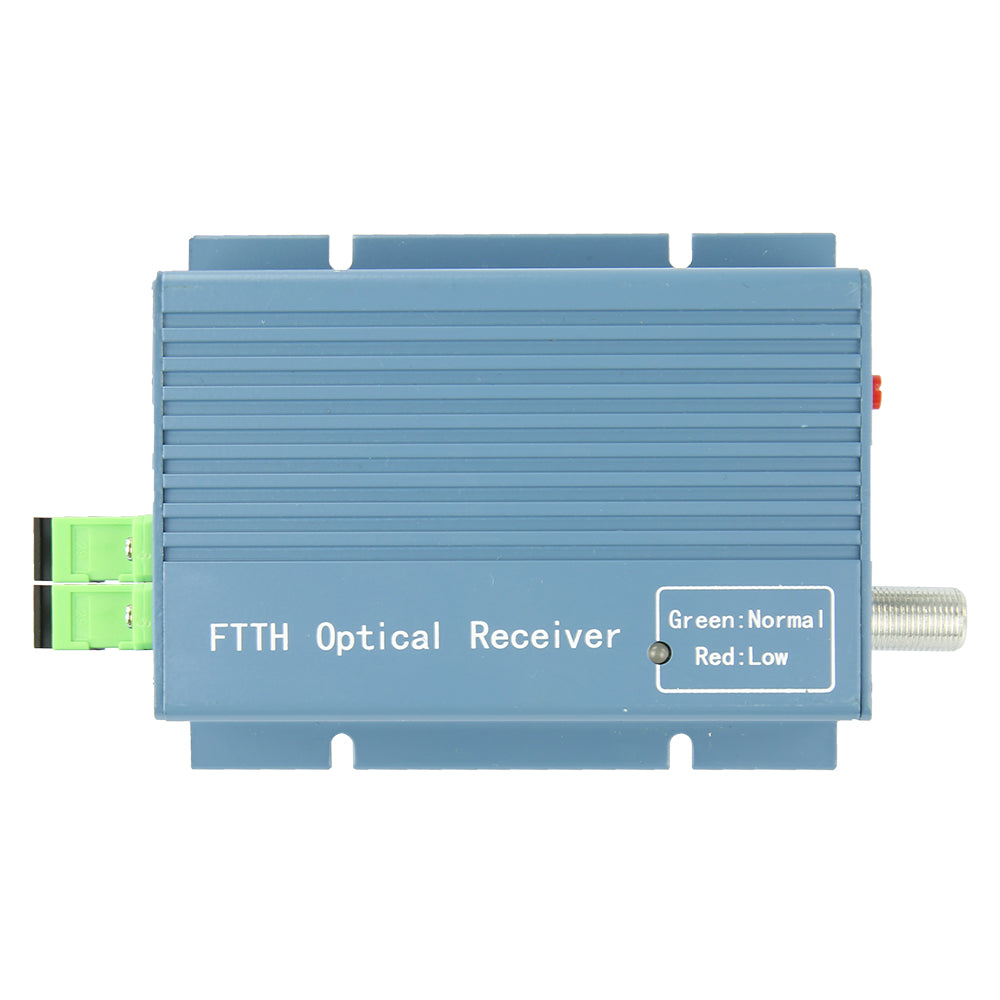

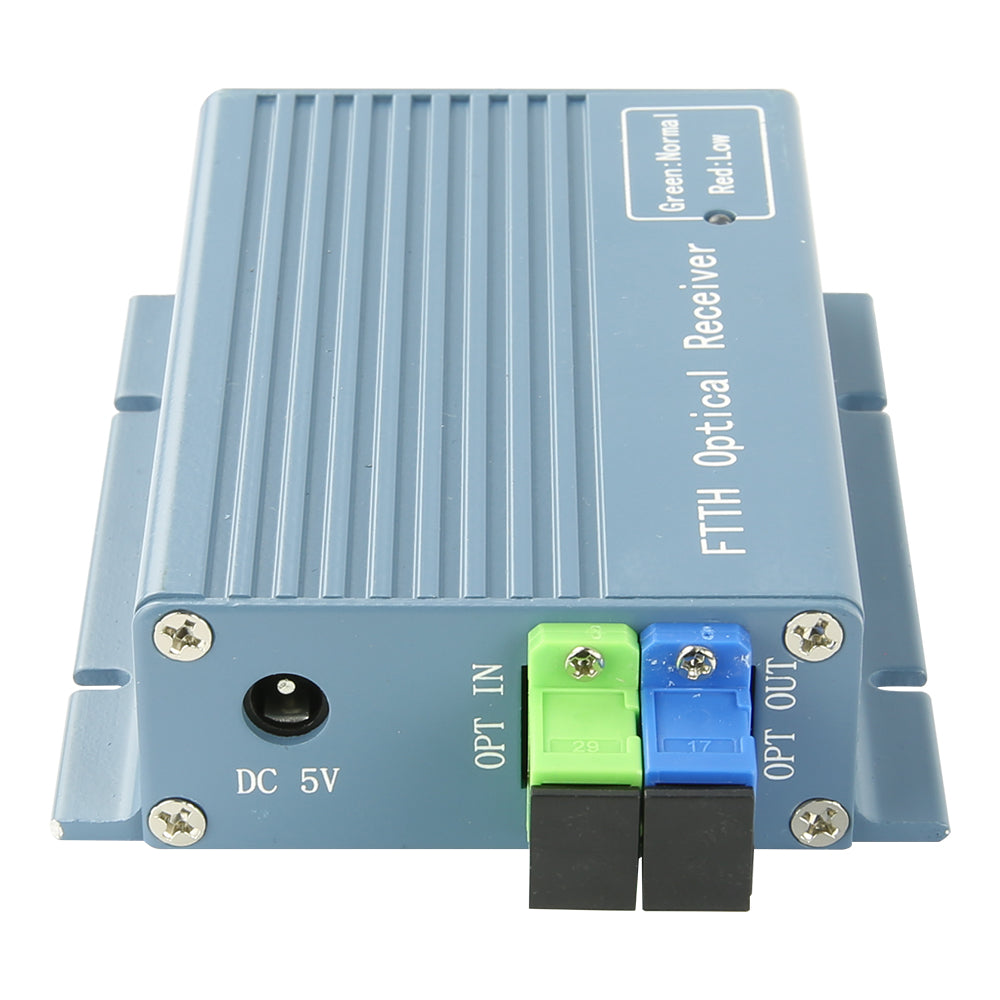

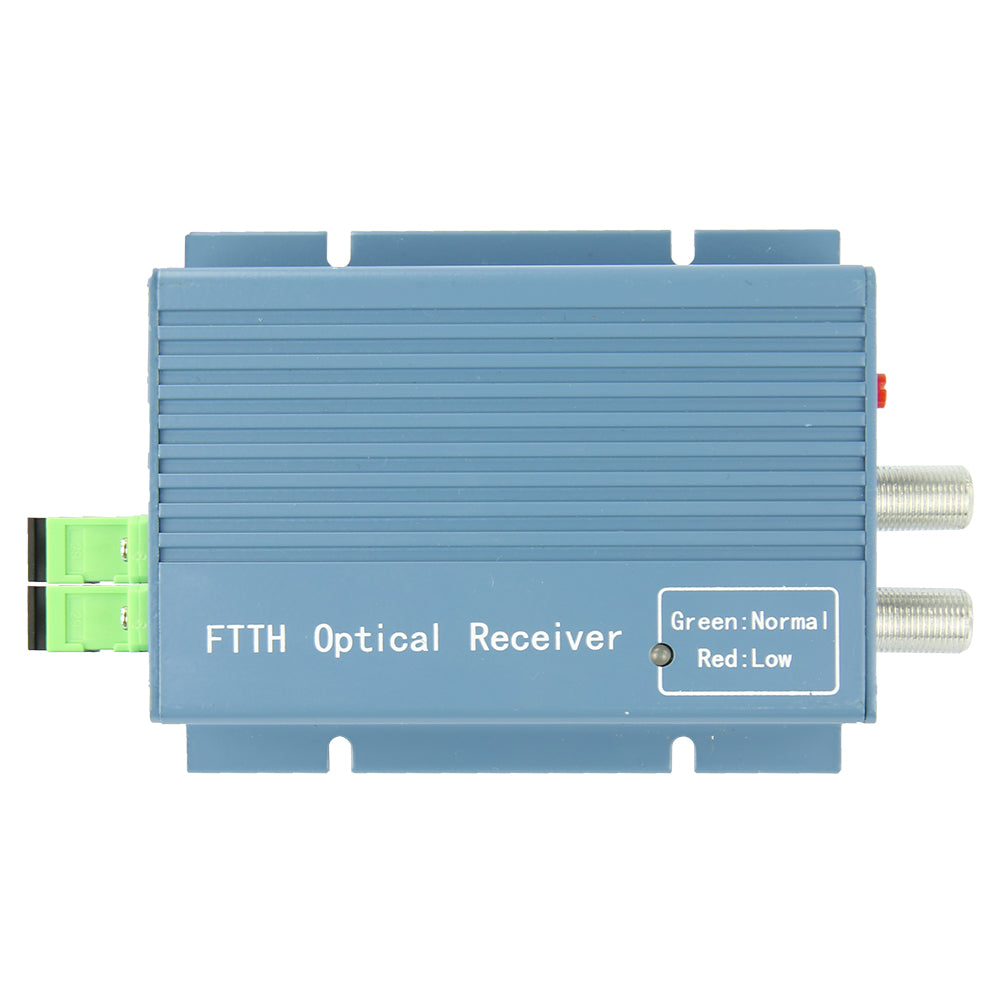

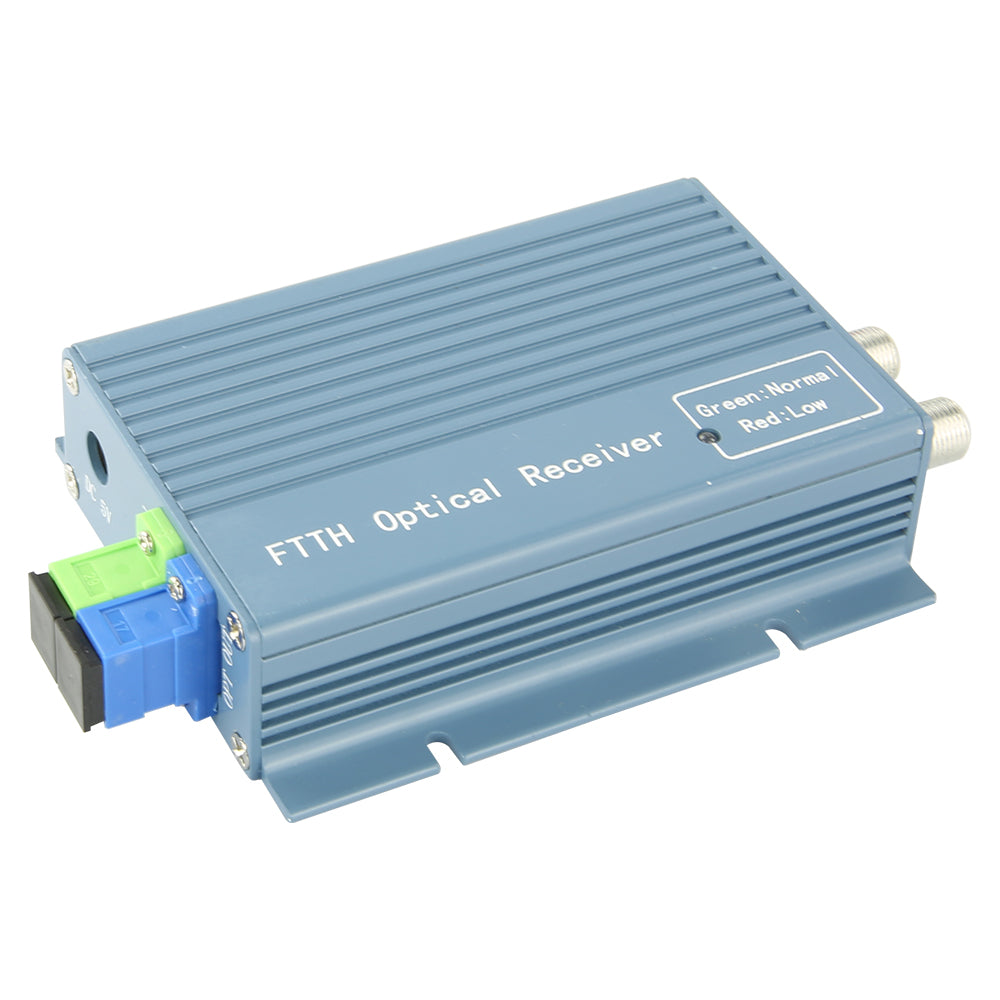

The FTTH-OR20 optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fibre to the home) network fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can increase WDM and achieve triple play.

OR20 Performance Characteristics
  • High-quality aluminum profile shell with good heat dissipation.
  • RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -15dBm reception and the analog signal satisfies -10dBm reception.
  • With light input AGC function (AGC range can be customized).
  • Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 2W, with a light detection circuit.
  • Can be built-in WDM, single-fiber home (1490/1310/1550nm) triple-network convergence applications.
  • Built-in optical isolator, input to achieve 1490/1310nm isolation.
  • Multi-stage lightning protection devices (TVS TVS diodes) and lightning protection systems ensure the safe operation of the equipment.
  • SC/APC or custom optical connectors, male or female RF interfaces.
  • Output power supply can be achieved.   Single or dual output can be achieved.
OR20 Model guide
FTTH-OR20 series light collection product nomenclature: PIN tube of this product only uses pigtail style, and can add WDM.
FTTH-OR20-Into the Optical Connector-RF Connector Number + Format-Photocell Type-Wavelength-Wave Tap（Black box is not written when order is not required）.
  • Wave tap joint form (with light fitting)
  • With WDM or not (W: with WDM; without WDM, without any indication
  • Photocell type (5: only receive 1550nm, normal type does not display
  • Connector number + form (not filled：single；2：dual port；male：M female：F optional
  • Optical in（SA:SC/APC;FA:FC/APC;SP:SC/PC;FP:FC/PC；optional）
Technical parameters of the OR20

Technical parameters

FTTH-OR20

Received wavelength

1100~1600nm&1550nm

Input optical power

0dBm~-10dBm(Analog)&0dBm~-15dBm(digital)

Optical reflection loss

＞45 dB

Optical connector form

SC/APC&SC/PC

Frequency Range

47~1006MHz

In-band flatness

±1dB@47~1006MHz

RF output reflection

≥16dB@ 47~550MH ;≥14dB@1006MHz

Output level

≥80dBuV(1 port)   ≥76dBuV(2 port)

Output port number

1 or 2

RF output impedance

75Ω

AGC range

-3dBm~-12dBm

Carrier to Noise Ratio (Note1)

≥51dB

CTB (Note 1)

≥65dB

CSO(Note 1)

≥62dB

Host voltage

DC5V

Adapter voltage

AC110V orAC220V or customized

Operating temperature

-20℃~+55℃

Power consumption

＜2W

Product net size

129×79×26mm

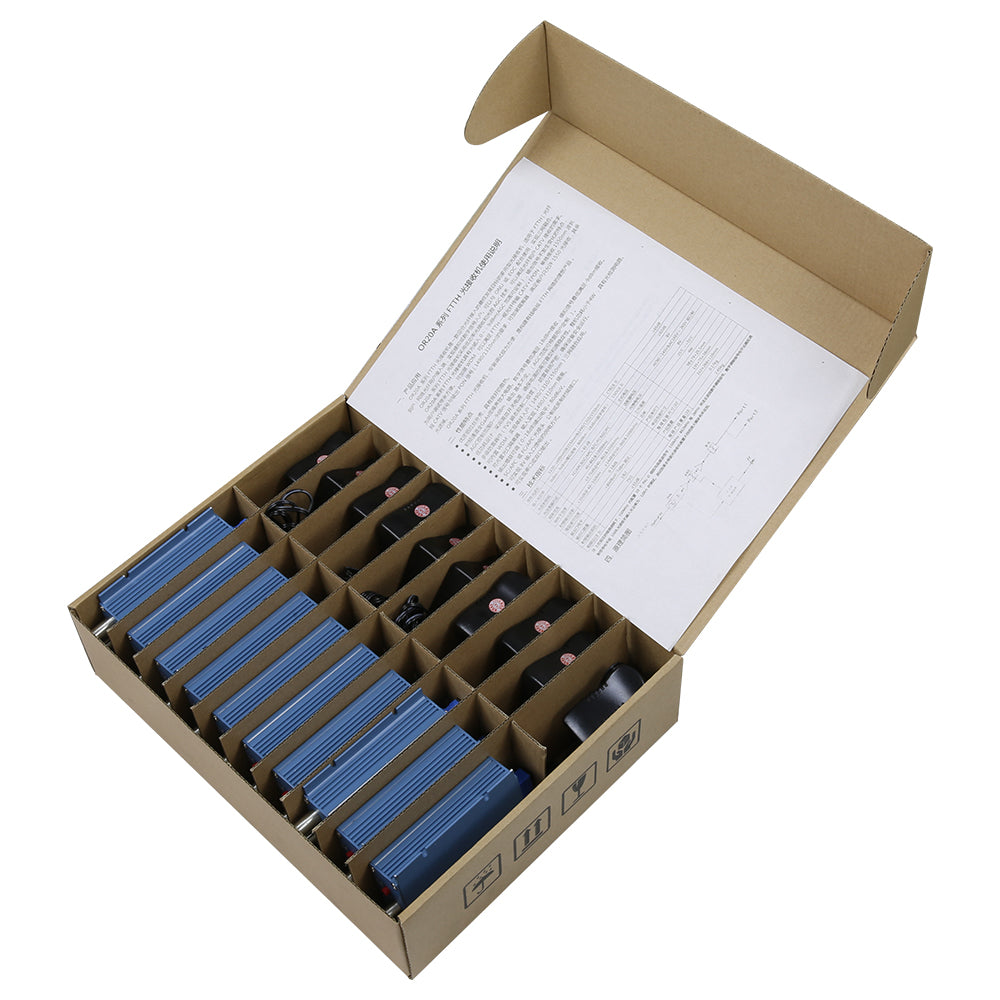

10 pack sizes

313×245×83mm

FCL packaging size (100)

500×440×345mm

Product net weight

0.17kg
