Hardware Description
Introduction

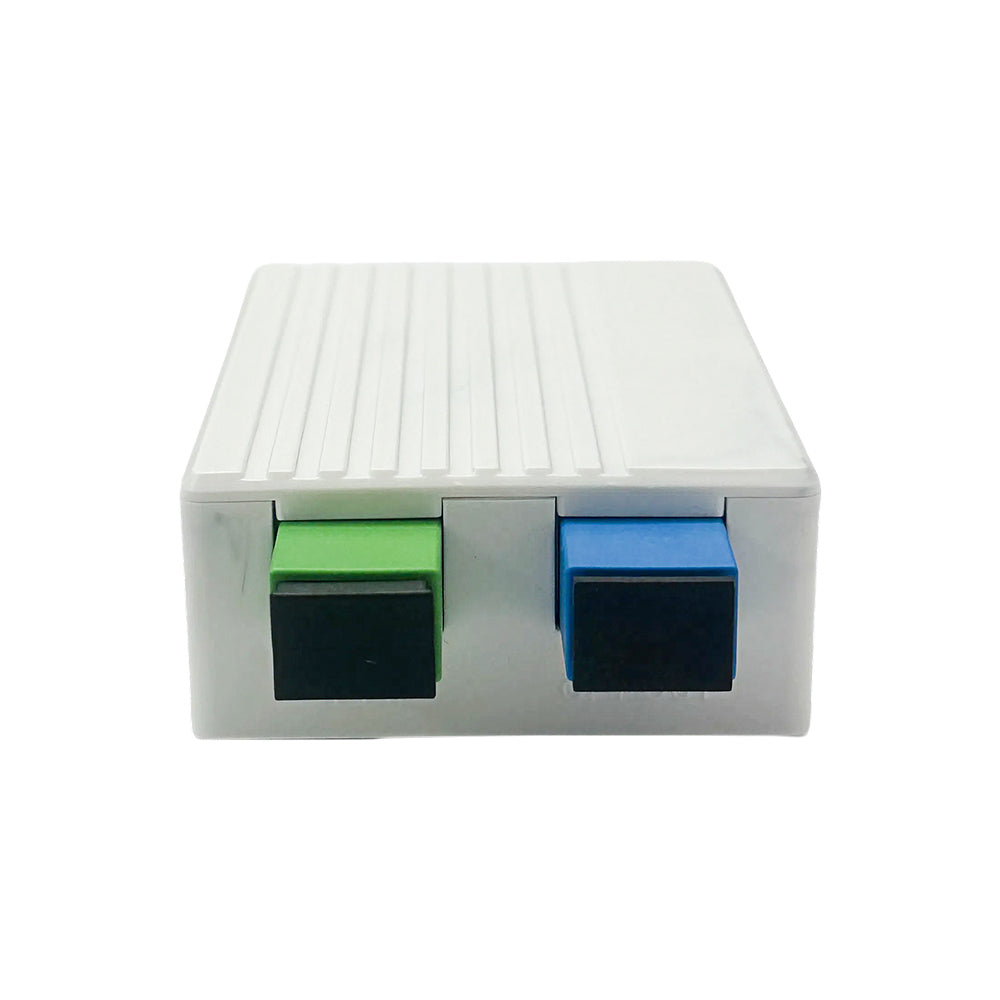

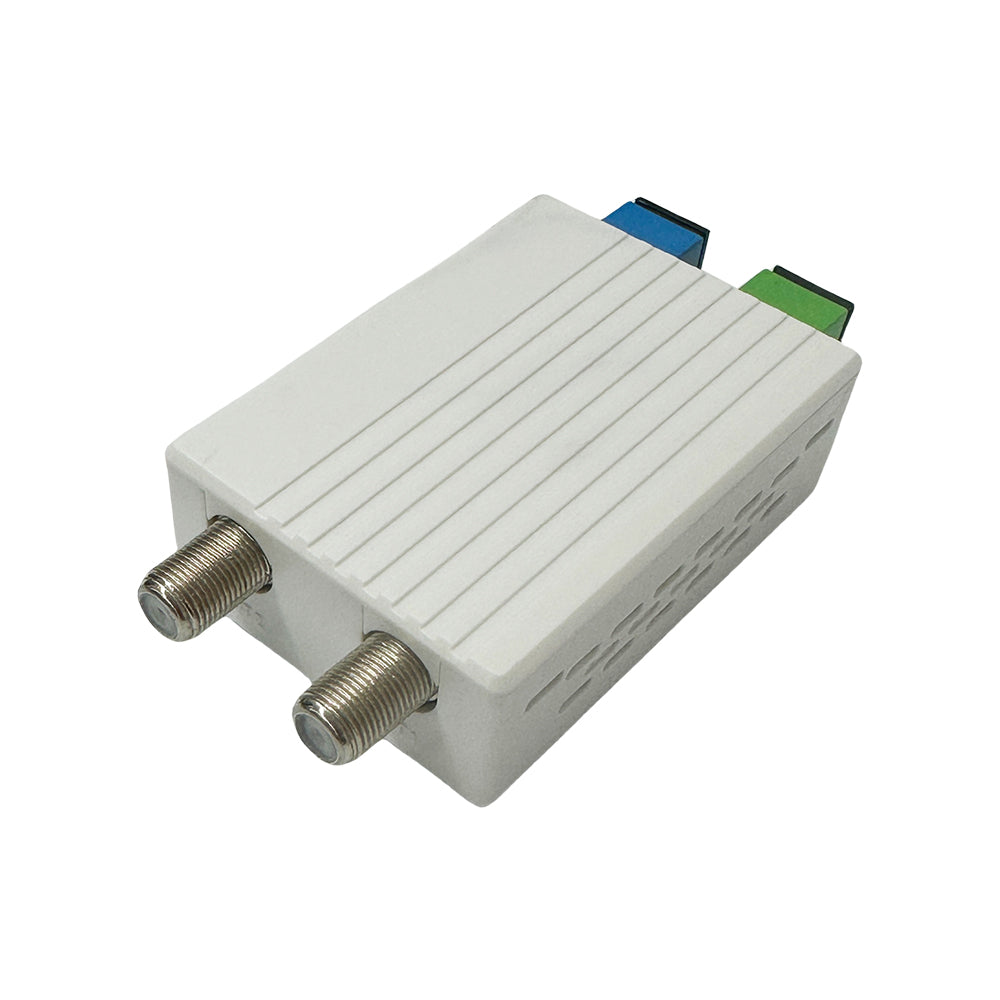

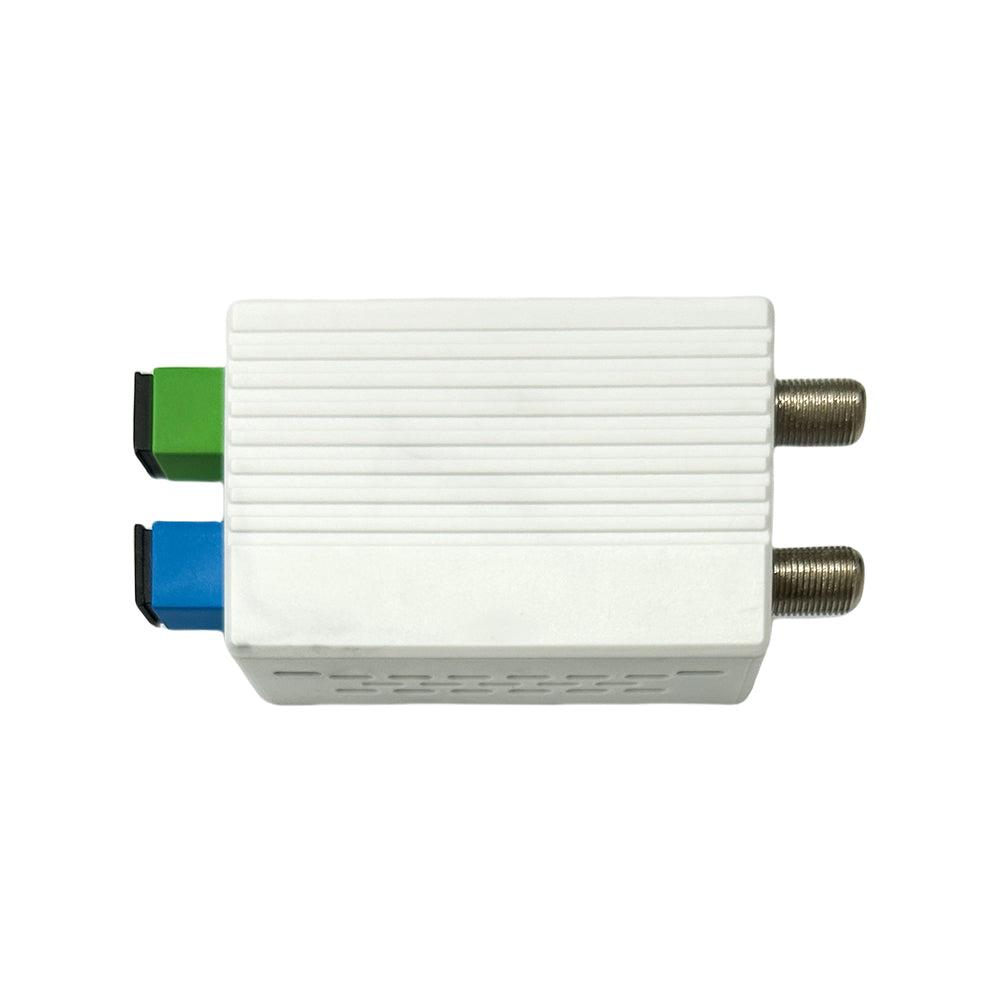

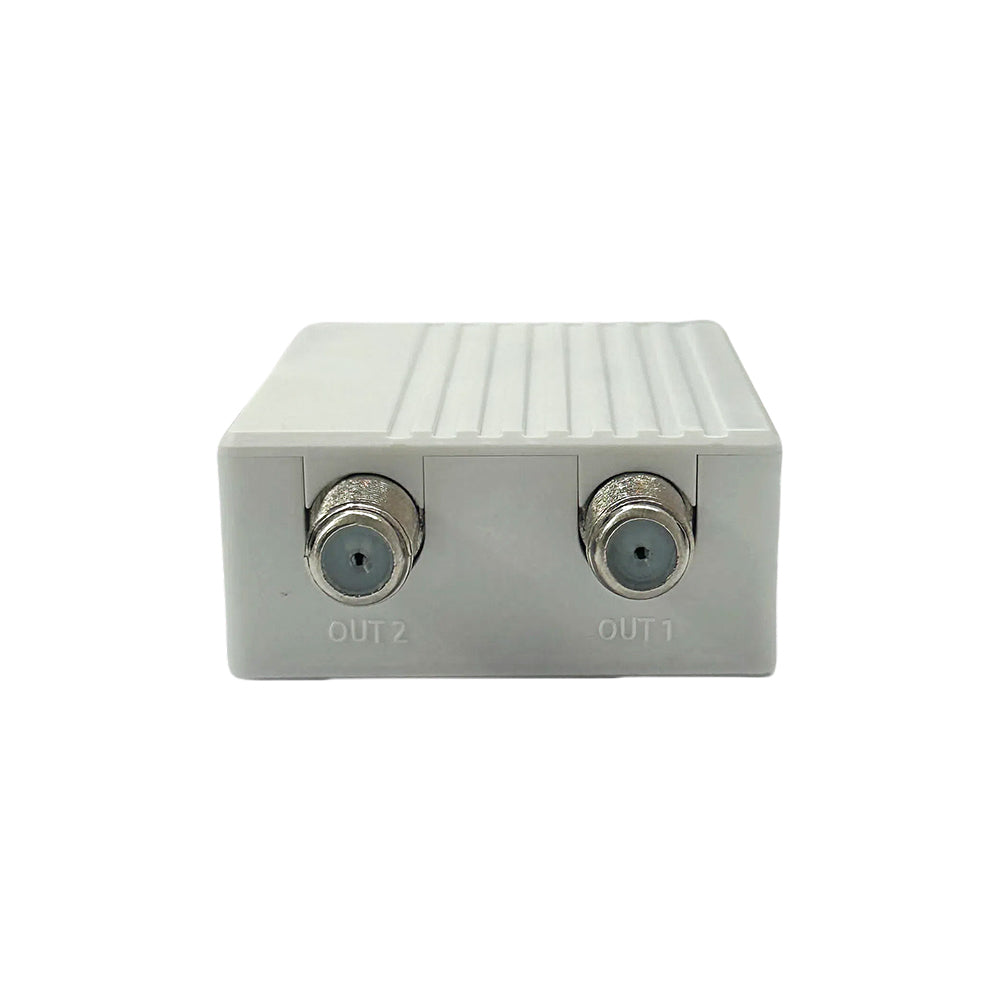

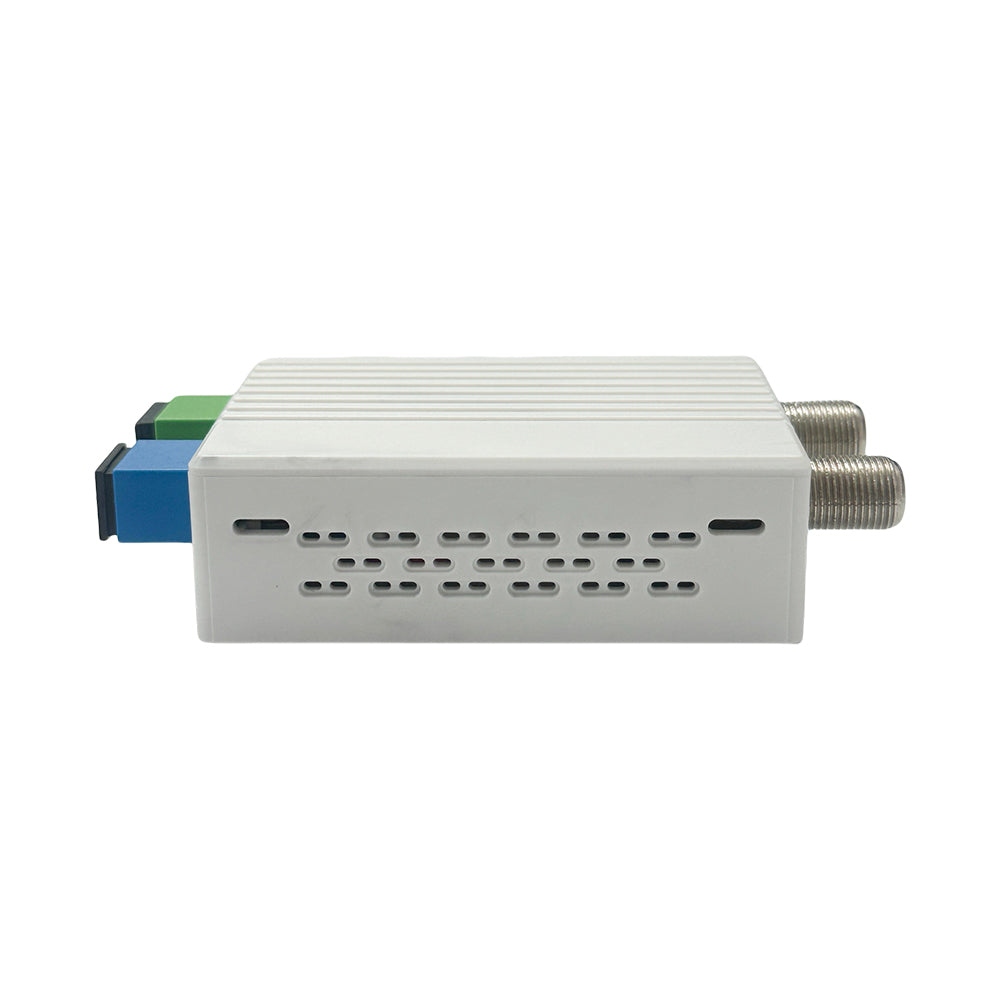

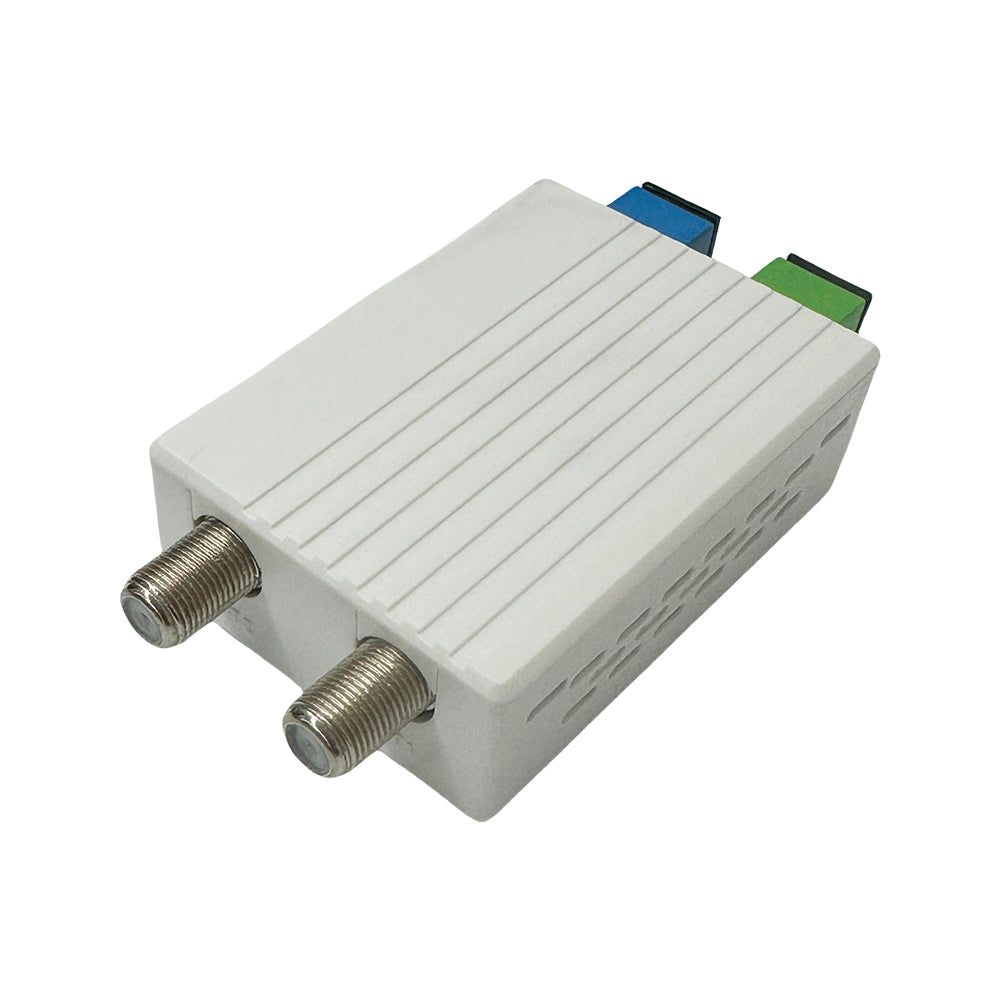

OR18P Performance Characteristics
- It features a high-quality plastic casing with through holes on both sides, providing excellent heat dissipation.
- The input power range is +2 to -10 dBm.
- No power supply, no power consumption
Technical parameters of the OR18P
class |
OR18P |
RF output port level |
|
operating wavelength |
CATV 1550nm PON 1310/1490nm |
Number of RF output ports |
1 or 2 |
Input optical power range |
+2dBm~-10dBm |
RF output resistance |
75Ω |
return loss |
≥55dB |
Signal-to-noise ratio (Note 1) |
≥51dB |
Form of optical connector |
CATV: SC/APC PON: SC/PC |
CTB (note 1) |
≥65dB |
frequency range |
40~1006MHz |
CSO (note 1) |
≥62dB |
Flatness in the band |
±1.5dB@40~1006MHz |
working temperature |
-35℃ ~+50℃ |
RF output reflection |
≥16dB@40~550MHz; ≥14dB@550~1006MHz |
product size |
96*50*24mm |
