Hardware Description
Introduction

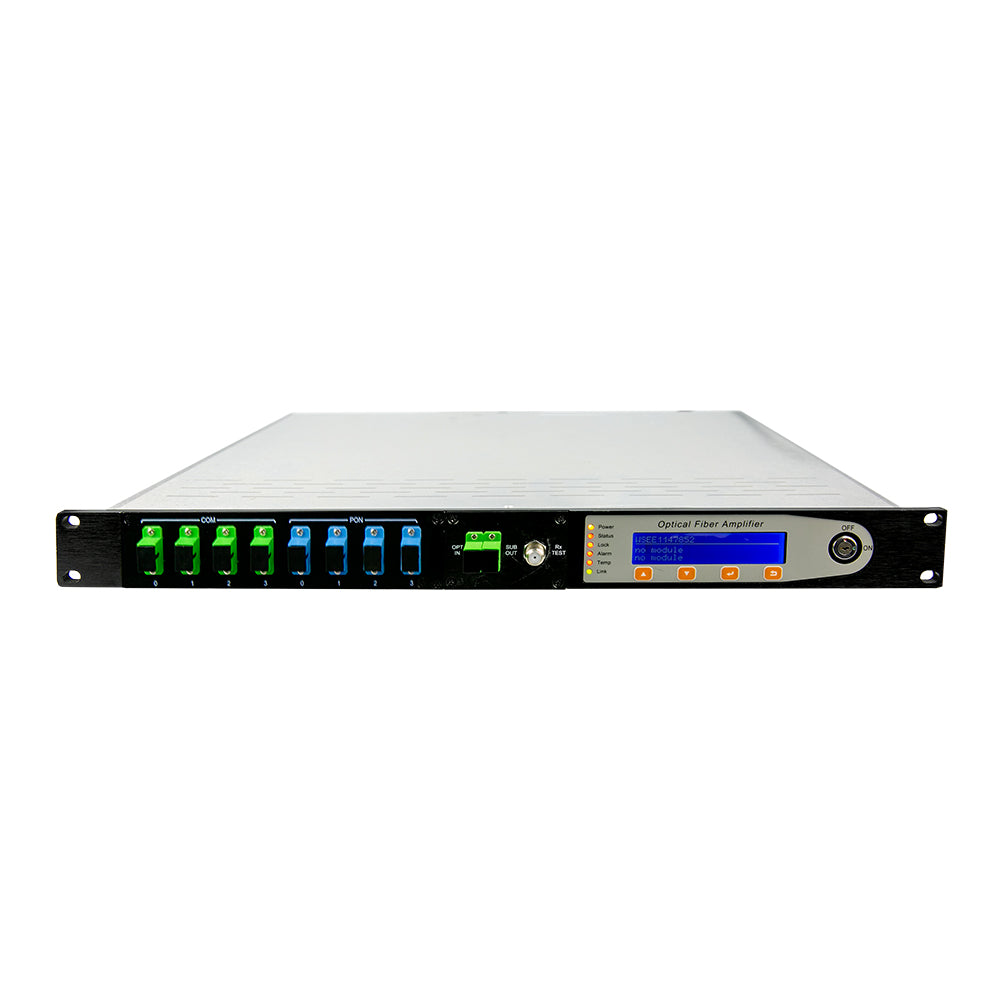

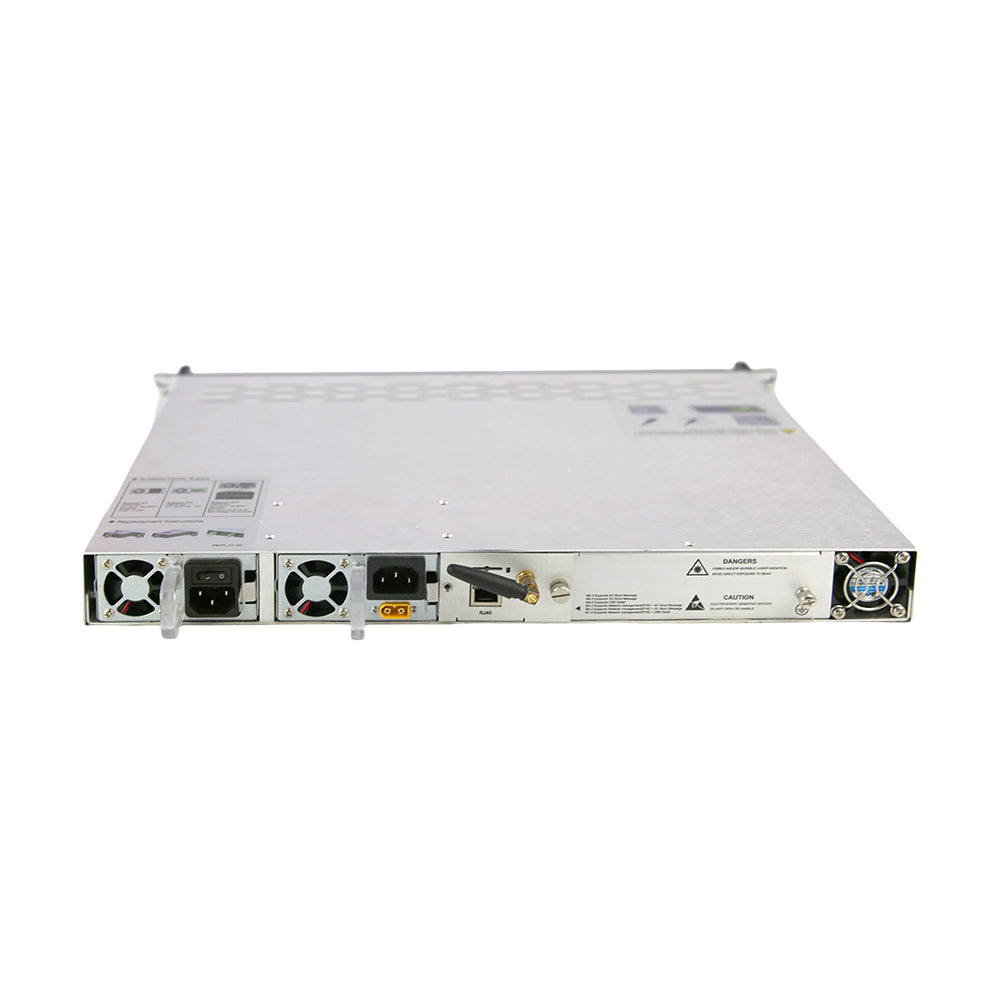

CATV 77EYA Series 1U High Power Fiber Amplifier 4+WDMV.

The 77EYAxx series Er-Yb fiber amplifier is a high-power multi-output fiber amplifier with a gain spectrum bandwidth of 1545~1560nm. It is designed for CATV or applications with 18 continuous channel strips (ITU wavelengths). It provides a flexible and low-cost solution for FTTH large-scale coverage in major cities for CATV systems.
The 77EYAxx can achieve single-wavelength transmission of CATV signals or implement single-fiber three-wave transmission design through built-in FWDM. It is an important equipment for building large and medium-sized fiber transmission networks for CATV.

Performance Characteristics

  • Adopt Er-Yb co-doped double-clad fiber technology and low-noise pump laser.
  • With a display backlight control function, allowing users to adjust the backlight time as needed.
  • With a comprehensive audio-visual alarm function, supporting dual alarm through indicator lights and a buzzer.
  • The entire machine adopts a modular design, making it easy to maintain and manage.
  • Standard network management interface, supporting both WEB management and SNMP, with a feature-rich WEB interface.
  • The 1U supports a maximum total output of 6.5W(38dBm) and offers adjustable output power, with an adjustable range of +0.5~-4dBm.
  • Optional functions include optical switch, optical transmitter, and RF monitoring.
  • Optional WDM function is available, achieving triple-play integration.
  • One-click pull-out dual power supply hot backup design.
  • Optional time management and remote monitoring by mobile phone are available.
Technical parameters

Item

Unit

Specification

Note

CATV wavelength

nm

1545~1560

Central wavelength 1550nm

PON OLT wavelength

nm

1270/1310/1490/1577



CATV Input Power Range

dBm

-5dBm~+10dBm

LimitRange -10dBm~+10dBm

Max Total Output Power

dBm

38



OutputPowerStability

dB

±0.1



Noise

dB

≤ 6



Return Loss

Input

dB

≥ 45





Output

dB

≥ 45



OSW

Input port



2

Optional



Insertionloss

dB

≤1.3





Switching time

s

＜0.5



Direct Modulation Transmitter

Wavelength

nm

1550

Optional



Input level

dBuV

75~90





Output power

dBmW

3/5/7/10



Output ports

straight

SC

unit

2~32

Optional





LC



2~32



Output power per port

dBm

13~23



RFTest

Output level

dBuV

≥56

Optional

Optical Connector



SC/APC；SC/PC；LC/APC；LC/PC

Customized

C/N

dB

≥ 50

Testing conditions are carried out according to GT/T 184-2002

C/CTB

dB

≥ 65



C/CSO

dB

≥ 65



PowerSupplyVoltage

V

AC(90V ~ 264V)

Optional DC or UPS

Consumption

W

＜75



OperatingTemperature

℃

-5 -+50



Max OperatingHumidity

%

Maximum 95% non-condensing



StorageTemperatureRange

℃

-40 ~ +80



Max StorageHumidity

%

Maximum 95% non-condensing



Size

mm

482(W)*356(D)*44(H)

Without handle

Package Size(1pc)

mm

590(W)*505(D)*115(H)



Package Size(2pcs)

mm

590(W)*505(D)*220(H)



Package Size(5pcs)

mm

590(W)*505(D)*525(H)
