Hardware Description
Introduction

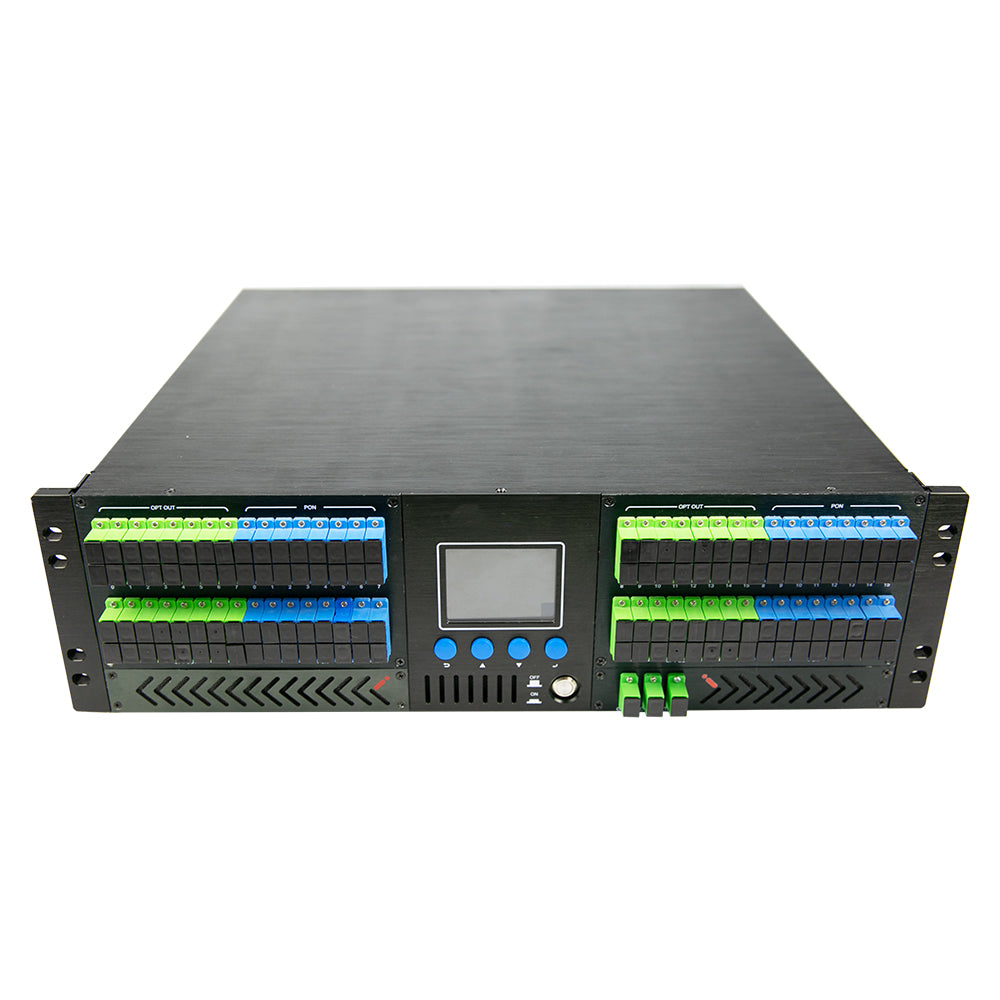

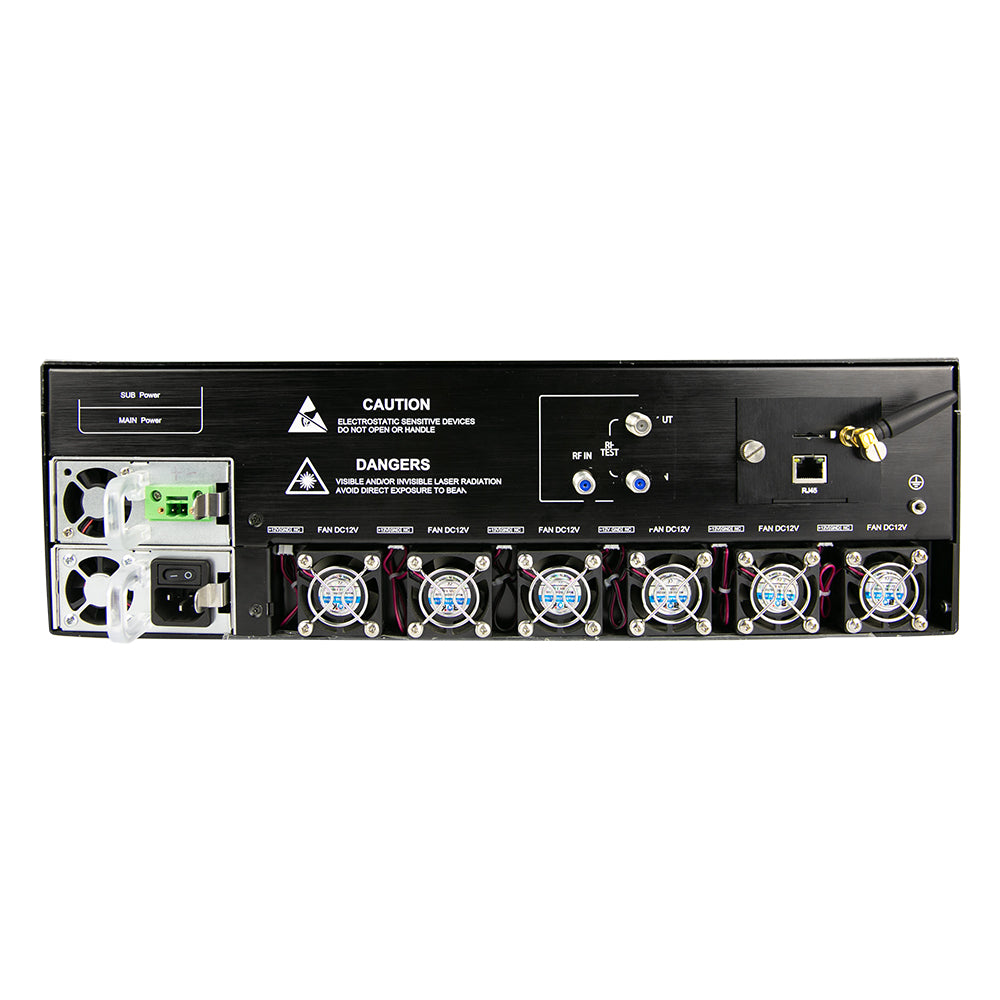

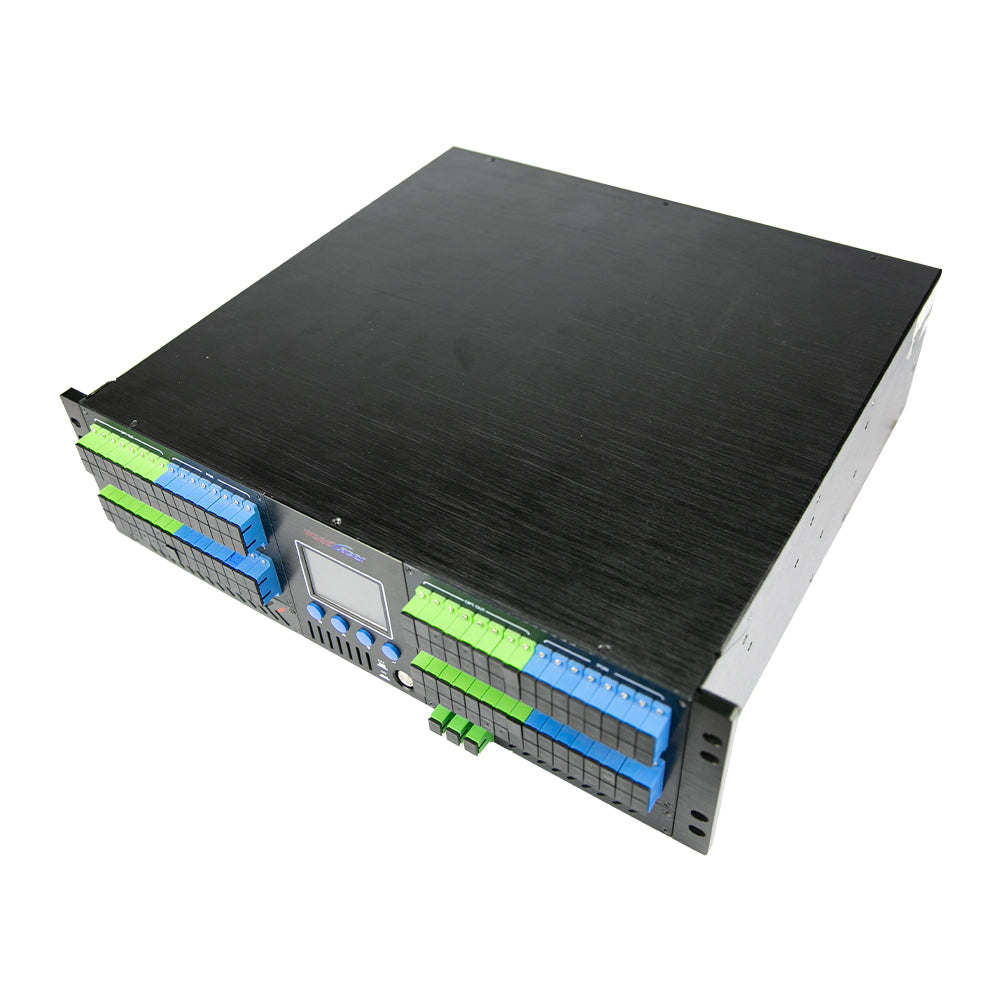

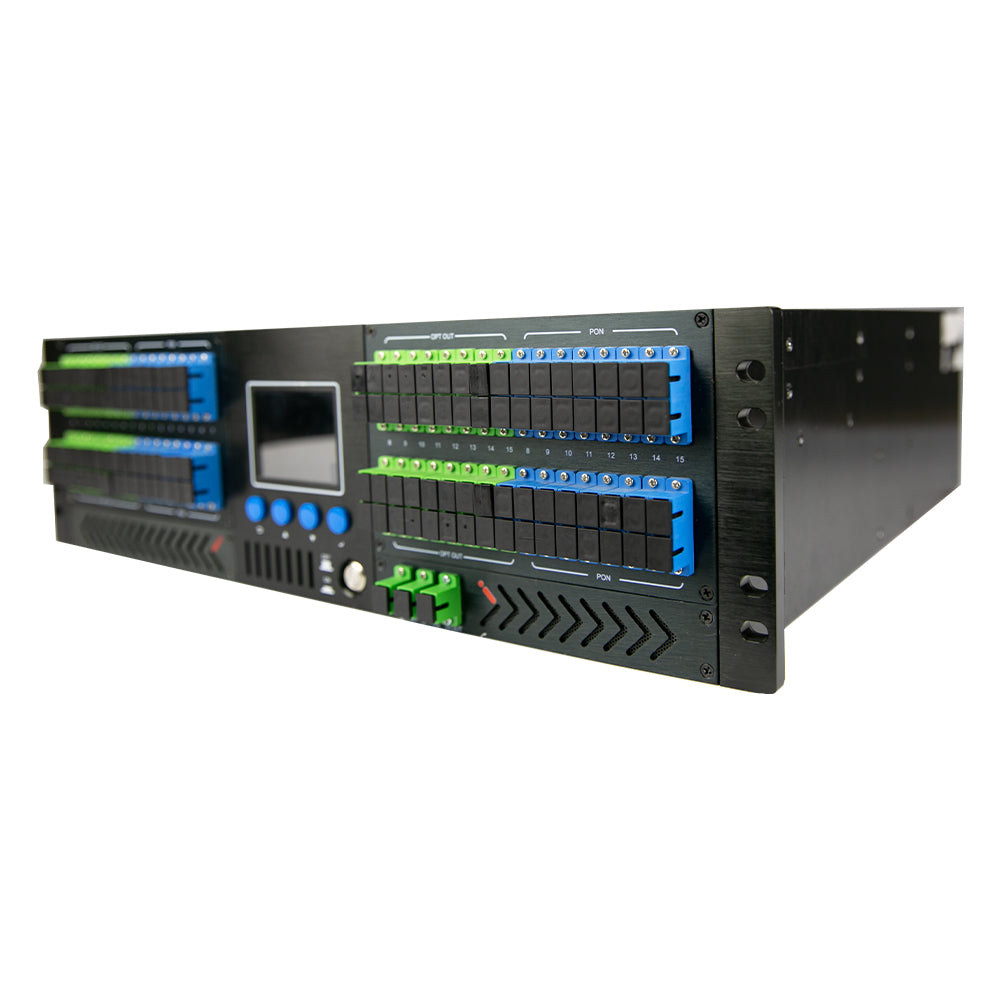

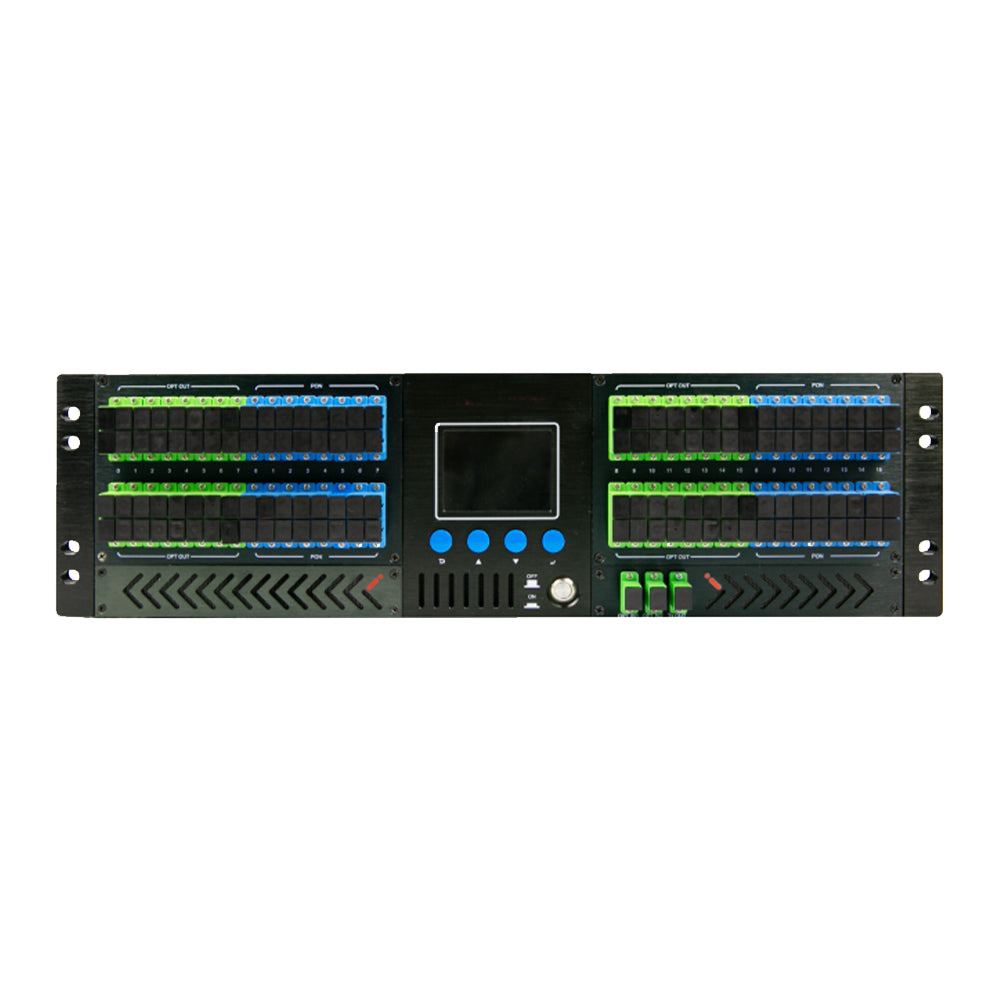

CATV 77EYA Series 3U High Power Fiber Amplifier 64+WDM.

77EYAxx Ytterbium-Erbium series of fiber amplifiers is a high power, multi-output fiber amplifier with a gain spectral bandwidth of 1545-1560nm, designed for CATV or 1-8 consecutive band channels (ITU wavelengths) applications. It provides a flexible and low-cost solution for FTTH coverage of CATV systems in large and medium-sized cities.
77EYAxx can achieve single wavelength transmission of CATV signals, or built-in FWDM to achieve single-fibre three-wave transmission design, which is an important equipment for building CATV large and medium-sized optical fibre transmission networks.

Performance Characteristics
  • Erbium-Ytterbium co-doped double-clad fiber technology and low-noise pump lasers.
  • With display backlight control function, the user can adjust the backlight time as needed.
  • With perfect sound and light alarm function, support dual alarm of indicator light and buzzer.
  • The entire EDFA adopts modular design, making it easy to maintain and manage.
  • Standard network management interface, support WEB network management and SNMP, WEB interface is rich in functions.
  • The 2U product supports total output power up to 41dBm, and supports the output power adjustable function with an adjustable range of +0.5~-4dBm.
  • Optical switch, optical transmitter, RF monitoring and other functions are optional.
  • Optional WDM for triple play function.
  • Dual power supply with one-touch pull-out and hot backup design.
  • Optional time control function and mobile phone remote monitoring function are available.
Technical parameters

project

unit

Technical Parameters

Remark

CATV working wavelength

nm

1545~1560

Center wavelength 1550nm

PON OLT operating wavelength

nm

1310/1490

customizable

1270/1577

CATV input optical power range

dBm

-10dBm~+10dBm



Maximum total output optical power

dBm

43



Output power stability

dB

±0.1



Noise Figure

dB

≤ 6



Return Loss

Input

dB

≥ 45





Output

dB

≥ 45



OSW

Number ofinputports



2

Optional features



Insertion loss

dB

≤1.3_





switching time

s

<0.5



Direct modulation

optical transmitter

Working wavelength

nm

1550

Optional features



Input level

dB

75~90





Output Power

dBm

3/5/7/10_



No. of Output Ports

Vertical optical ports

SC

32~128

Optional features





LC

32~128



The output power of each port

dBm

13~23



RF detection

Output level

dB

≥56

Optional features

Optical connector type



SC/APC; SC/PC; LC/APC; LC/PC

customizable

C/N

dB

≥ 50

The test conditions are implemented in accordance withGD/J115-2020.

C/CTB

dB

≥ 65



C/CSO

dB

≥ 65



voltage

V

AC(90V~264V)



Machine power consumption

W

＜300



range of working temperature

℃

-5 -+45



Maximum operating relative humidity

%

Maximum 95% non-condensation



Storage temperature range

℃

-40~ +80



Maximum storage relative humidity

%

Maximum 95% non-condensation



Dimensions

mm

480(W)*428(D)*133(H)



Packing size (one set)

mm

638(W)*638(D)*262(H)
