FiberHome AN5516-04 OLT

Regular price $0.00
Regular price Sale price $0.00
Availability: 200 in stock
Tags:
Regular price $0.00
Regular price Sale price $0.00
FiberHome AN5516-01 OLT Overvie

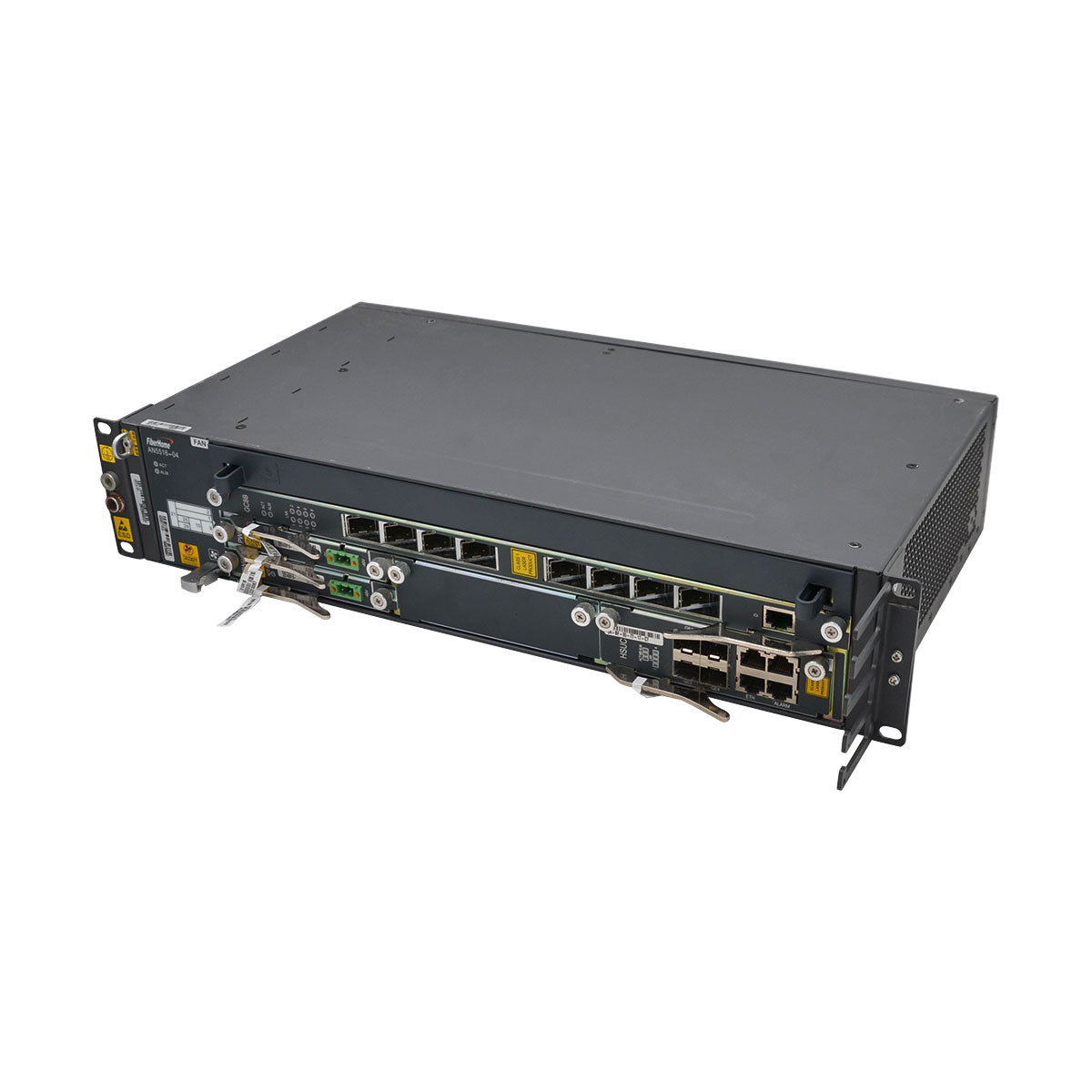

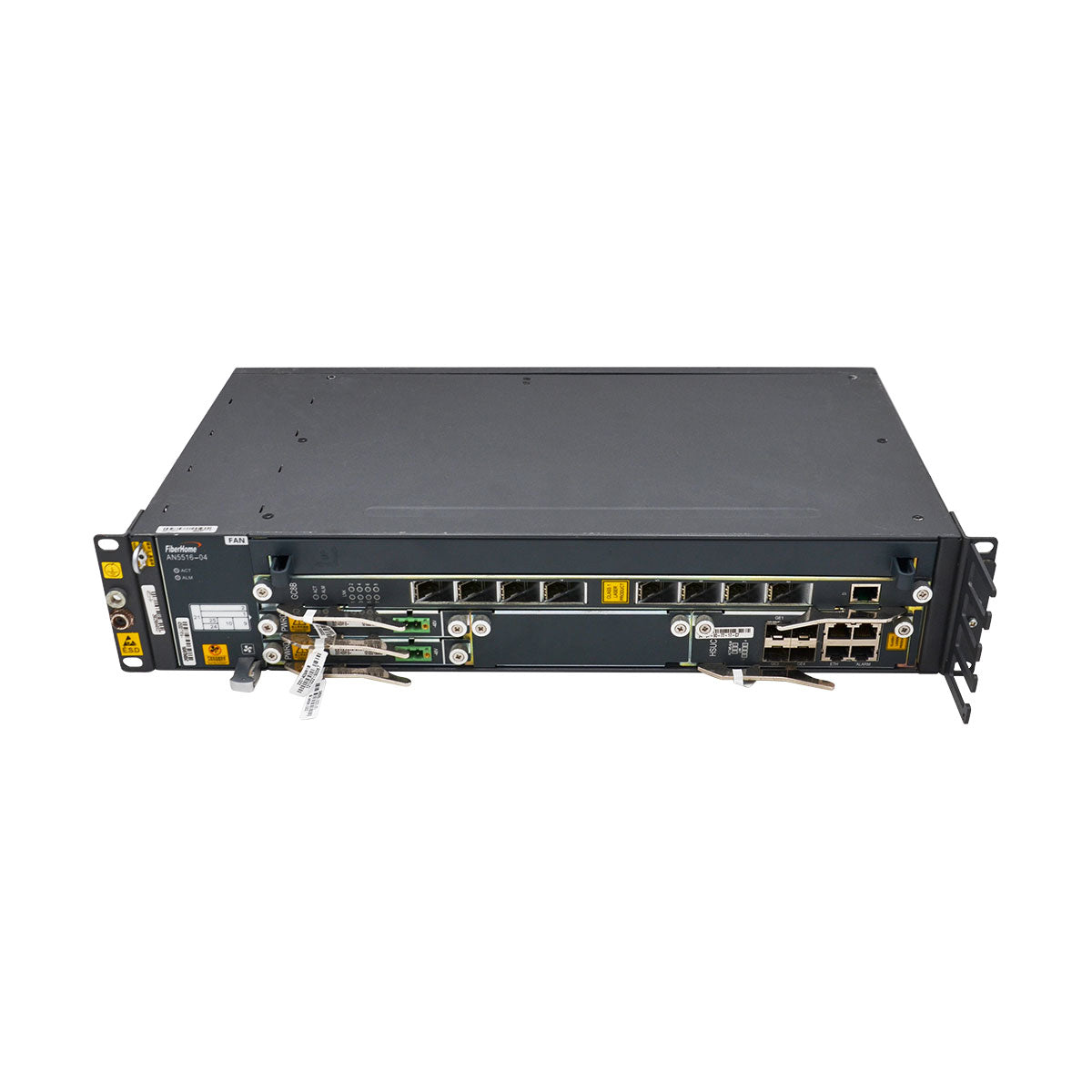

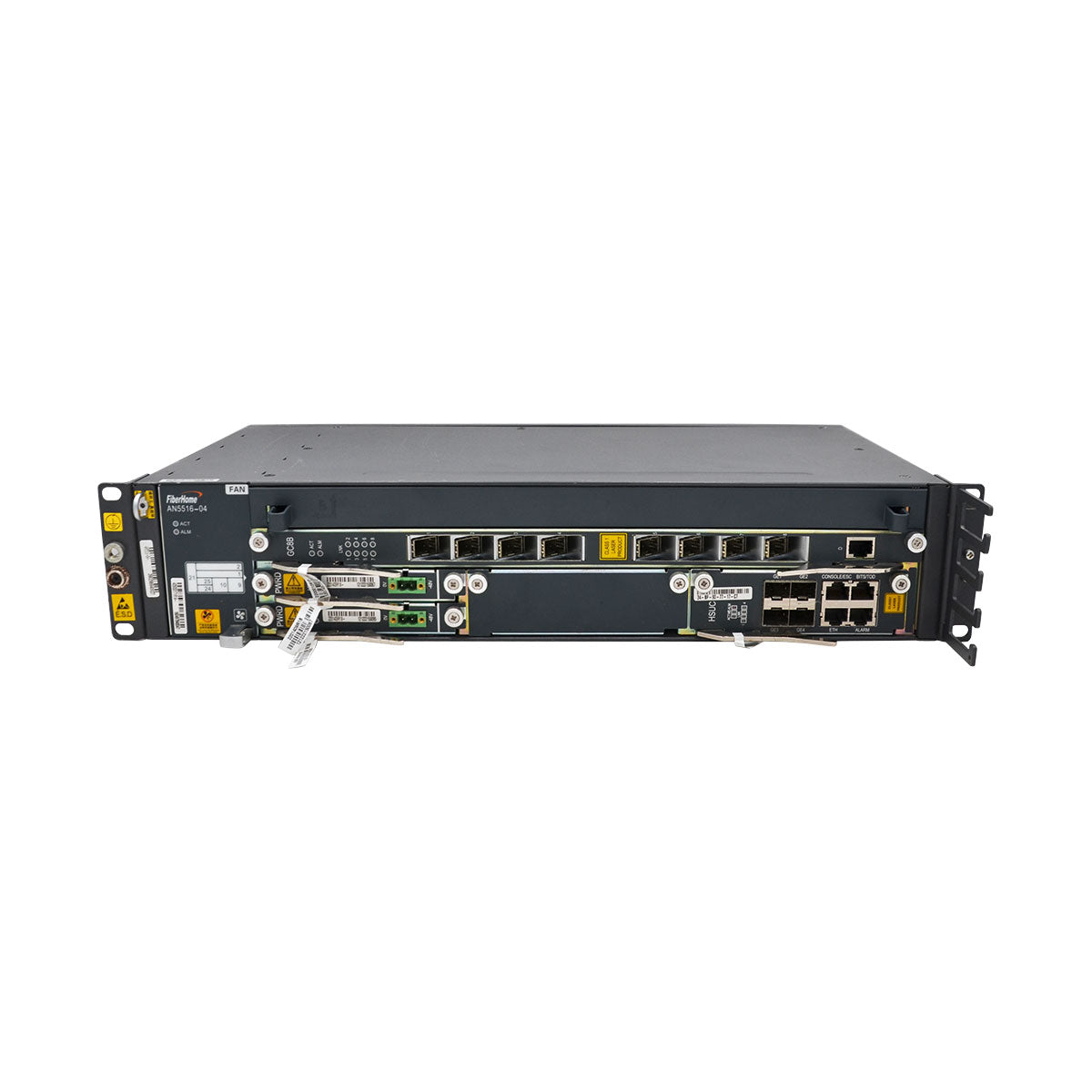

FiberHome OLT AN5516-04 Chassis,with 2*HSUC control and uplink boards, 1*PWRA AC power board.

FiberHome AN5516-04 platform is an advanced FTTX, carrier level Optical line Terminal equipment with large capacity, which provides GPON/10G PON/P2P subscriber interfaces and GE/10GE uplink interfaces.

There are 3 different sizes of equipment to meet different application scenarios:

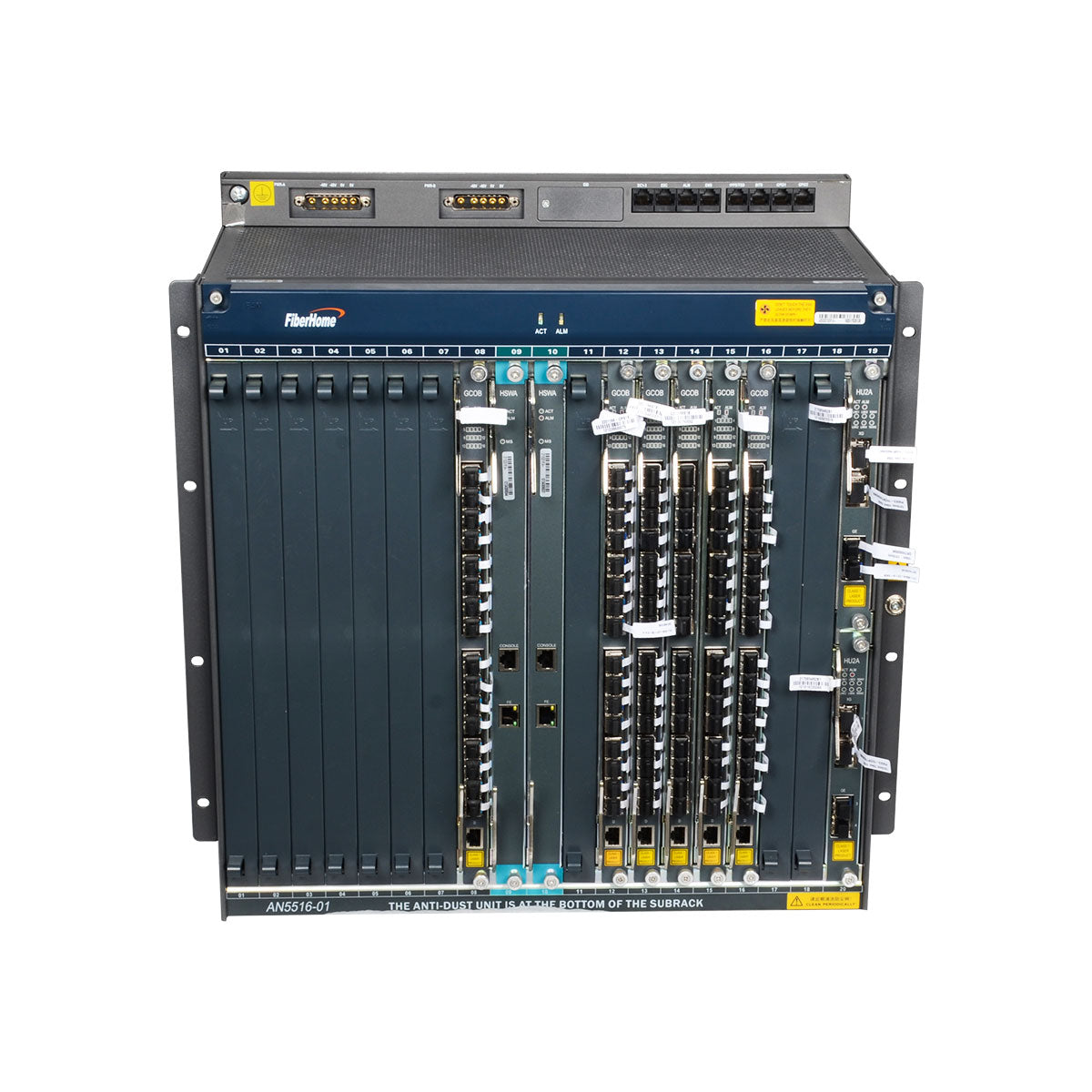

  • Large-capacity device: AN5516-01/AN5516-06B
  • Medium-capacity device: AN5516-06
  • Small-capacity device: AN5516-04

The AN5516-04 is small-sized optical line terminal equipment providing two service slots. It is applicable to access scenarios in sparsely-populated areas and can be deployed flexibly.

 Bundle combination

The device will be equipped with 2*HSUC control and uplink boards, and 1*PWRA AC power board, but you can choose the appropriate bundle according to your actual request:

Control and uplink board Power supply board Uplink board Pon board
HSWA/HSWB:
Slot bandwidth: 10G;Switch capacity: 488Gbit/s
PWR-A/PWR-B:

DC power board, 2 pieces equipped

HU1A / HU1B: 4GE+1*10GE HU2A: 2GE+2*10GE GCOB/ECOB XP4A XPOA
HSWD:
Slot bandwidth: 40G;Switch capacity: 1.92Tbit/s
HU2C: 4GE+2*10GE HU2K: 2GE+2*10GE GC8B/EC8B XP8A XG8A
Quick Specs
PON Unify platform for GPON/10G PON/P2P
Sharing service cards with AN5116-06B
Up to 32 PON ports per chassis
Flexible uplink card:2*10GE+2*GE/ 1*STM-1/ 32*E1
Synchronization High precision sync-Ethernet & 1588v2
1PPS+ToD output
Reliability features
Reliability Core card 1+1 redundancy
OSPF dual-homing
STP/RSTP/MSTP ring protection
Trunk/LACP for uplink protection

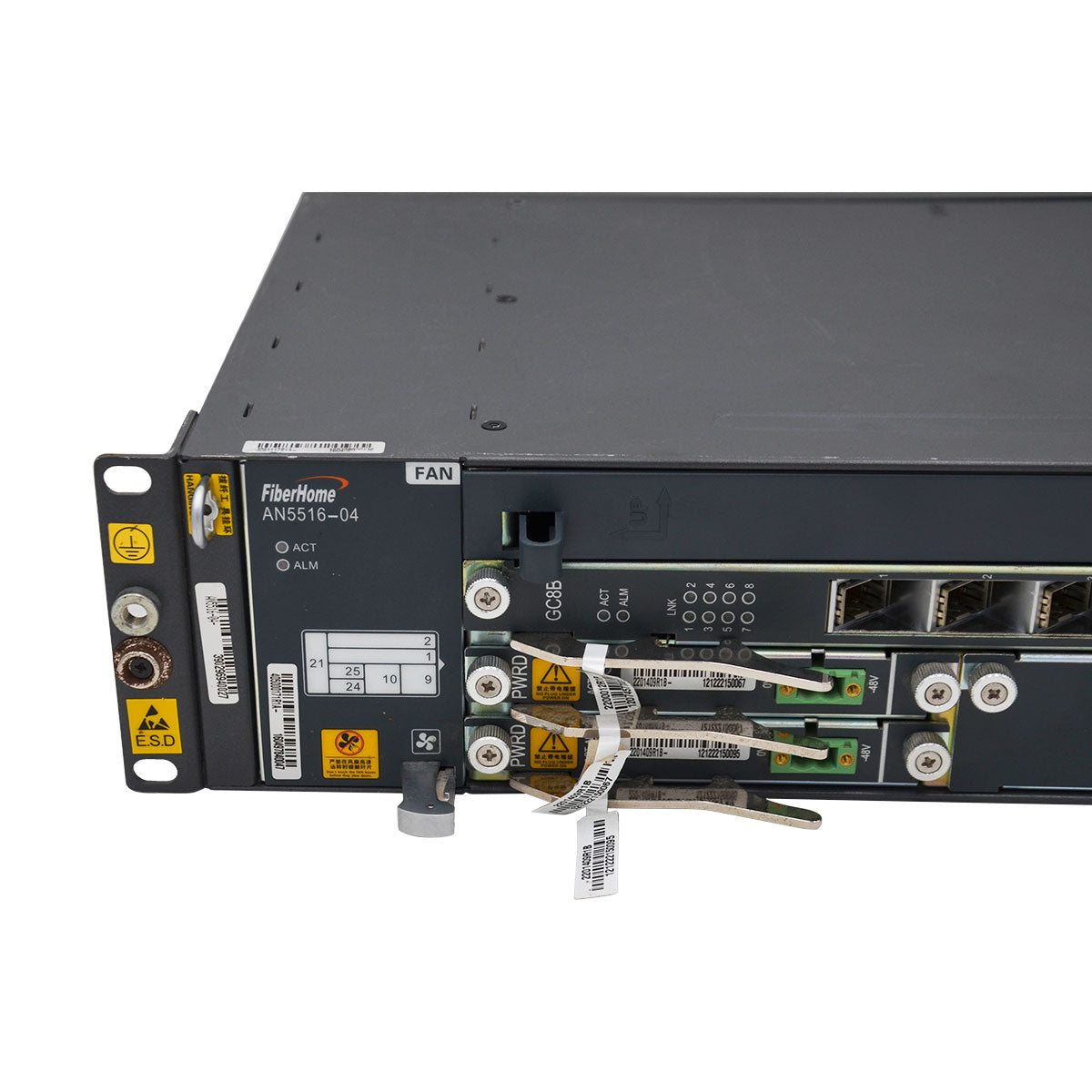

Fiberhome AN5516-04 Appearance and Structure



Number Name Function supported
1 Mounting ears Secures the subrack in a cabinet.
2 ESD protection earth ground fastener Connects with an ESD protection unit.
3 Subrack earth ground point Connects with the subrack earth ground cable.
4 Fiber passage unit Faciptates routing and arranging of fibers and cables.
5 Fan unit Facilitates air cooling for the equipment.
6 Card area Accommodates cards to implement various functions of the equipment.
7 Fiber puller hanger Holds a fiber puller

FiberHome OLT AN5516-04 Datasheet
Item FiberHome AN5516-04
Backplane Exchange capacity 1.5Tbit/s
Control Board Exchange Capacity 960Gbit/s
Access Capacity 48*10G EPON
24*10G GPON
48*EPON
96*GPON
288*GE
Access Type Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
Board Supported GCOB - S1B
GCOB - T1A
GC8B - R1B
GC8B - R1C
EC8B - R1B
System Performance Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS
BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock
Maximum support 1:256 splitting ratio
Maximum support 60KM logical distance
Operating Environment Temperature: -40℃~+65℃
Humidity:5%~95% (non-condensing
Power Supply Parameters -48V DC input Supports dual power protection
Working Voltage range  -38.4V~-72V
