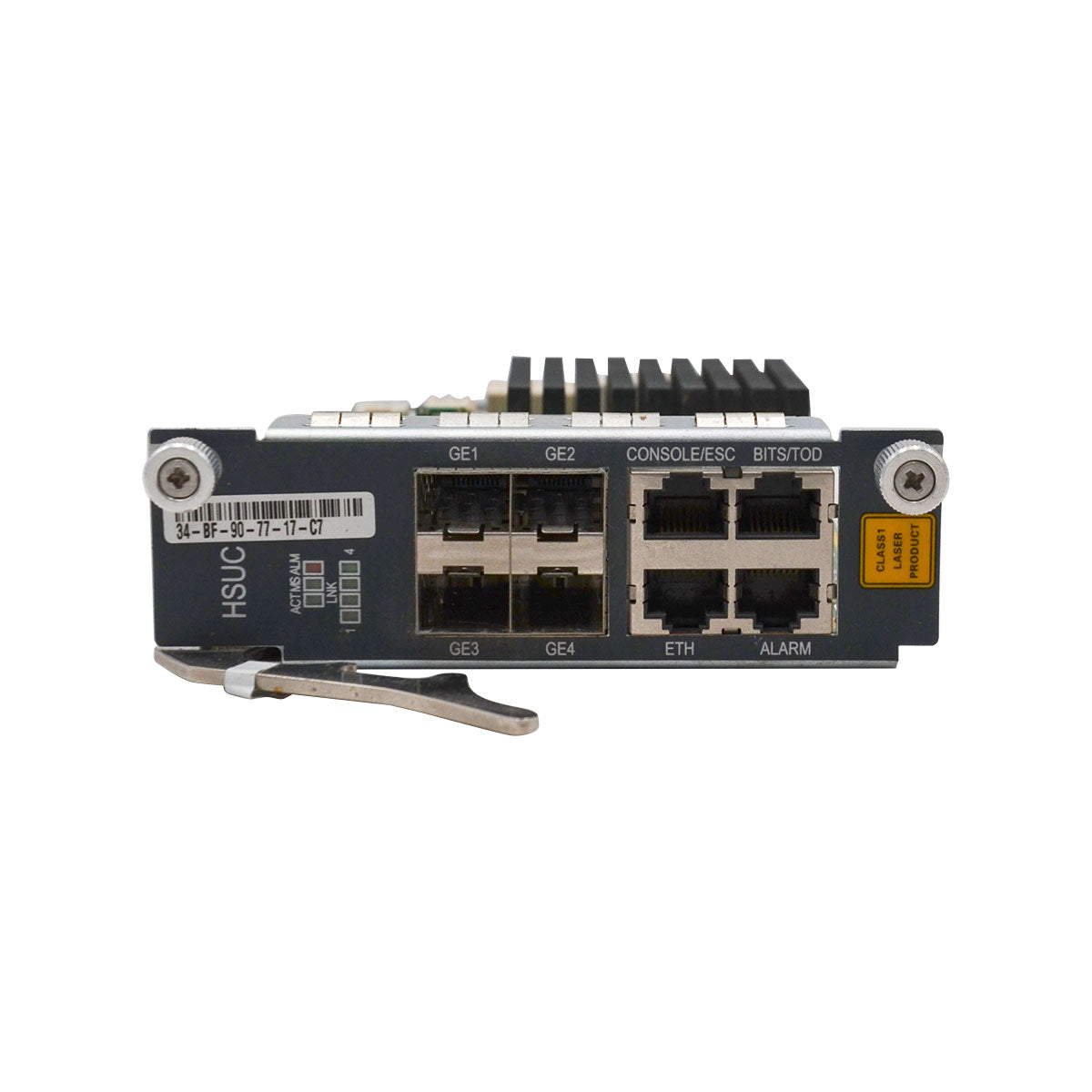

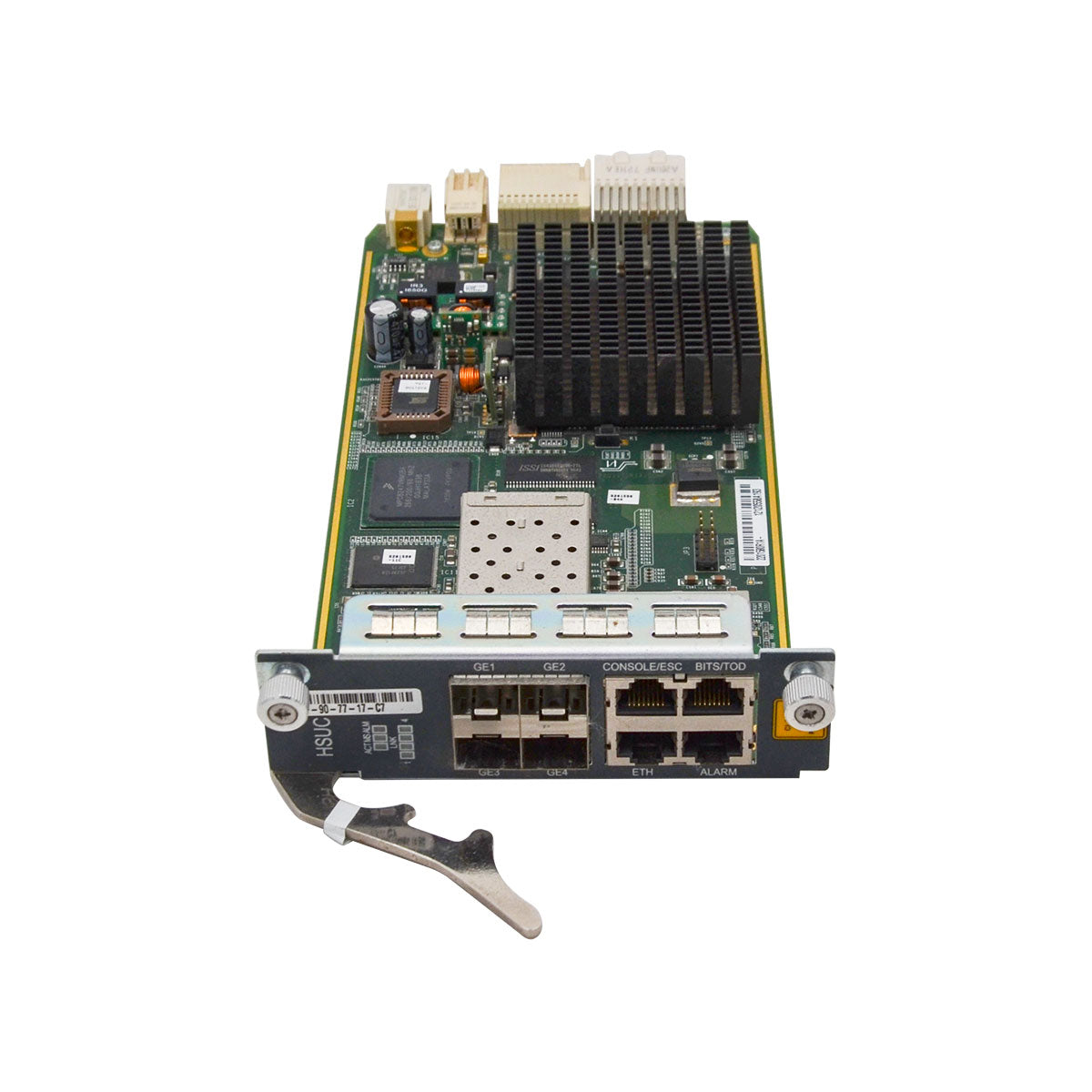

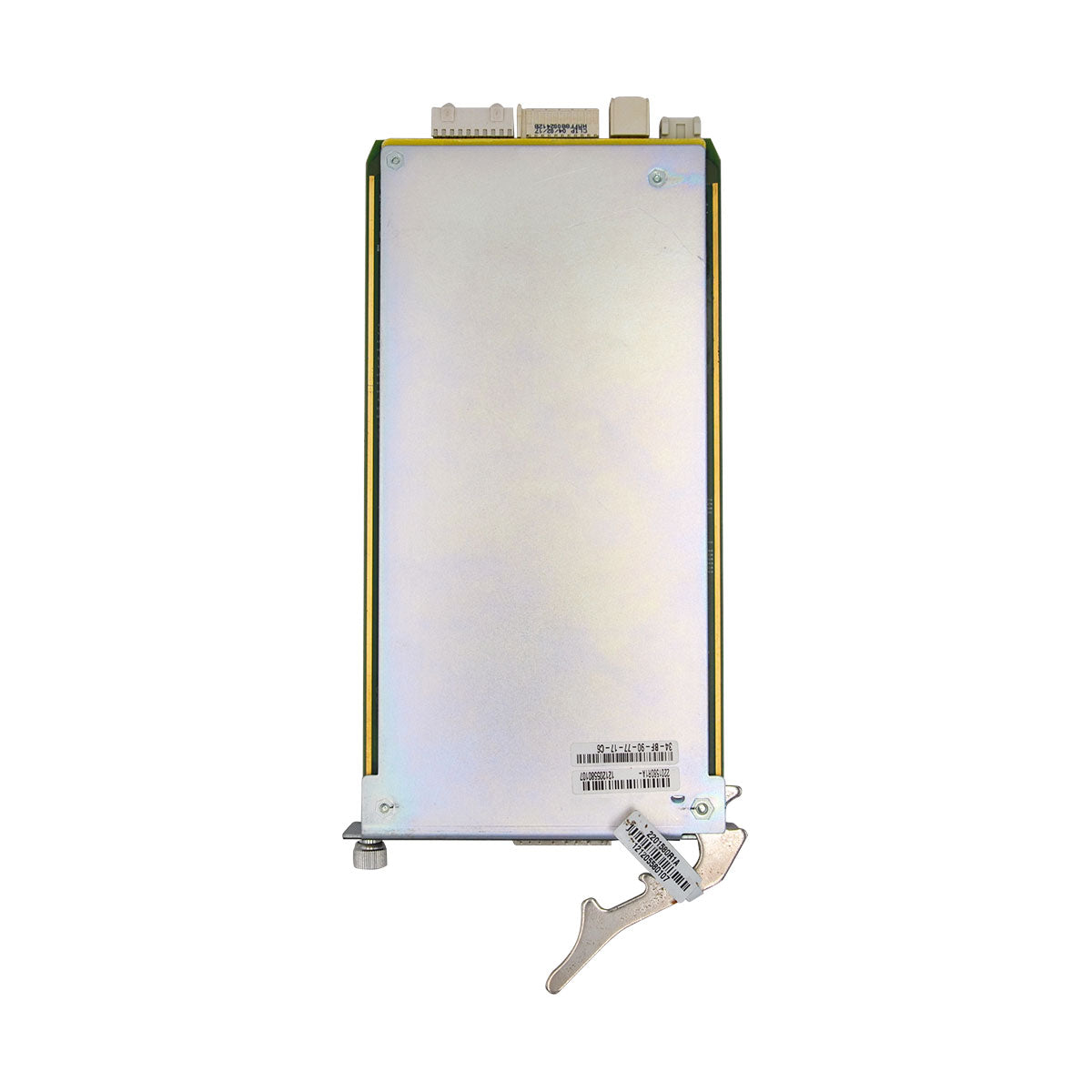

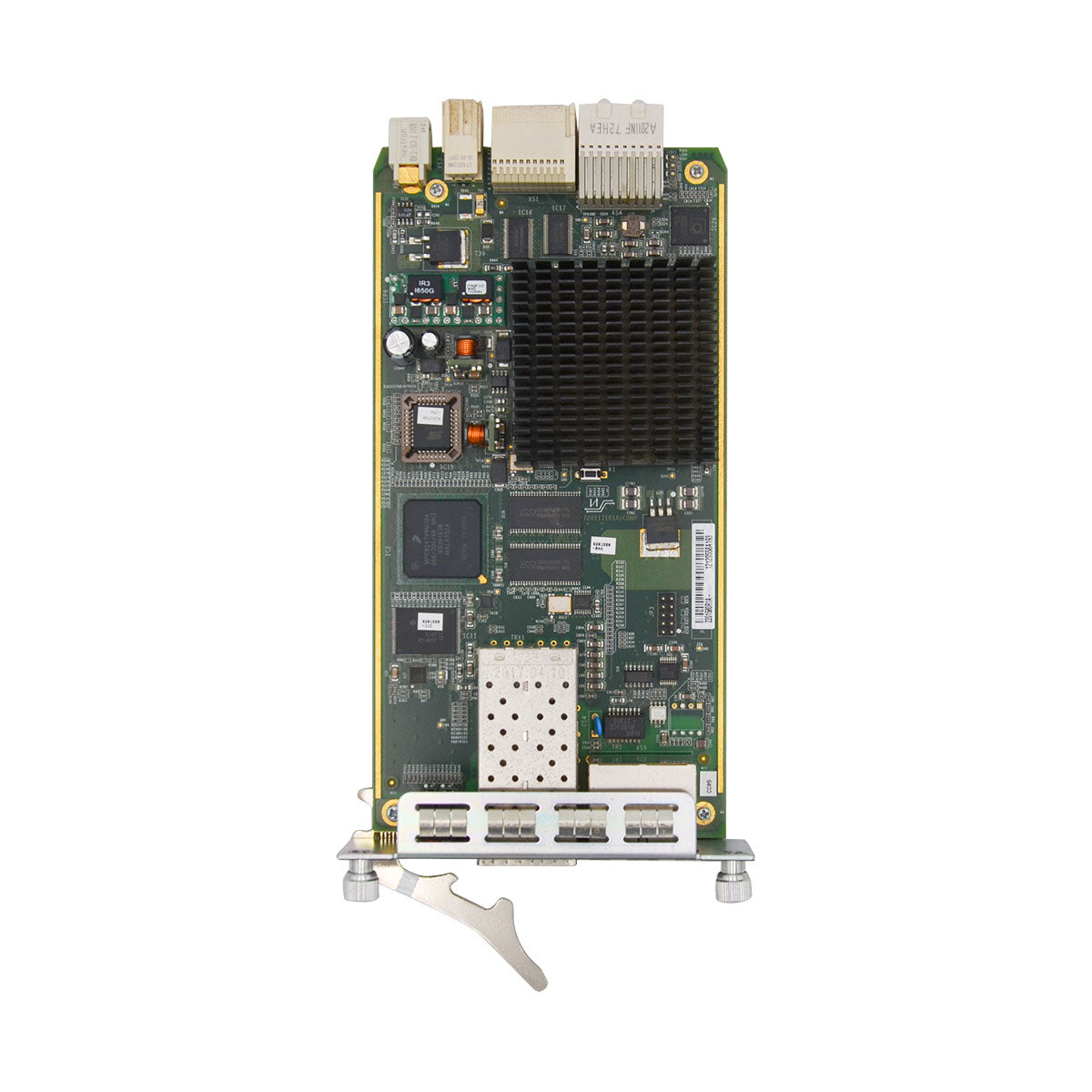

FiberHome HSUC Overvie
HSUC card is a switching uplink card that applies to Fiberhome AN5516-04, it comes with 4-Port GE Optical/Electrical Uplink Ports.
Intra-card aggregation / Inter-card aggregation Supported synchronization modes supported: SyncE, 1588 V2, and BITS
HSUC is the Switching Uplink Card for Fiberhome AN5516-04 OLT, it provides system control and service switching and aggregation, integrated with 4-port GE upstream optical/electrical ports.
AN5516-04 OLT can be configurated with 2 x HSUC switching uplink cards.
HSUC Datasheet
Item | HSUC | |
Ports specs. | 4-Port GE Optical/Electrical Uplink | |
Supported | Intra-card aggregation; Inter-card aggregation | |
Clock Synchronization Modes | SyncE, 1588 V2, and BITS | |
Specification of Optical Interfaces on HSU card | ||
Item | 1000Base-SX | 1000Base-LX |
Interface type | LC / PC | LC / PC |
Interface rate | 1000Mbit/s | 1000Mbit/s |
Central wavelength | 850nm | 1310nm |
Maximum transmission distance | 500m | 20km |
Maximum launched power | -4dBm | -3dBm |
Minimum launched power | -9.5dBm | -11.5dBm |
Maximum receiving sensitivity | -17dBm | -19dBm |
Minimum extinction ratio | 9dB | 9dB |
Specifications of Ethernet electrical interfaces on HSU card | ||
Item | 10 / 100 / 1000Base-T | |
Interface type | RJ45 | |
Interface rate | 10 / 100 / 1000Mbit/s self-adaptive | |
Transmission media | CAT-5 | |
Applicable standard | IEEE 802.3-2005 | |
Transmission Distance | 100m |
