By Huawei

Huawei CE-CMUA Centralized Monitoring Unit

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00
CE-CMUA Overview

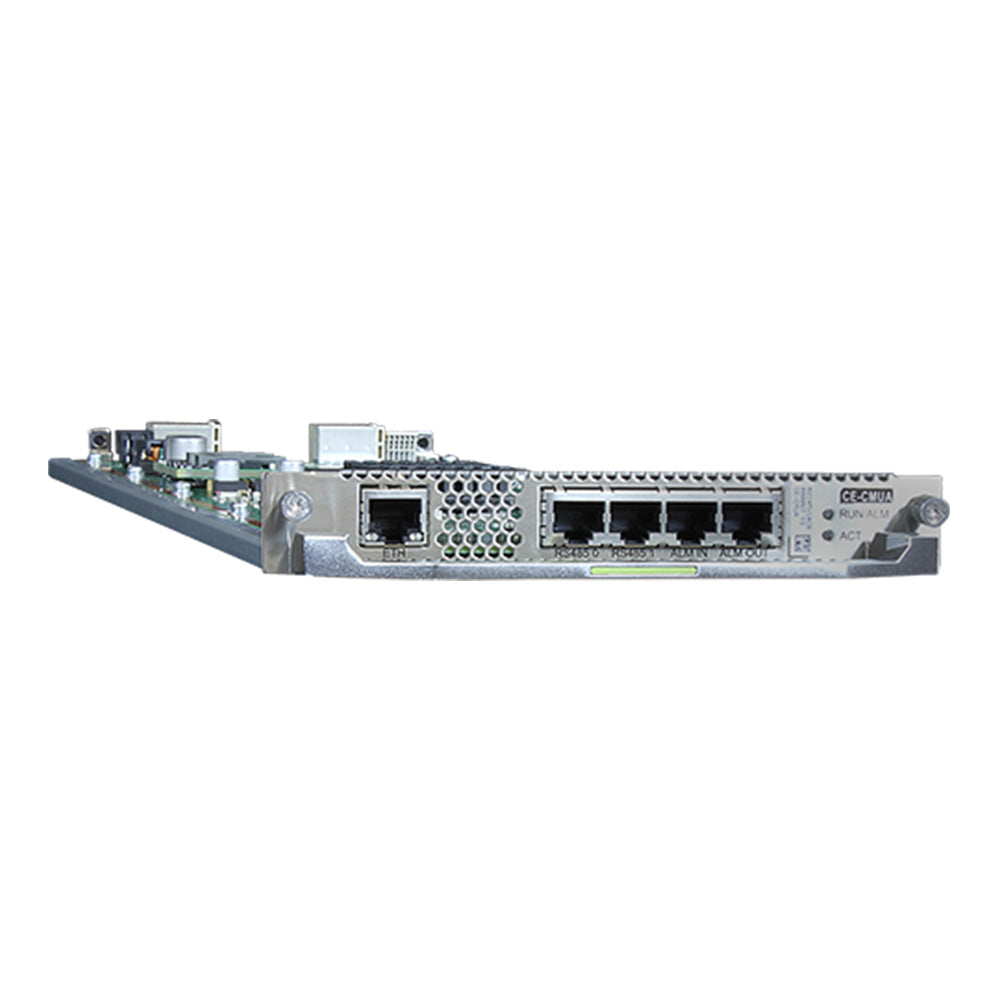

Huawei CE128000 Series Switch CE-CMUA Centralized Monitoring Unit.

Functions and features

Function and Feature

Description

Next-generation monitoring and management architecture

Decouples the monitoring plane from the service plane. It can still report device running status and fault recovery events when the service plane fails. With the CE-CMUA, the CE12800 series switches support zero touch management and maintenance.

Innovative intelligent management

Works with the data center management system to realize intelligent energy allocation in a data center and reduce power consumption of the air conditioning system.

  • Intelligent fan speed adjustment: The CE-CMUA monitors chassis temperature in real time and adjusts fan speeds according to chassis temperature. This reduces power consumption of fans and prevents the chassis from overheating.
  • Intelligent power management: The CE-CMUA monitors power required by the switch and reports it to the management system in the equipment room. In this way, power supplied to the switch can be dynamically adjusted to fully use the designed capacity of the power distribution system and avoid waste of power.

Highly reliable monitoring platform

Supports the 1:1 hot standby mode.

All-round remote monitoring

  • The CE-CMUA uses industry-leading monitoring system on chip (SoC) technology to provide powerful out-of-band monitoring, management, and maintenance for cards.
  • The monitoring plane of the CE-CMUA allows administrators to remotely power on, power off, and reset cards, upgrade firmware, monitor card temperature, voltage, and power, manage asset information, and diagnose system faults.

Function expansion

Reserves RS485 ports and ALM IN/OUT ports for function expansion.

Technical specifications

Item

Description

Reliability

1:1 hot standby

Physical specifications

  • Dimensions (W x D x H): 169.0 mm x 533.7 mm x 25.4 mm (6.65 in. x 21.01 in. x 1.00 in.)
  • Weight: 1.4 kg (3.09 lb)
  • Typical power consumption: 45 W
  • Maximum power consumption: 59 W
  • Typical heat dissipation: 154 BTU/hour
  • Maximum heat dissipation: 201 BTU/hour

Environment parameters

  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)

Certification

  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
