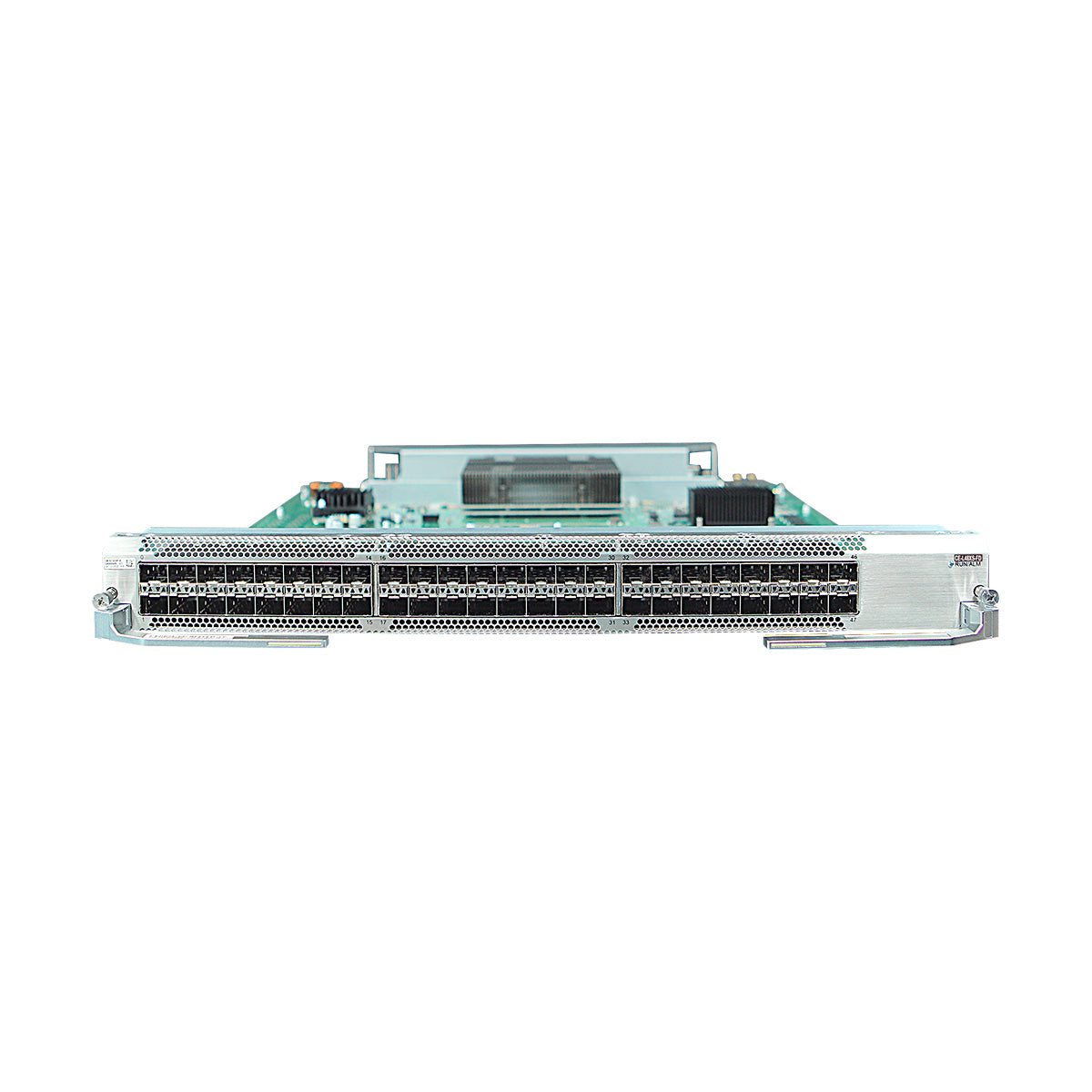

Huawei CE-L48XS-FD Interface Card

$0.00
$0.00
Availability: In stock
SKU: 03023XKA
Tags:
Collections:
HuaweiHuawei CE-L48XS-FD1 Interface Card
CE-L48XS-FD1-1
CE-CMUB
HuaweiHuawei CE-CMUB Centralized Monitoring Unit
CE-L48XS-FD1-1
$0.00
$0.00
CE-L48XS-FD Overview

Huawei CE128000 Series Switch CE-L48XS-FD 48-Port 10GBASE-X Interface Card (FD, SFP+).

Functions and features
Function and Feature CE-L48XS-FD
Basic function The CE-L48XS-FD provides data packet processing and traffic management on 48 10GE optical ports.
Maximum port density If all LPUs are CE-L48XS-FD cards:
The CE12804/CE12804S chassis provides a maximum of 192 10GE optical ports.
The CE12808/CE12808S chassis provides a maximum of 384 10GEoptical ports.
The CE12812 chassis provides a maximum of 576 10GE optical ports.
The CE12816 chassis provides a maximum of 768 10GEGE optical ports.
High 10GE/GE port density (48x10GE/GE) When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules and can work with 10GE Twinax high-speed cables or AOC cables.
When optical ports 24 to 35 on the CE-L48XS-FD work at the rate of 1 Gbit/s, copper modules on the ports can only work at the rate of 1000 Mbit/s, while GE optical modules on the ports work in the non-auto-negotiation mode by default, and cannot be configured to work in auto-negotiation mode.
Limitations and Descriptions The CE-L48XS-FD provides insufficient external buffer performance. As a result, packet loss may occur during data forwarding upon heavy traffic. To obtain higher external buffer performance, you are advised to use other types of cards.
Technical specifications
Item CE-L48XS-FD
CPU Eight-core, 1.5 GHz clock speed
DDR3/DDR4 DDR4, standard 8 GB
Flash Standard 128 MB
Physical specifications Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
Weight: 5.9 kg (13.01 lb)
Typical power consumption: 173 W
Maximum power consumption: 341 W
Typical heat dissipation: 591 BTU/hour
Maximum heat dissipation: 1163 BTU/hour
Environment parameters Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance
