By Huawei

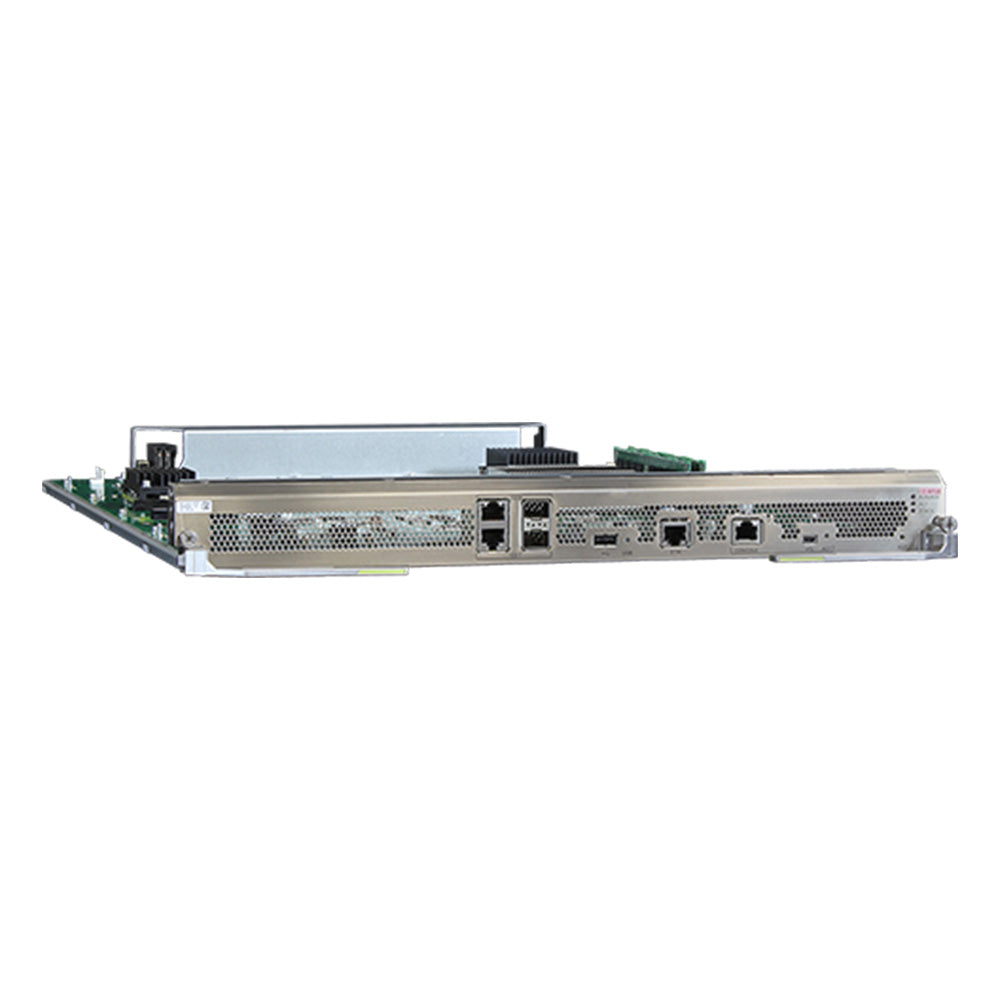

Huawei CE-MPUA Main Processing Unit

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00
CE-MPUA Overview

Huawei CE128000 Series Switch CE-MPUA Main Processing Unit.
The CE-MPUA is the main control unit of the CE12804/CE12808/CE12812/CE12816 chassis and is responsible for system control and management. A chassis can be configured with double CE-MPUA cards for 1:1 hot standby. This configuration improves system reliability.

Functions and features of the CE-MPUA

Function and Feature

Description

Device management and maintenance

Provides management ports (such as a serial port) for operators to manage and maintain the system.

Out-of-band communication between cards

The CE-MPUA integrates a LAN switch module that provides out-of-band communication between cards. The LAN switch module completes control, maintenance, and message switching for CMUs, SFUs, and LPUs.

Route calculation

  • The CE-MPUA processes all routing protocol packets, which are sent from the forwarding engine.
  • The CE-MPUA broadcasts and filters packets, and downloads routing policies from the policy server.

Data configuration

The CE-MPUA stores configuration data, startup files, upgrade software, and system logs.

Data saving

The CE-MPUA provides an embedded USB (eUSB) module as a storage device to save data files.


Technical specifications

Item

Description

CPU

Quad-core, 1.5 GHz clock speed

DDR3

Standard 8 GB

NOTE:

The CE-MPUA card is configured with two 4 GB memory modules by default. The memory modules can be replaced with two 8 GB memory modules or one 8 GB memory module. If the two 4 GB memory modules are replaced with one 8 GB memory module, install the 8 GB memory module in the rightmost memory slot (when the card is placed horizontally with the interface side facing the user).

The ordering part number of the 8 GB memory module is 02312DDG.

Storage

  • NVRAM: 512 KB
  • BootFlash: 8 MB NOR Flash
  • Flash memory: 4 GB

Console management port

RS232/Mini USB

ETH port

10M/100M/1000MBase-T

Stack port

GE combo ports

Reliability

1:1 hot standby

Physical specifications

  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 4.4 kg (9.70 lb)
  • Typical power consumption: 34 W
  • Maximum power consumption: 43 W
  • Typical heat dissipation: 116 BTU/hour
  • Maximum heat dissipation: 147 BTU/hour

Environment parameters

  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)

Certification

  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
