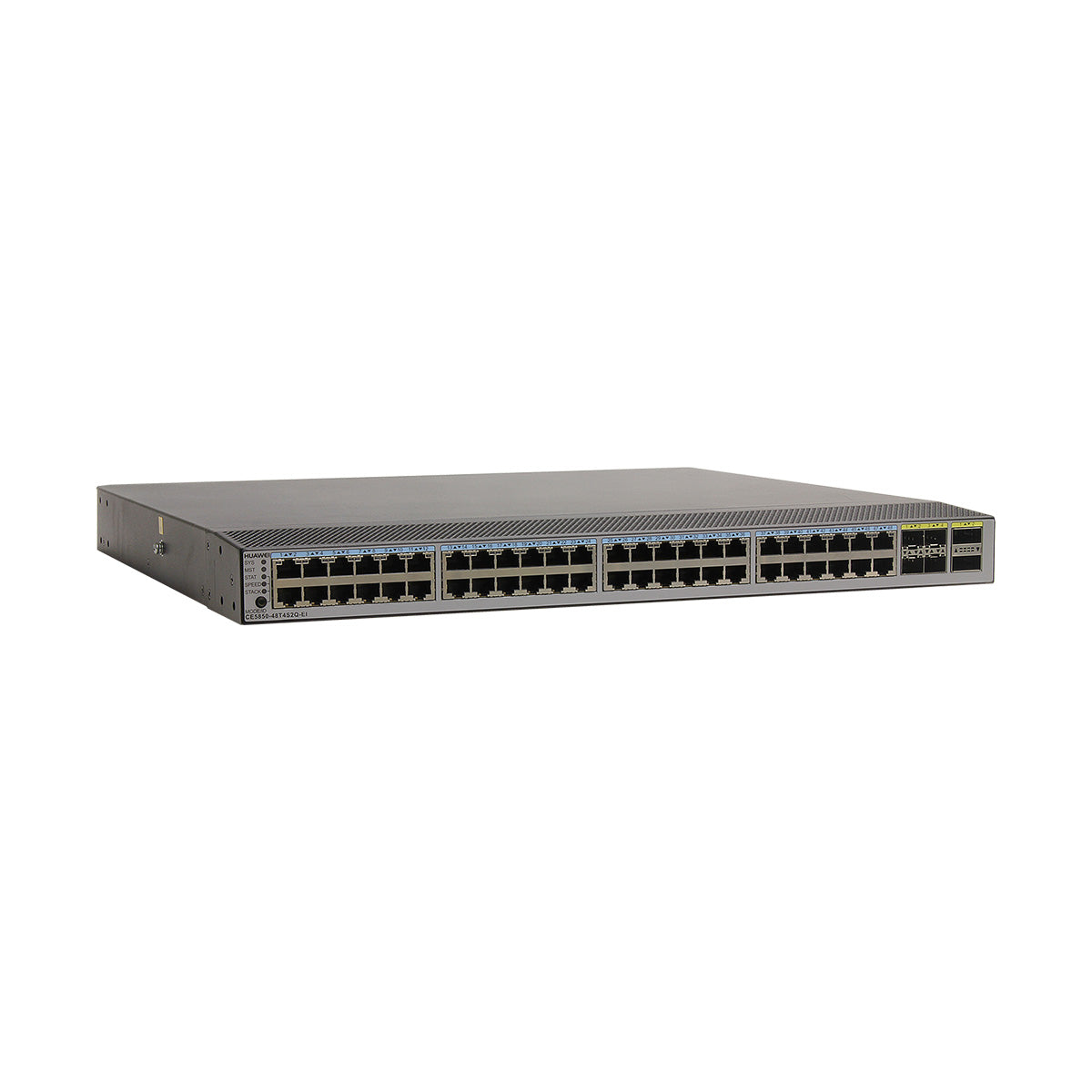

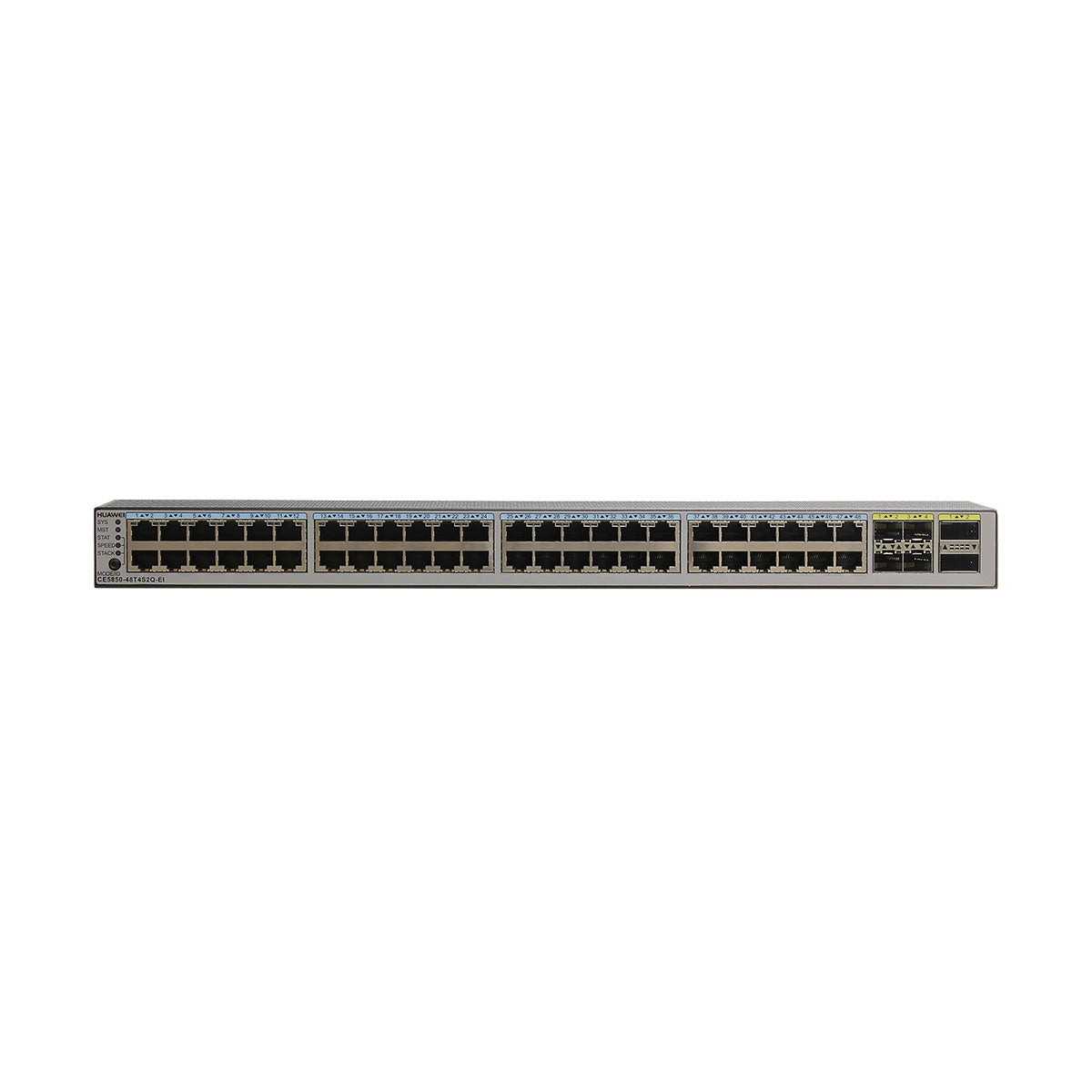

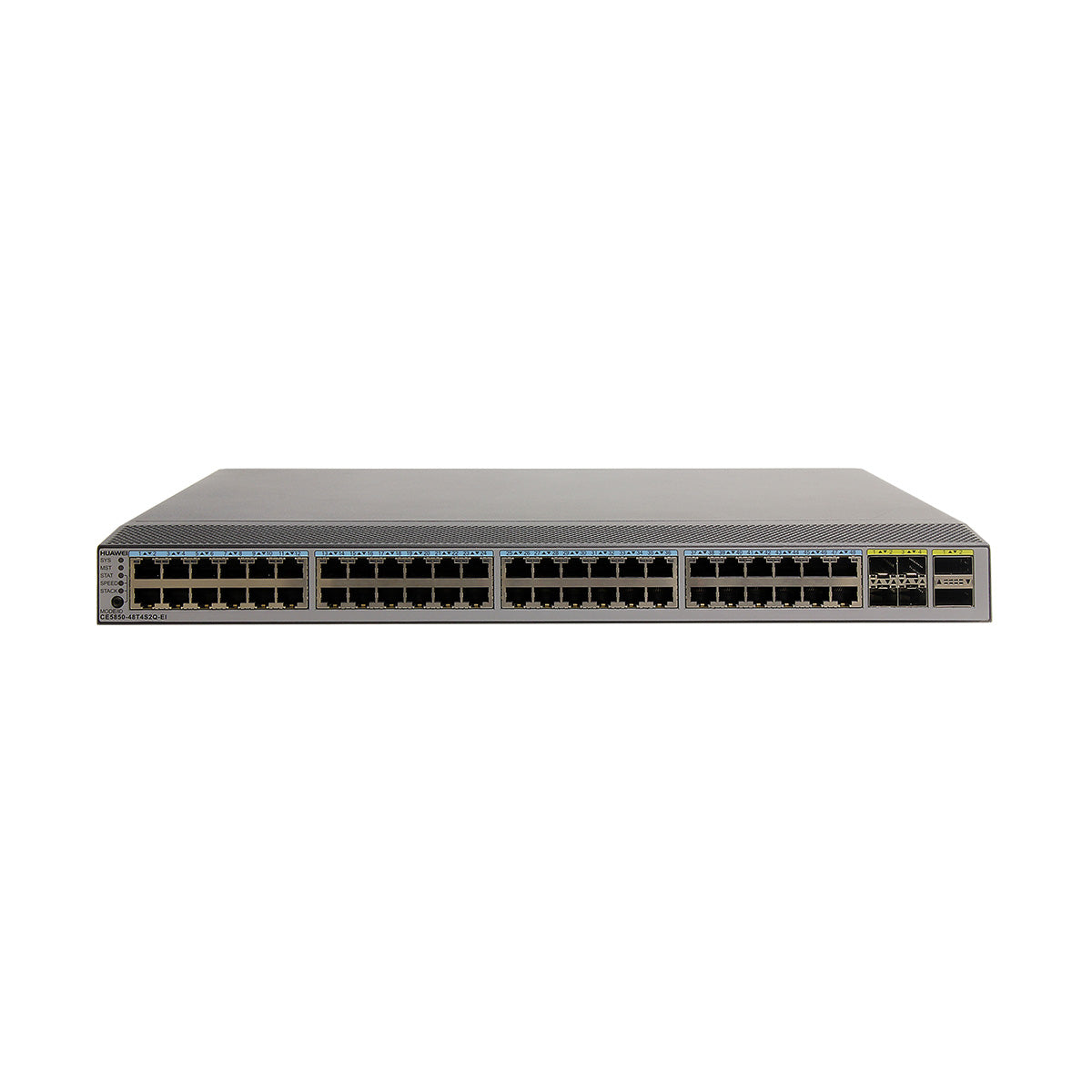

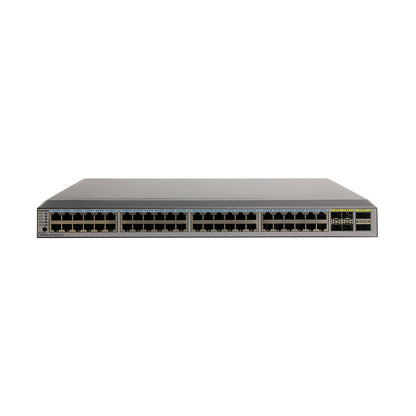

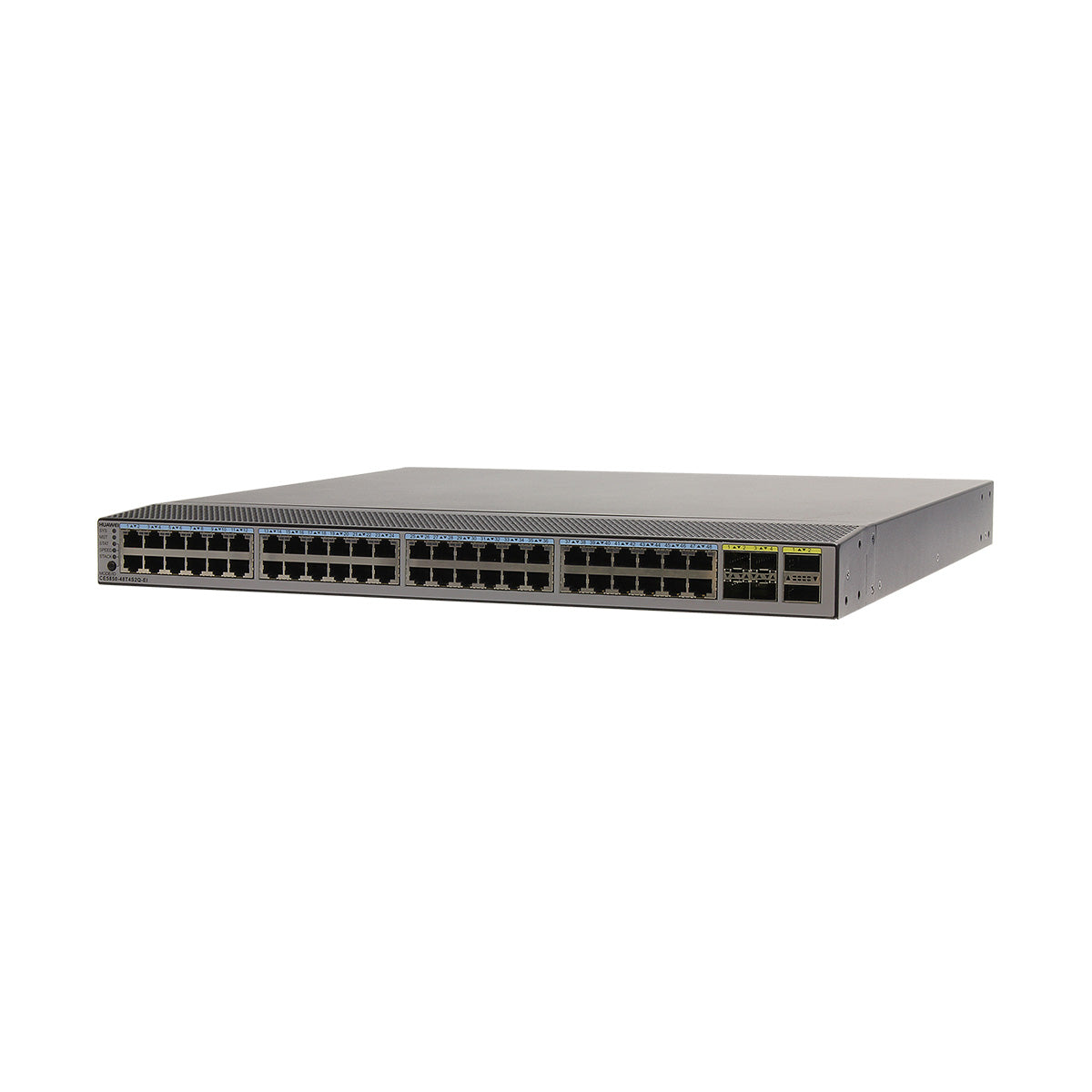

Huawei CE5850-48T4S2Q-EI Switch

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00
CE5850-48T4S2Q-EI Hardware Description
Introduction
Huawei CE5800 Series Switch CE5850-48T4S2Q-EI support 48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40GE QSFP+.
The Huawei Cloud Engine CE5800 series switches are next-generation, high-density Gigabit Ethernet switches designed for data centers and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. The CE5800 is also the first Gigabit Ethernet access switch to provide 40 GE uplink ports.
Ports on the CE5850-48T4S2Q-EI

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3ab

Applicable cable

Straight-through cable and crossover cable

Working mode

Supported rate: 10/100/1000 Mbit/s auto-sensing

Full-duplex

Maximum transmission distance

100 m

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3ab

Applicable cable

Straight-through cable and crossover cable

Working mode

Supported rate: 10/100/1000 Mbit/s auto-sensing

Full-duplex

Maximum transmission distance

100 m

Attribute

Description

Connector type

LC

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ae

Working mode

Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing

Full-duplex

Technical specifications of the CE5850-48T4S2Q-EI

Item

Description

Physical specifications

  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.8 kg (19.40 lb)

Environment parameters

Temperature

  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:

    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)

  • Back-to-front airflow: < 45 dBA
  • Front-to-back airflow: < 51 dBA

Power specifications

Power source type

AC/DC

AC power input

  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input

  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current

  • 150 W AC power (PAC-150WA): 2.5 A (100 V AC to 240 V AC)
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)

Chassis power consumption

Maximum power consumption

131 W

Typical power consumption

109 W (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

447 BTU/hr

Typical heat dissipation

372 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and SFP+ cables on 4 ports and QSFP+ cables on 2 ports, double power modules)

Surge protection

Ethernet electrical ports: 2 kV in common mode

Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability and availability

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

NOTE:

A CE5850HI chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

58.96 years

Mean time to repair (MTTR)

2.0 hours

Availability

0.9999961280

Technical specifications

Processor

1.2 GHz, dual-core.

DRAM Memory

2 GB

NOR Flash

16 MB

NAND Flash

1 GB

Stack

Service port supporting the stack function

10GE optical ports and 40GE optical ports

Certification

  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
