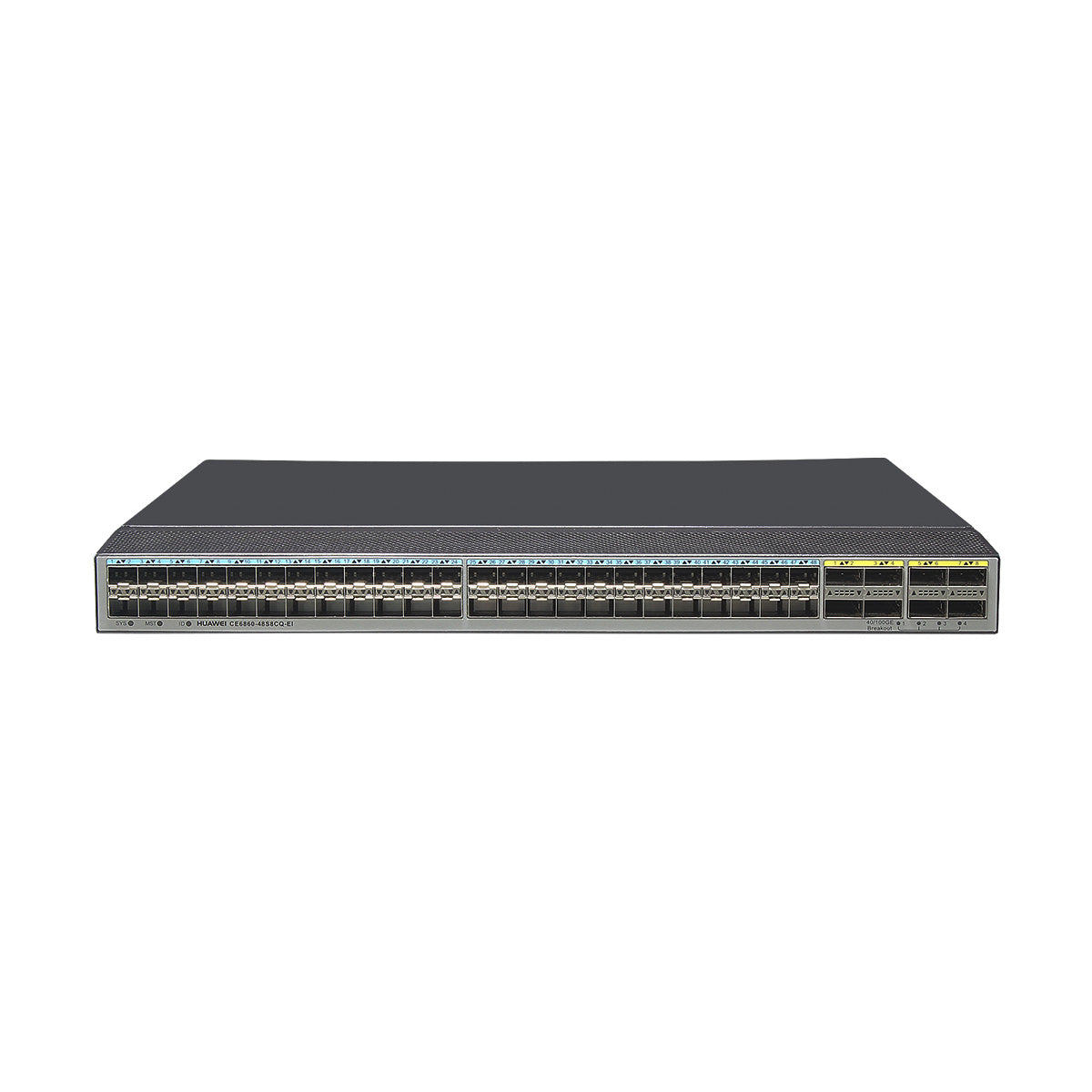

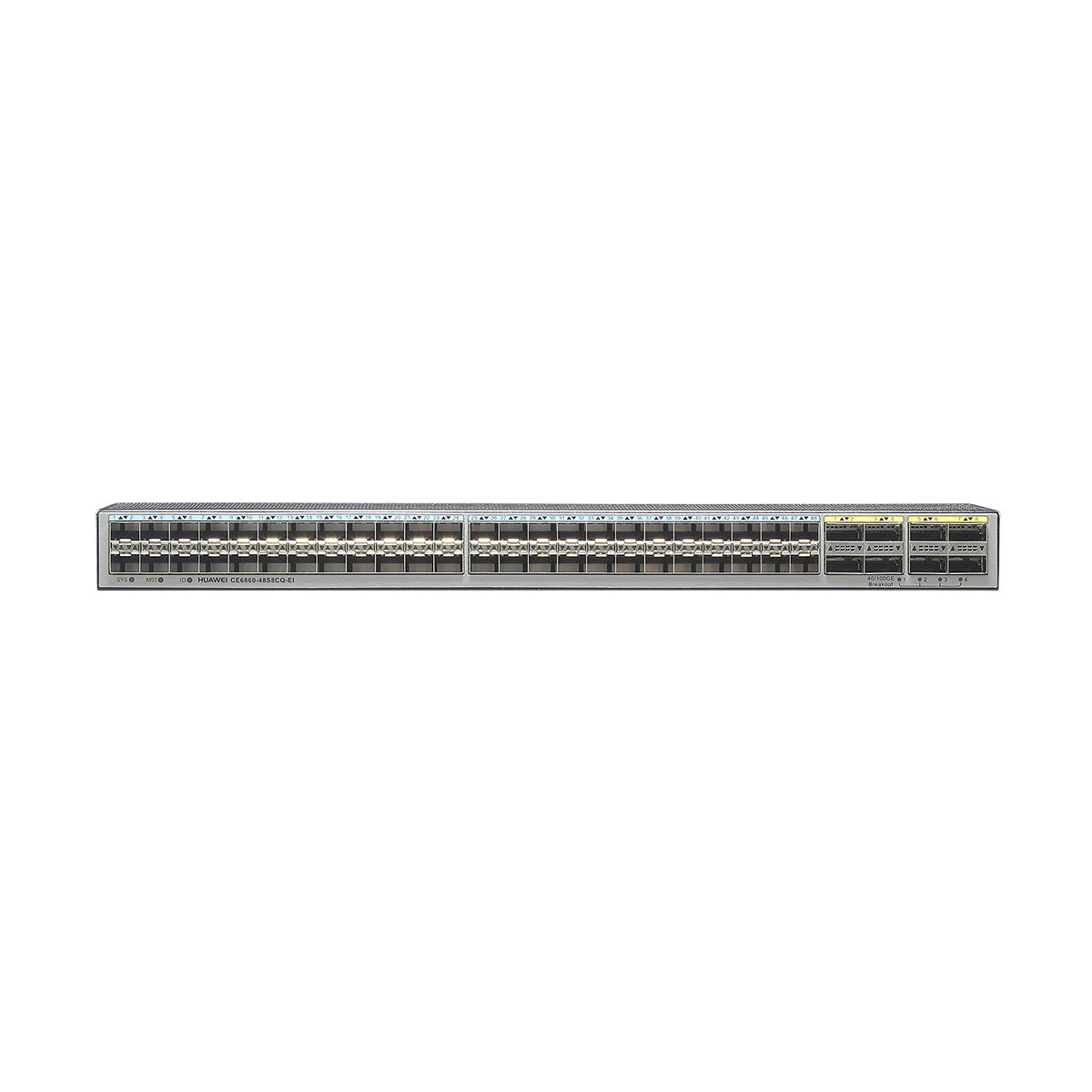

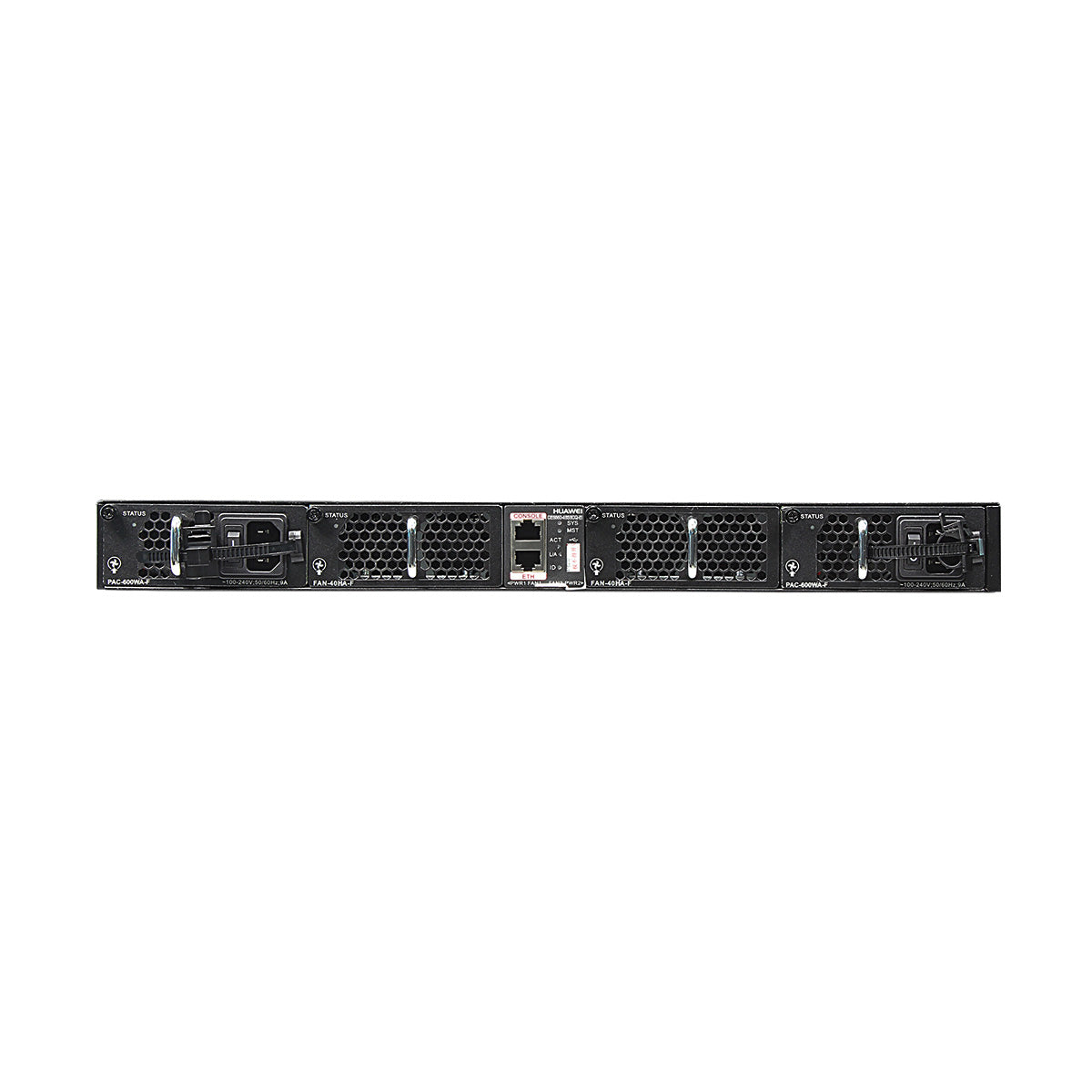

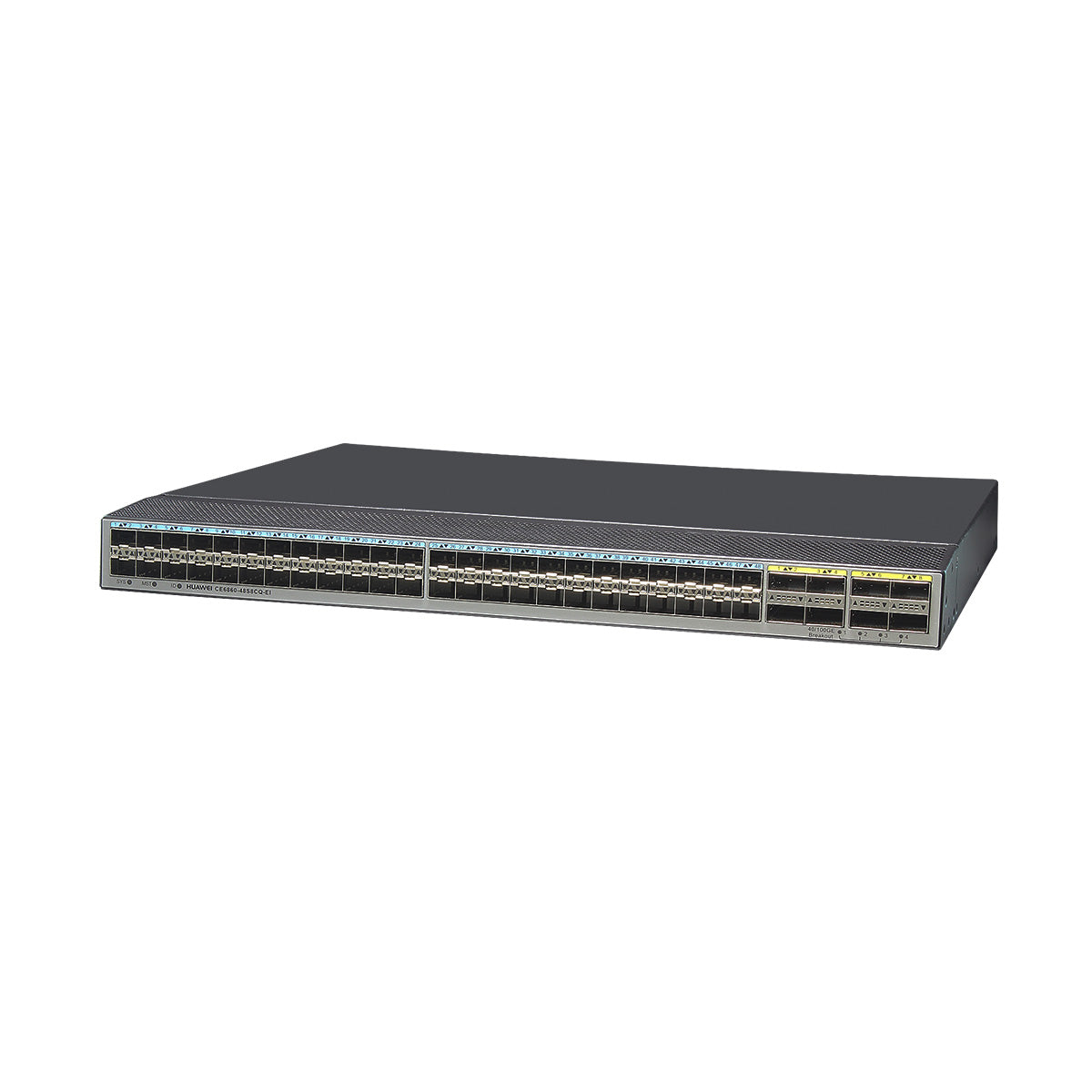

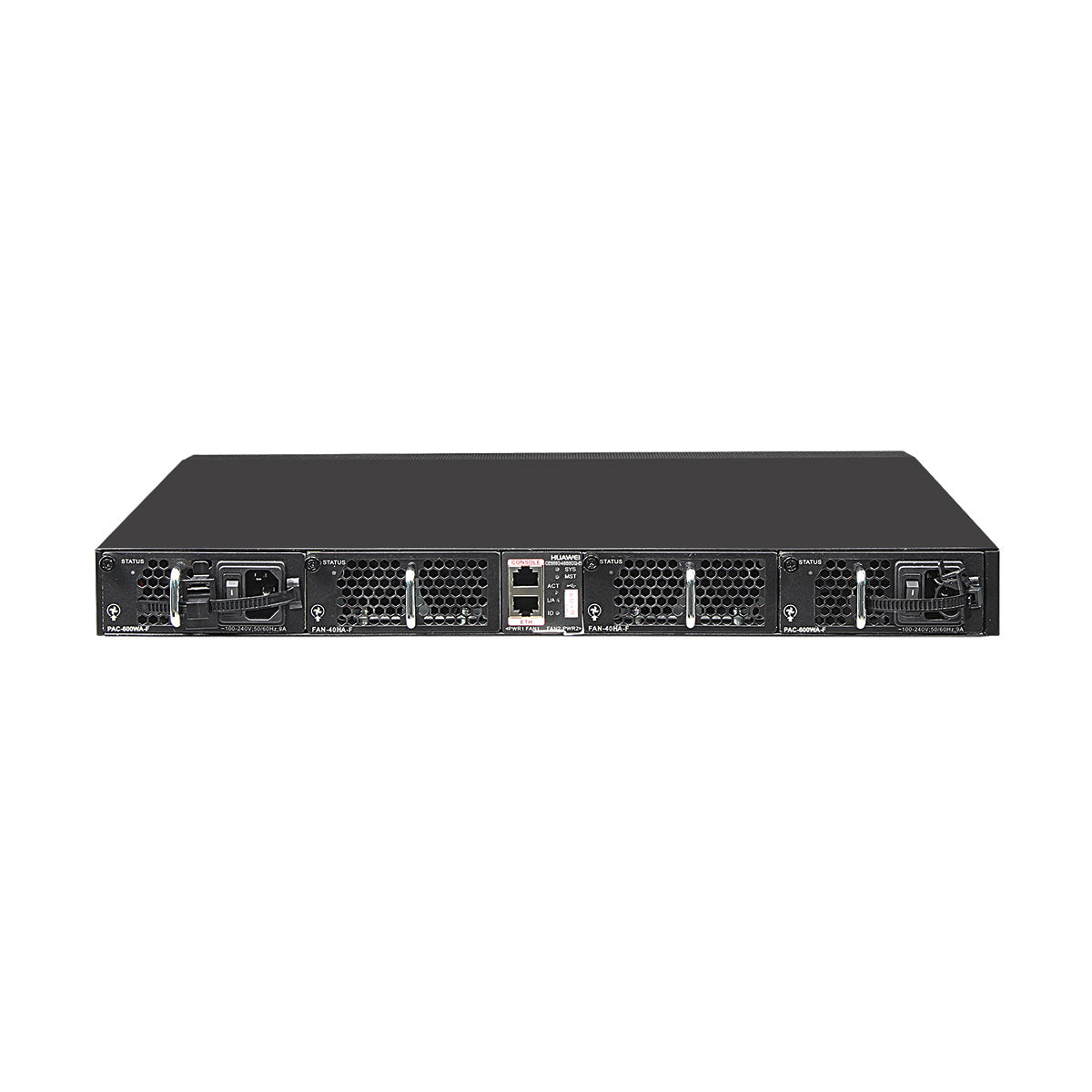

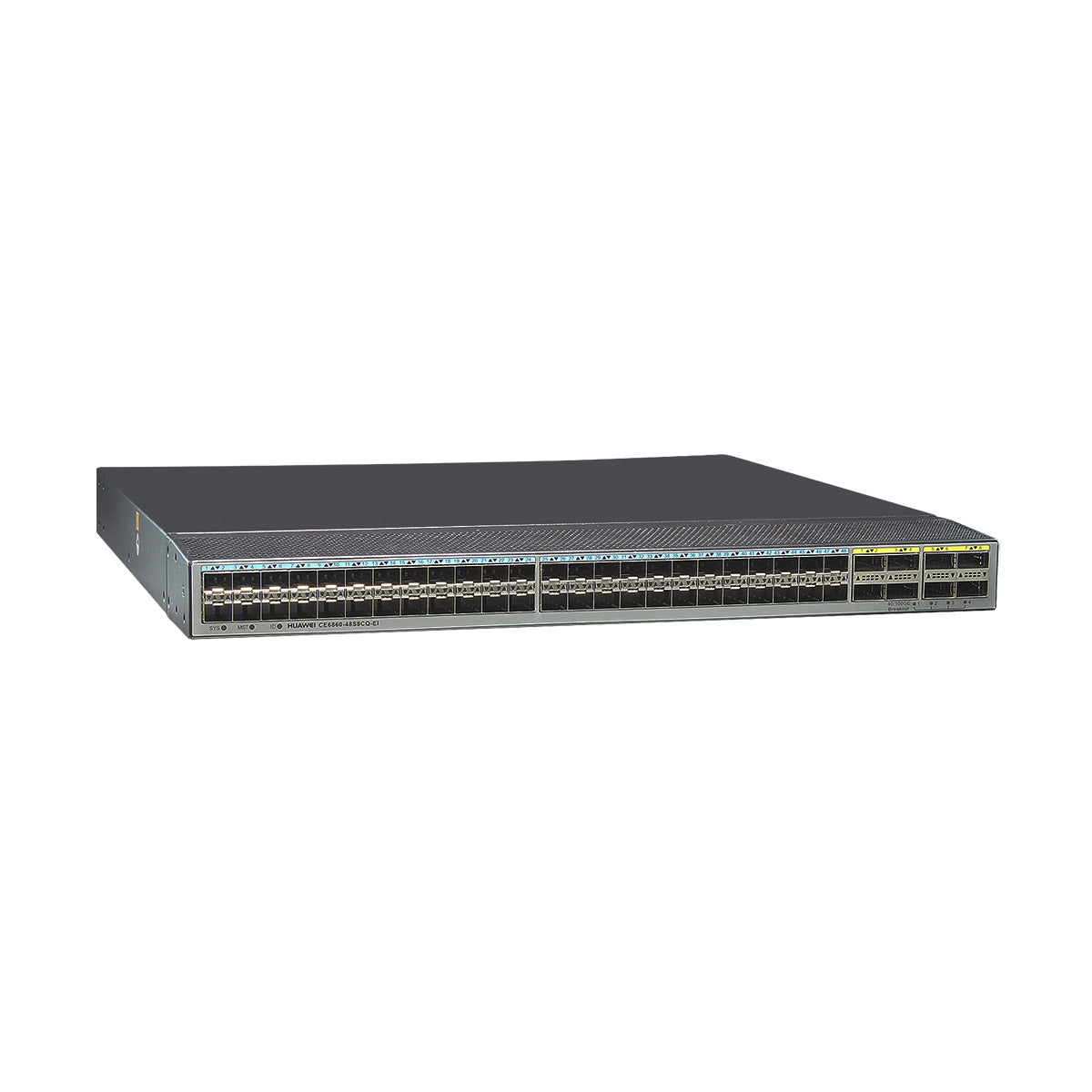

Huawei CE6860-48S8CQ-EI Switch

$0.00
$0.00
Availability: In stock
SKU: 02350SRA
Tags:
Collections:

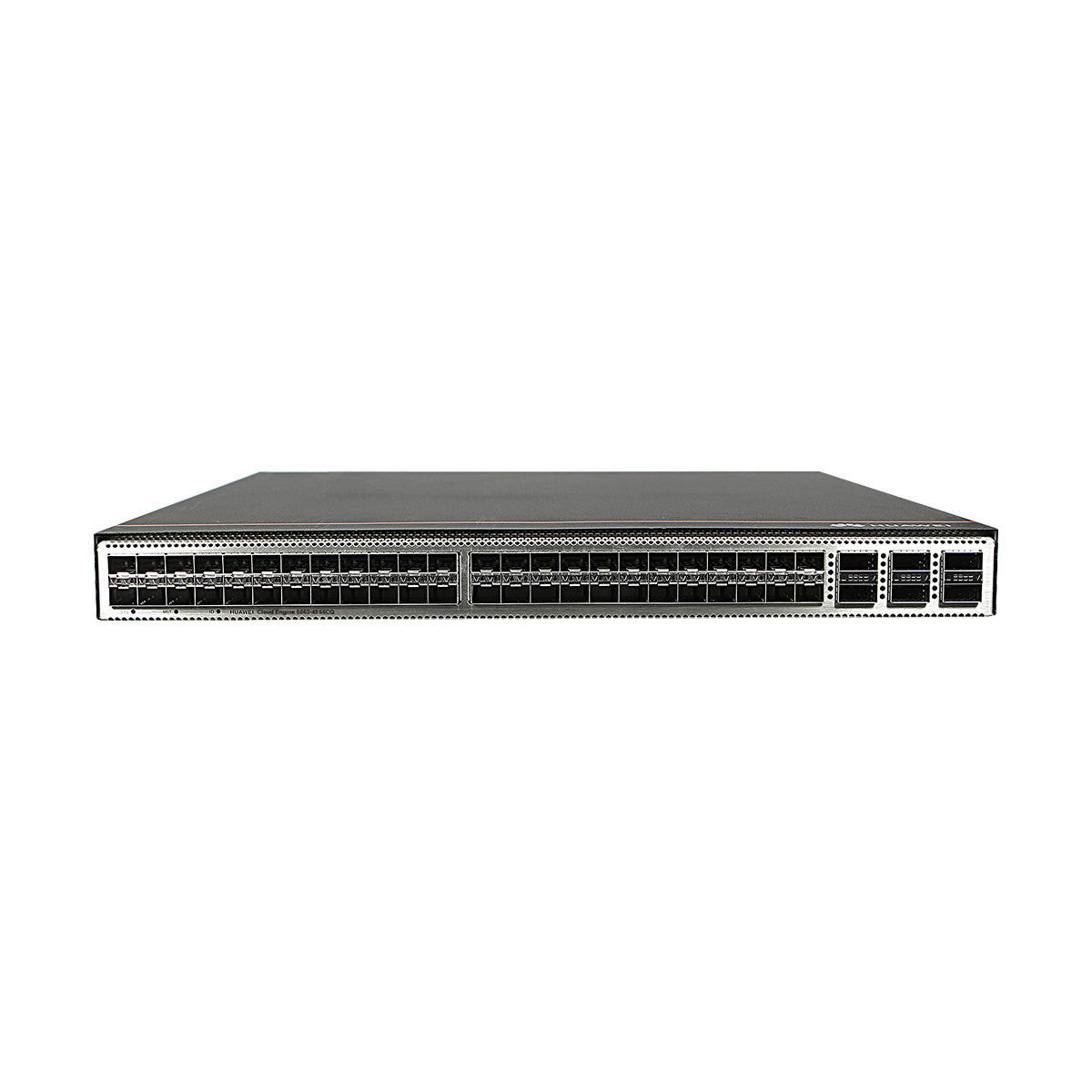

HuaweiHuawei CE6863-48S6CQ Switch
CE6863-48S6CQ-1

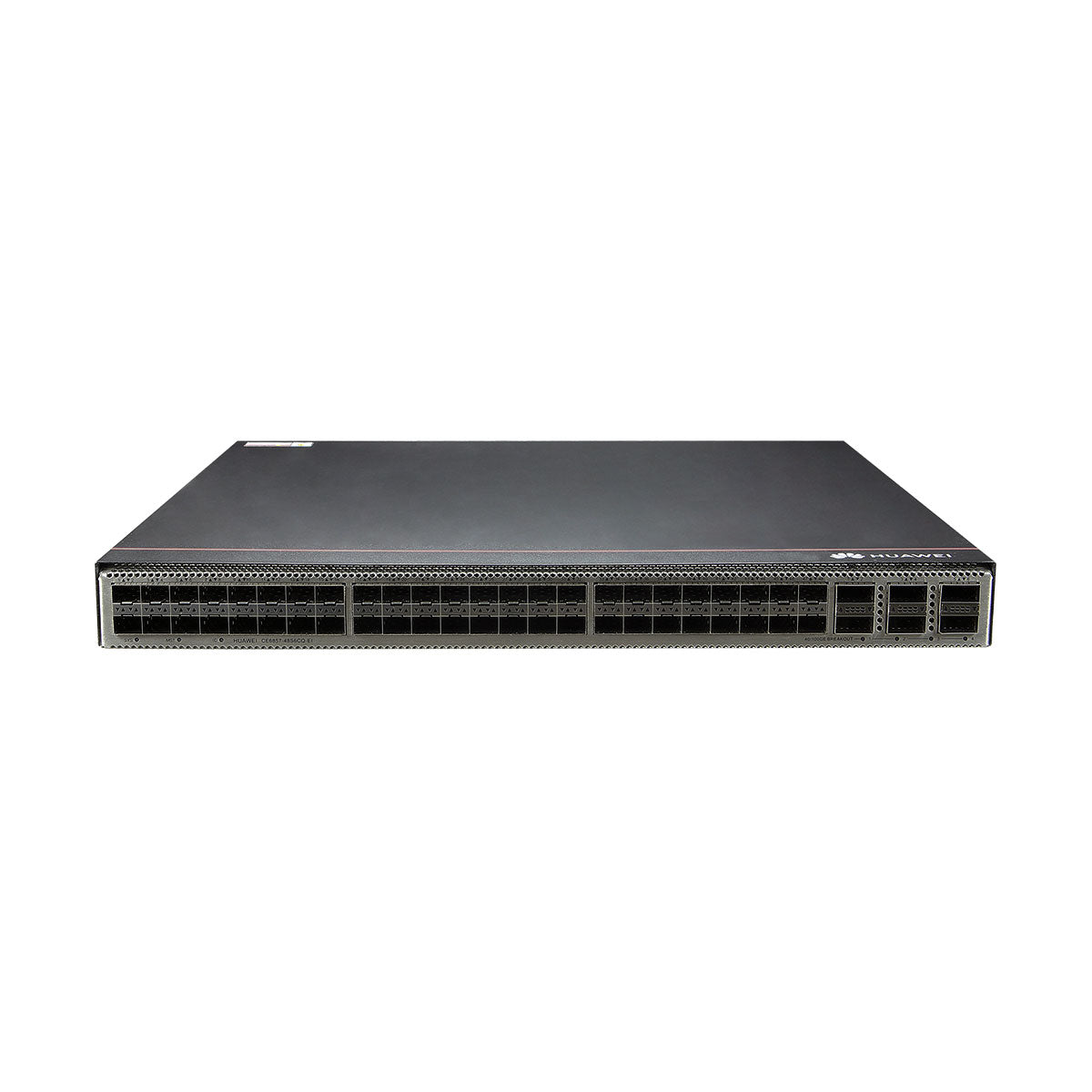

CE6857-48S6CQ-EI-1
HuaweiHuawei CE6857-48S6CQ-EI Switch
CE6860-48S8CQ-EI-1
$0.00
$0.00
CE6860-48S8CQ-EI Hardware Description
Introduction
Huawei CE6800 Series Switch CE6860-48S8CQ-EI support 48-Port 25GE SFP28, 8*100GE QSFP28.
Ports on the CE6860-48S8CQ-EI

Attribute

Description

Connector type

Depending on the optical module

Optical attributes

Depending on the module or cable in use

Port use constraints

The 48 10GE/25GE SFP28 optical ports of a CE6860 switch work at the rate of 25 Gbit/s by default and do not support GE/10GE auto-sensing. You can set the port rate to 10 Gbit/s or 1 Gbit/s using the port mode 10g or port mode ge command, respectively. If GE mediums are installed on the first eight 25GE interfaces, you need to run the port mode ge command to configure the interfaces to work at the rate of 1 Gbit/s; if GE mediums are installed on the later 40 25GE interfaces, the port mode 10g command needs to be run, the interfaces automatically work at the rate of 1 Gbit/s, and the port mode ge command does not need to be run.

The 48 10GE/25GE SFP28 optical ports are divided into 12 port groups, with four ports in each group (1-4, 5-8, 9-12...45-48).

  • If the rate of any port in a port group is set to 1 Gbit/s, 10 Gbit/s, or 25 Gbit/s, all the other ports in this group also work at the rate of 1 Gbit/s, 10 Gbit/s, or 25 Gbit/s.

  • When the ports in a port group work at the rate of 25 Gbit/s, they support only 25GE modules or cables and will go Down if other types of modules or cables are used. When the ports in a port group work at the rate of 10 Gbit/s, they support only 10GE or 25GE variable-rate modules or cables and will go Down if other types of modules or cables are used. When the ports in a port group work at the rate of 1 Gbit/s, they support only GE modules or cables and will go Down if other types of modules or cables are used.

  • If the switch is running a version earlier than V200R002C50, the ports in a port group must use the same type of transmission medium (copper or fiber). This constraint does not apply to V200R002C50 and later versions.

Standards compliance

IEEE802.3by

Working mode

Full-duplex

Attribute

Description

Connector type

Depending on the optical module

Optical attributes

Depending on the module or cable in use

Standards compliance

IEEE802.3ba

Working mode

Full-duplex
Technical specifications of the CE6860-48S8CQ-EI

Item

Description

Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.8 kg (19.40 lb)

Environment parameters

Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:

    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

  • Storage temperature: -40°C to +70°C (-40°F to +158°F)

Relative humidity

5% RH to 95% RH, noncondensing

Altitude

< 5000 m (16404 ft.)

Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 51 dBA
  • Front-to-back airflow: < 52 dBA

Power specifications

Power source type

AC/DC

AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz

DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC

High-voltage DC power input

Not supported

Rated input current
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)

Chassis power consumption

Maximum power consumption

336 W

Typical power consumption

214 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)

Chassis heat dissipation

Maximum heat dissipation

1146 BTU/hr

Typical heat dissipation

731 BTU/hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)

Surge protection
Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 2 kV in common mode and 1 kV in differential mode

Heat dissipation

Heat dissipation mode

Air cooling

Airflow

Front-to-back or back-to-front, depending on the fan modules and power modules

Reliability and availability

Power module backup

1+1 backup

Fan module backup

1+1 backup not supported

NOTE:

A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode.

Hot swap

Supported by all power modules and fan modules

Mean time between failures (MTBF)

51.50 years

Mean time to repair (MTTR)

1.67 hours

Availability

0.99999629199

Technical specifications

Processor

1.5 GHz, 8-core

DRAM Memory

2 GB

NOR Flash

32 MB

NAND Flash

1 GB

Stack

Service port supporting the stack function

25GE optical ports and 100GE optical ports

Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
