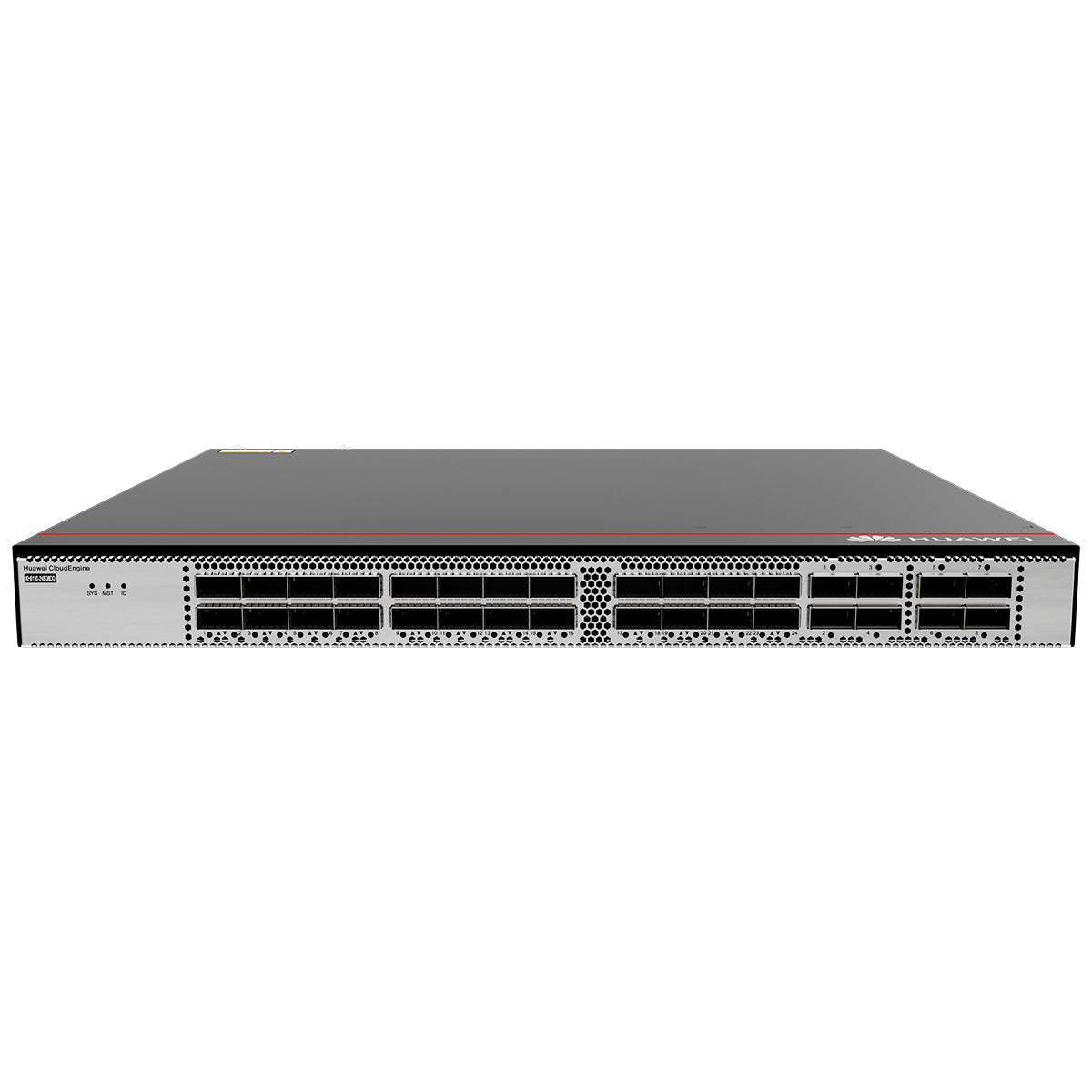

Huawei XH9110-24BQ8DQ Switch

Regular price $0.00
Regular price Sale price $0.00
Availability: In stock
SKU: 2032501
Regular price $0.00
Regular price Sale price $0.00
XH9110-24BQ8DQ Overview
Item Details
Description XH9110-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, Without Fan and Power Modules)
Part Number 02355YSM
Model XH9110-24BQ8DQ
First supported version V300R023C10
Other part numbers

02355YSN (XH9110-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake))

02355YSP (XH9110-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Exhaust))

02356UAQ (XH9110-24BQ8DQ switch Two-Node Cluster Combo Package (including two XH9110-24BQ8DQ switches (24*200GE QSFP56,8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake)))

02356UAR (XH9110-24BQ8DQ switch Two-Node Cluster Combo Package (including two XH9110-24BQ8DQ switches (24*200GE QSFP56,8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Exhaust)))

Short Name XH9110
Components of the XH9110-24BQ8DQ

XH9110-24BQ8DQ

1. Ground screw

2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3. Console port

4. ETH management port (RJ45)

5. USB port

6. Five Fan slots

Applicable fan modules:

  • FAN-040B-B
  • FAN-040B-F

7. Two Power supply slots

Applicable power modules:

  • PAC1K2S12-PB
  • PAC1K2S12-PF
  • PDC1K2S12-CE
  • PDC1K2S12-PB

8. Twenty-four 200GE QSFP56 Ethernet optical ports

9. Eight 400GE QSFP-DD Ethernet optical ports

10. Three port-side mounting holes for mounting brackets

11. Two middle mounting holes for mounting brackets

12. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

13. Four power-supply-side mounting holes for mounting brackets

XH9110-24BQ8DQ Datasheet
Item XH9110-24BQ8DQ
Installation Type Cabinet installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
SSD Flash 4GB SSD
USB

It can be used for log backup and USB-based deployment.

This function is reserved.

Power supply mode
  • AC pluggable
  • DC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 24 x 200G QSFP56
Uplink Service interface 8 x 400G QSFP-DD
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]

291 W (100% traffic load, copper cables on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)

382 W (100% traffic load, short-distance optical modules on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)

Typical heat dissipation [BTU/hour]
  • 993 BTU/hour (100% traffic load, copper cables on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
  • 1303 BTU/hour (100% traffic load, short-distance optical modules on 12 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
Static power consumption [W] 247 W
Static heat dissipation [BTU/hour] 843 BTU/hour
Maximum power consumption [W]

522 W (100% traffic load, short-distance optical modules on 24 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)

770 W (100% traffic load, long-distance optical modules on 24 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)

Maximum heat dissipation [BTU/hour]
  • 1781 BTU/hour (100% traffic load, short-distance optical modules on 24 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)
  • 2627 BTU/hour (100% traffic load, long-distance optical modules on 24 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]
  • 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 1200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current [A]
  • 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC)
  • 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
Rated output power [W]
  • 1200 W AC&240 V DC power module: 1200 W
  • 1200 W DC power module: 1200 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]

AC: 6 kV in common mode and 6 kV in differential mode

DC: 4 kV in common mode and 2 kV in differential mode

HVDC: 4 kV in common mode and 2 kV in differential mode

Types of fans Pluggable
Number of fan modules 5
Redundant fans The device supports 4+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.999994996
MTBF [year] 34.22 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 50.9 dB(A) on average; maximum: 53.8 dB(A)
  • Back-to-front airflow: 50.8 dB(A) on average; maximum: 54.6 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 76.2 dB(A) on average; maximum: 79 dB(A)
  • Back-to-front airflow: 73.1 dB(A) on average; maximum: 79.2 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)] 6.74 kg (14.86 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)] 9.16 kg (20.19 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)] 9.71 kg (21.41 lb)
Weight with packaging (full configuration) [kg (lb)] 12.17 kg (26.83 lb)
Chassis height [U] 1 U
