Huawei H802X2CS Board Overview
The H801X2CK board is a 2-port 10GE/GE uplink interface card that provides two 10GE/GE upstream or cascading optical ports.

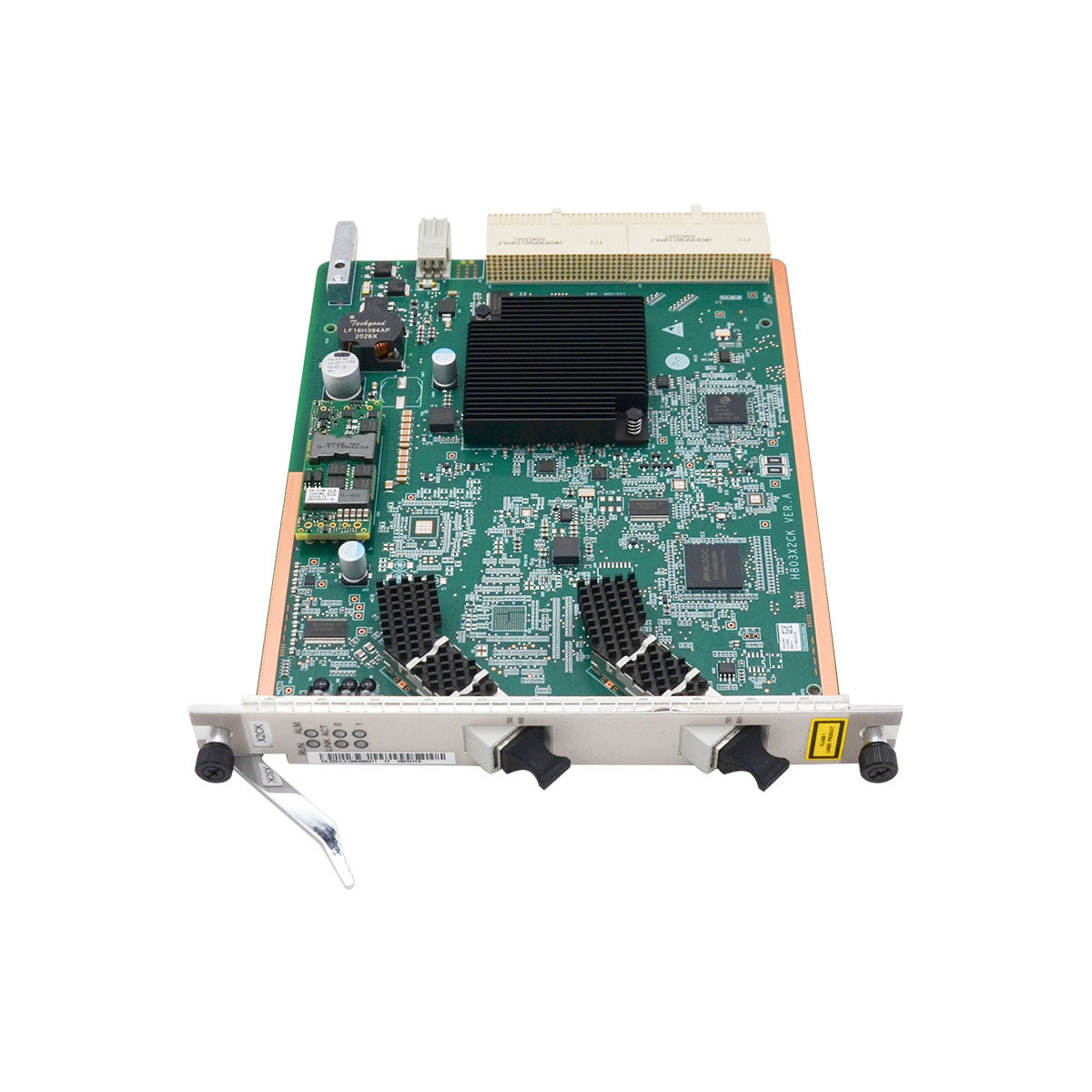

Appearance of the H801X2CK

Technical specifications of the H801X2CK
Board | Power Consumption | Maximum Frame Size |
Upstream interface board (GIU) | ||
H801GICD | Static: 5.3 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 5.3 W | ||
H801GICE | Static: 5.8 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 11.8 W | ||
H801GICF | Static: 3.9 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 3.9 W | ||
H801GICG | Static: 6.3 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 9.2 W | ||
H801GICK | Static: 6.6 W | 2000 bytes |
Maximum: 7 W | ||
H802GICK | Static: 7 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 9 W | ||
H801GSCA | Static: 8 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 10 W | ||
H801X1CA | Static: 11.1 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 11.3 W | ||
H801X2CA | Static: 20.2 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 20.5 W | ||
H801X2CS | Static: 17.6 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 18 W | ||
H802X2CS | Static: 7 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 9 W | ||
H801X2CK | Static: 7 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 9 W | ||
H803X2CK | Static: 8 W | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 9 W | ||
H802P2CA | Static: 9 W | 2004 bytes |
Maximum: 10 W |
Functions and features of the H801X2CK
Board |
Upstream Transmission (*) |
Cascading (*) |
Intra-board aggregation and Inter-board aggregation |
Clock Feature |
Port |
Pluggable Optical Module |
Pluggable Electrical Module |
---|---|---|---|---|---|---|---|
H801GICD |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
Four GE ports |
SFP |
SFP |
H801GICE |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
Four GE electrical ports |
No |
No |
H801GICF |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
Two GE ports |
SFP |
SFP |
H801GICG |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
Two GE electrical ports |
No |
No |
H801GICK |
Yes |
Yes |
Yes |
|
Two GE ports |
SFP |
SFP |
H802GICK |
Yes |
Yes |
Yes |
|
Two GE ports |
SFP |
SFP |
H801GSCA |
Yes |
Yes |
Yes |
|
Four GE ports |
SFP |
No |
H801X1CA |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
One 10GE port |
XFP |
No |
H801X2CA |
Yes |
Yes |
Yes |
1588ACR (with CKMD) |
Two 10GE ports |
XFP |
No |
H801X2CS |
Yes |
Yes |
Yes |
|
Two 10GE ports |
SFP+ |
No |
H802X2CS |
Yes |
Yes |
Yes |
|
Two 10GE/GE ports |
SFP/SFP+ |
SFP |
H801X2CK |
Yes |
Yes |
Yes |
|
Two 10GE/GE ports |
SFP/SFP+ |
SFP |
H803X2CK |
Yes |
Yes |
Yes |
|
Two 10GE/GE ports |
SFP/SFP+ |
SFP |
H802P2CA |
Yes |
No |
No |
No |
Two GPON port (only TX0/RX0 available) |
SFP |
No |
