Huawei H801XGBD Board Overview
H801XGBD is a 8-port 10G GPON OLT interface board. It works with the 10G GPON optical network unit (ONU) to provide 10G GPON access service.

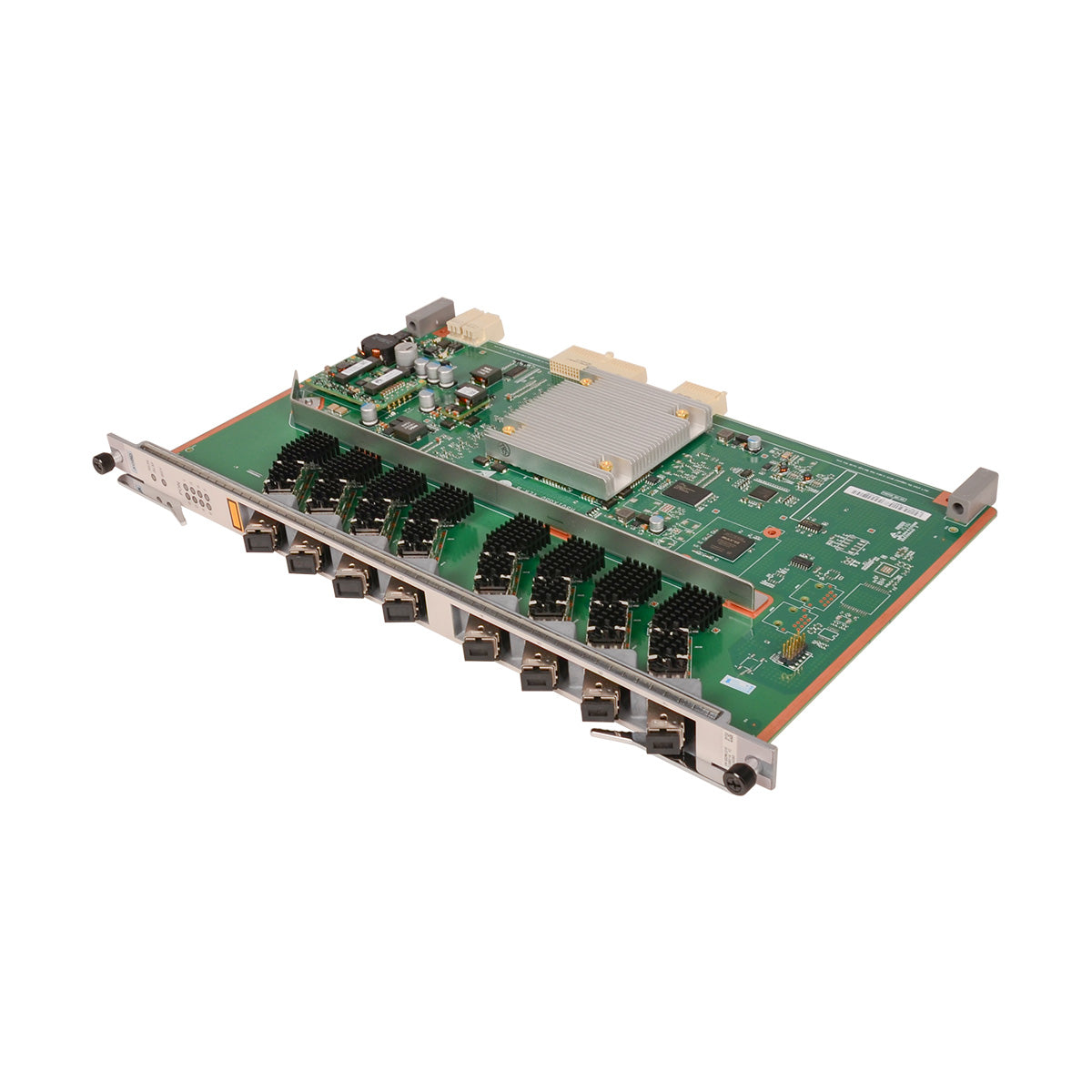

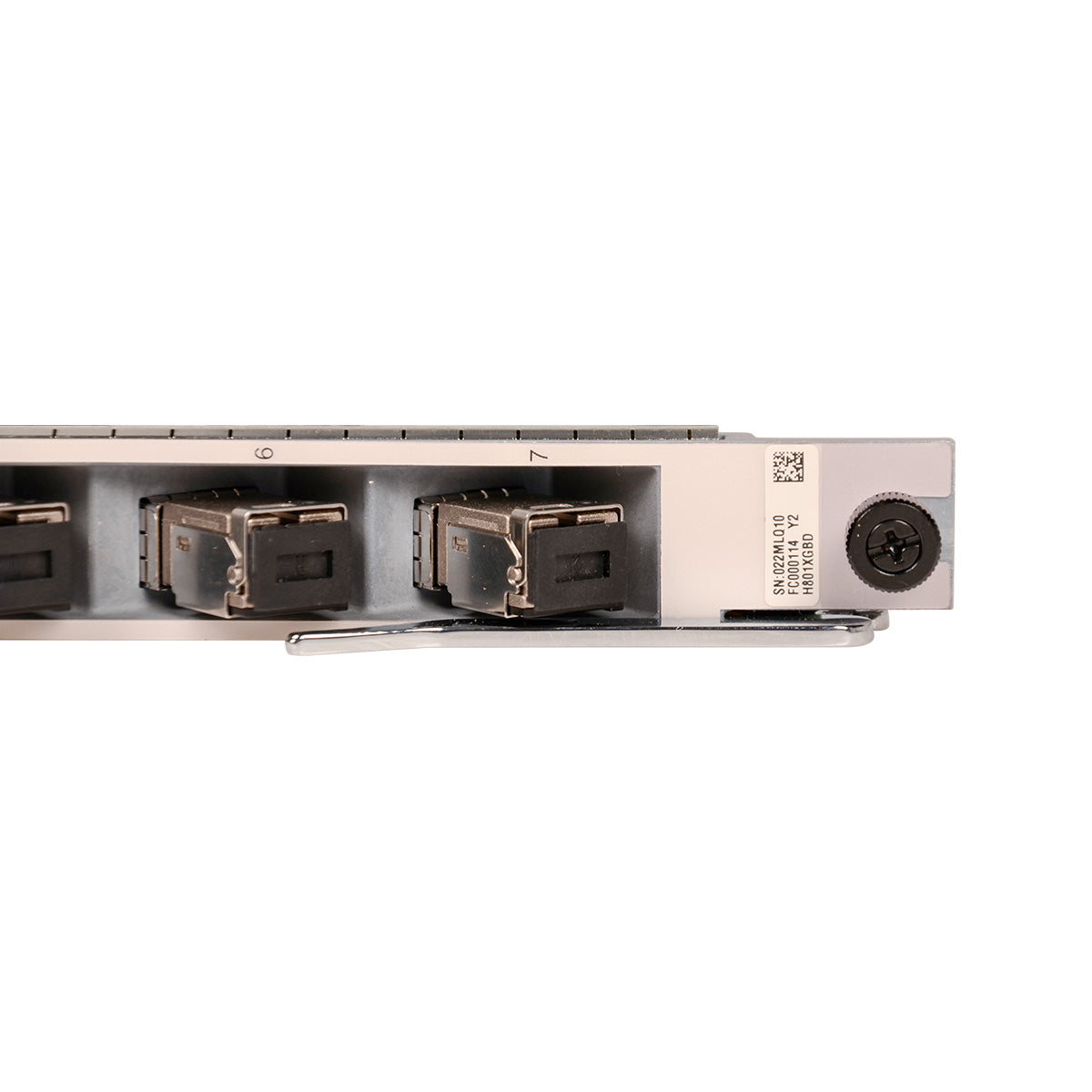

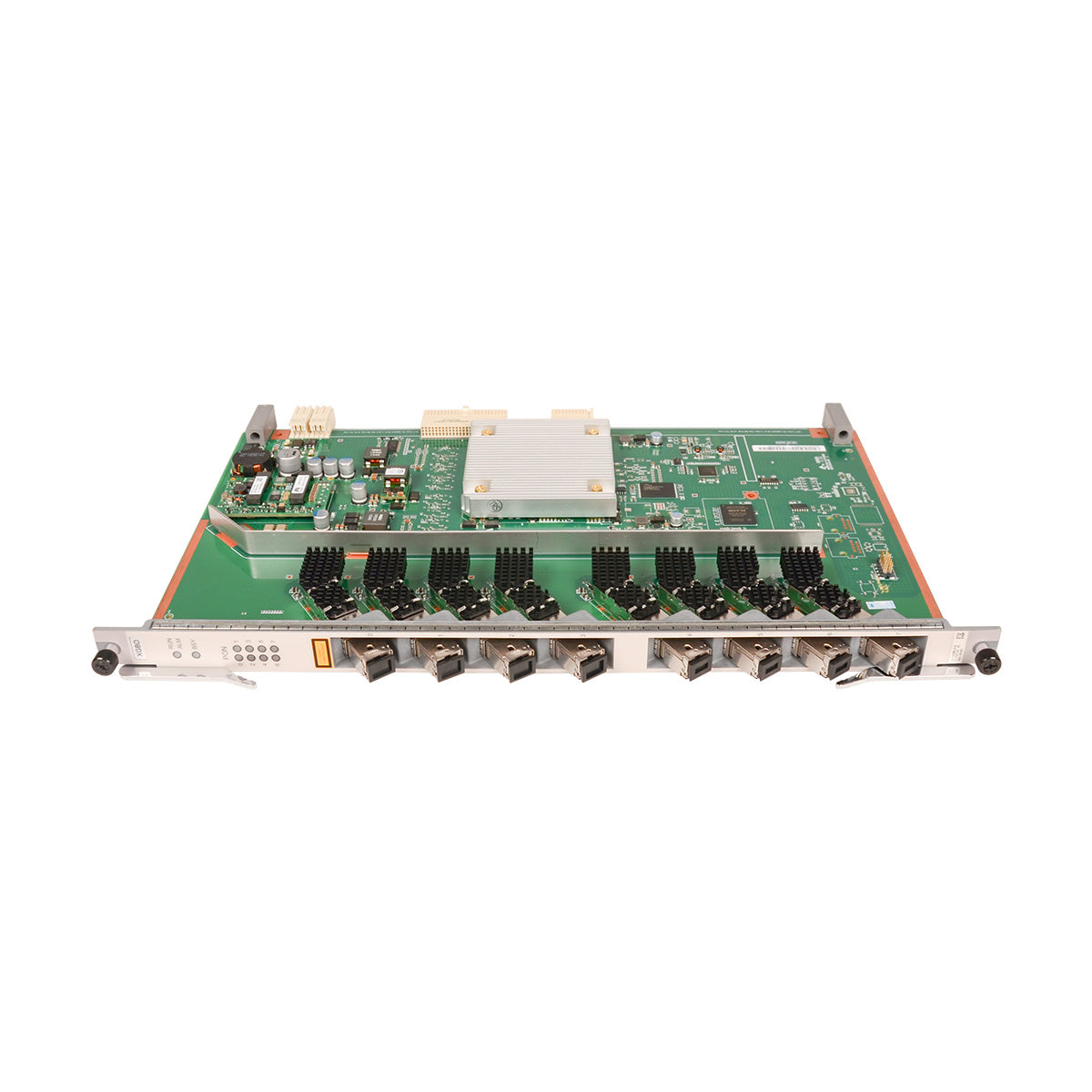

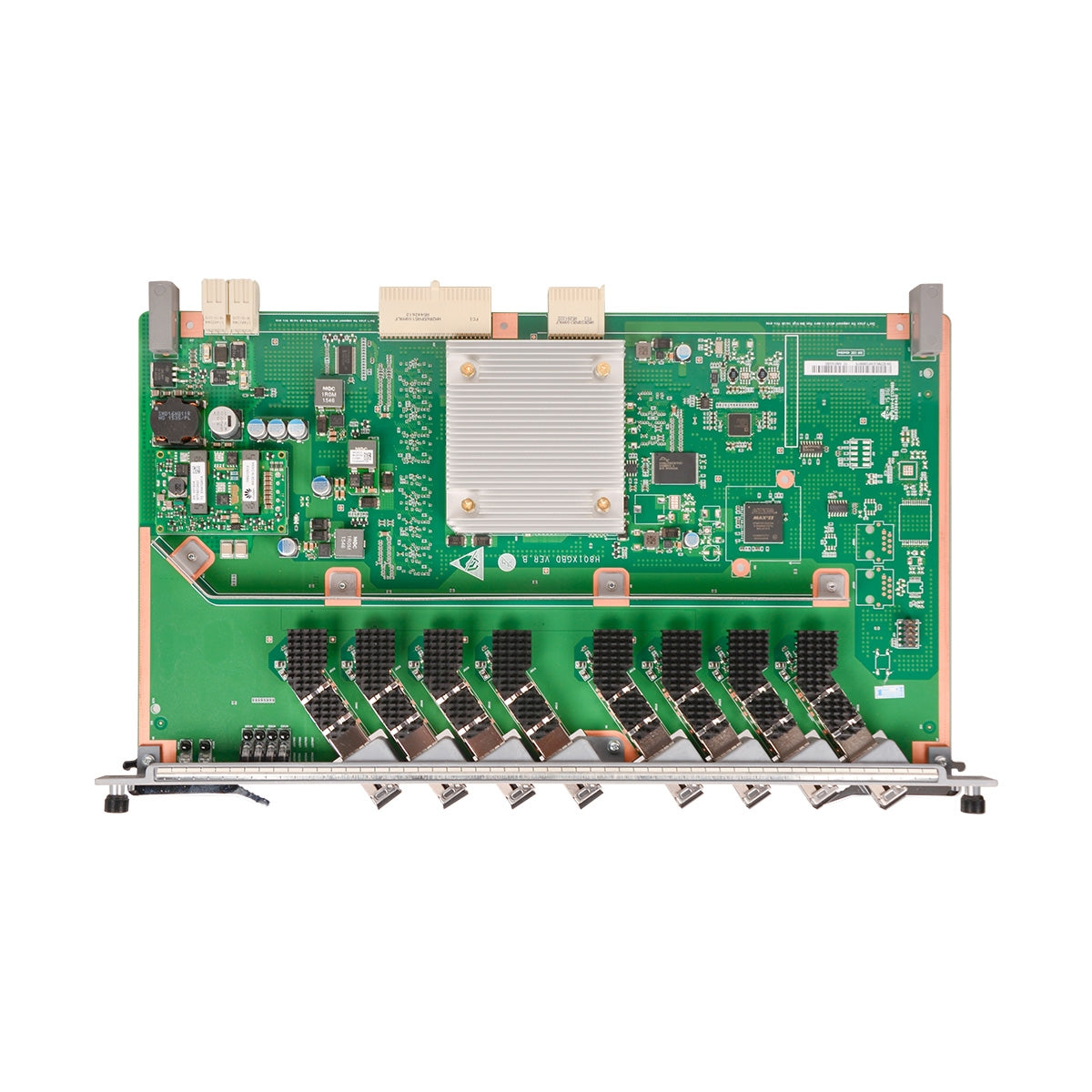

Appearance of the H801XGBD

H801XGBD Applicable Optical Module
A 10G GPON optical module is connected to one SC optical fiber to provide 10G GPON access service.
No. |
1 |
2 |
3 |
---|---|---|---|
Type |
One-fiber bi-directional optical module, N1 |
One-fiber bi-directional optical module, N1 |
One-fiber bi-directional optical module, N2a |
Operating Wavelength |
Tx: 1577 nm Rx: 1270 nm |
Tx: 1577 nm Rx: 1270 nm |
Tx: 1577nm Rx: 1270nm |
Encapsulation Type |
XFP |
SFP+ |
SFP+ |
Port Rate |
Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
Minimum Output Optical Power |
2 dBm |
2 dBm |
4dBm |
Maximum Output Optical Power |
6 dBm |
6 dBm |
8dBm |
Maximum Receiver Sensitivity |
-27.5 dBm |
-27.5 dBm |
-29.5dBm |
Optical Connector Type |
SC |
SC |
SC |
Optical Fiber Type |
Single-mode |
Single-mode |
Single-mode |
Overload Optical Power |
-7 dBm |
-7 dBm |
-9dBm |
Extinction Ratio |
8.2 dB |
8.2 dB |
8.2dB |
Technical specifications of the H801XGBD
Board | Power Consumption | Maximum Frame Size |
10G GPON interface board | ||
H802XGBC | Static: 67 W | 2004 bytes |
Maximum: 85 W | ||
H801XGBD | Static: 26 W | 2004 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Maximum: 50 W |
Functions and features of the H801XGBD
Service Board |
H802XGBC |
H801XGBD |
---|---|---|
Number of 10G GPON ports supported by each board |
4 |
8 |
Port mode |
XFP |
SFP+ |
Number of GEM Port supported by each port |
3872 |
3872 |
Number of T-CONT supported by each port |
2048 |
2048 |
Split ratio |
Supports a maximum of 1:128 split ratio. NOTE:
The actual split ratio is determined according to the model of optical modules and the distance of optical fibers.
|
Supports a maximum of 1:256 split ratio. NOTE:
The actual split ratio is determined according to the model of optical modules and the distance of optical fibers.
|
Outputs 1588V2 time to the downstream device |
Not support |
Support |
Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module |
Support |
Support |
Temperature query and alarm in case of a high temperature |
Support |
Support |
Board power-off in case of a high temperature |
Support |
Support |
