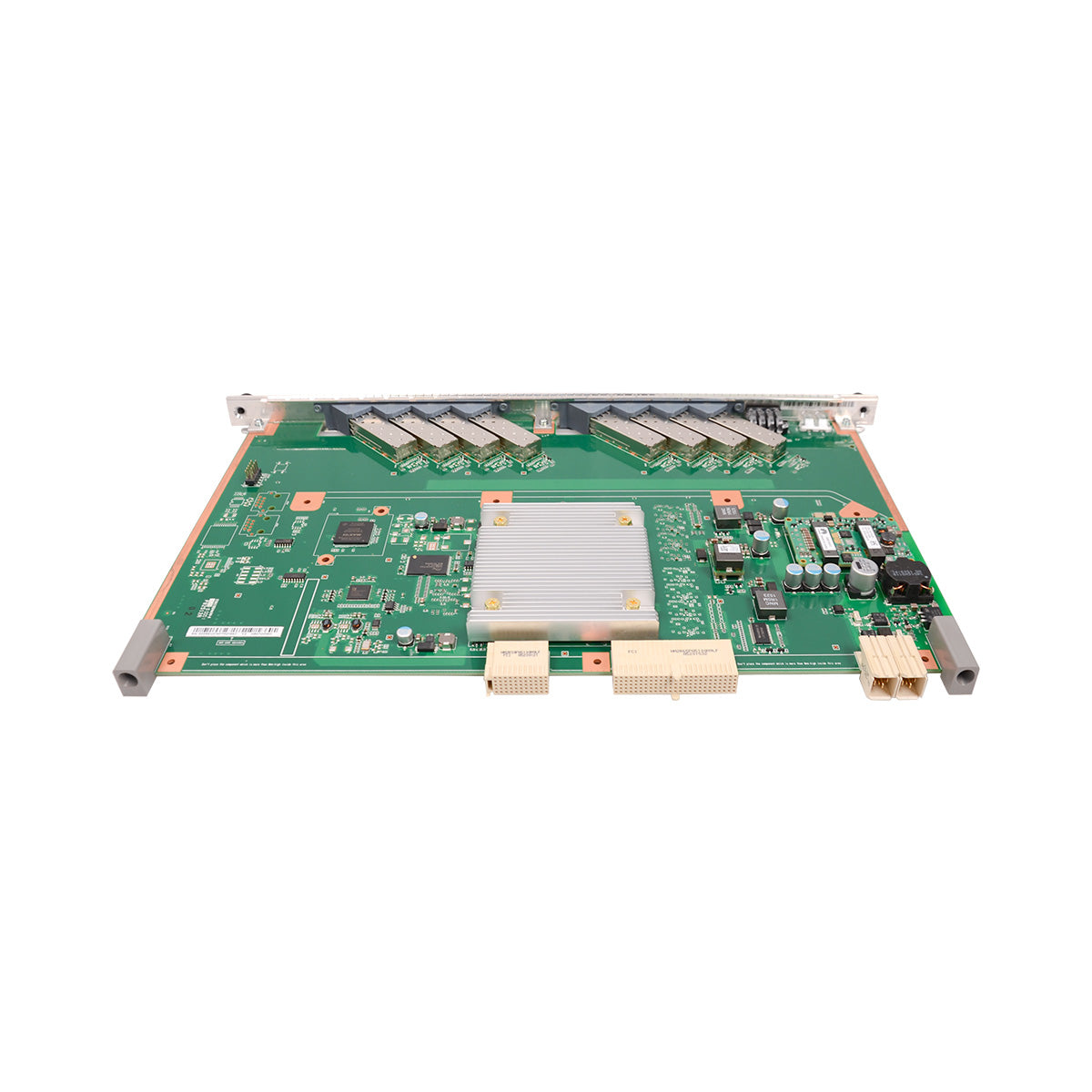

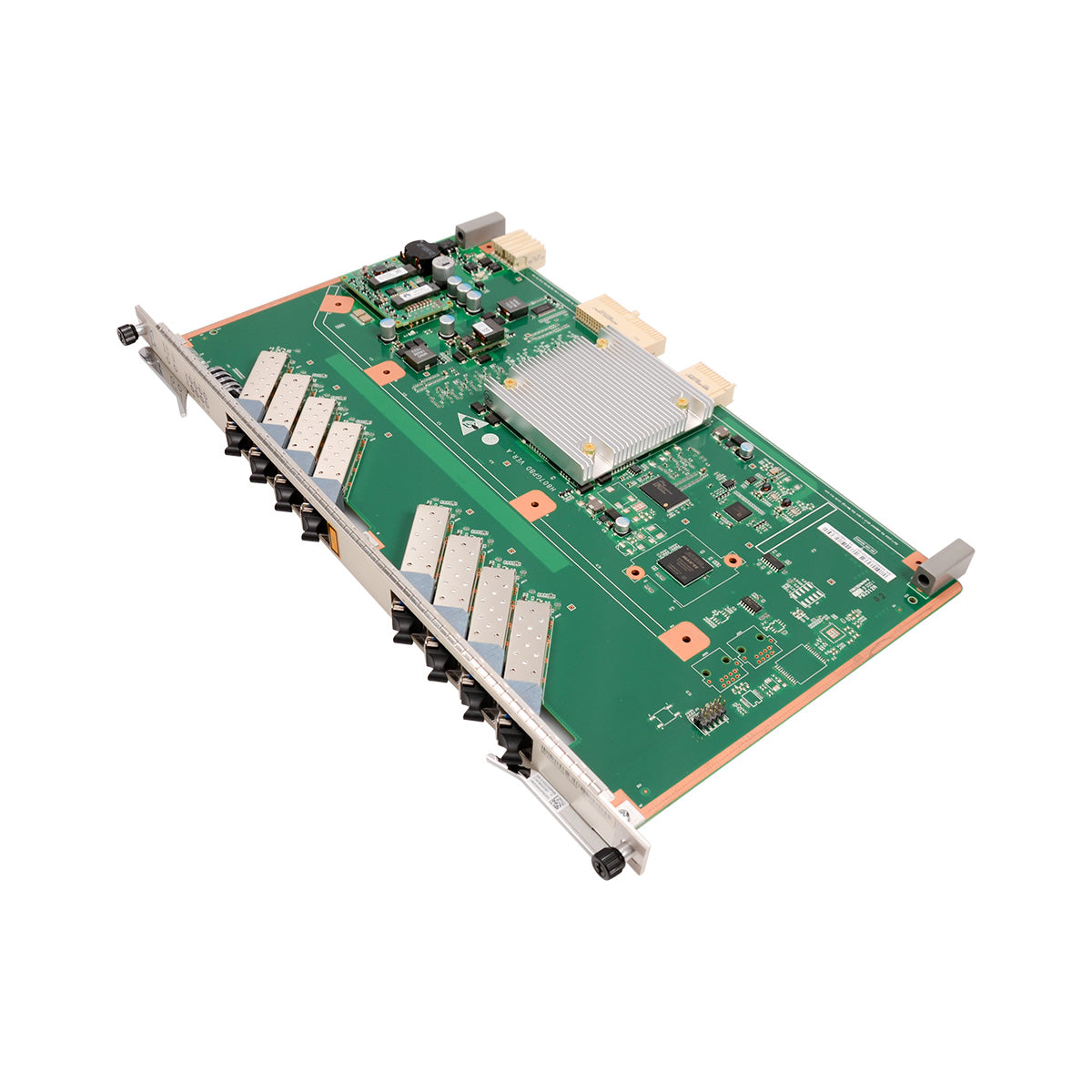

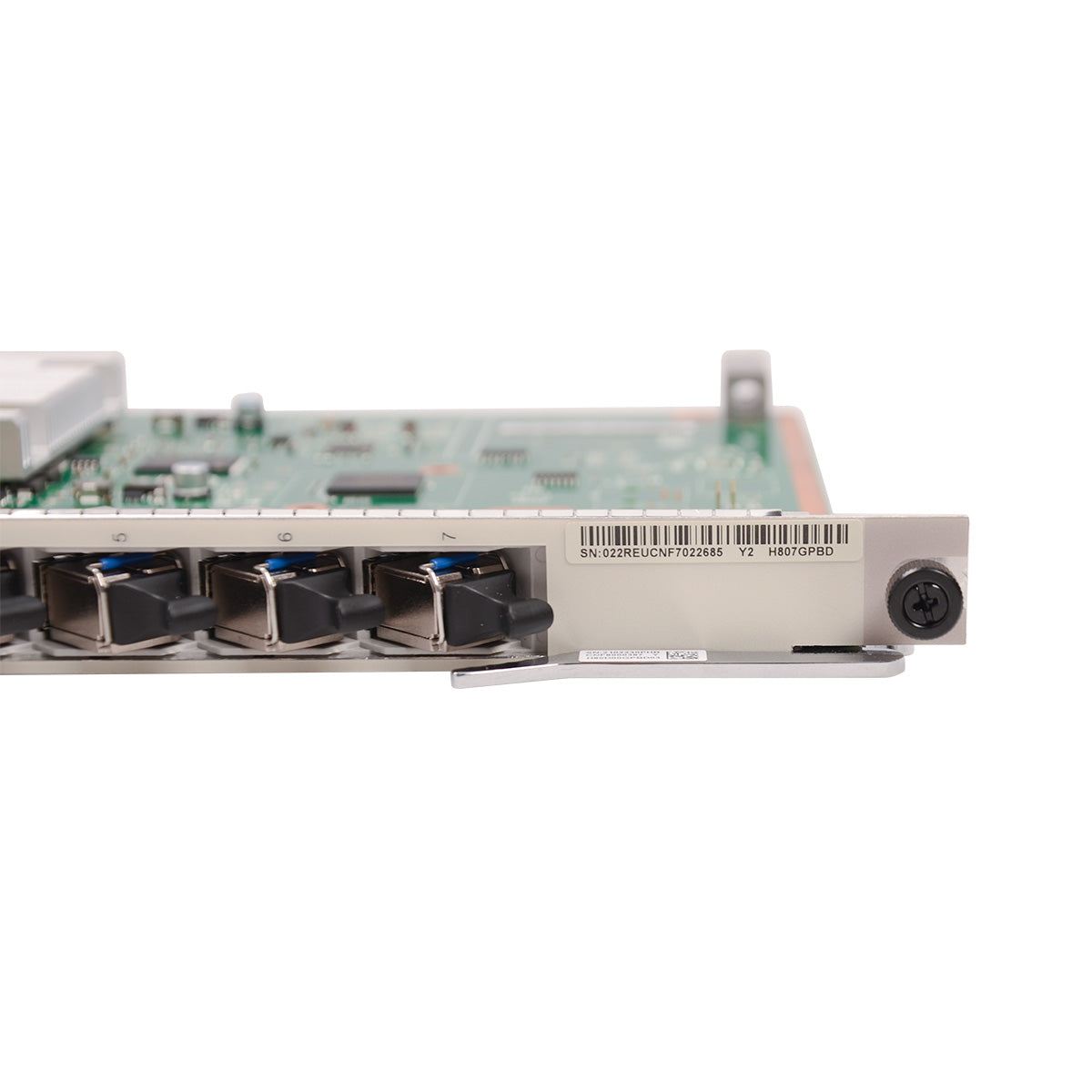

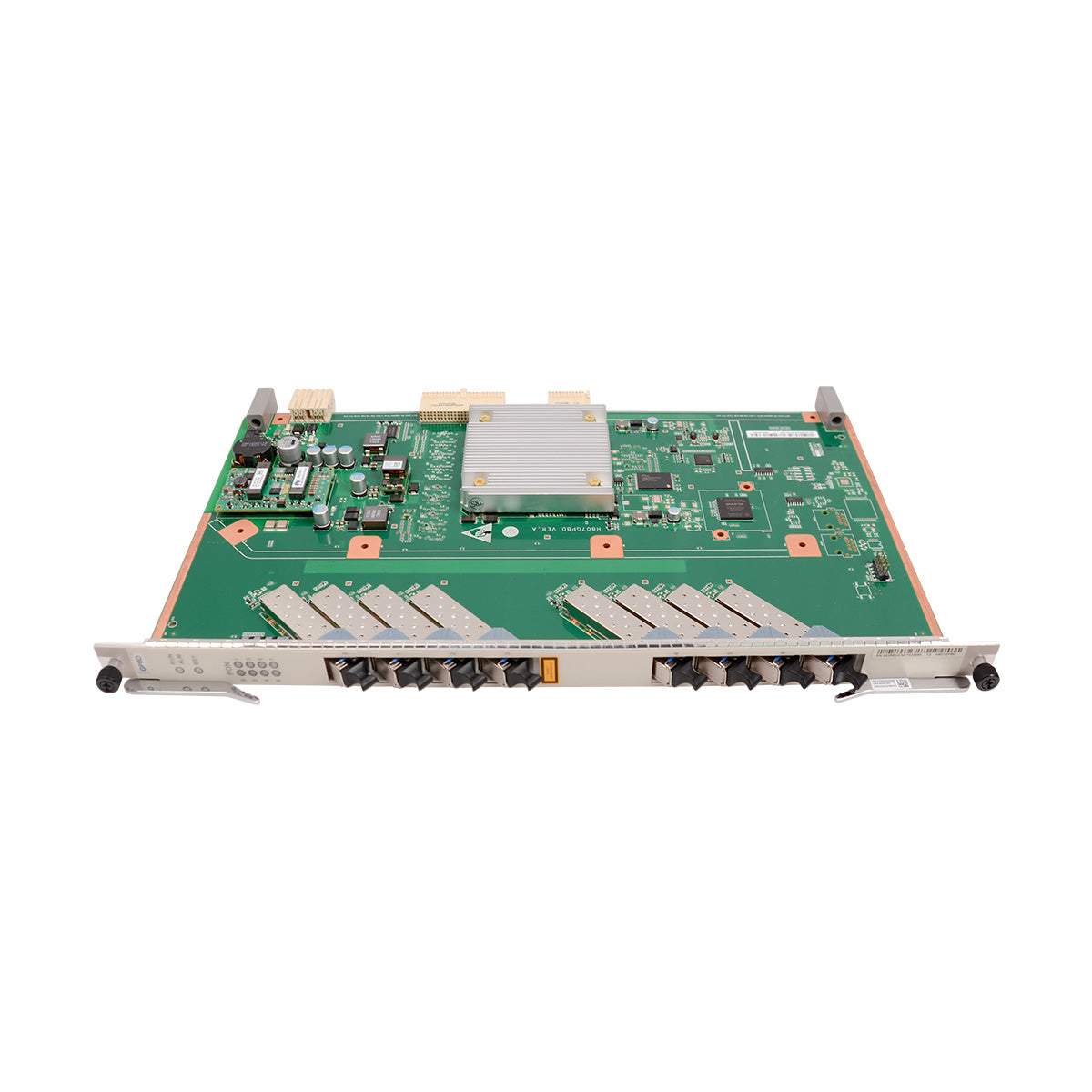

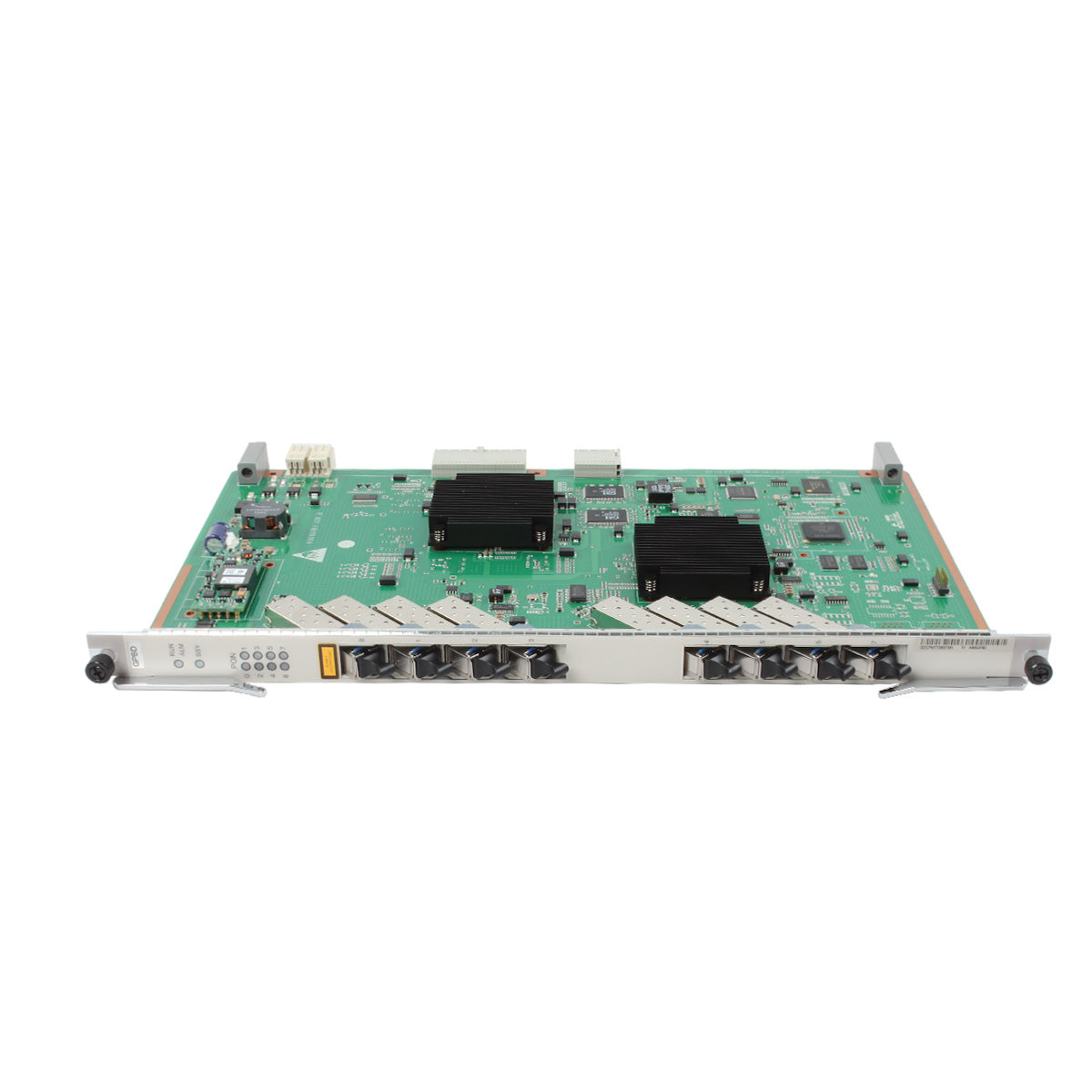

Huawei H807GPBD Board Overview
The H807GPBD board is a 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
H807GPBD Applicable Optical Module
A GPON optical module is connected to one SC optical fiber to provide GPON access service.
No. |
1 |
2 |
3 |
---|---|---|---|
Type |
One-fiber bi-directional optical module, class B+ |
One-fiber bi-directional optical module, class C+ |
One-fiber bi-directional optical module, class C++ |
Operating Wavelength |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Encapsulation Type |
SFP |
SFP |
SFP |
Port Rate |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Minimum Output Optical Power |
1.50 dBm |
3.00 dBm |
6.00 dBm |
Maximum Output Optical Power |
5.00 dBm |
7.00 dBm |
10.00 dBm |
Maximum Receiver Sensitivity |
-28.00 dBm |
-32.00 dBm |
-35.00 dBm |
Optical Connector Type |
SC |
SC |
SC |
Optical Fiber Type |
Single-mode |
Single-mode |
Single-mode |
Overload Optical Power |
-8.0 dBm |
-12.0 dBm |
-15.0 dBm |
Extinction Ratio |
8.2 dB |
8.2 dB |
8.2 dB |
Technical specifications of the H807GPBD
Specification | |
Service ports | |
GPON Port | 8-GPON Port |
GPON SFP Module Specification | |
Type | C+ Module : One-fiber bi-directional optical module, class C+ |
Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
Encapsulation Type | SFP |
Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
Minimun Output Optical Power | C+ Module : 3.00 dBm |
Maximum Output Optical Power | C+ Module : 7.00 dBm |
Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
Optical Connector Type | SC/PC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | C+ Module : -12.0 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
Power Consumption and Maximum Frame Size | |
Power Consumption | H802GPBD : Static: 45 W, Maximum: 51 W H805GPBD : Static: 43 W, Maximum: 49 W |
Maximum Frame Size | For V800R011C00 and earlier versions: 2000 bytes For V800R012C00 and later versions: 2004 bytes |
Operating temperature | -25°C to +65°C |
Functions and features of the H807GPBD
Specifications |
H805GPBD H806GPBD H807GPBD |
H807GPFD | H807GPBH |
No. Of interface | 8 | 16 | 8 |
Splitting ratio (Class B+) | 1:64 | 1:64 | 1:64 |
Splitting ratio (Class C+ / Class C++) | 1:128 | 1:128 | 1:128 |
D-CMTS | × | × | × |
Traffic shaping | √ | √ | √ |
Optical channel performance testing | √ | √ | √ |
RSS detection, optical module light control | √ | √ | √ |
Speed limit based on ONU granularity | √ | √ | √ |
CAR group | √ | √ | √ |
Temperature inquiry and high temperature alarm | √ | √ | √ |
High temperature automatic shutdown | √ | √ | √ |
The maximum optical path distance is poor (km) | 20 | 40 | 40 |
The maximum number of traffic that each board supports (pc) | 8184 | 16368 | 8184 |
The number of MAC addresses supported by each board | 32768 | 32768 | 32768 |
DBA-based broadband based on single port (kbps) | 1238784 | 1238784 | 1238784 |
The number of T-CONTs supported by each GPON port | 1024 | 1024 | 1024 |
Down FEC function | √ | √ | √ |
Up FEC function | √ | √ | √ |
Rogue ONT detection | √ | √ | √ |
The maximum number of ONTs per GPON port | 128 | 128 | 128 |
The number of GEM ports supported by each board | 8192 | 16384 | 8192 |
The number of GEM ports supported by each GPON interface | 3872 | 3872 | 3872 |
The maximum number of business streams per GEM Port | 8184 | 8184 | 8184 |
HQoS (4 layers) | × | √ | √ |
9K Jumbo frame | H805GPBD: × H806GPBD: × H807GPBD: √ | √ | √ |
The GPON port supports the optical power budget | CLASS B+: 28.5dB, Most Used | ||
CLASS C+: 32dB, Long distance transmission | |||
CLASS C+: 35dB | |||
The minimum bandwidth of each T-CONT | Minimum Broadband Delay Mode: 1Mbps | ||
Maximum broadband usage pattern: 128kbps |
