Huawei H901CGHF Board Overview
The board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
Basic information about the H901CGHF
Item | Details |
---|---|
Description | 16-port XG-PON&GPON Combo OLT Interface Board |
Part Number | 03025AHT |
Model | H901CGHF |
Card type | Service board |
Silkscreen | CGHF |

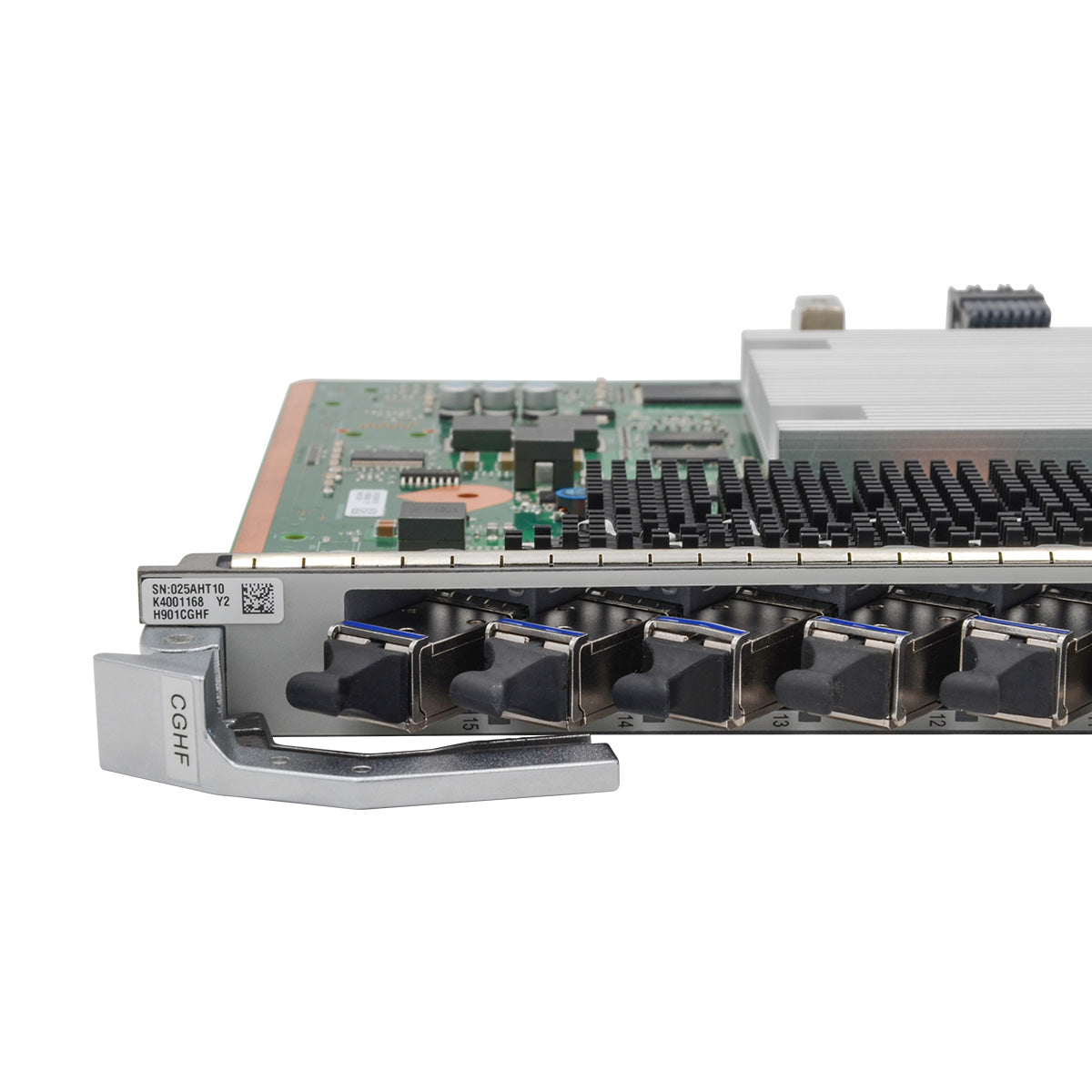

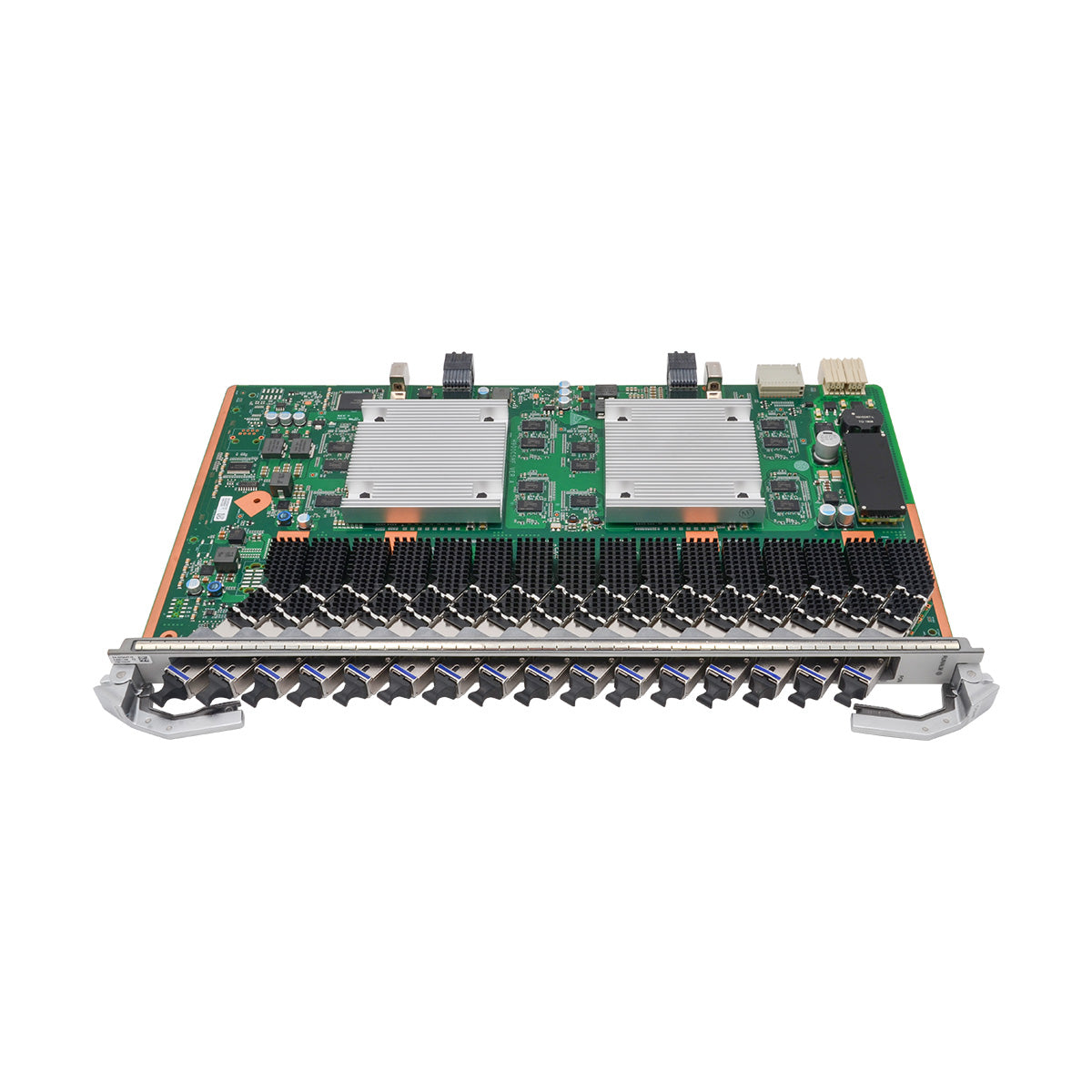

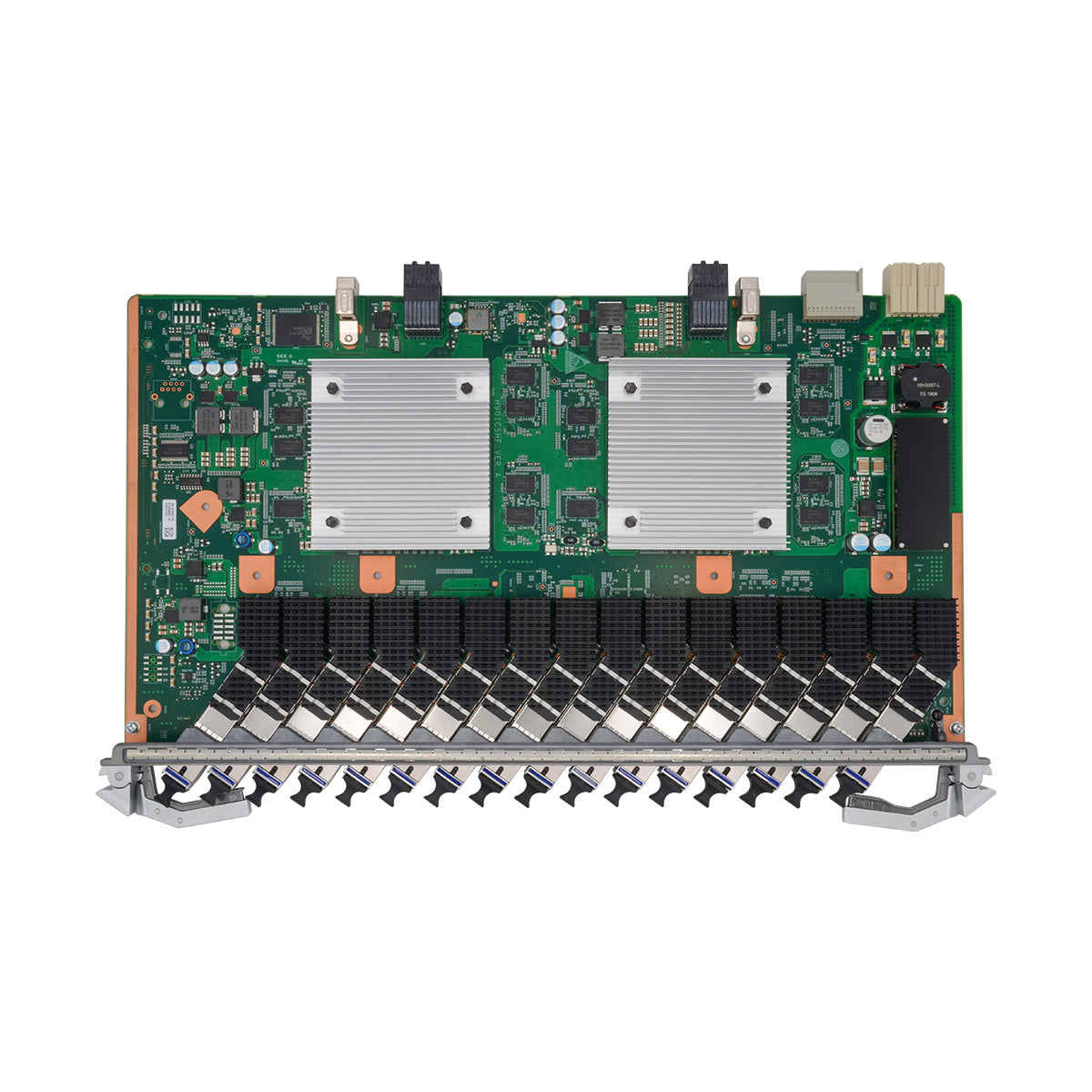

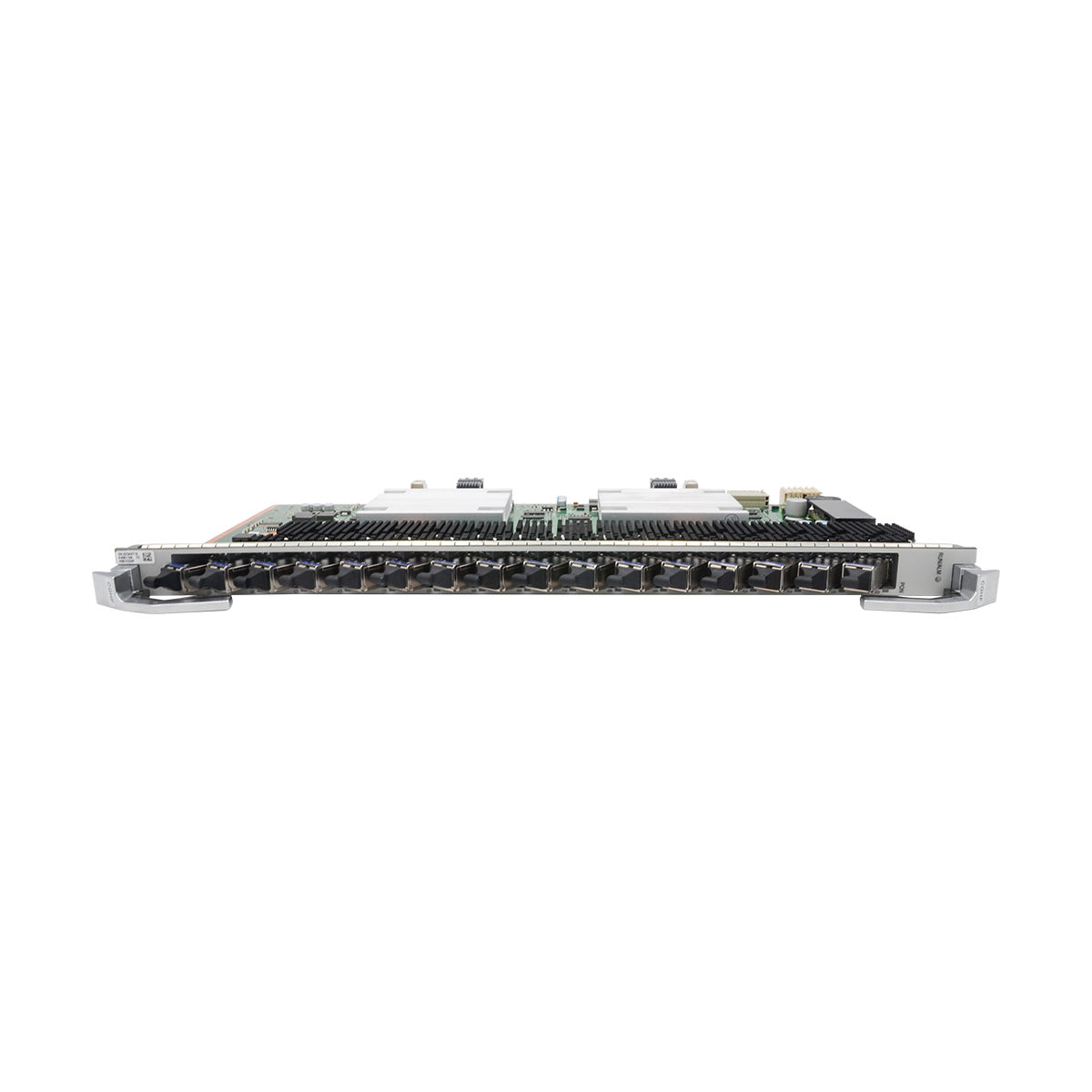

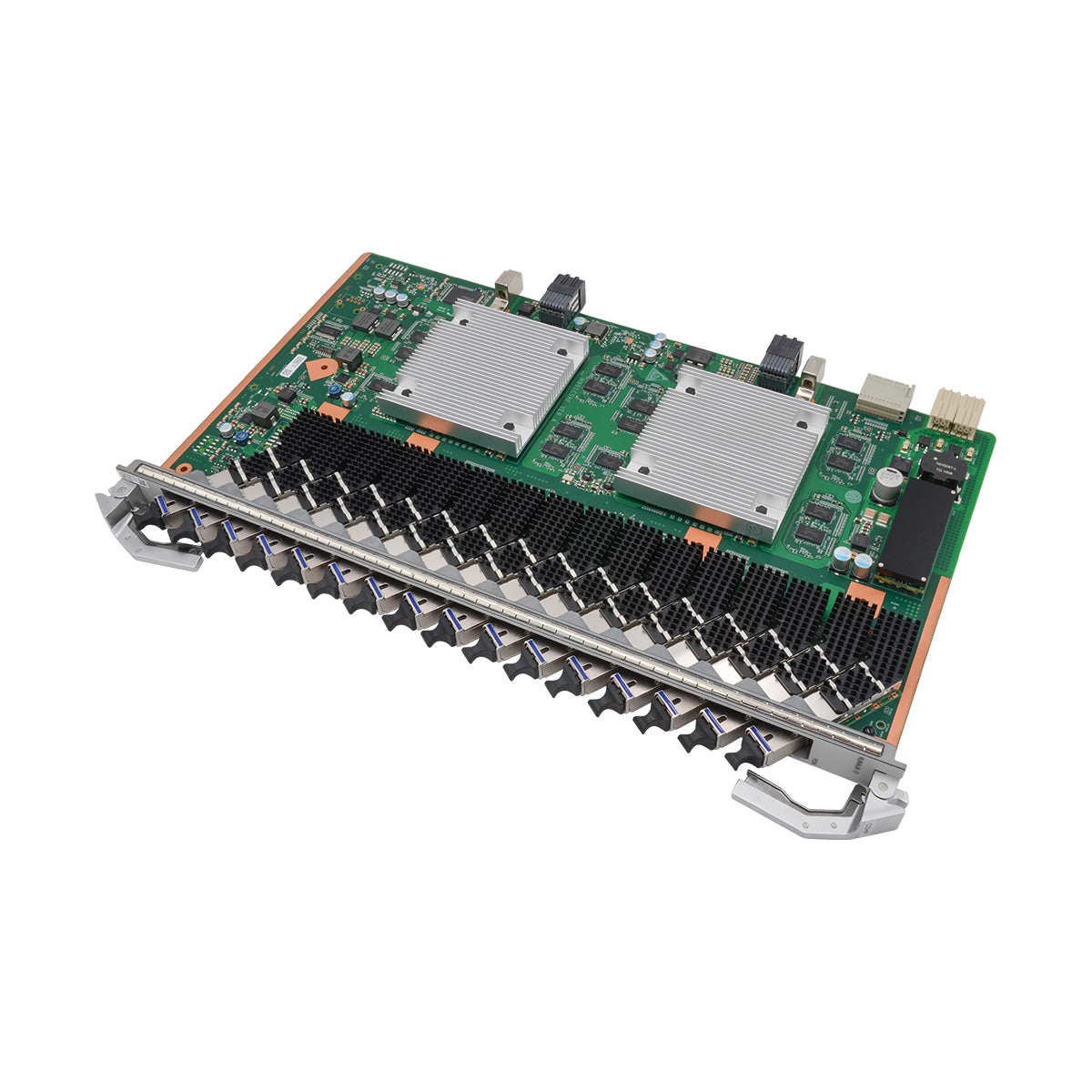

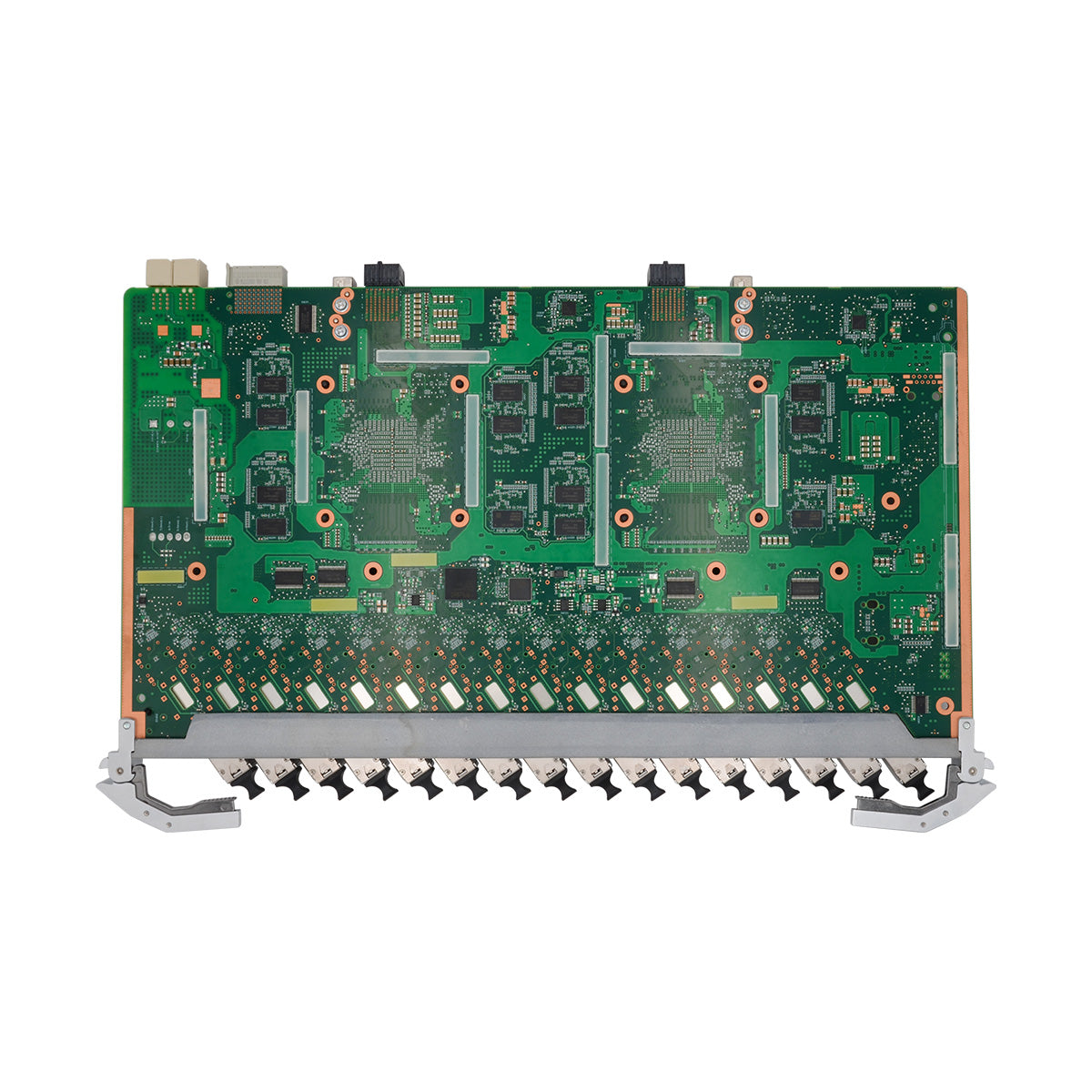

Appearance of the H901CGHF

H901CGHF Applicable Optical Module
A GPON optical module is connected to one SC optical fiber to provide GPON access service.
No. |
1 |
2 |
3 |
---|---|---|---|
Type |
One-fiber bi-directional optical module, class B+ |
One-fiber bi-directional optical module, class C+ |
One-fiber bi-directional optical module, class C++ |
Operating Wavelength |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Tx: 1490 nm Rx: 1310 nm |
Encapsulation Type |
SFP |
SFP |
SFP |
Port Rate |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
Minimum Output Optical Power |
1.50 dBm |
3.00 dBm |
6.00 dBm |
Maximum Output Optical Power |
5.00 dBm |
7.00 dBm |
10.00 dBm |
Maximum Receiver Sensitivity |
-28.00 dBm |
-32.00 dBm |
-35.00 dBm |
Optical Connector Type |
SC |
SC |
SC |
Optical Fiber Type |
Single-mode |
Single-mode |
Single-mode |
Overload Optical Power |
-8.0 dBm |
-12.0 dBm |
-15.0 dBm |
Extinction Ratio |
8.2 dB |
8.2 dB |
8.2 dB |
Technical specifications of the H901CGHF
Item | Specification |
---|---|
Dimensions without packaging (H x W x D) [mm] | 399.20 mm x 23.30 mm x 257.90 mm |
Weight without packaging [kg] | 1.21 kg |
Static power consumption [W] | 48 W |
Maximum power consumption [W] | 106 W |
Operating temperature [°C] | -40°C to +55°C |
Maximum Frame Size of Boards (Default) [bytes] | 2052 bytes |
Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | 9216 bytes |
Maximum split ratio |
GPON: 1:128 XG-PON: 1:256 |
Functions and features of the H901CGHF
Functions and Features | Description |
---|---|
Port quantity | 16 |
Port rate mode | Asymmetric rate |
Port rate |
GPON upstream: 1.244 Gbit/s GPON downstream: 2.488 Gbit/s XG-PON upstream: 2.488 Gbit/s XG-PON downstream: 9.953 Gbit/s |
Supported ONU rates |
GPON: 2.5G/1.25G (downstream rate/upstream rate) XG-PON: 10G/2.5G (downstream rate/upstream rate) |
Forwarding capability [Gbit/s] | 200 Gbit/s |
Maximum number of MAC addresses | 131072 |
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km] | 40km |
T-CONTs per port |
GPON/auto type ONU: 1024 XG-PON: 2048 |
Service flows per board | 16352 |
1588v2 Synchronization | Y |
9216-byte jumbo frames | Y |
CAR group | Y |
Bidirectional FEC | Y |
Type B protection (single-homing) | Y |
Type B protection (dual-homing) | Y |
Type C protection (single-homing) | Y |
Type C protection (dual-homing) | Y |
HQoS | Y |
PON ISSU | Y |
ONU-based or queue-based shaping | Y |
Variable-length OMCI | Y |
Rogue ONU detection and isolation | Y |
Automatic shutdown at high temperature | Y |
Energy conservation for service boards | Y |
