Huawei H901GPSF Board Overview


The board is a 16-port GPON interface board. It works with the optical network unit (ONU) to provide GPON access services. It is applicable to MA5800 series OLT: MA5800-X2, MA5800-X7, MA5800-X15 and MA5800-X17. The board has 3 optional hardware versions: H901GPSF, H902GPSF, H903GPSF.



Basic information about the H901GPSF
Item Details
Description 16-port GPON OLT Interface Board
Part Number 03023APE
Model H901GPSF
Card type Service board
Silkscreen GPSF

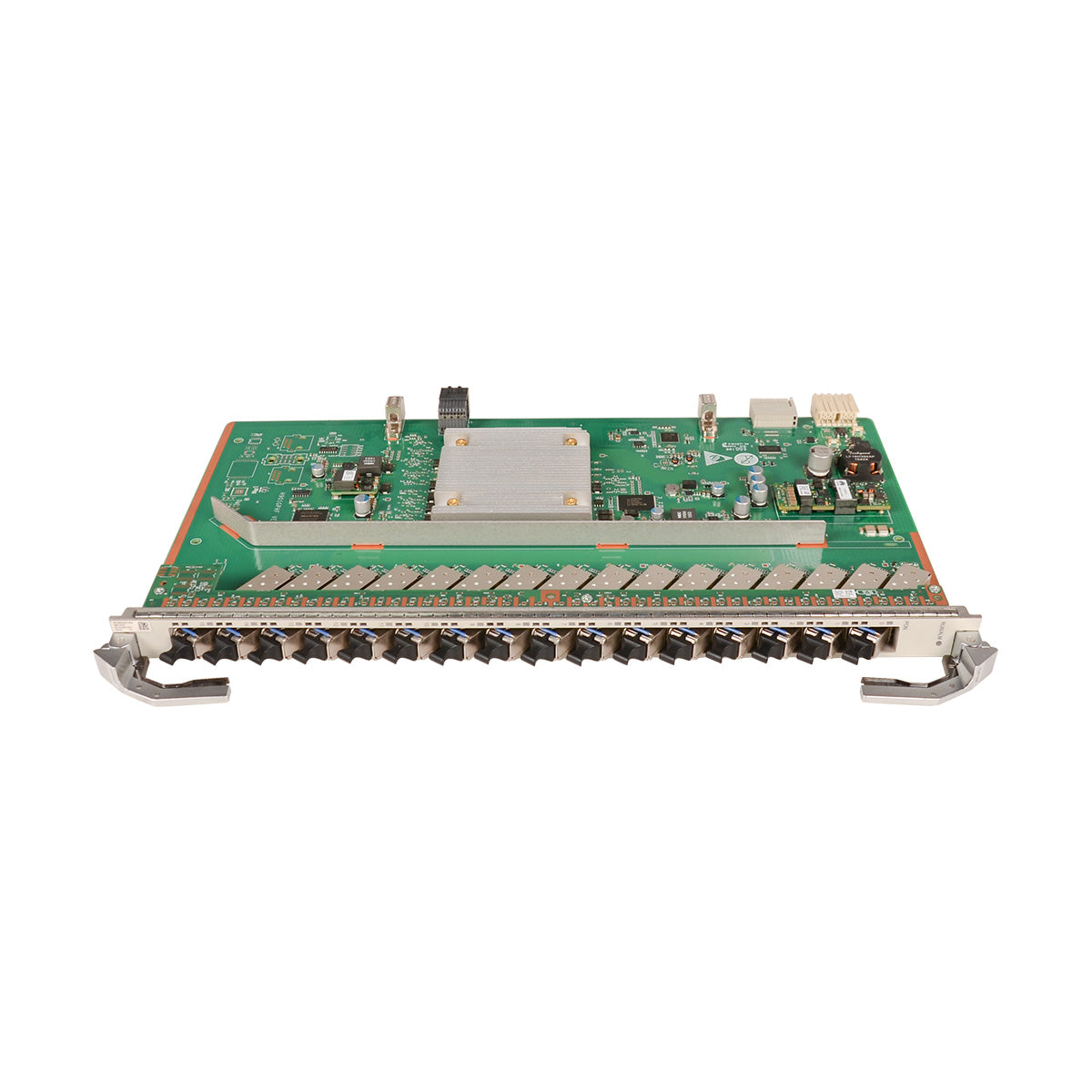

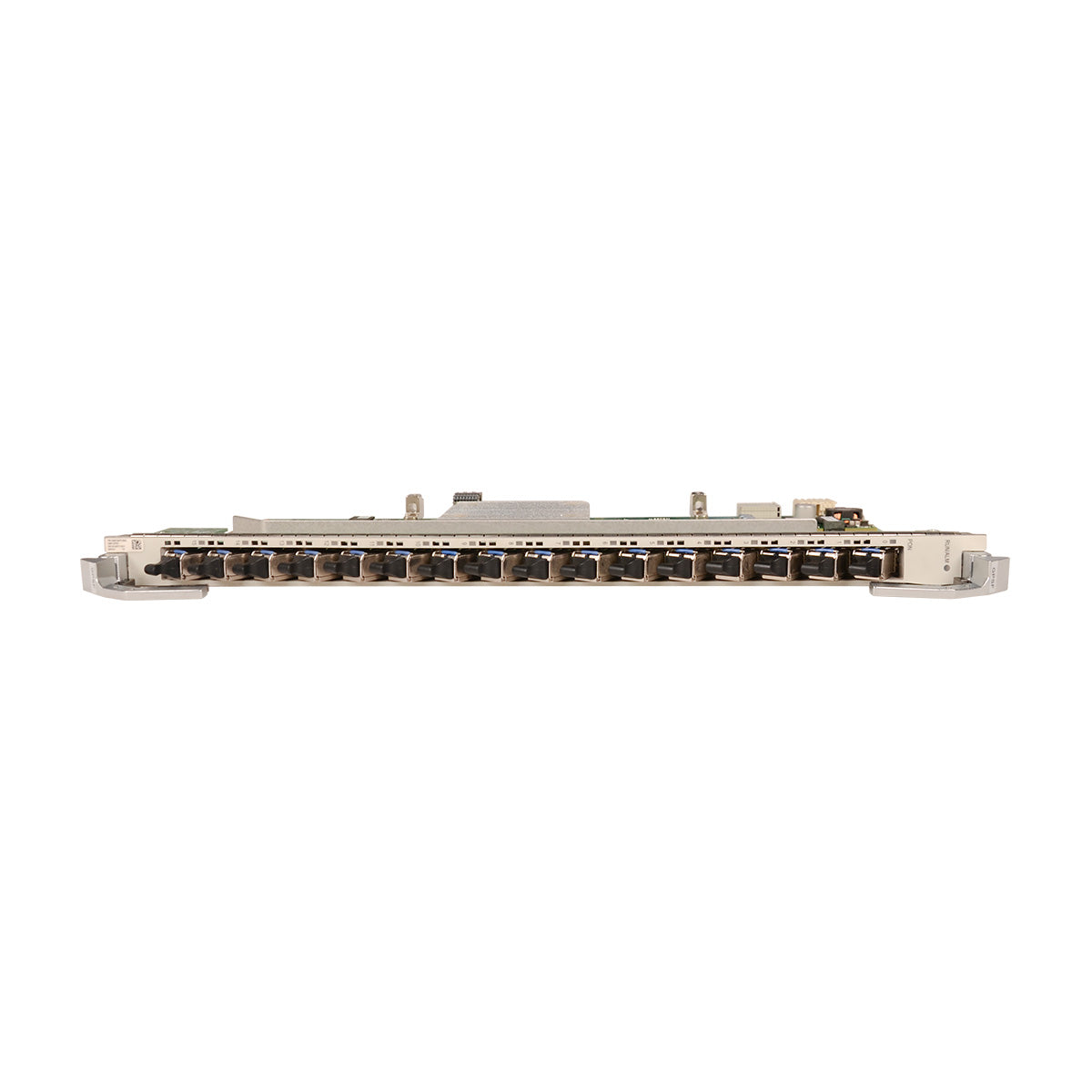

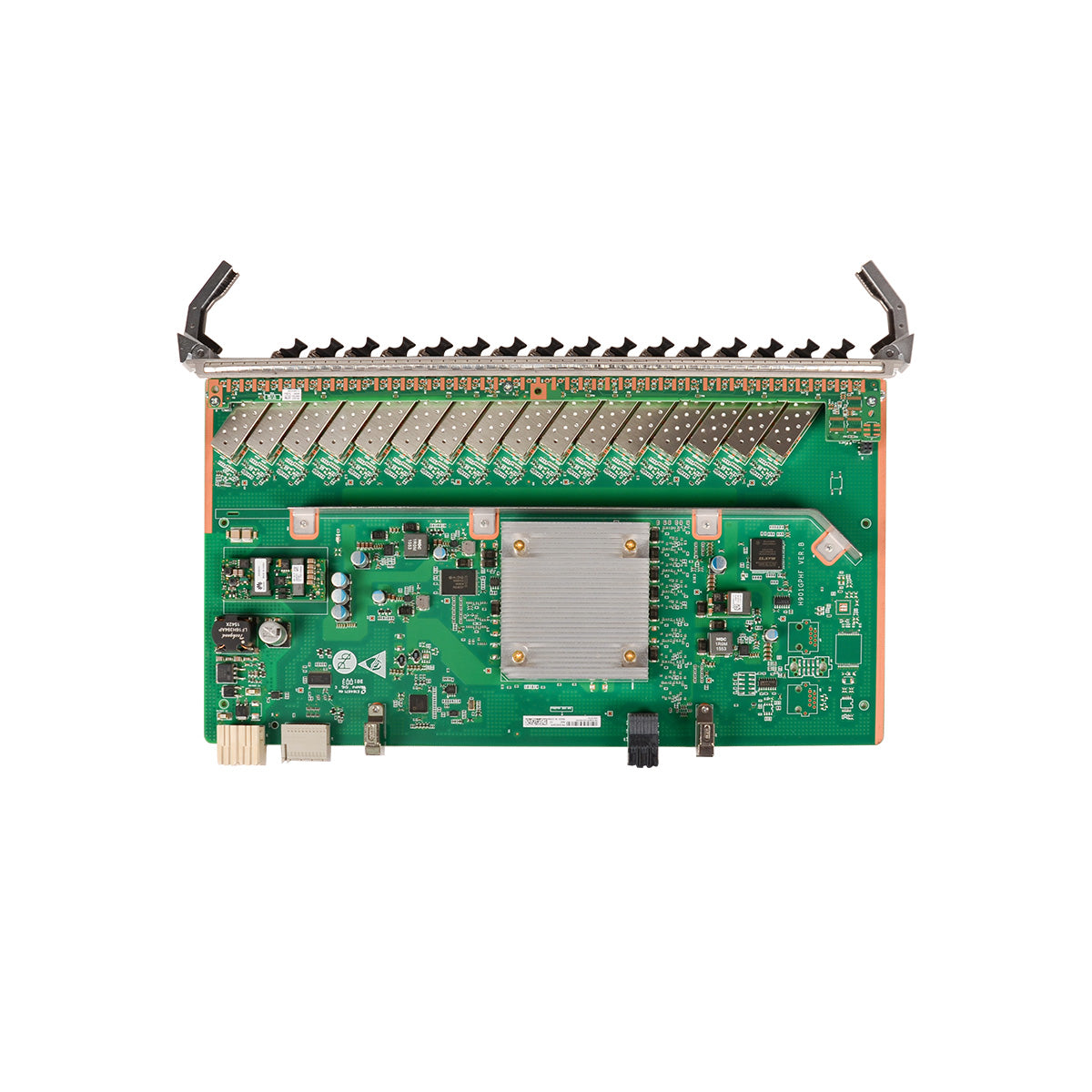

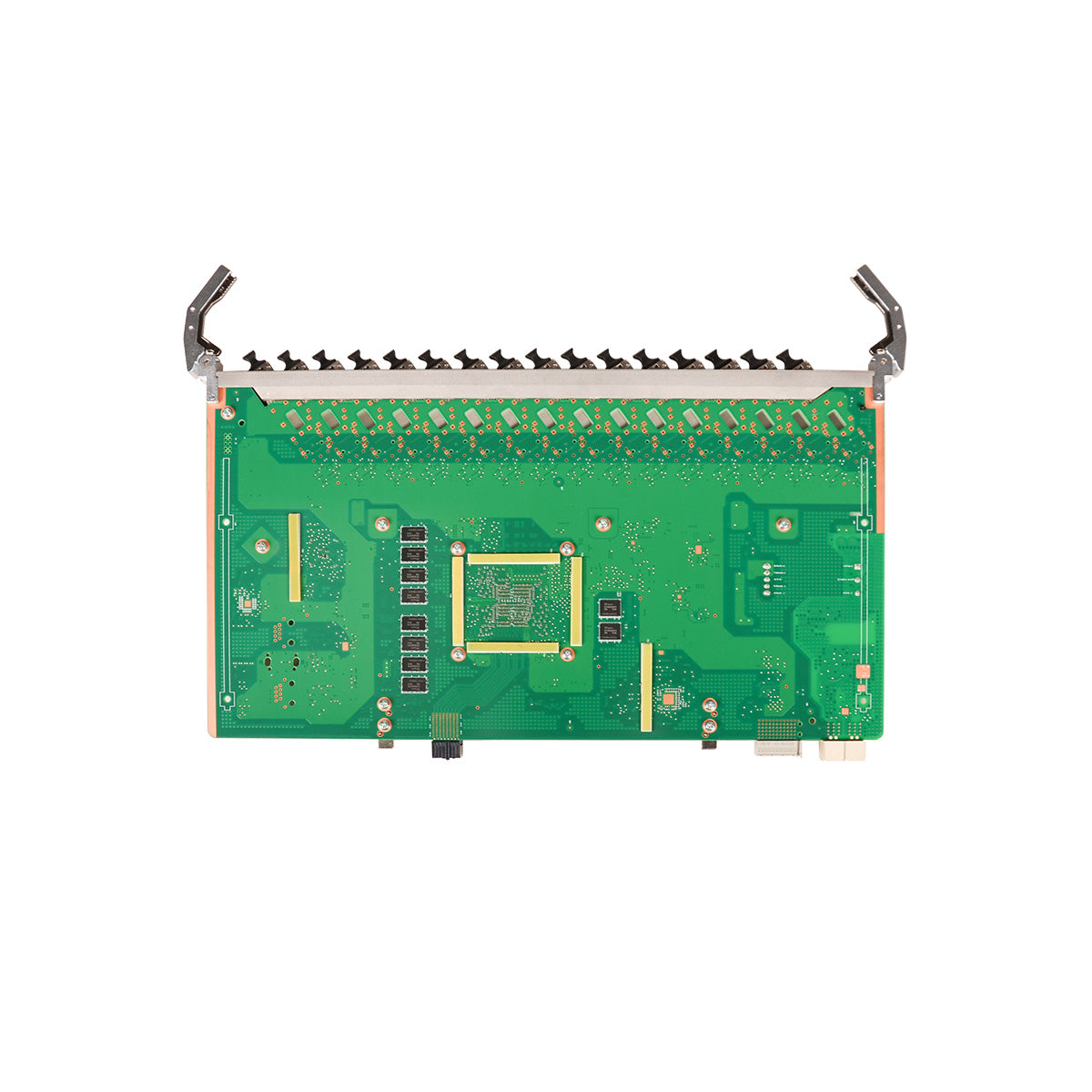

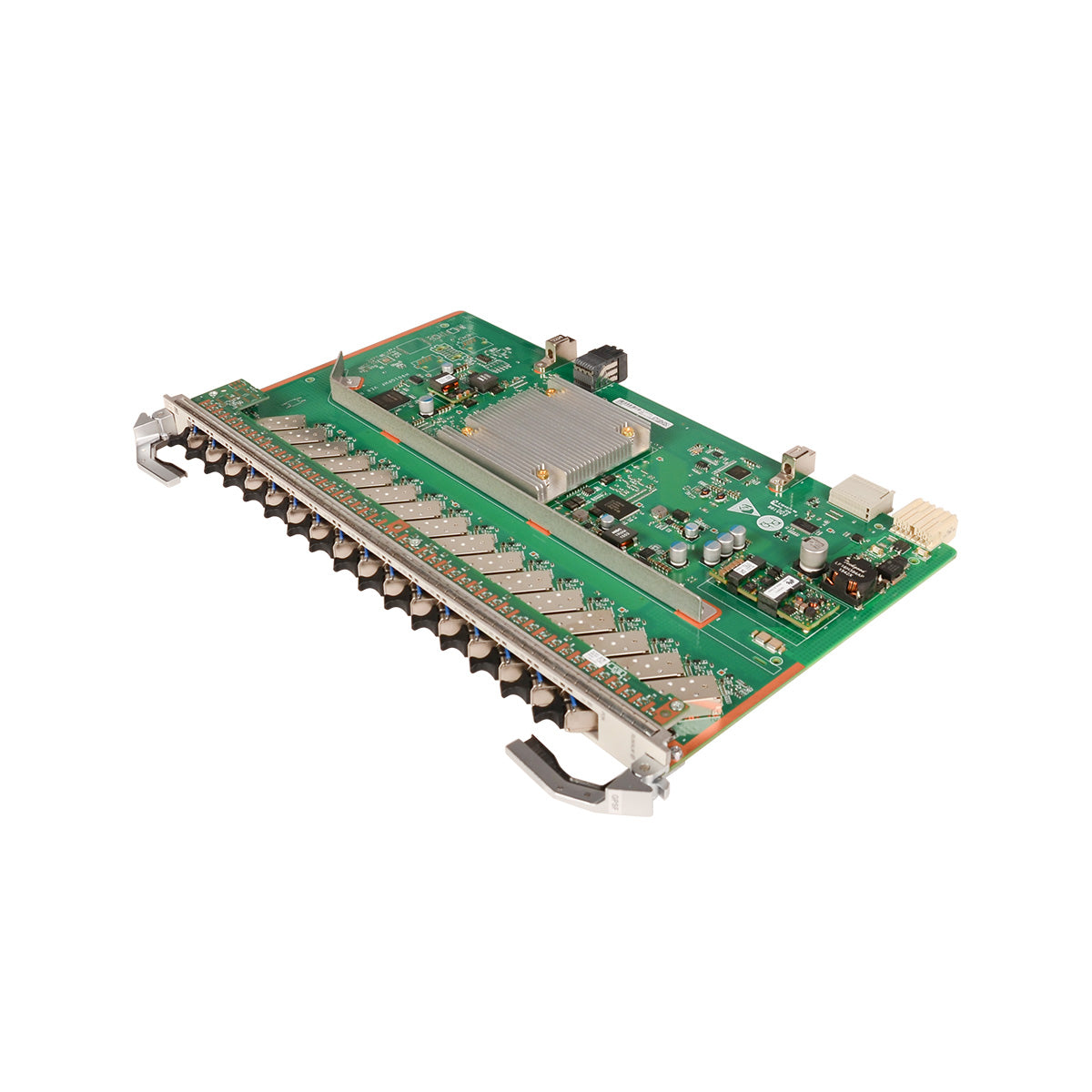

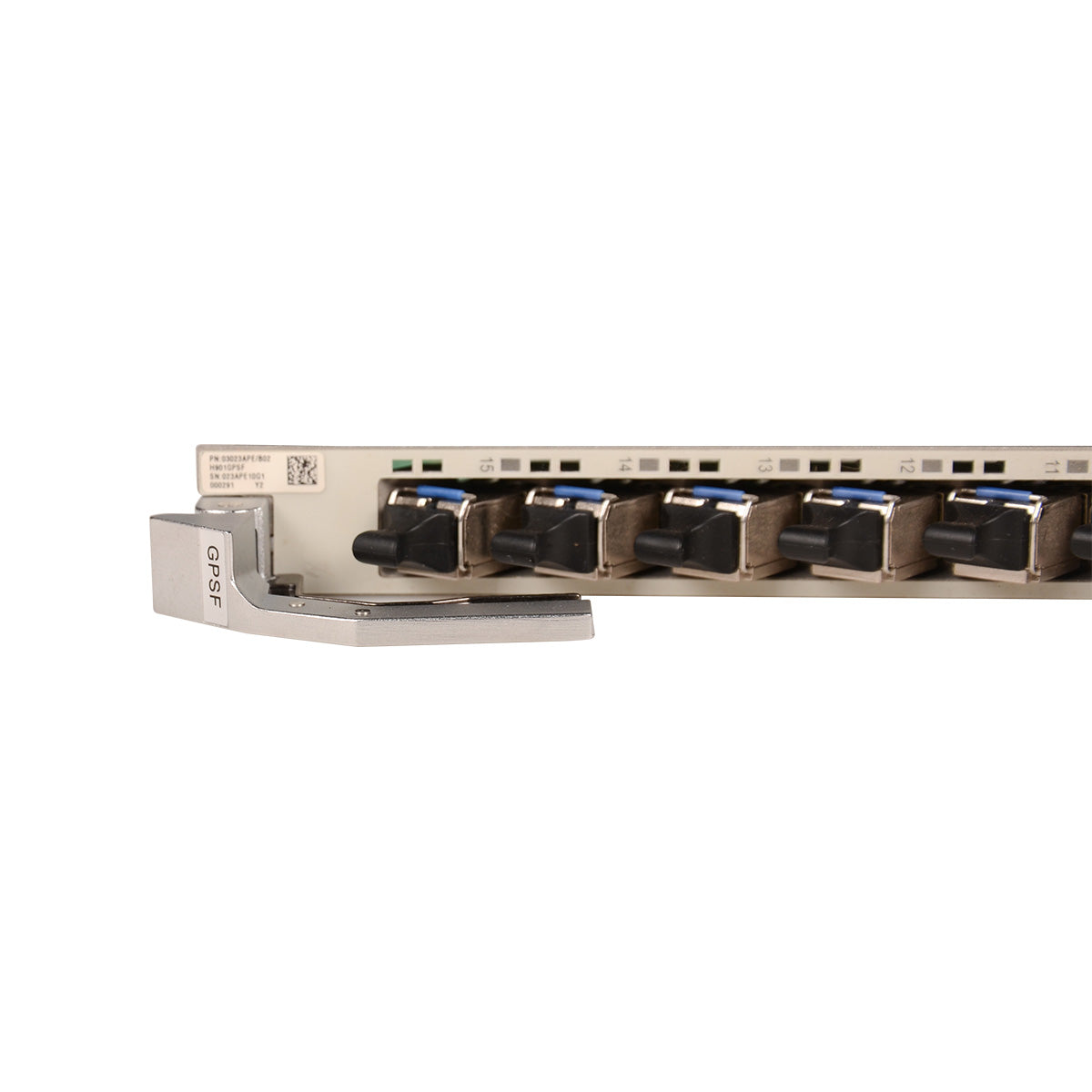

Appearance of the H901GPSF
Appearance of the H901GPSF


H901GPSF Applicable Optical Module

A GPON optical module is connected to one SC optical fiber to provide GPON access service.

No.

1

2

3

Type

One-fiber bi-directional optical module, class B+

One-fiber bi-directional optical module, class C+

One-fiber bi-directional optical module, class C++

Operating Wavelength

Tx: 1490 nm

Rx: 1310 nm

Tx: 1490 nm

Rx: 1310 nm

Tx: 1490 nm

Rx: 1310 nm

Encapsulation Type

SFP

SFP

SFP

Port Rate

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Minimum Output Optical Power

1.50 dBm

3.00 dBm

6.00 dBm

Maximum Output Optical Power

5.00 dBm

7.00 dBm

10.00 dBm

Maximum Receiver Sensitivity

-28.00 dBm

-32.00 dBm

-35.00 dBm

Optical Connector Type

SC

SC

SC

Optical Fiber Type

Single-mode

Single-mode

Single-mode

Overload Optical Power

-8.0 dBm

-12.0 dBm

-15.0 dBm

Extinction Ratio

8.2 dB

8.2 dB

8.2 dB



Technical specifications of the H901GPSF



Item Specification
Dimensions without packaging (H x W x D) [mm] 399.20 mm x 23.30 mm x 257.90 mm
Weight without packaging [kg] 0.94 kg
Static power consumption [W] 25 W
Maximum power consumption [W] 50 W
Operating temperature [°C] -40°C to +65°C
Maximum Frame Size of Boards (Default) [bytes] 2052 bytes
Maximum Frame Size of Boards (jumbo frame enabled) [bytes] Not supported
Maximum split ratio 1: 128



 Functions and features of the H901GPSF



Functions and Features Description
Application scenario FTTH
Port quantity 16
Port rate

Upstream: 1.244 Gbit/s

Downstream: 2.488 Gbit/s

Forwarding capability [Gbit/s] 40 Gbit/s
Maximum number of MAC addresses 16384
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km] 40km
Assured bandwidth per port [kbit/s] 1238784 kbit/s
T-CONTs per port 1024
Bandwidth per T-CONT

1 Mbit/s (in the minimum delay mode)

128 kbit/s (in the maximum bandwidth usage mode)

GEM ports per board 16384
GEM ports per port 3872
Service flows per board 16368
Power budget of port

Class B+: (28 dB, most common)

Class C+: (32 dB, long reach transmission)

Class C++: 35 dB

1588v2 Synchronization N
9216-byte jumbo frames N
Bidirectional FEC Y
Type B protection (single-homing) Y
Type B protection (dual-homing) N
Type C protection (single-homing) Y
Type C protection (dual-homing) Y
HQoS N
NTP Y
ONU-based shaping Y
PON ISSU Y
Y.1731 PM N
Security (Anti-DoS, Anti-MAC/IP Spoofing) Y
Controlled optical signal transmission of the optical module Y
Rogue ONU detection and isolation Y
ONUs per port 128
Automatic shutdown at high temperature Y
Temperature query and high-temperature alarm Y
Energy conservation for service boards Y
