Huawei H901NXED Board Overview
The board is an 8-port upstream interface board that provides 10GE/GE optical ports.
Basic information about the H901NXED
Item | Details |
---|---|
Description | 8-port Enhanced 10GE Uplink Interface Board |
Part Number | 03022SQU |
Model | H901NXED |
Card type | Upstream board |
Silkscreen | NXED |

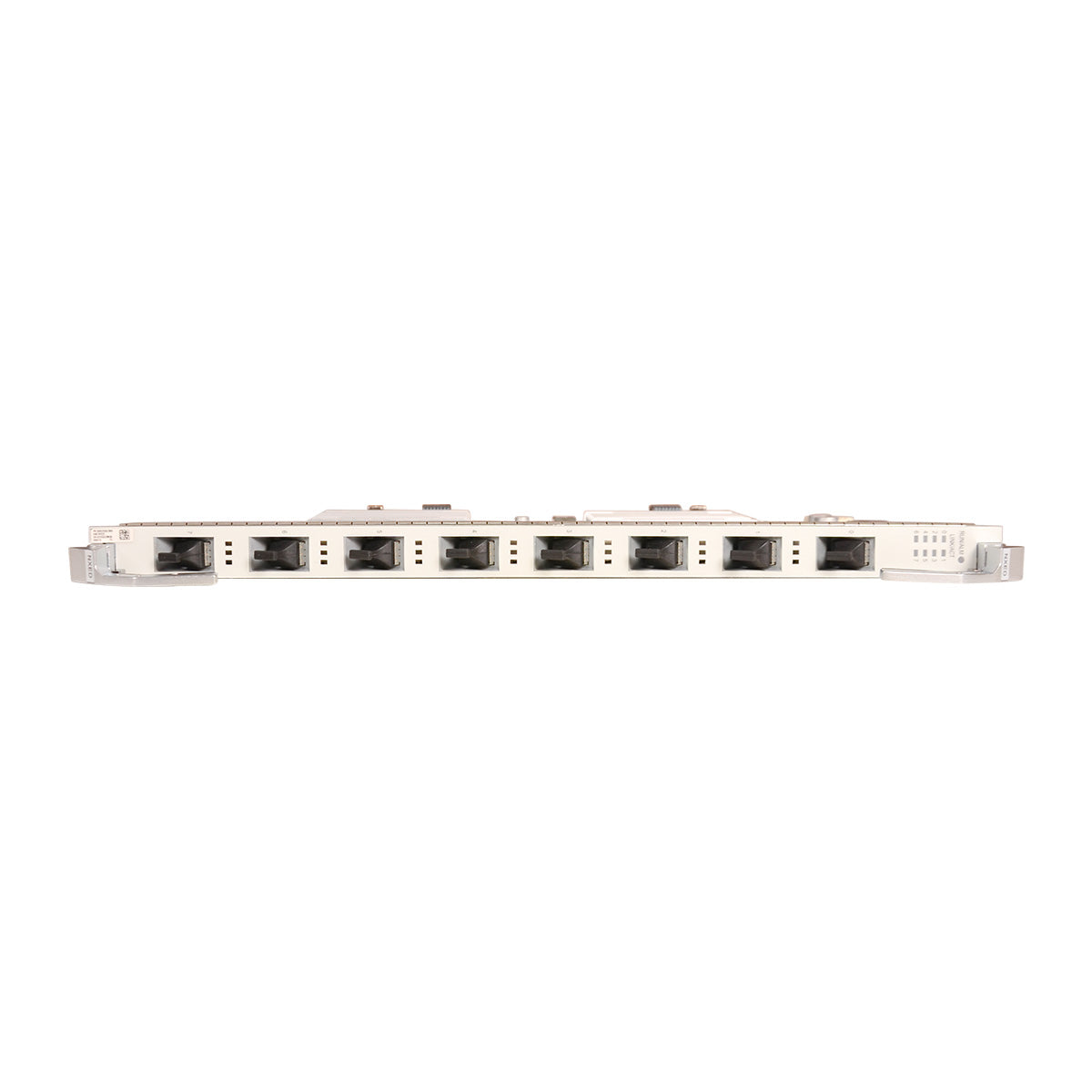

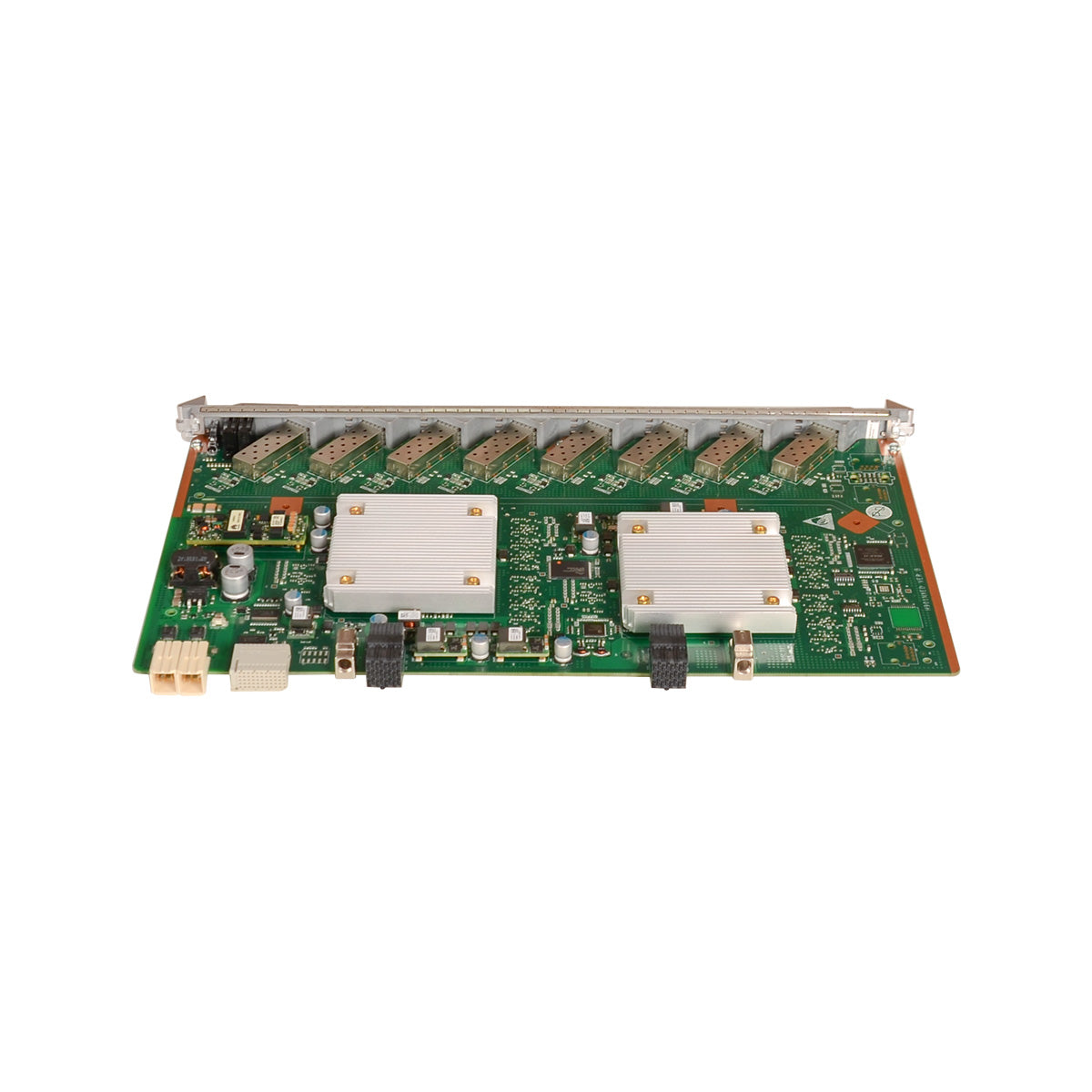

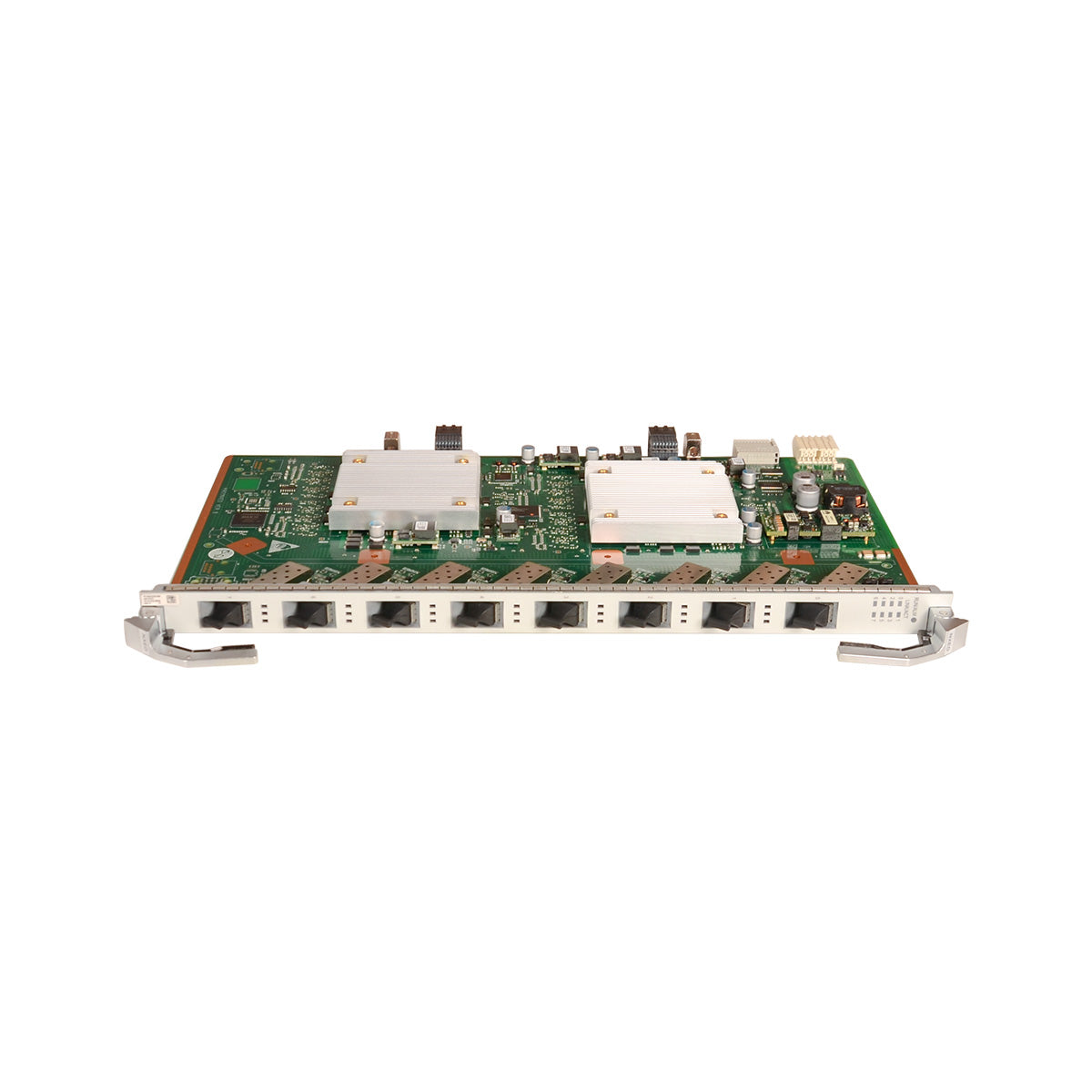

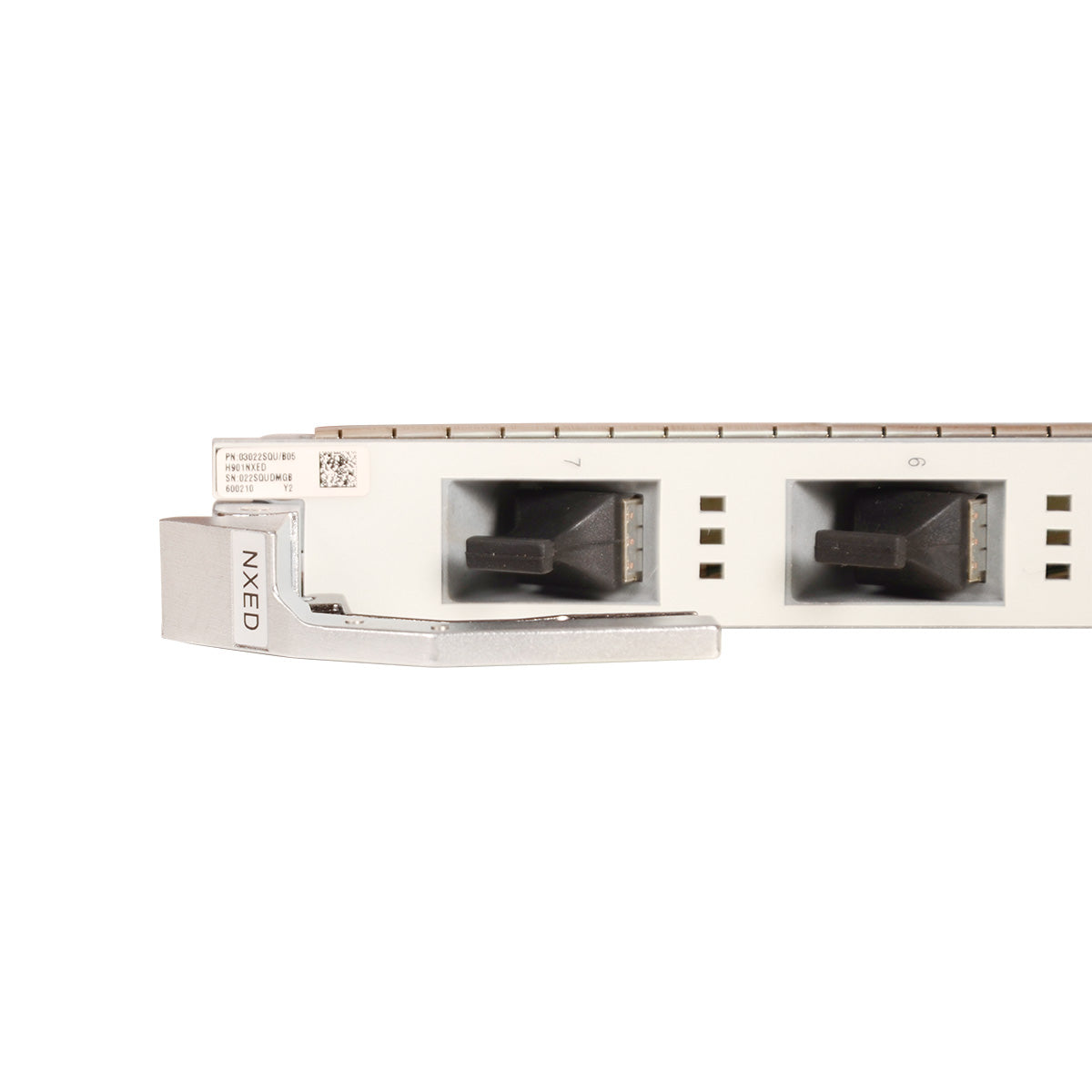

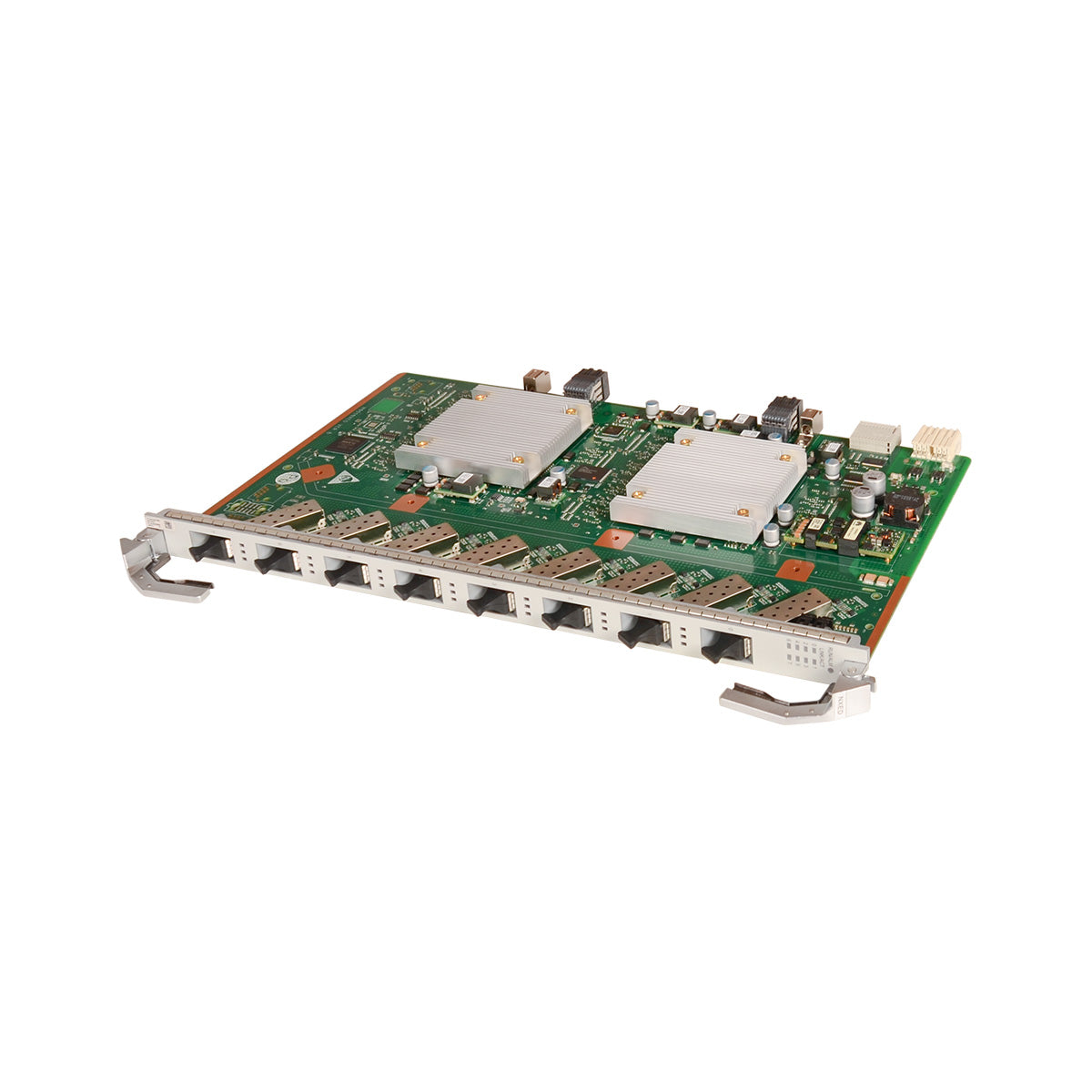

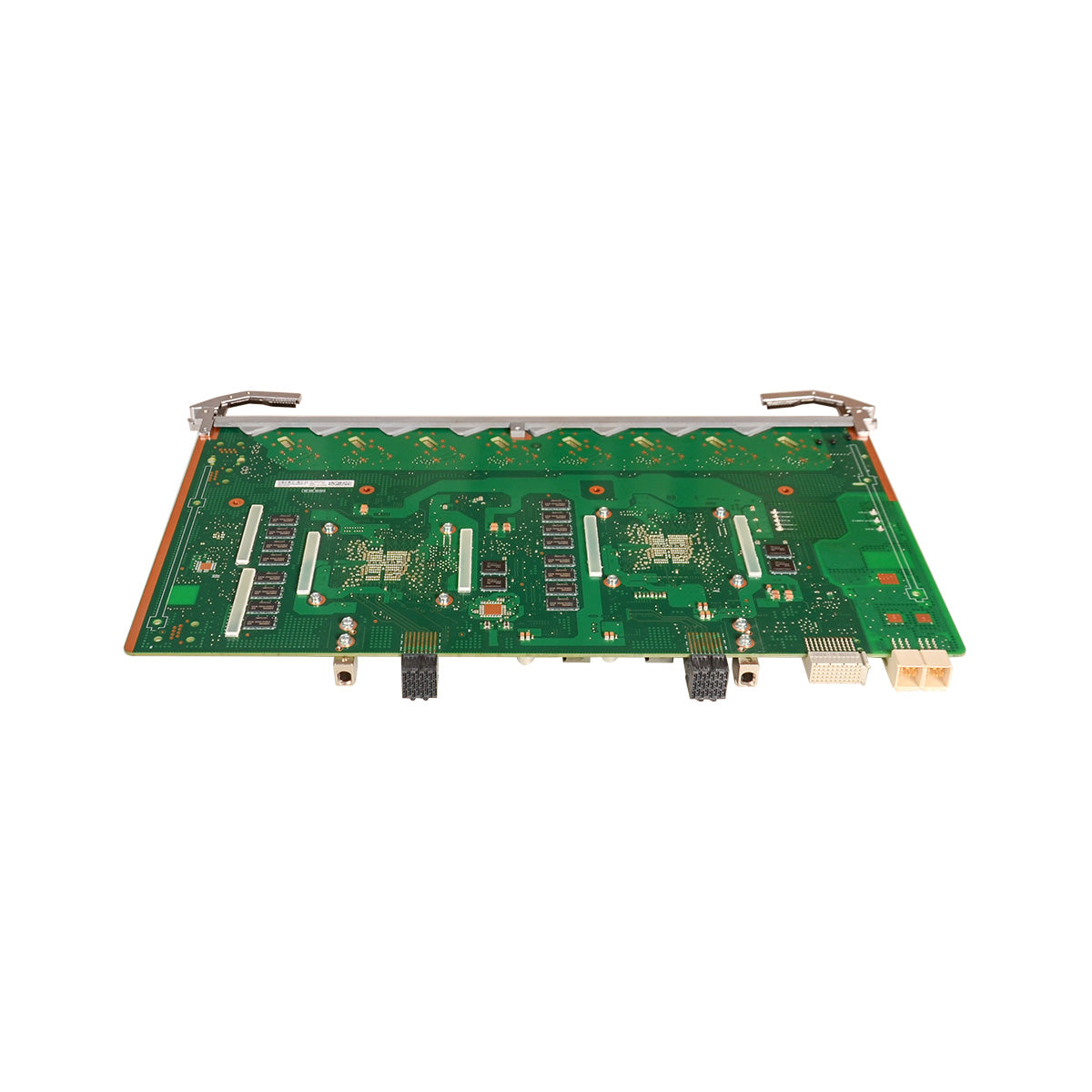

Appearance of the H901NXED

H901NXED Applicable Optical Module
A 10GE optical module (SFP+) is connected to two LC optical fibers to provide one 10GE channel.
Type |
One-channel two-fiber bi-directional optical module |
|||
---|---|---|---|---|
No. |
1 |
2 |
3 |
4 |
Operating Wavelength |
850 nm |
1310 nm |
1550 nm |
1550 nm |
Encapsulation Type |
SFP+ |
SFP+ |
SFP+ |
SFP+ |
Port Rate |
10 Gbit/s |
10 Gbit/s |
9.95 Gbit/s-11.10 Gbit/s |
9.95 Gbit/s-10.31 Gbit/s |
Minimum Output Optical Power |
-7.30 dBm |
-8.20 dBm |
-4.70 dBm |
0 dBm |
Maximum Output Optical Power |
-1.00 dBm |
0.50 dBm |
4.00 dBm |
4.00 dBm |
Maximum Receiver Sensitivity |
-11.10 dBm |
-12.60 dBm |
-14.10 dBm |
-24.00 dBm |
Optical Connector Type |
LC |
LC |
LC |
LC |
Optical Fiber Type |
Multi-mode |
Single-mode |
Single-mode |
Single-mode |
Reach |
0.30 km |
10.00 km |
40.00 km |
80.00 km |
Overload Optical Power |
-1.0 dBm |
0.5 dBm |
0.5 dBm |
-7.0 dBm |
Extinction Ratio |
3.0 dB |
3.5 dB |
3.5 dB |
9.0 dB |
Technical specifications of the H901NXED
Item | Specification |
---|---|
Dimensions without packaging (H x W x D) [mm] | 399.20 mm x 23.30 mm x 257.90 mm |
Weight without packaging [kg] | 0.99 kg |
Static power consumption [W] | 40 W |
Maximum power consumption [W] | 53 W |
Operating temperature [°C] | -40°C to +65°C |
Maximum Frame Size of Boards (Default) [bytes] | 2052 bytes |
Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | 9216 bytes |
Maximum split ratio | N/A |
Functions and features of the H901NXED
Functions and Features | Description |
---|---|
Port quantity | 8 x 10GE (SFP+)/8 x GE (eSFP/SFP) |
Maximum number of MAC addresses | 262143 |
Sync ETH clock | Y |
1588ACR | Y |
1588v2 Synchronization | Y |
Protection group | Y |
Link aggregation | Y |
Upstream transmission | Y |
Automatic shutdown at high temperature | Y |
Temperature query and high-temperature alarm | Y |
