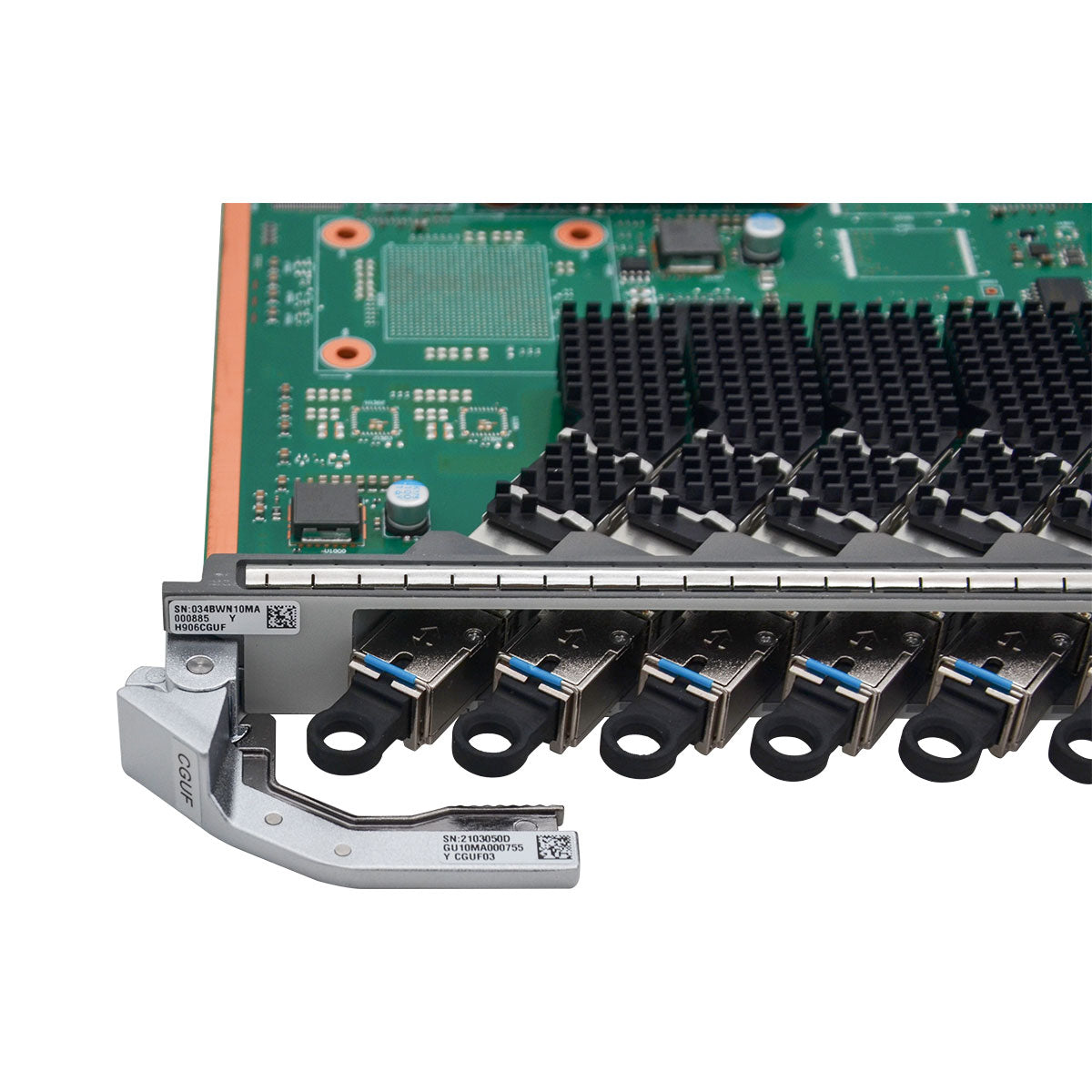

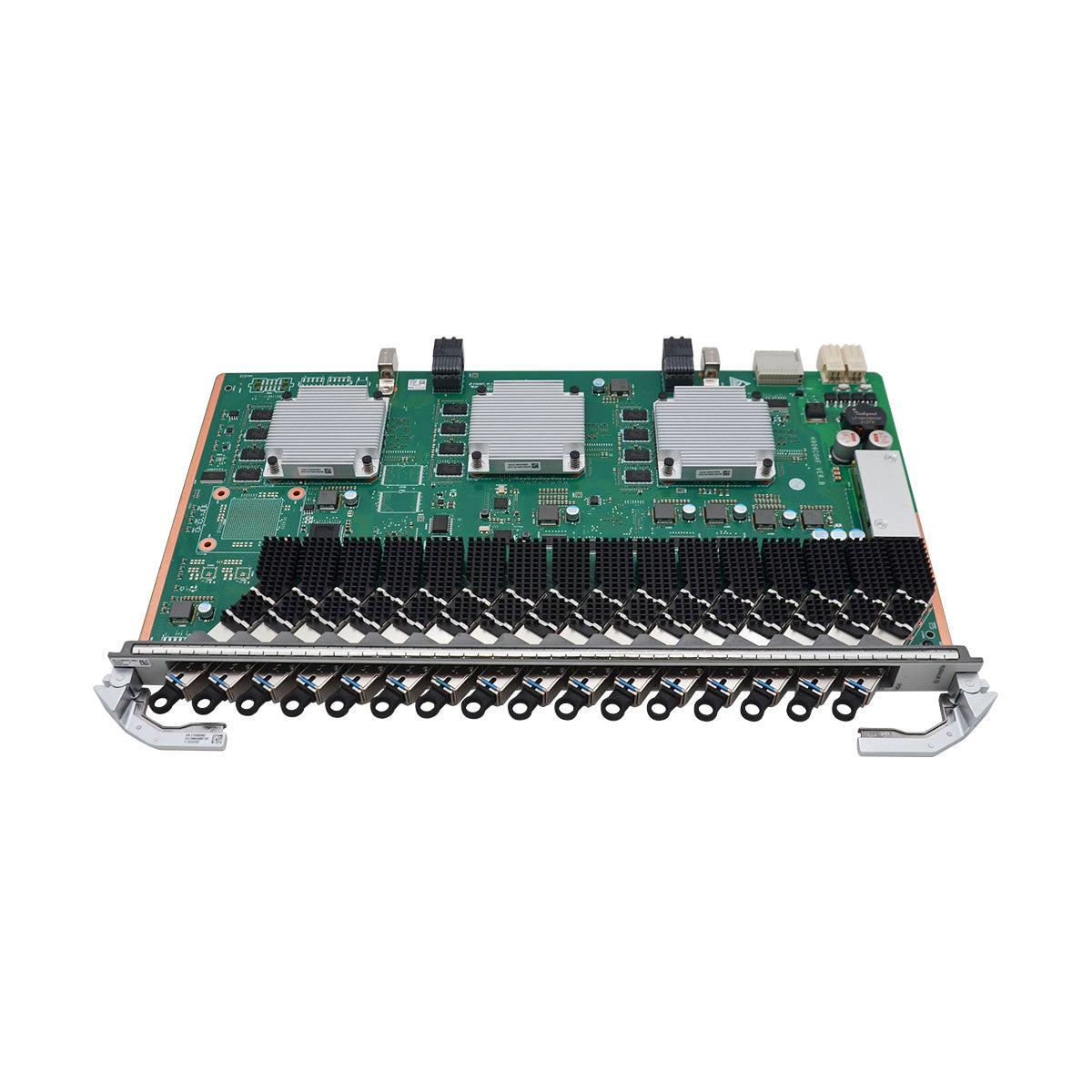

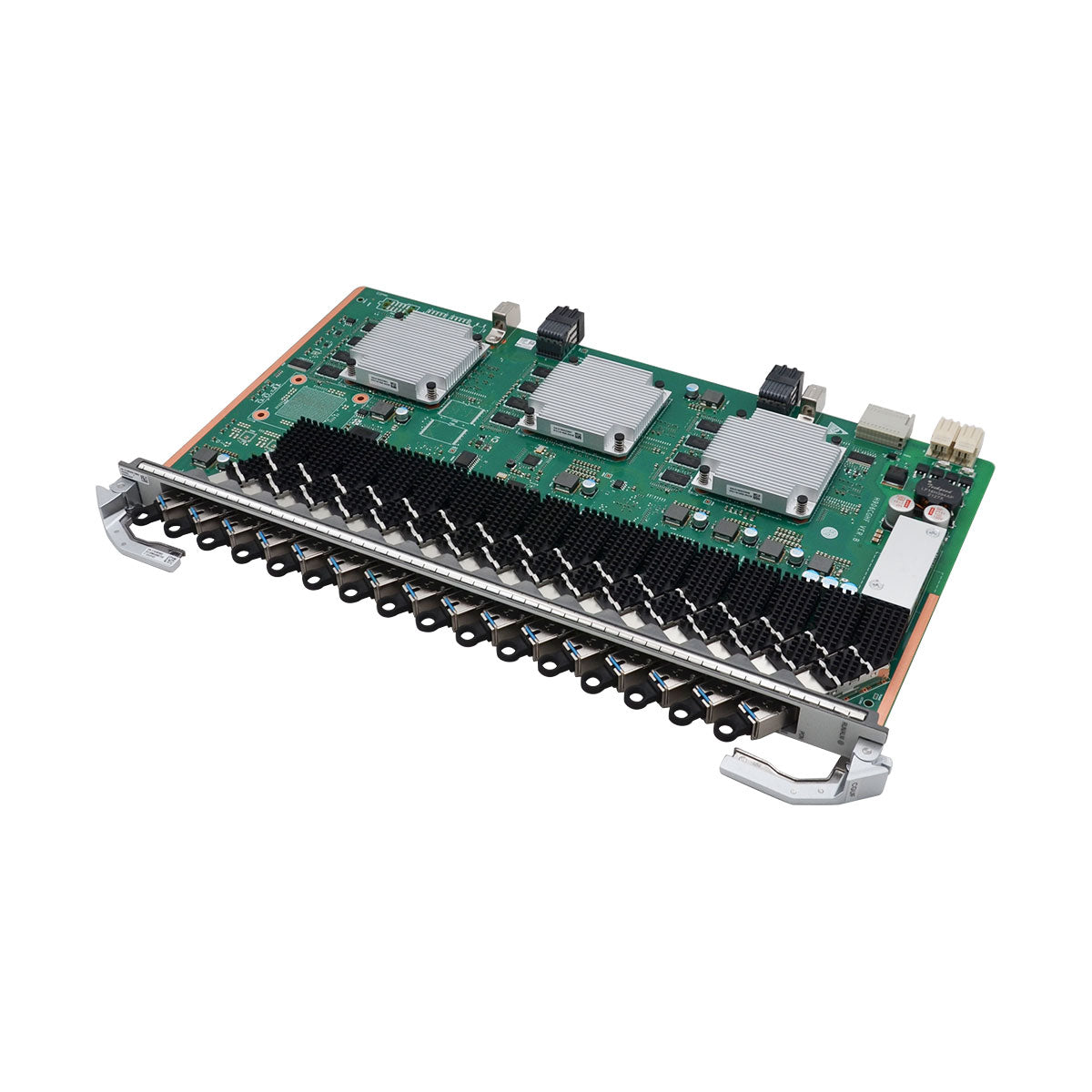

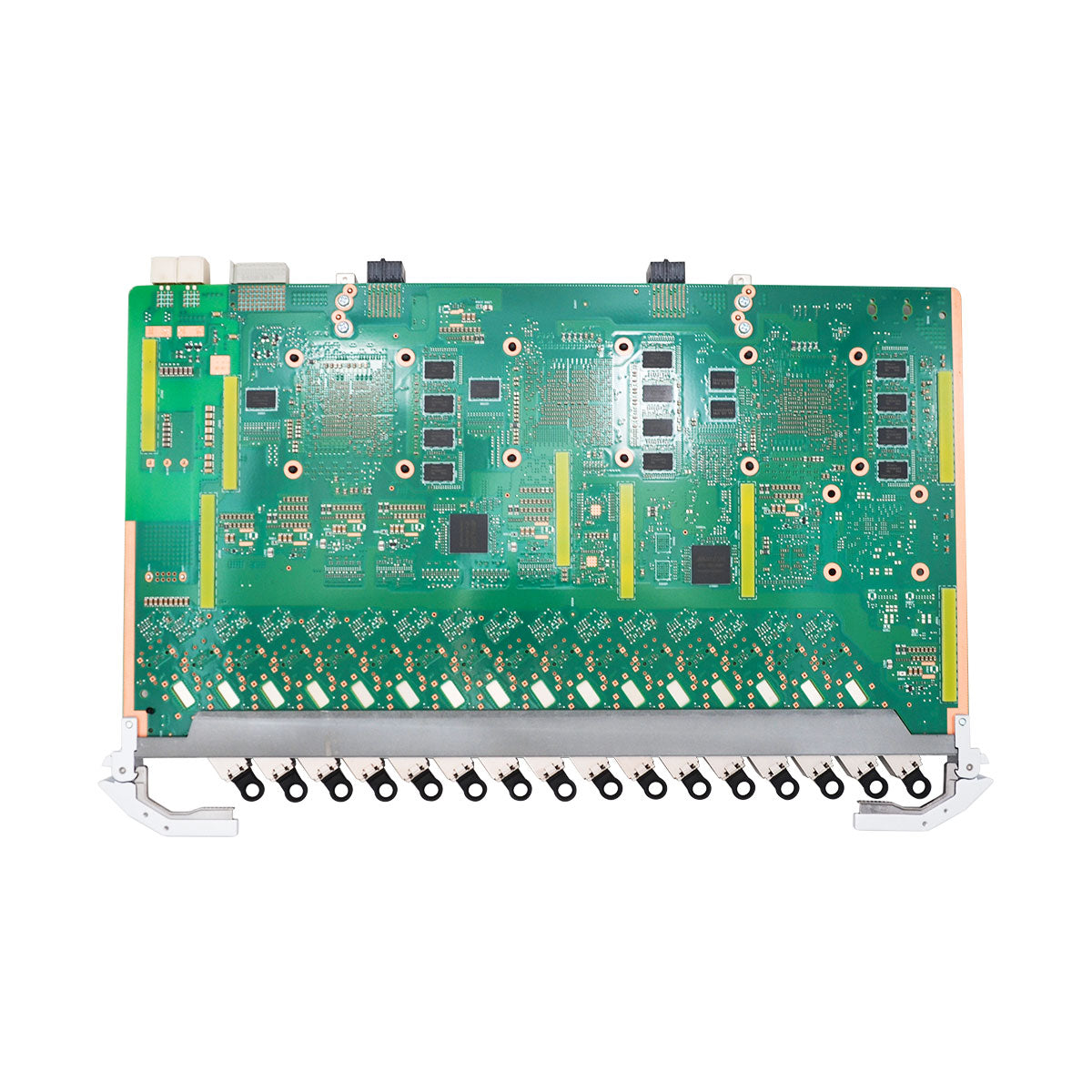

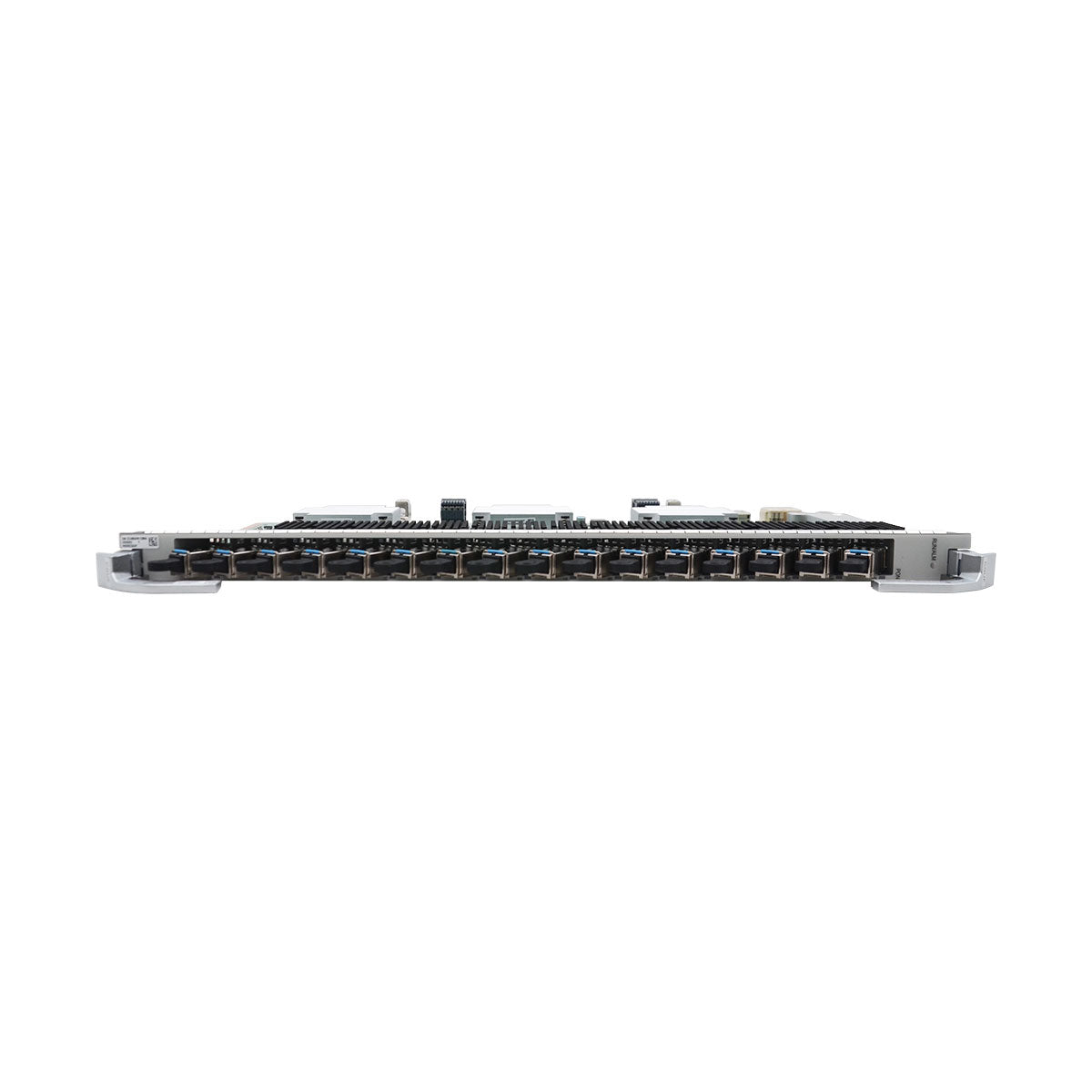

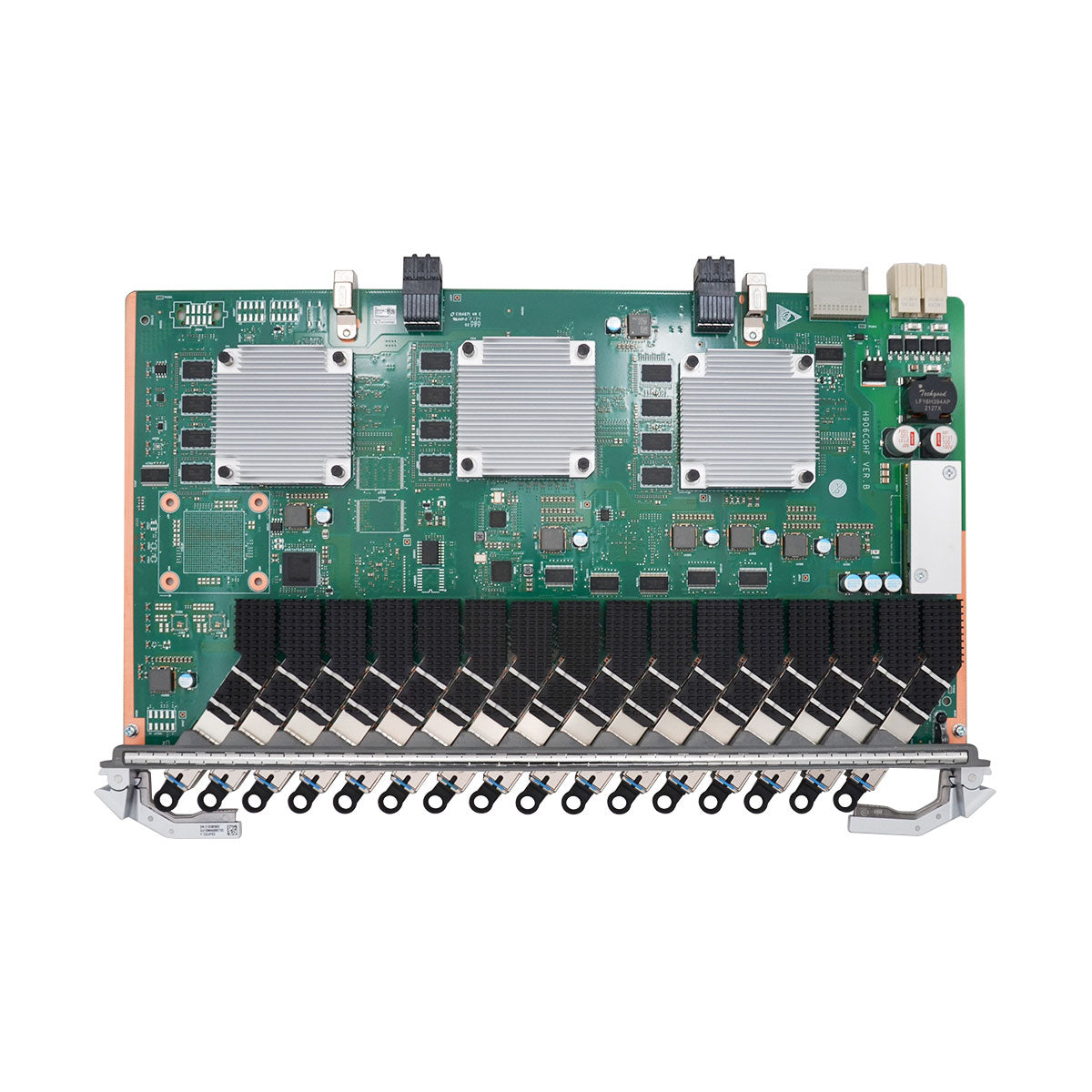

Huawei H906CGUF Board Overview


The H906CGUF board is an 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services


H906CGUF Applicable Optical Module

A GPON optical module is connected to one SC optical fiber to provide GPON access service.

No.

1

2

3

Type

One-fiber bi-directional optical module, class B+

One-fiber bi-directional optical module, class C+

One-fiber bi-directional optical module, class C++

Operating Wavelength

Tx: 1490 nm

Rx: 1310 nm

Tx: 1490 nm

Rx: 1310 nm

Tx: 1490 nm

Rx: 1310 nm

Encapsulation Type

SFP

SFP

SFP

Port Rate

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Tx: 2.488 Gbit/s

Rx: 1.244 Gbit/s

Minimum Output Optical Power

1.50 dBm

3.00 dBm

6.00 dBm

Maximum Output Optical Power

5.00 dBm

7.00 dBm

10.00 dBm

Maximum Receiver Sensitivity

-28.00 dBm

-32.00 dBm

-35.00 dBm

Optical Connector Type

SC

SC

SC

Optical Fiber Type

Single-mode

Single-mode

Single-mode

Overload Optical Power

-8.0 dBm

-12.0 dBm

-15.0 dBm

Extinction Ratio

8.2 dB

8.2 dB

8.2 dB



Functions and features of the H906CGUF



Specification
Service ports
GPON Port 16 XG-PON & GPON ports
GPON SFP+ Module Specification
Type One-fiber bi-directional optical module
Operating Wavelength GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON channel:
Tx: 1577 nm
Rx: 1270 nm
Encapsulation Type SFP+
Port Rate GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
Minimum Output Optical Power GPON channel: 3 dBm
XG-PON channel: 4 dBm
Maximum Output Optical Power GPON channel: 7 dBm
XG-PON channel: 8 dBm
Maximum Receiver Sensitivity GPON channel: -32 dBm
XG-PON channel: -29.5 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power GPON channel: -12 dBm
XG-PON channel: -9 dBm
Extinction Ratio 8.2 dB
Function
Forwarding capability 200 Gbit/s
Rate mode Asymmetric rate
T-CONTs per PON port GPON: 1024
XG-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40 km
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption Static: 48 W
Maximum: 106 W
Operating temperature -40°C to +65°C
