Huawei MA5800-X15 OLT Overview
Introduction
Huawei MA5800-X15 OLT is a large-sized OLT in Huawei's MA5800 series. The series also includes MA5800-X2 (2 slots, small-capacity), MA5800-X7 (7 slots, medium-capacity, IEC), and MA5800-X17 (17 slots, large-capacity, ETSI).
The MA5800 is the industry's first smart aggregation OLT with a distributed architecture. It is positioned as an OLT oriented to the ultra-gigabit era. The product is designed to help carriers build networks with larger bandwidths, higher speeds, and smarter connectivity to deliver better service experience.
Providing GPON, 10G PON (including XG-PON and XGS-PON), 50G-PON, P2P 10GE/2.5GE/GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, FTTC, and FTTR networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
The MA5800 functions as a large-capacity aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.
NOTE: Only V100R023C10 and later versions support 50G-PON and P2P 2.5GE access.

Appearance and Structure

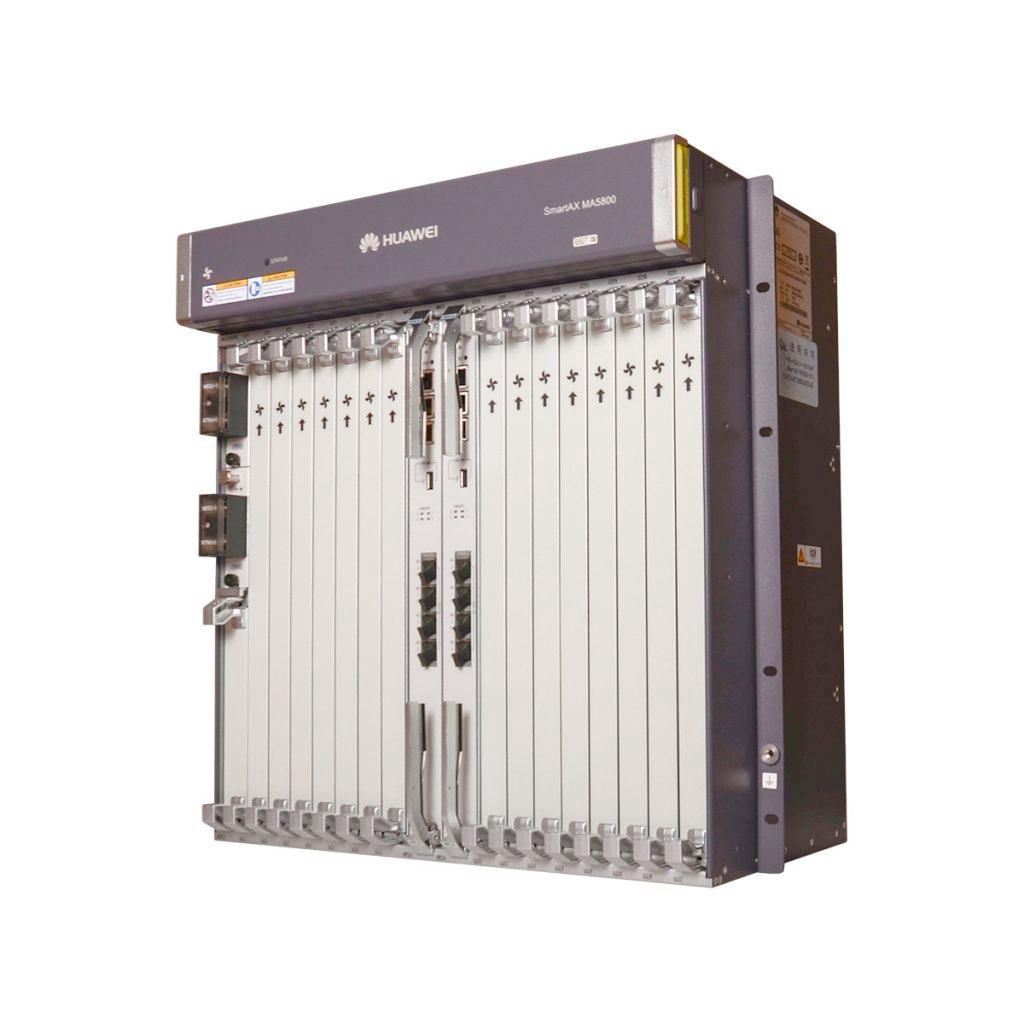

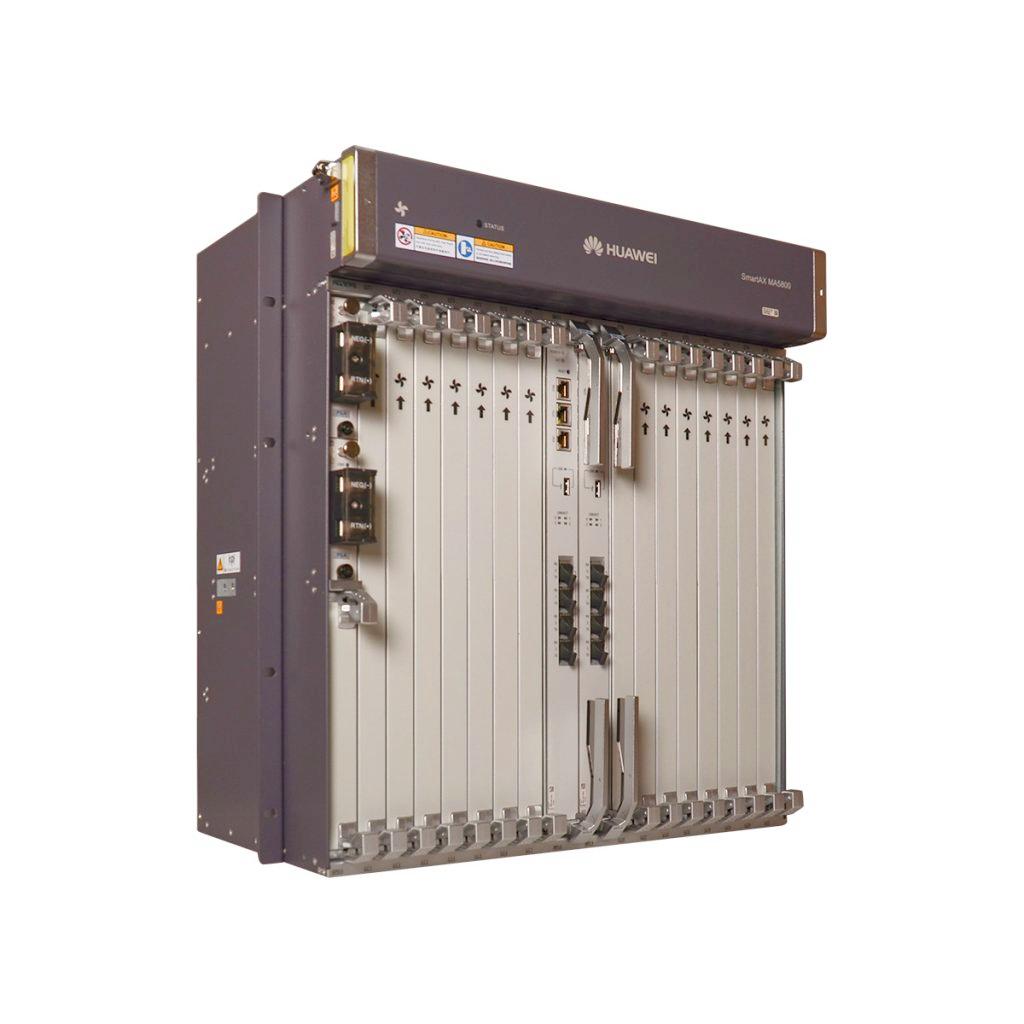

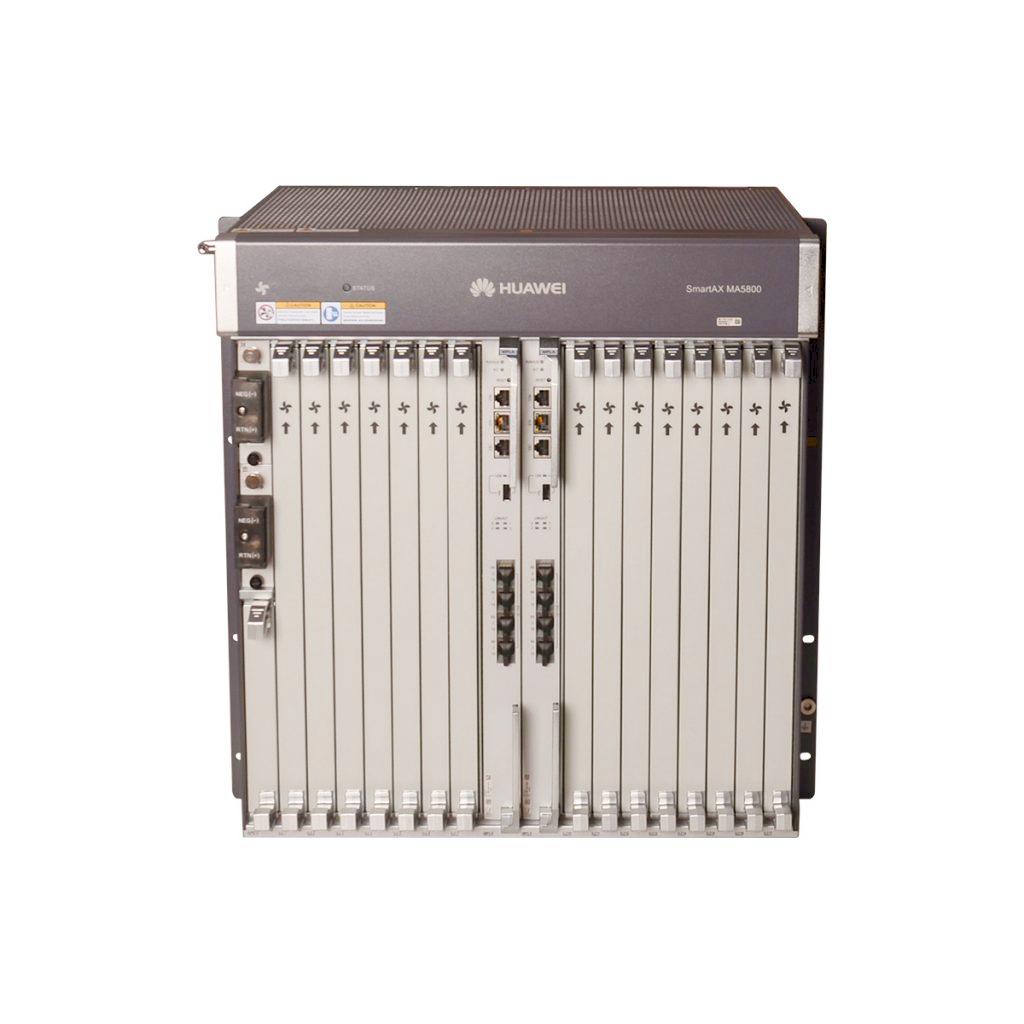

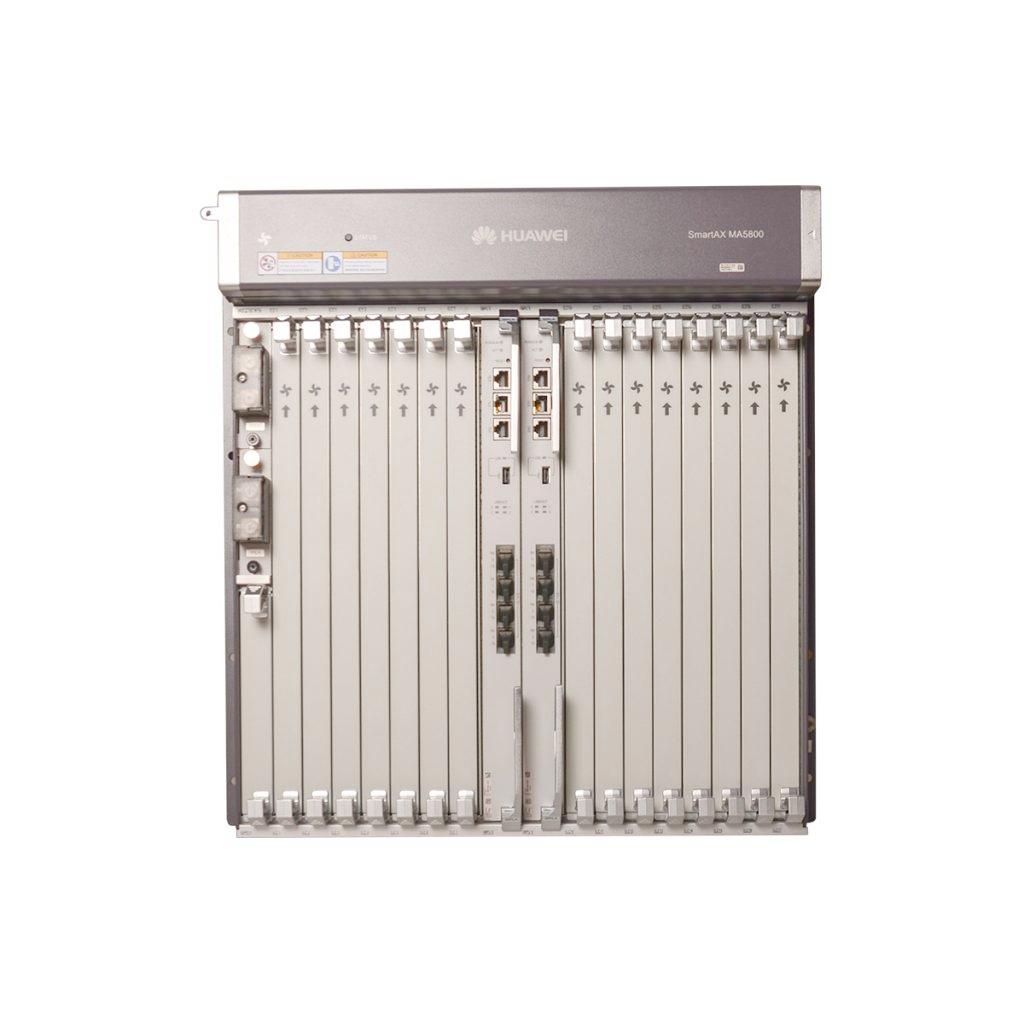

The MA5800-X15 service subrack provides 20 slots, and has a fan tray at the top. The subrack is installed in the cabinet through the mounting brackets.

Huawei MA5800-X15 OLT Board
Control Board | |||
H901MPLA H902MPLA H903MPLA H905MPLA |
H901MPLB H902MPLB H903MPLB H907MPLB |
H901MPLG | H901MPLH H902MPLG |
Upstream Interface Board |
H901NCEC (4-port Enhanced 100GE Uplink Interface Board) |
H901NXED H902NXED H905NXED (8-port Enhanced 10GE/GE Uplink Interface Board) |
H902NCEB (2-port Enhanced 100GE Uplink Interface Board) |
Universal Interface Board (GPIO) |
H901CIUA/H902CIUA/H906CIUA/H907CIUA |
Power Board |
H901PILA/H902PILA/H903PILA Note: MA5800-X7 only supports DC power modules, it is recommended to purchase a power converter: ETP48100, ETP4830, ETP4860. |
GPON Interface Board | ||||
H901GPEF | H901GPLF | H901GPHF H902GPHF H903GPHF |
H901GPSF H902GPSF H903GPSF |
H901GPUF H902GPUF |
Flex-PON Interface Board Note: By default, only GPON is supported. For XGPON and XGS-PON, need to purchase a single-port upgrade license. |
|
H901FLHF H902FLHF H903FLHF H905FLHF H906FLHF |
H901FLSF H902FLSF |
XG-PON Interface Board |

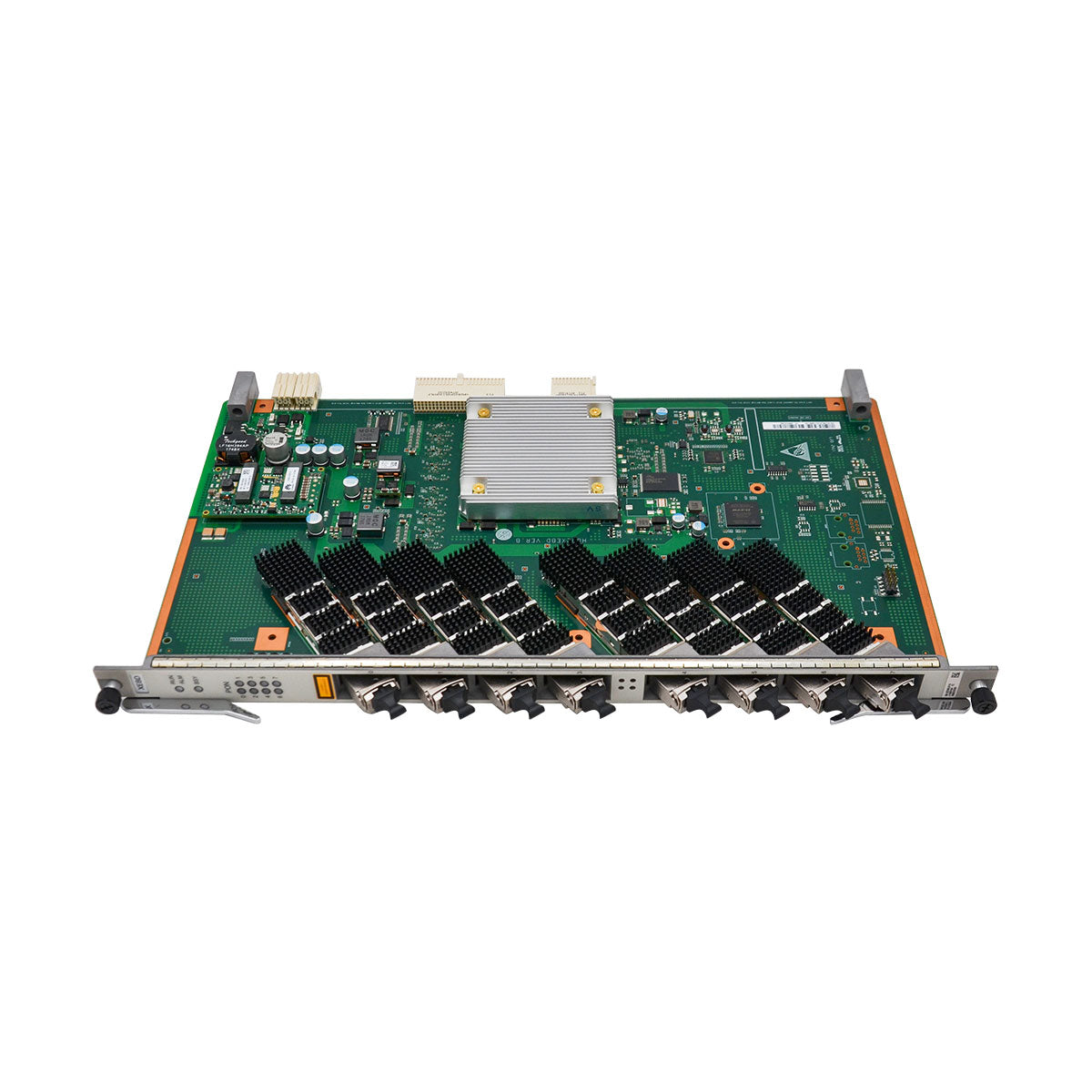

H901XGHD (8-port Advanced XG-PON OLT Interface Board) |
H901XGSF (16-port XG-PON OLT Interface Board) |
XGS-PON Interface Board |
H901TWED H902TWHD (8-port Advanced TWDM PON OLT Interface Board) |
H901XSHF H902XSHF H903XSHF H905XSHF (16-port Advanced XGS-PON OLT Interface Board) |
H902XSHD (8-port Advanced XGS-PON OLT Interface Board) |
XG-PON Combo Interface Board |
H901CGHF H901CGHF (16-port Advanced XG-PON&GPON Combo OLT Interface Board) |
H901CGID H901CGID (8-port XG-PON&GPON Combo OLT Interface Board) |
XGS-PON Combo Interface Board |
H901CSHF H901CSHF H901CSHF H901CSHF (16-port Advanced XGS-PON&GPON Combo OLT Interface Board) |
H902CSHD (8-port Advanced XGS-PON & GPON Combo OLT Interface Board) |
50G-PON Combo Interface Board |
H901HXHD (8-port Enhanced Symmetric 50G-PON&XGS-PON Combo OLT Interface Board) |
Huawei MA5800-X15 OLT Datasheet
Dimensions and Weight
Specification | Value |
Dimensions (H x W x D, including mounting ears) | 486 mm x 482.6 mm x 287 mm |
Dimensions (H x W x D, excluding mounting ears) | 486 mm x 442 mm x 287 mm |
Maximum weight at full configuration (including mounting ears) | 35 kg |
Power Supply
Specification | Value |
Power supply mode | DC (dual power for backup) |
Rated voltage | -48 V / -60 V |
Working voltage range | -38.4 V to -72 V |
Maximum input current | 60 A |
Power consumption
Typical Configuration | Static power consumption | Maximum power consumption | Typical power consumption | Board configuration |
GPON | 490 | 1189 | 839.5 | H902MPLB*2+H902OGHK+H902PILA*2+H901FMLA+H902GPHF*14 |
Slot Configuration
An MA5800-X15 service subrack provides 20 slots, including 2 slots for control boards, 2 slots for power boards, 1 slot for the universal interface board, and 15 slots for service boards.
Slot Type | Slot | Supported Board | Remarks |
Control board slot | 8,9 | Control board | The device is configured with both active and standby control boards of the same type in 2 slots. |
Power board slot | 18,19 | Power board | Two power boards are required. |
Universal interface board slot | 0 | Universal interface board | - |
Service board slot | 1–7,10–17 | Uplink interface board | Mixed configuration of service boards is supported. NOTE: A maximum of two 50G-PON combo interface boards can be configured. Both control board and upstream interface board can be used for upstream transmission. Using the control board for upstream transmission is recommended. |
Service board |
Product Specifications
Item | MA5800-X15 |
Supported cabinet | N66E-22 |
Slots | Control board slots: 8, 9 |
Service board or upstream interface board slots: 1–7, 10–17 | |
Universal interface board slot: 0 | |
Power board slots: 18,19 | |
Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 287 x 486 |
Including mounting ears: 482.6 x 287 x 486 | |
Maximum weight (including mounting brackets) | 35 kg |
Maximum input current | 60 A |
Power supply mode | DC power support (dual backup) |
Working voltage range | –38.4 V DC to –72 V DC |
Rated voltage | –48 V/–60 V |
Ambient temperature | –40°C to +65°C The MA5800 can start up at a lowest temperature of –25°C. NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
Ambient humidity | 5%–95% RH |
Atmospheric pressure | 70–106 kPa |
Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the MA5800 varies with the altitude. |
Payload switching capacity of the control board (load sharing mode) | MPLA: 3.6 Tbit/s MPLB: 7.0 Tbit/s MPLG: 7.3 Tbit/s MPLH: 8.0 Tbit/s |
Maximum payload bandwidth per service slot (load sharing mode) | MPLA: 100 Gbit/s |
MPLB/MPLG/MPLH: 200 Gbit/s | |
Access ONTs | 34816 |
Multicast users | MPLA/MPLB/MPLG: 17408 |
MPLH: 34816 | |
Maximum number of MAC addresses | 262143 |
Maximum number of IPv4 routing tables | 65536 |
Maximum number of IPv6 routing tables | 16384 |
Maximum number of ARP tables | 131072 |
Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
System reliability specifications | System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5800 is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. |
Upstream ports (dual control boards for upstream transmission) |
MPLA/MPLB: 8 x 10GE/GE MPLG: 2 x 100GE + 4 x 10GE/GE MPLH: 4 x 100GE + 8 x 25GE/10GE/GE |
GPON ports | 272 |
XG-PON ports | 272 |
XGS-PON ports | 272 |
XG-PON & GPON Combo ports | 272 |
XGS-PON & GPON Combo ports | 272 |
Symmetric 50G-PON & XGS-PON Combo ports | 16 |
GE/FE ports | 816 |
10GE/2.5GE/GE ports | 408 |
10GE/GE ports | 408 |
Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
System reliability specifications | System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5800 is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. |
Upstream ports | MPLA/MPLB: 8 x 10GE/GE |
(dual control boards for upstream transmission) | MPLG: 2 x 100GE + 4 x 10GE/GE |
MPLH: 4 x 100GE + 8 x 25GE/10GE/GE | |
GPON ports | 272 |
XG-PON ports | 272 |
XGS-PON ports | 272 |
XG-PON & GPON Combo ports | 272 |
XGS-PON & GPON Combo ports | 272 |
Symmetric 50G-PON & XGS-PON Combo ports | 16 |
GE/FE ports | 816 |
10GE/2.5GE/GE ports | 408 |
10GE/GE ports | 408 |
Access features | |
GPON/XG(S)-PON/50G-PON Access | 10GE/2.5GE/GE P2P Access |
Layer 2 features | |
VLAN+MAC forwarding | SVLAN+CVLAN forwarding |
PPPoE+ | DHCP option82 |
Layer 3 features | |
Static route | RIP/RIPng |
OSPF/OSPFv3 | IS-IS |
BGP/BGP4+ | ARP |
DHCP relay | VRF |
Multicast | |
IGMP v2/v3 | IGMP Proxy/Snooping |
MLD v1/v2 (V100R016C10 and later versions) | MLD Proxy/Snooping (V100R016C10 and later versions) |
VLAN-based IPTV multicast | IPv4 PIM and PIM-SSM (V100R017C00 and later versions) |
QoS | |
Traffic classification | Priority processing |
trTCM-based traffic policing | WRED |
Traffic shaping | HQoS |
PQ/WRR/PQ+WRR | ACL |
MPLS&PWE3 | |
MPLS LDP | MPLS RSVP-TE |
MPLS OAM | MPLS BGP IP VPN |
PW protection switching | Tunnel protection switching |
TDM/ETH PWE3 | |
IPv6 | |
IPv4/IPv6 dual stack | IPv6 L2 and L3 forwarding |
DHCPv6 relay | |
System reliability | |
GPON type B/type C protection | ERPS (G.8032) |
BFD (V100R016C10 and later versions) | 10G GPON type B/type C protection |
Monitor Link (V100R018C10 and later versions) | Intra-board and inter-board LAG |
Service overload control | MSTP |
2 control boards and 2 power boards for redundancy protection | In-service board fault detection and rectification |
In-service software upgrade (ISSU) of the control board | |
Application security | |
802.1x | AAA |
Eco-friendly and energy-saving | |
In compliance with the Code of Conduct v8.1 released by the European Commission(V100R021C10 and later versions) | |
VXLAN (V100R018C00 and later versions) | |
Virtual eXtensible LAN | |
SRv6 (V100R019C1x and later versions) | |
Segment Routing IPv6 | |
Slice V100R021C00 and later versions) | |
Service slice | Dedicated network slice(V100R021C10 and later versions) |
Aggregation (V100R022C00 and later versions) | |
Aggregation management |
