PAC1K5S53-AL Overview
Huawei NetEngine 8000 series PAC1K5S53-AL 1500W AC power module. DC power module and AC power module cannot be used at the same time.
Mapping products and versions
Product | Slot | Minimum Version Requirement |
---|---|---|
NetEngine 8000 M8 | slot 1 and slot 3 | V800R012C00 |
NetEngine 8000 M14 | slot 1 to slot 4 | V800R012C00 |

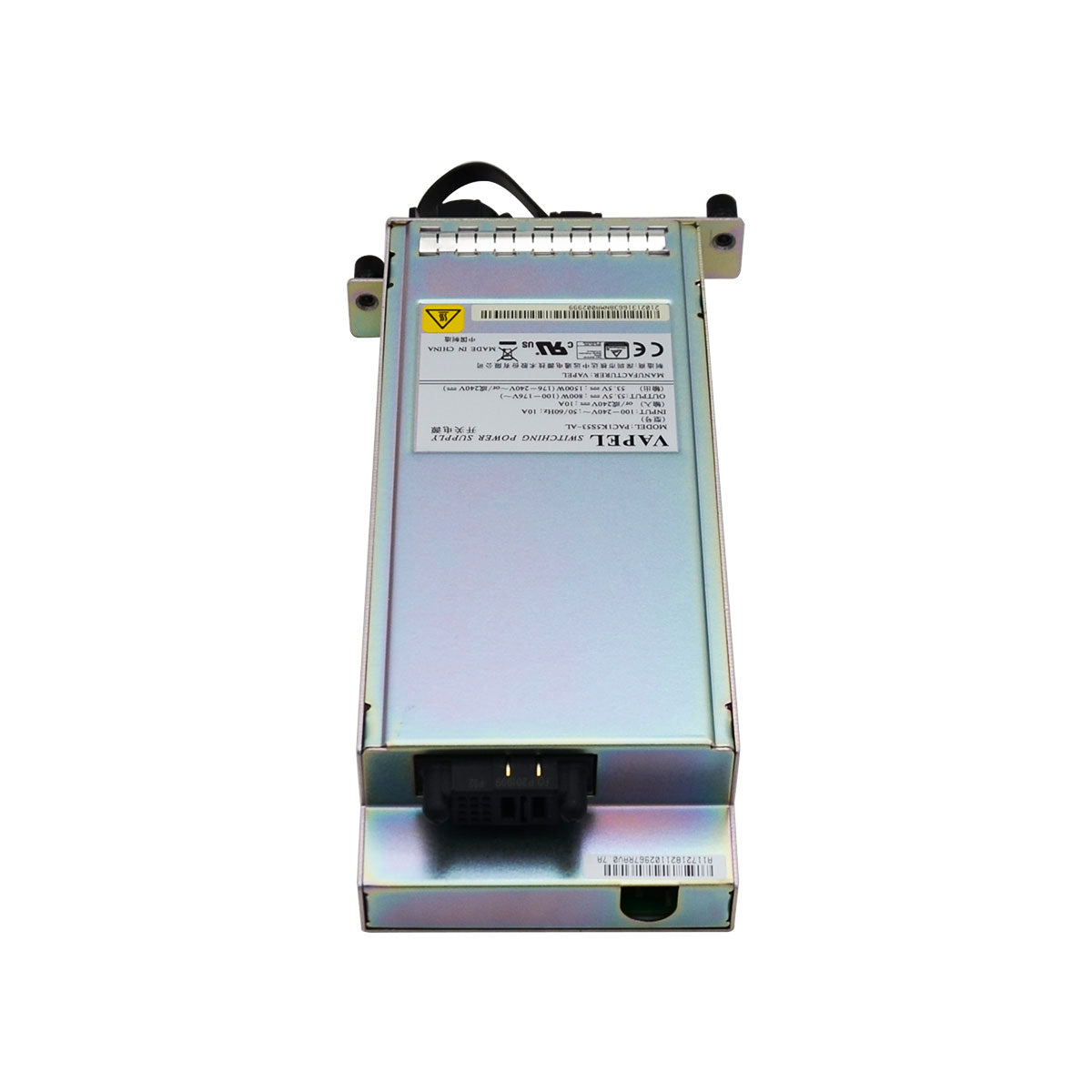

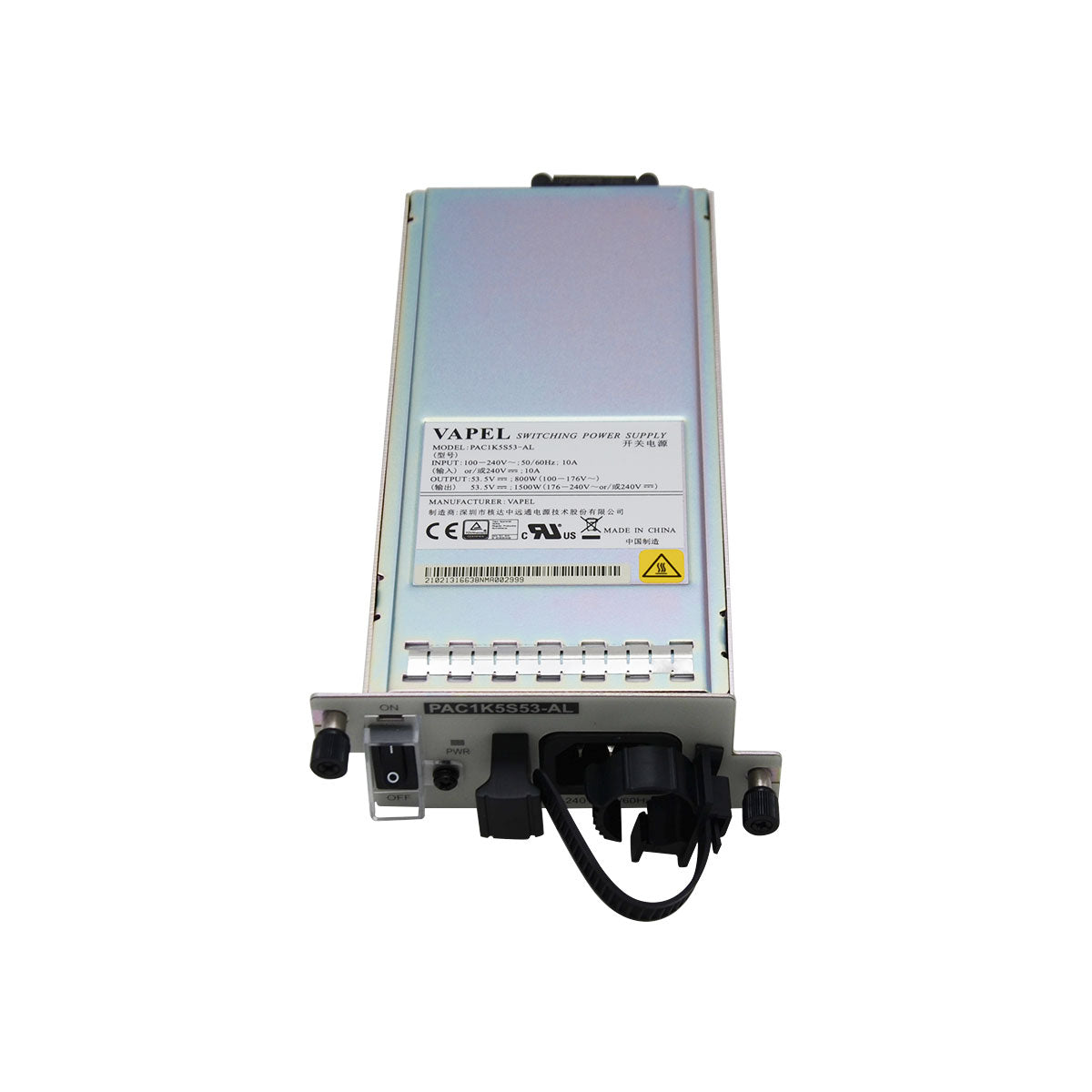

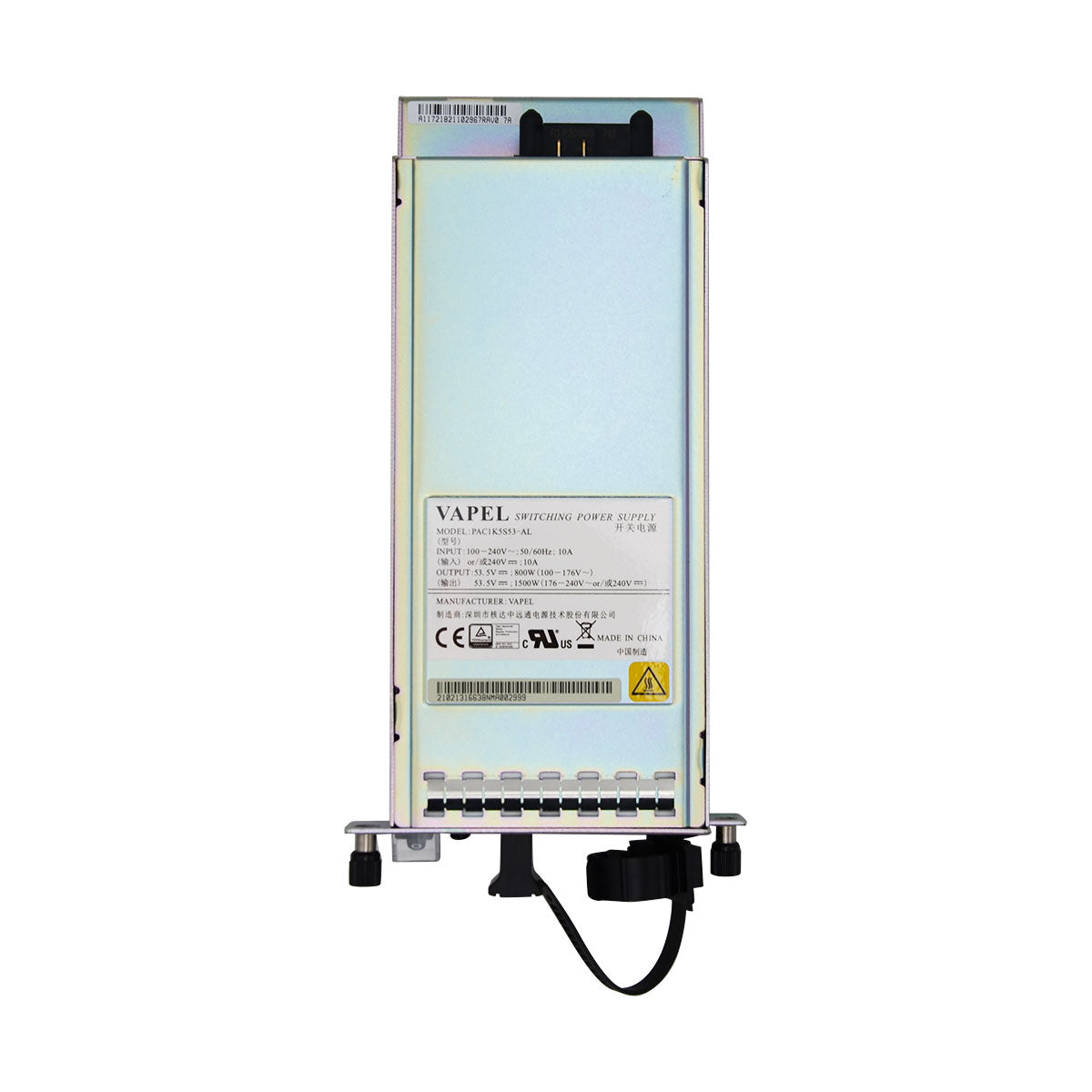

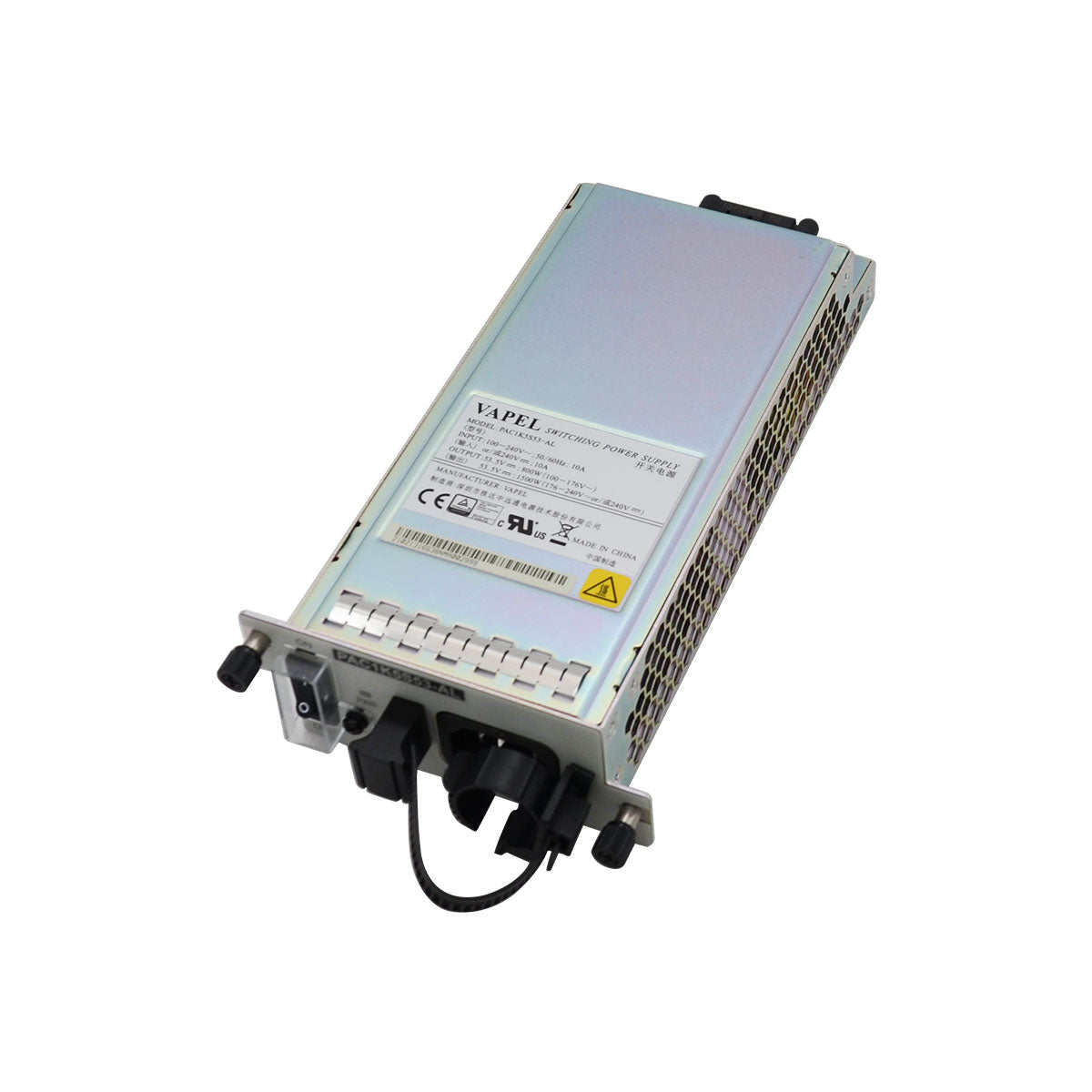

Appearance of the PAC1K5S53-AL

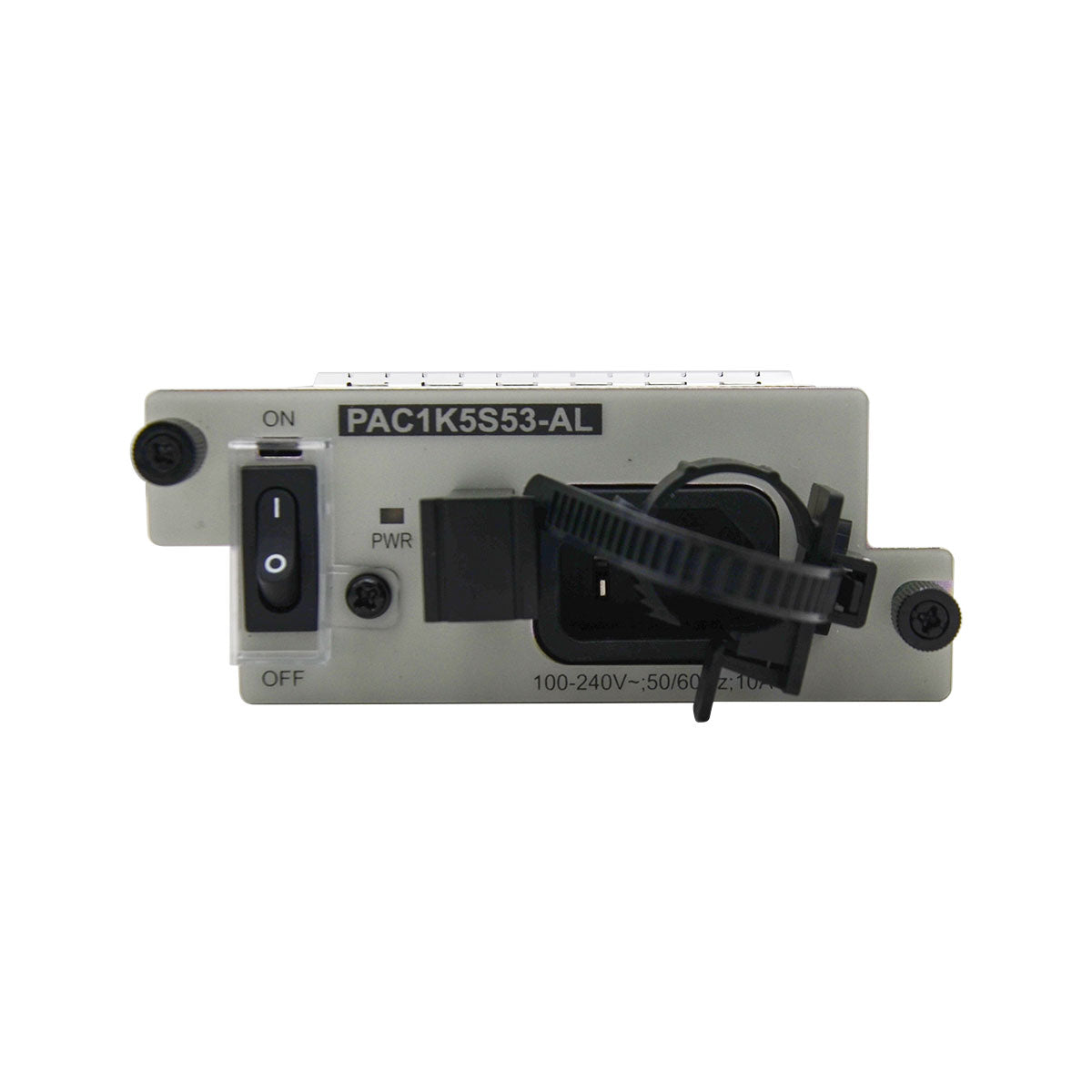

Panel of the PAC1K5S53-AL
Indicators on the PAC1K5S53-AL
Silkscreen | Name | Color | Status | Description |
---|---|---|---|---|
PWR | Power supply status indicator | Green | Steady on | The voltage of input AC power is normal. |
Blinks (on for 0.1s and off for 0.1s) | A program is being loaded online. | |||
Red | Steady on | The power supply is abnormal. An output fault, overtemperature protection alarm, or communication fault occurs. | ||
– | Off | The power input is faulty (lost or invalid). |
Buttons on the PAC1K5S53-AL
Silkscreen | Name | Description |
---|---|---|
ON/OFF | ON/OFF button | Press the OFF button to power on or off the power module. |
Ports on the PAC1K5S53-AL
Port | Description |
---|---|
AC power cable connector | AC power input interface |
PAC1K5S53-AL Datasheet
Item | PAC1K5S53-AL |
---|---|
Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 79.7 mm x 188 mm (1.57 in. x 3.14 in. x 7.40 in.) |
Weight without packaging [kg(lb)] | 1 kg (2.21 lb) |
Number of inputs | 1 |
Rated input voltage [V] | 200 V to 240 V/100 V to 127 V dual live wires, support 240 V HVDC |
Input voltage range [V] | 90 V to 290 V |
Maximum input current [A] | 10 A |
Rated output voltage [V] | 53.5 V |
Rated output current [A] | 28 A |
Rated output power [W] | 1500 W |
Power supply efficiency (25°C) | 92% |
Power dissipation Mode | Air cooling |
Type of power cables | Standard C13 cable |
Dimensions (H x W x D) | 40.1 mm x 193.8 mm x 209.3 mm (1.57 in. x 7.63 in. x 8.24 in.) |
Weight | 0.5 kg (1.1 lb) |
