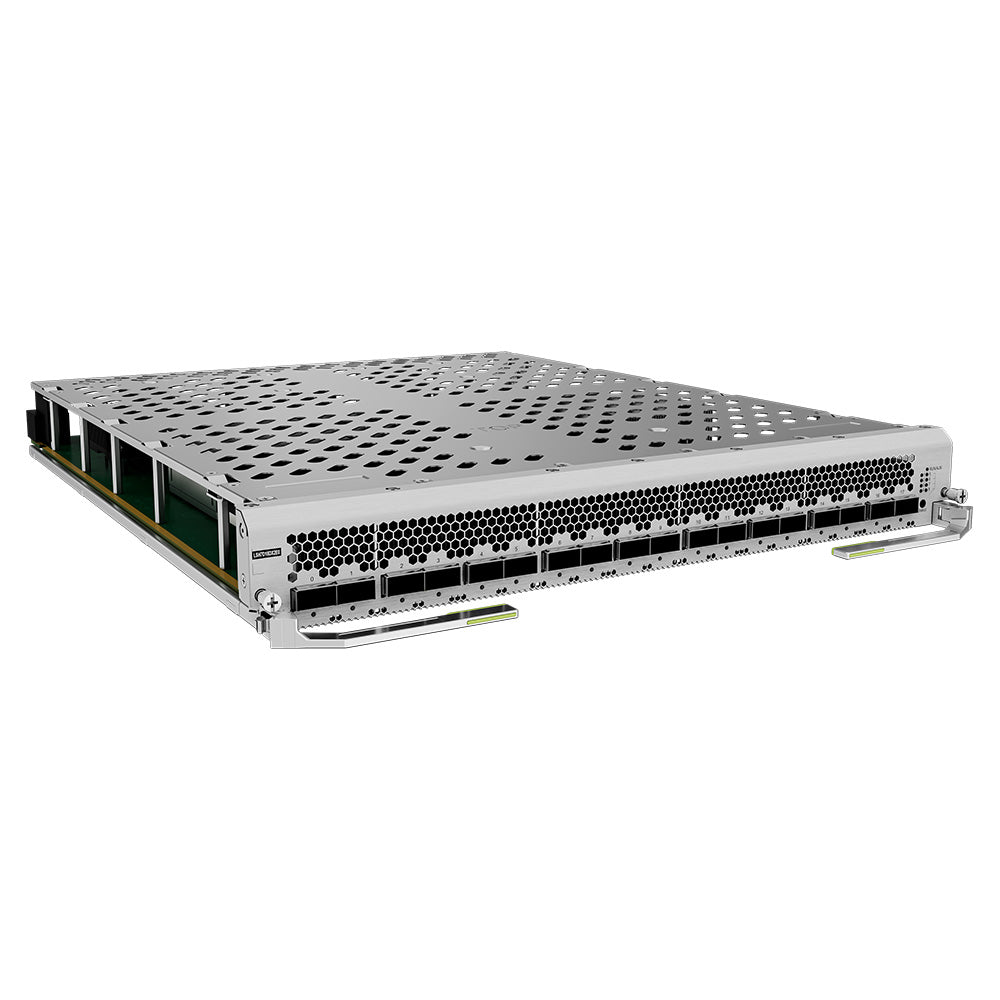

Huawei LSH7D18DX2E0 Interface Card

$0.00
$0.00
Availability: In stock
SKU: 03050NRE
Tags:
Collections:
LSH7C36HX2E0
HuaweiHuawei LSH7C36HX2E0 Interface Card
LSH7D18DX2E0
$0.00
$0.00
LSH7D18DX2E0 Overview

Huawei S16700 Series Switches LSH7D18DX2E0 18-Port 400G Optical Interface Card (X2E, QSFP-DD).

Ports on the LSH7D18DX2E0
Port Connector Type Description Available Components
400GE optical ports QSFP-DD/QSFP28/QSFP+ Port for inputting and outputting 400GE/100GE/40GE optical signals
  • 40GE QSFP+ optical modules
  • 100GE QSFP28 optical modules
  • 400GE QSFP-DD optical modules
  • QSFP+ to QSFP+ AOC cable
  • QSFP28 to QSFP28 AOC cable
  • QSFP-DD to QSFP-DD AOC cable
  • QSFP-DD to QSFP-DD high-speed cable
NOTE:

Ports 4, 5, 10, 11, 16, and 17 cannot be split. That is, ports 4, 5, 10, 11, 16, and 17 support only 400GE, 100GE, or 40GE.
Functions and Features of the LSH7D18DX2E0
Functions and Features Description
Basic function Provides data packet processing and traffic management on 18 x 400GE optical ports, which can be used as 18 x 100GE or 18 x 40GE optical ports, or split into up to 54 x 100GE optical ports.
Maximum port density

If all LPUs are these cards:

  • The S16700-4 chassis provides a maximum of 72 400GE ports.
  • The S16700-8 chassis provides a maximum of 144 400GE ports.
400GE port Supports QSFP-DD, QSFP28, and QSFP+ optical modules. The 18 optical ports are independent, and each 400GE port can be used as a 100GE or 40GE port through auto-sensing. The 400GE ports 0 to 3, 6 to 9, and 12 to 15 can be split into 4 x 100GE ports. Other ports cannot be split.
Hot swapping Supported
MACsec Ports 0 to 3, 6 to 9, and 12 to 15 support MACsec. Other ports do not support MACsec.
Restrictions and remarks

Every six ports (ports 0 to 5, 6 to 11, and 12 to 17) form a group, to which the following limitations apply:

  • Only the first four ports in each group (ports 0 to 3, 6 to 9, and 12 to 15) support up to 1.6 Tbit/s forwarding. If the service bandwidth does not reach 1.6 Tbit/s, all the six ports in each group can be used.
  • When SFUs work in 3+1 mode, the maximum bandwidth of each group cannot exceed 1.2 Tbit/s (for example, 3 x 400 Gbit/s).
  • When SFUs work in 4+0 mode, the maximum bandwidth of each group cannot exceed 1.6 Tbit/s (for example, 4 x 400 Gbit/s).
Technical Specifications of the LSH7D18DX2E0
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg(lb)] 7.4 kg (16.31 lb)
Weight with packaging [kg(lb)] 8.34 kg (18.39 lb)
Typical power consumption [W] 527 W
Typical heat dissipation [BTU/hour] 1797 BTU/hour
Maximum power consumption [W] 733 W
Maximum heat dissipation [BTU/hour] 2500 BTU/hour
Memory 8 GB (standard configuration)
