By Huawei

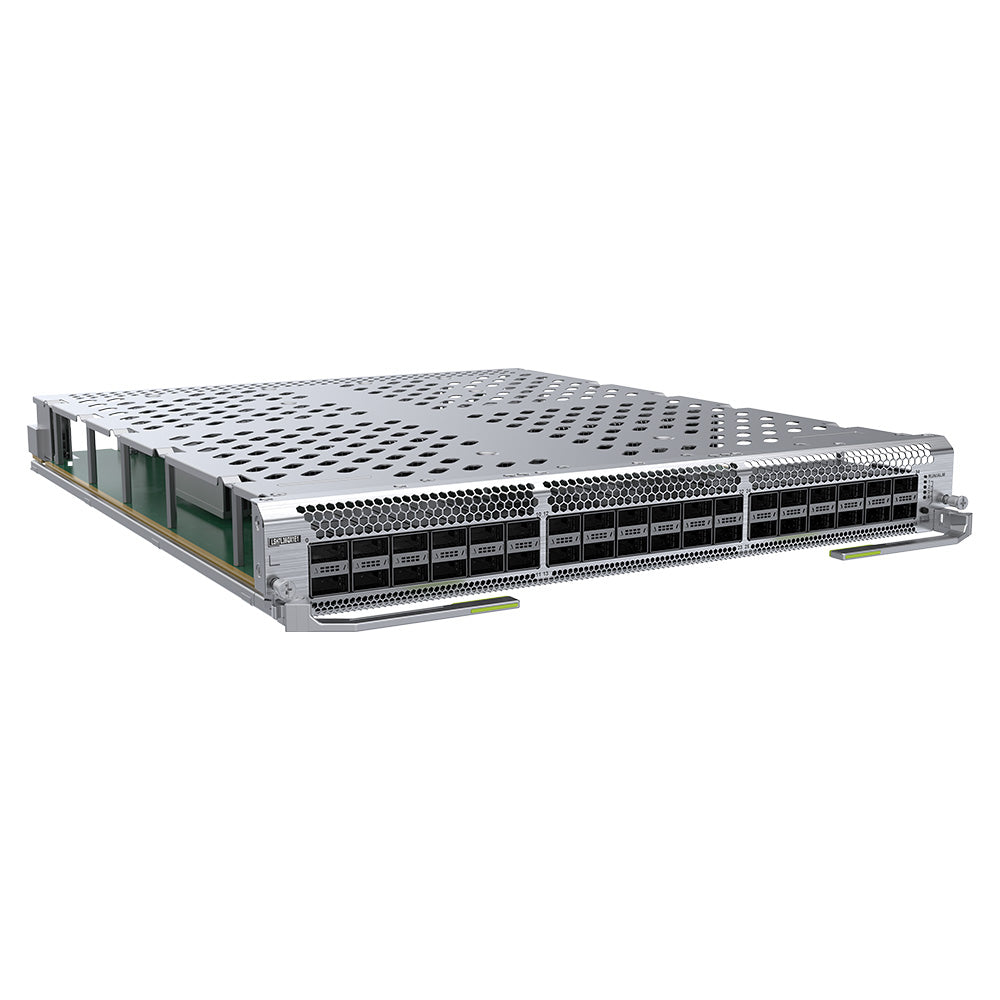

Huawei LSH7L36QX1E1 Interface Card

Regular price $0.00
Regular price Sale price $0.00
Availability: In stock
SKU: 03050MLE
Regular price $0.00
Regular price Sale price $0.00
LSH7L36QX1E1 Overview

Huawei S16700 Series Switches LSH7L36QX1E1 36-Port 40GE Interface Card (X1E, QSFP+).

Ports on the LSH7L36QX1E1
Port Connector Type Description Available Components
36 x 40GE optical ports QSFP+ Receives and transmits 40GE services.
  • 40GE QSFP+ optical modules
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP+ to QSFP+ high-speed cable
  • QSFP+ to 4*SFP+ high-speed cable
NOTE:

When a QSFP+ to QSFP+ high-speed cable is installed on a port, the cable can only be used as a cable of an M-LAG peer-link interface.

Functions and Features of the LSH7L36QX1E1
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 36 40GE optical ports, which can be split into 144 10GE optical ports.
Maximum port density

If all LPUs are these cards:

  • The S16700-4 chassis provides a maximum of 144 40GE ports.
  • The S16700-8 chassis provides a maximum of 288 40GE ports.
40GE port A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 144 x 10GE. All the 36 40GE ports are independent, and each can be split into four 10GE ports.
Hot swapping Supported
Technical Specifications of the LSH7L36QX1E1
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg(lb)] 8.0 kg (17.64 lb)
Weight with packaging [kg(lb)] 12.9 kg (28.44 lb)
Typical power consumption [W] 256 W
Typical heat dissipation [BTU/hour] 874 BTU/hour
Maximum power consumption [W] 443 W
Maximum heat dissipation [BTU/hour] 1513 BTU/hour
Memory 4 GB (standard configuration)
