Huawei S5700-28C-HI Switch
Couldn't load pickup availability
S5700-28C-HI Hardware Description
Introduction
Huawei S5700-28C-HI switch with 24*10/100/1000BASE-T ports,1*console port, 1*ETH management port, 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
Huawei S5720 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation.
Key Features
24*10/100/1000BASE-T ports
1*console port
1*ETH management port
Memory (RAM) 512MB
Flash 64MB

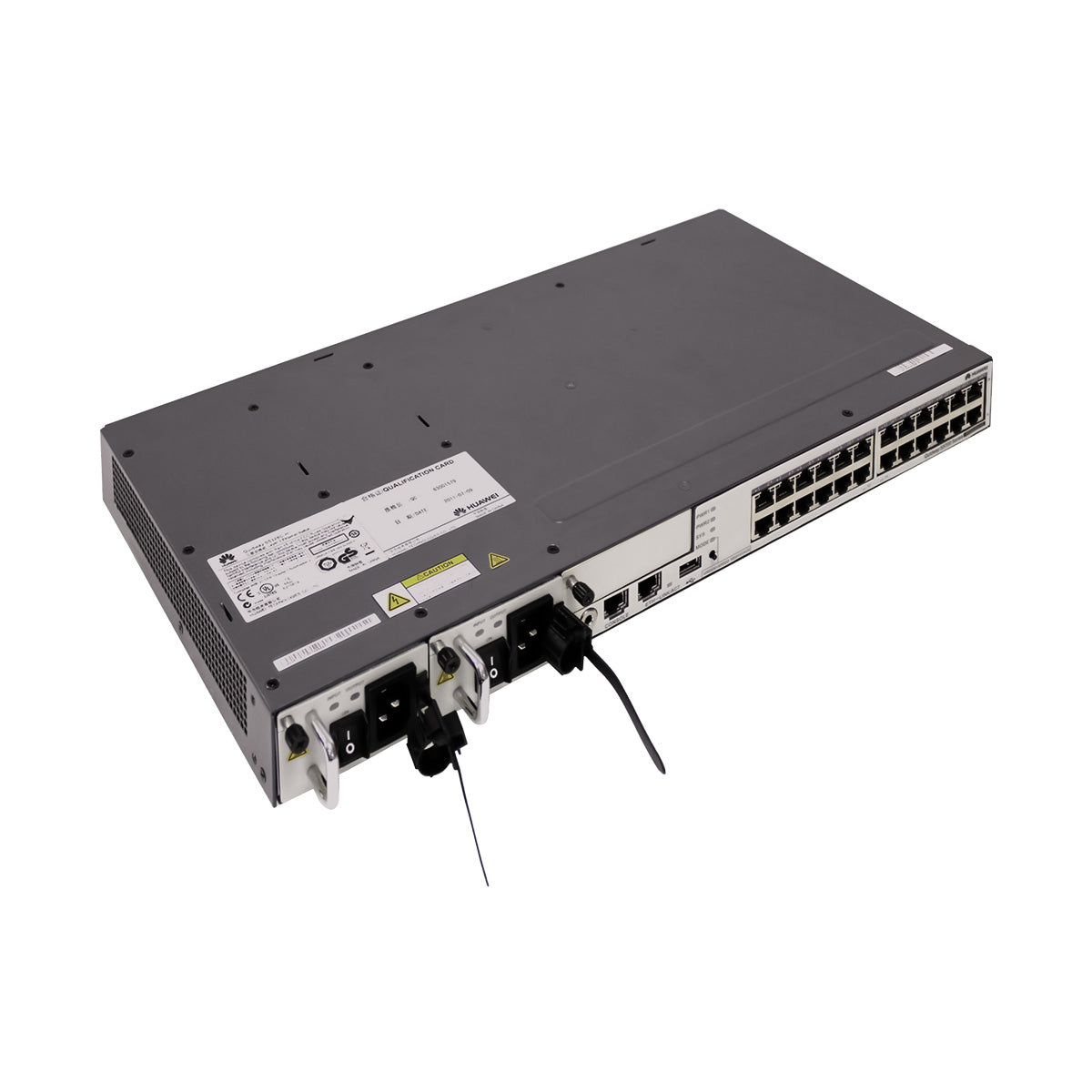

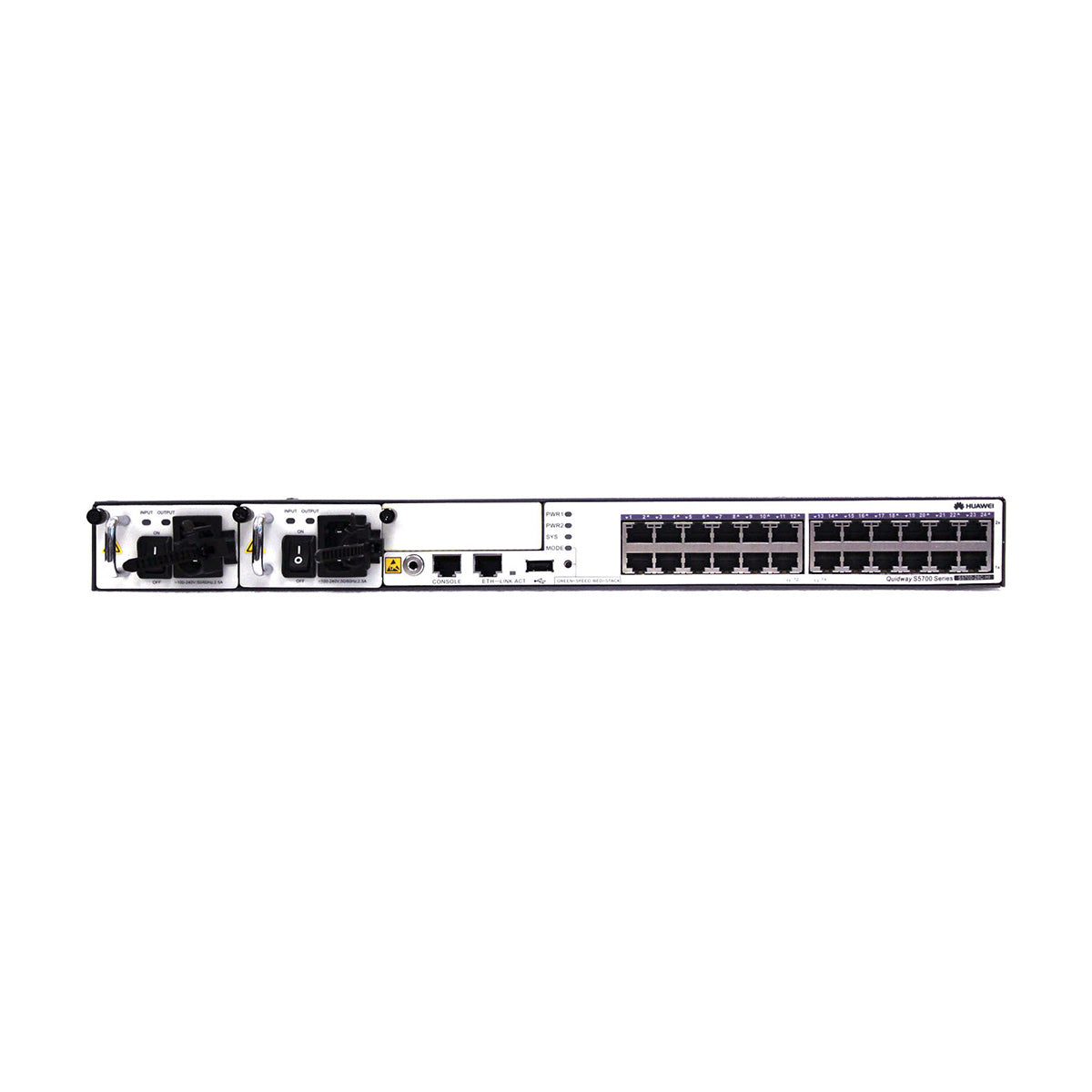

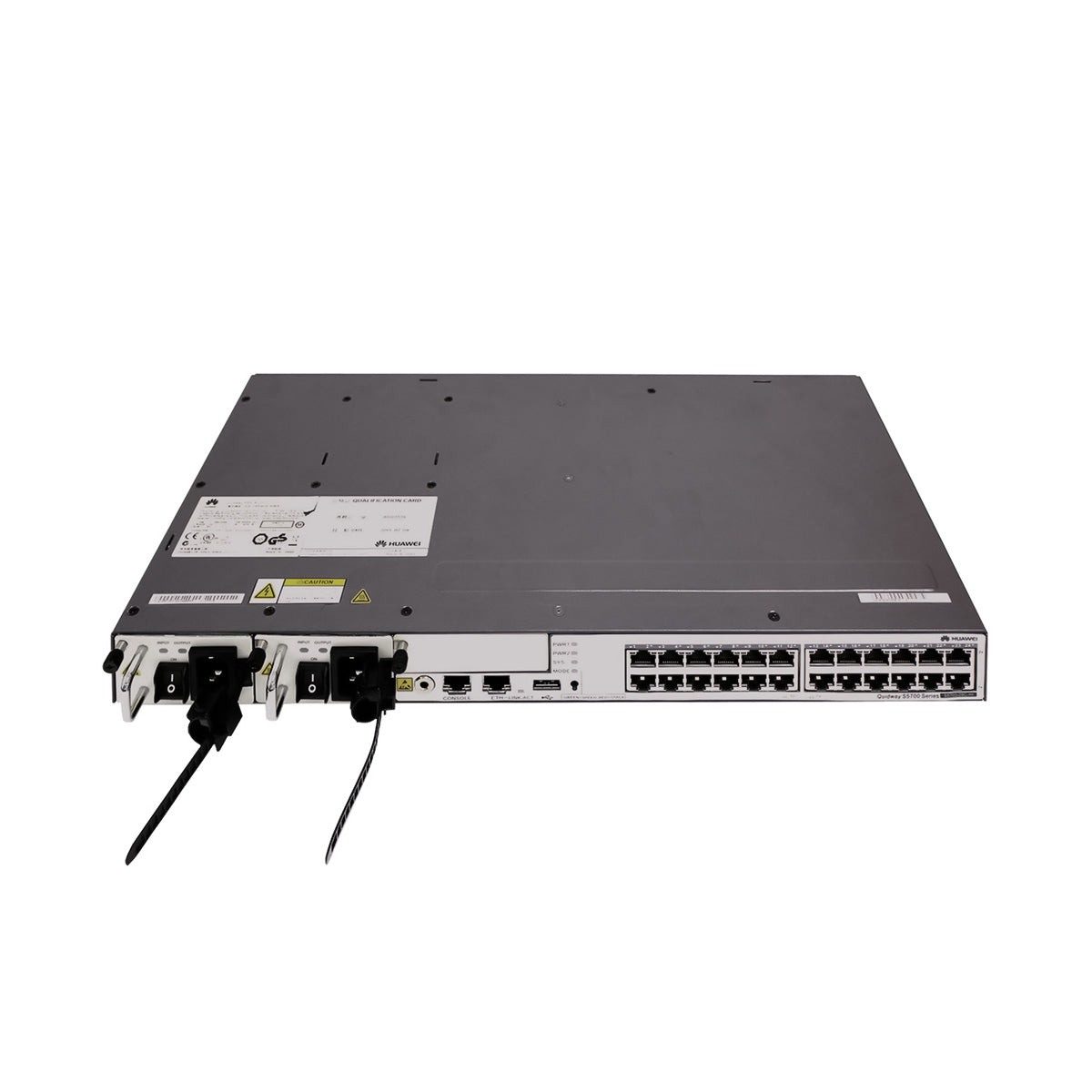

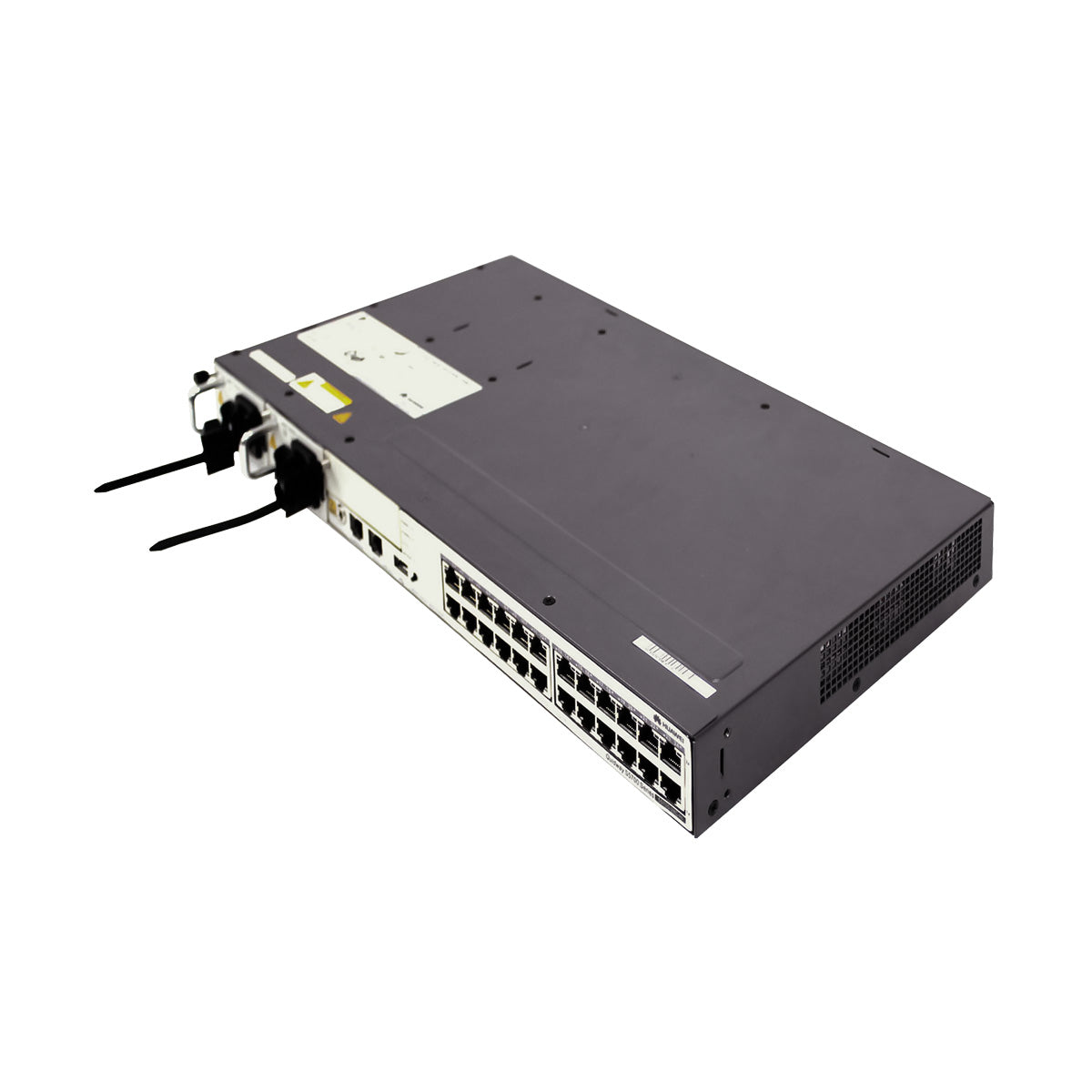

Appearance and Structure
|
1 |
Power module slot 1 NOTE:
Applicable power modules:
|
2 |
Power module slot 2 NOTE:
Applicable power modules:
|
|
3 |
ESD jack NOTE:
Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack. |
4 |
One console port |
|
5 |
One ETH management port |
6 |
Front card slot NOTE:
Card supported:
|
|
7 |
One USB port |
8 |
Twenty-four 10/100/1000BASE-T ports |
|
9 |

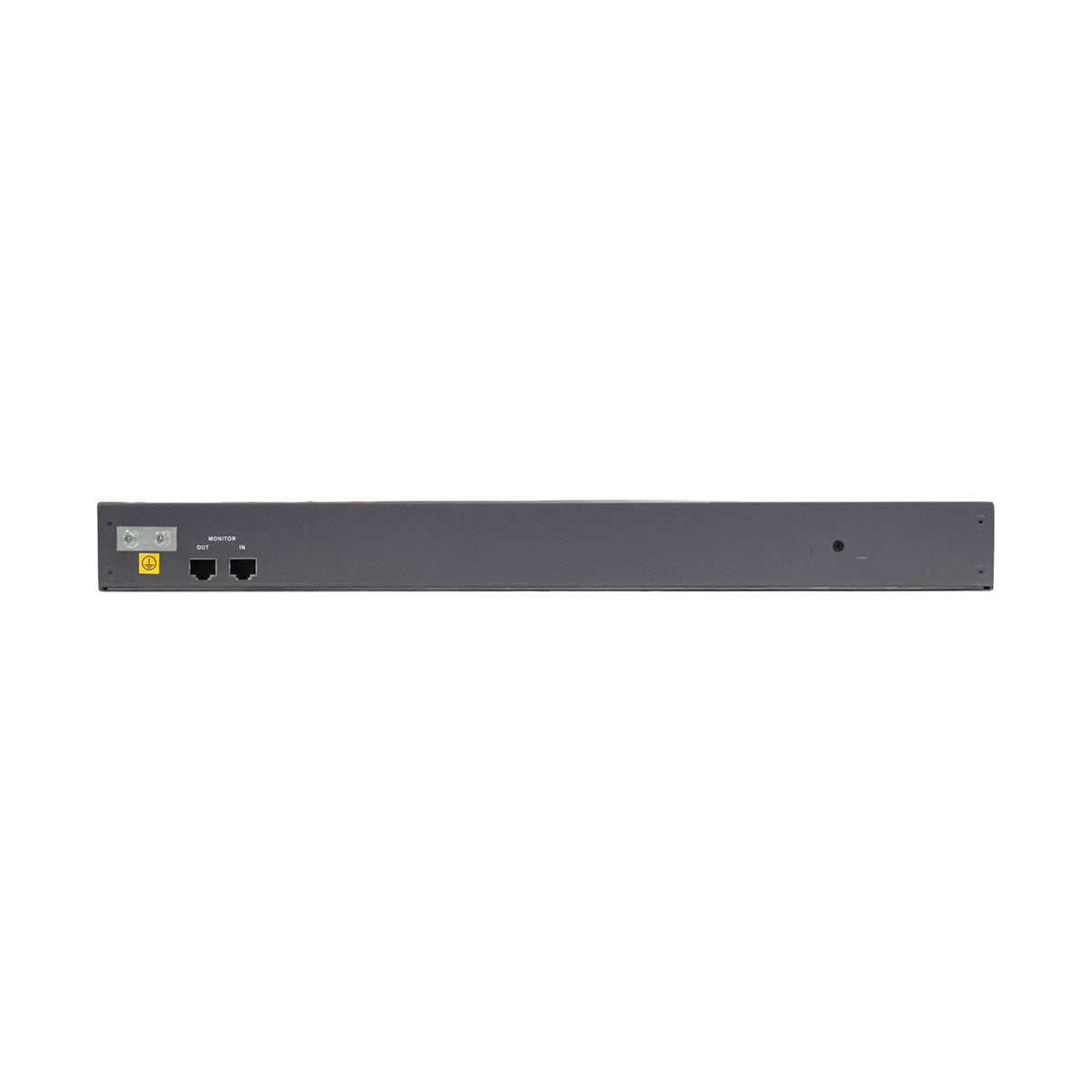

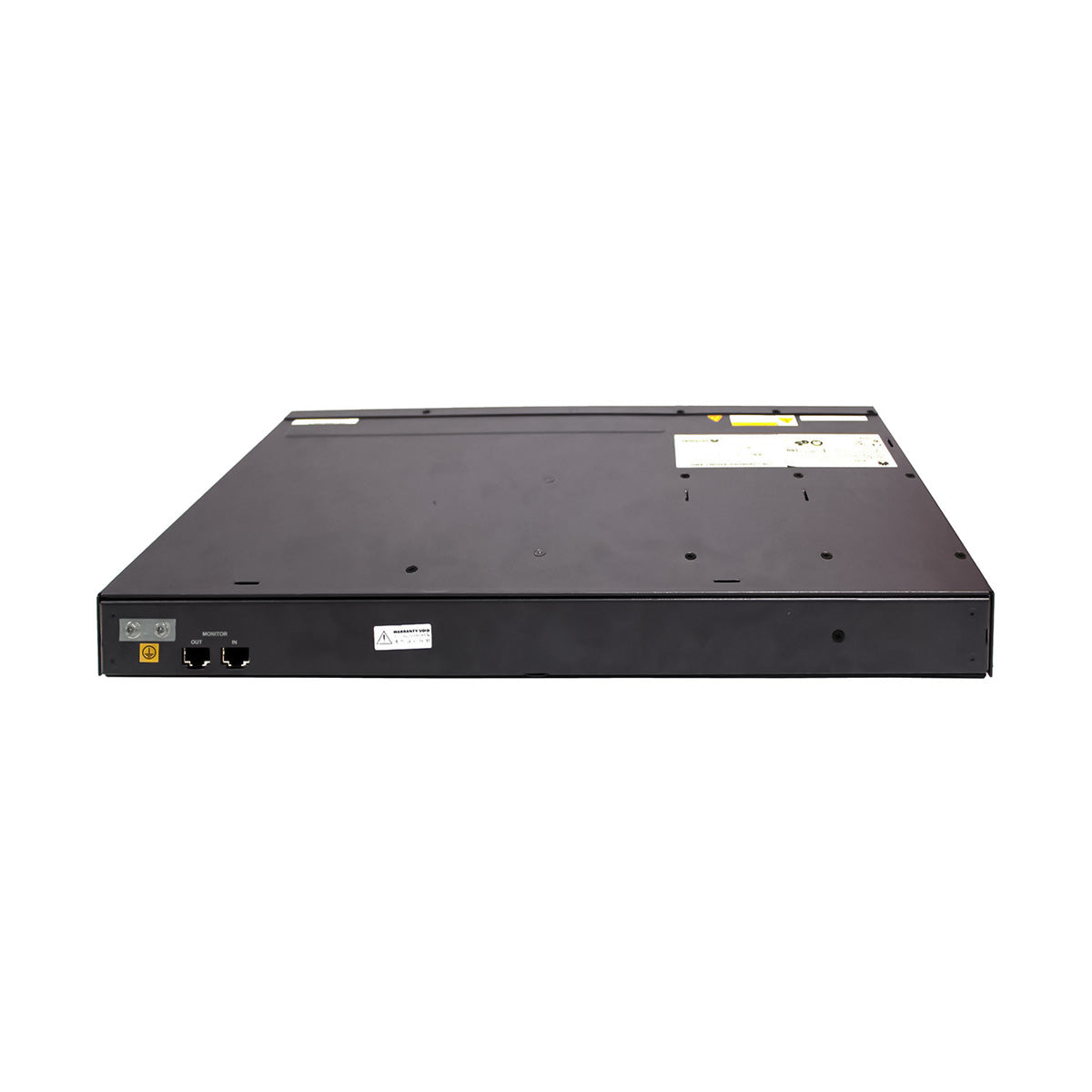

Ground screw NOTE:
It is used with a ground cable. The switch has two ground screws, any of which can be used to install a ground cable. |
10 |
Monitoring port NOTE:
The monitoring port monitors the cabinet door, power module, battery power, and power supply of the air conditioner. |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
512 MB |
|
Flash |
64 MB |
|
Mean time between failures (MTBF) |
28.7 years when a 4-port 10GE interface card is configured, 41.1 years when a 2-port 10GE interface card is configured, 42.9 years when a 4-port GE interface card is configured |
|
Mean time to repair (MTTR) |
2 years |
|
Availability |
> 0.99999 |
|
Service port surge protection |
±2 kV in common mode |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
44.4 mm x 442.0 mm x 220.0 mm (1.75 in. x 17.4 in. x 8.7 in.) |
|
Weight |
|
|
Stack ports |
|
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
76.6 W |
|
Operating temperature |
-5°C to +55°C (23°F to 131°F) NOTE:
The operating temperature of the switch is -5°C to +50°C (23°F to 122°F) when it uses SFP+ optical modules with 40 km or longer transmission distances. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 60 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
|
|
Certification |
|
|
Part number |
02353630 |
