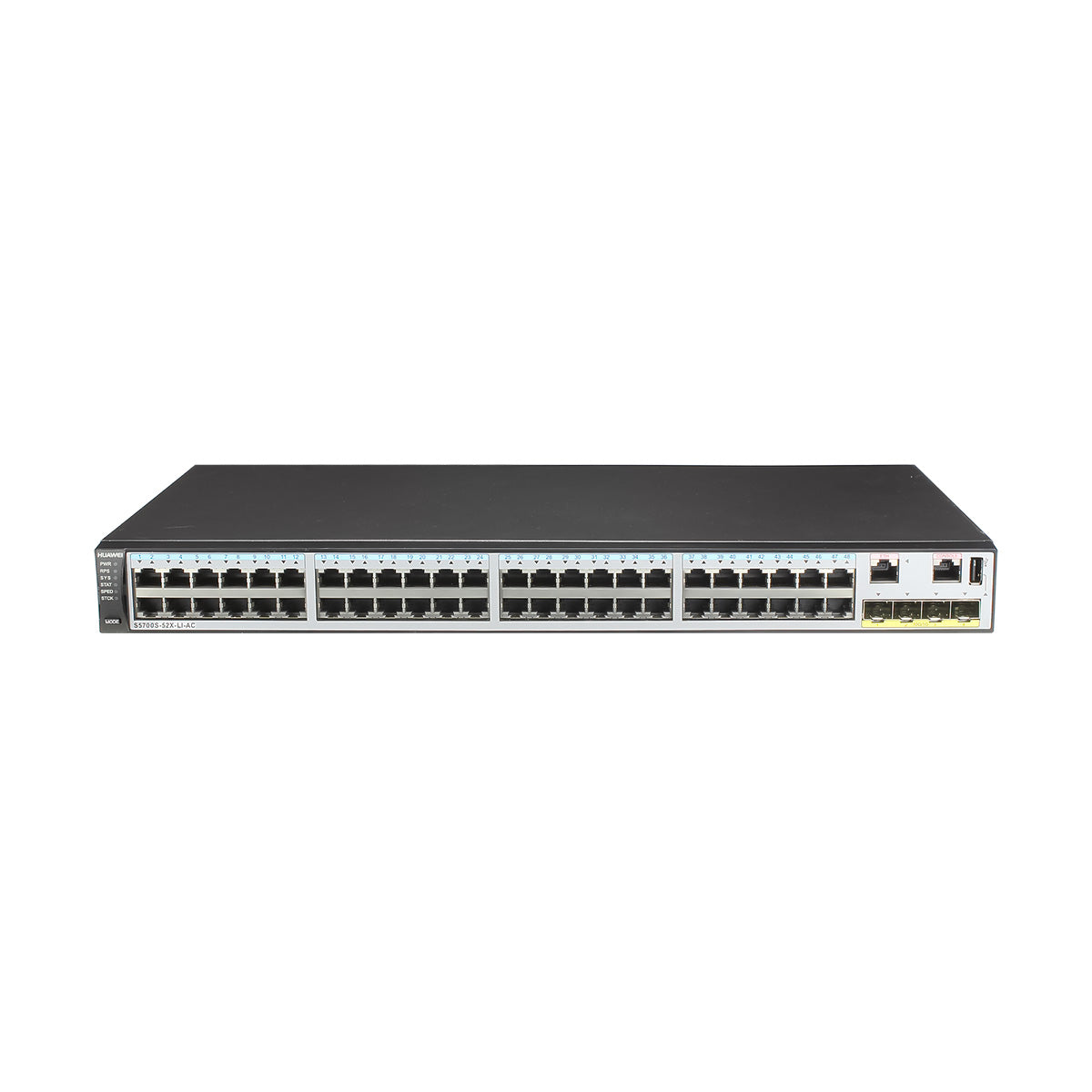

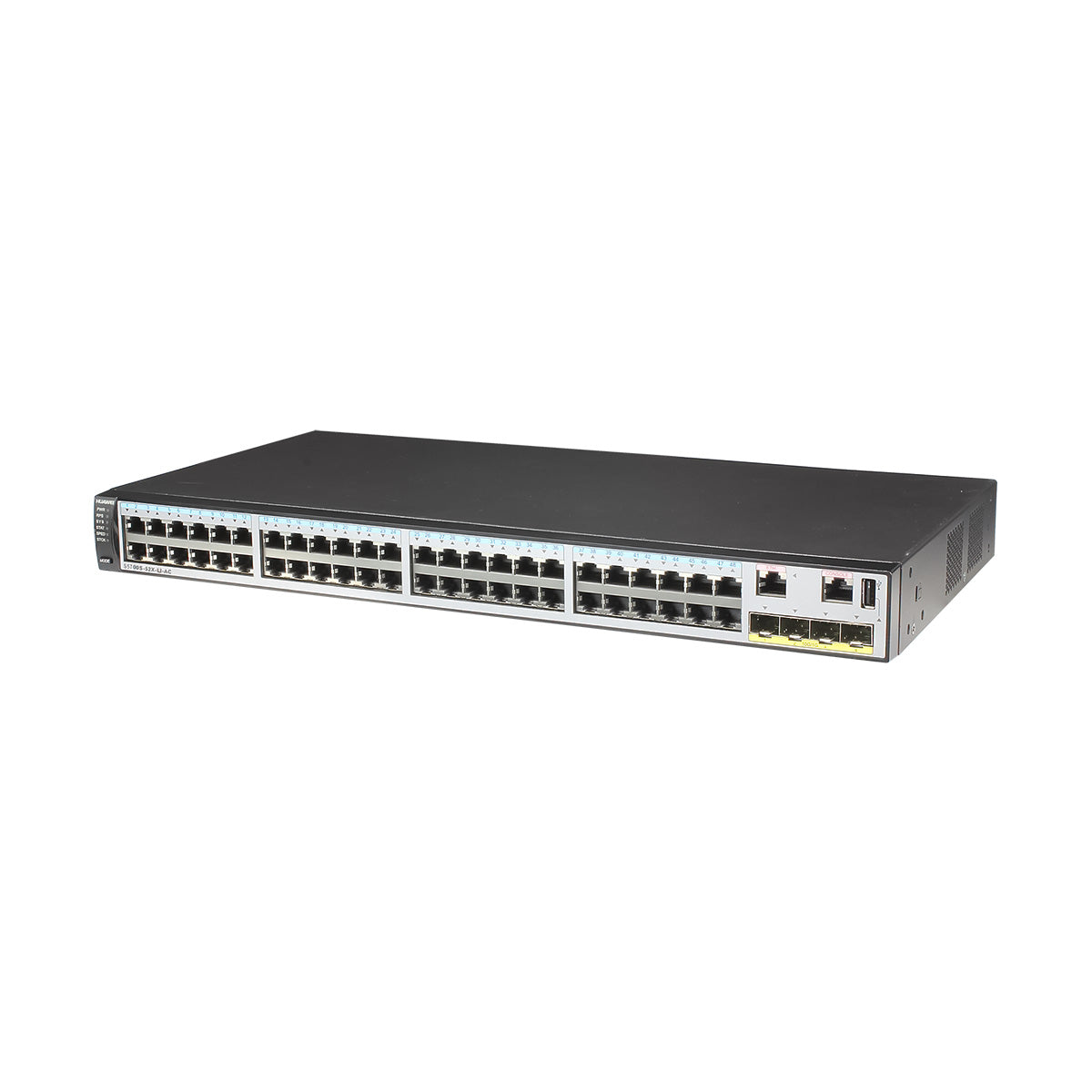

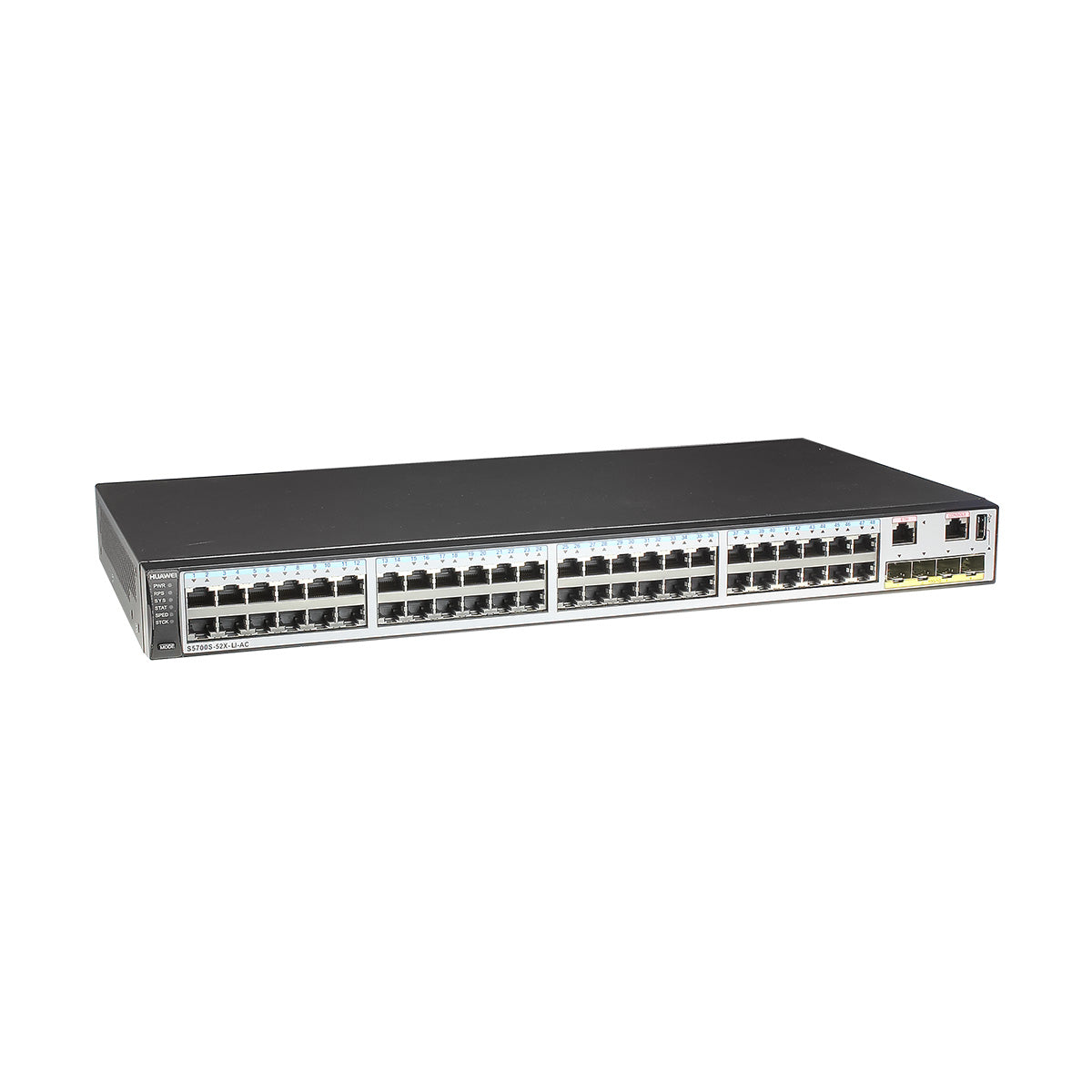

Huawei S5700S-52X-LI-AC Switch
Couldn't load pickup availability
S5700S-52X-LI-AC Hardware Description
Introduction
Huawei S5700S-52X-LI-AC is equipped with 48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*AC power input.
The S5700 Gigabit Enterprise Switch is a Layer 2 Ethernet switch independently developed by Huawei. It can be widely used in various application scenarios such as enterprise campus access, aggregation, and data center Gigabit access. The S5700 adopts advanced energy-saving technology and is committed to helping enterprise customers build reliable and secure next-generation IT networks.
Key Features
48*10/100/1000BASE-T ports
4*10GE SFP+ ports
Memory (RAM) 512MB
Flash 512MB

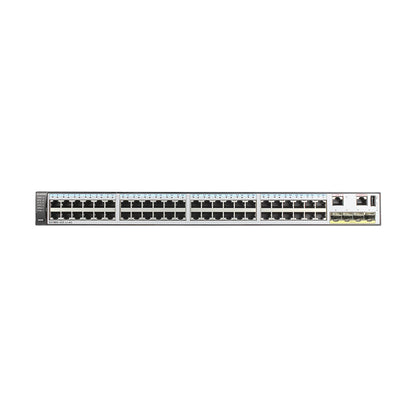

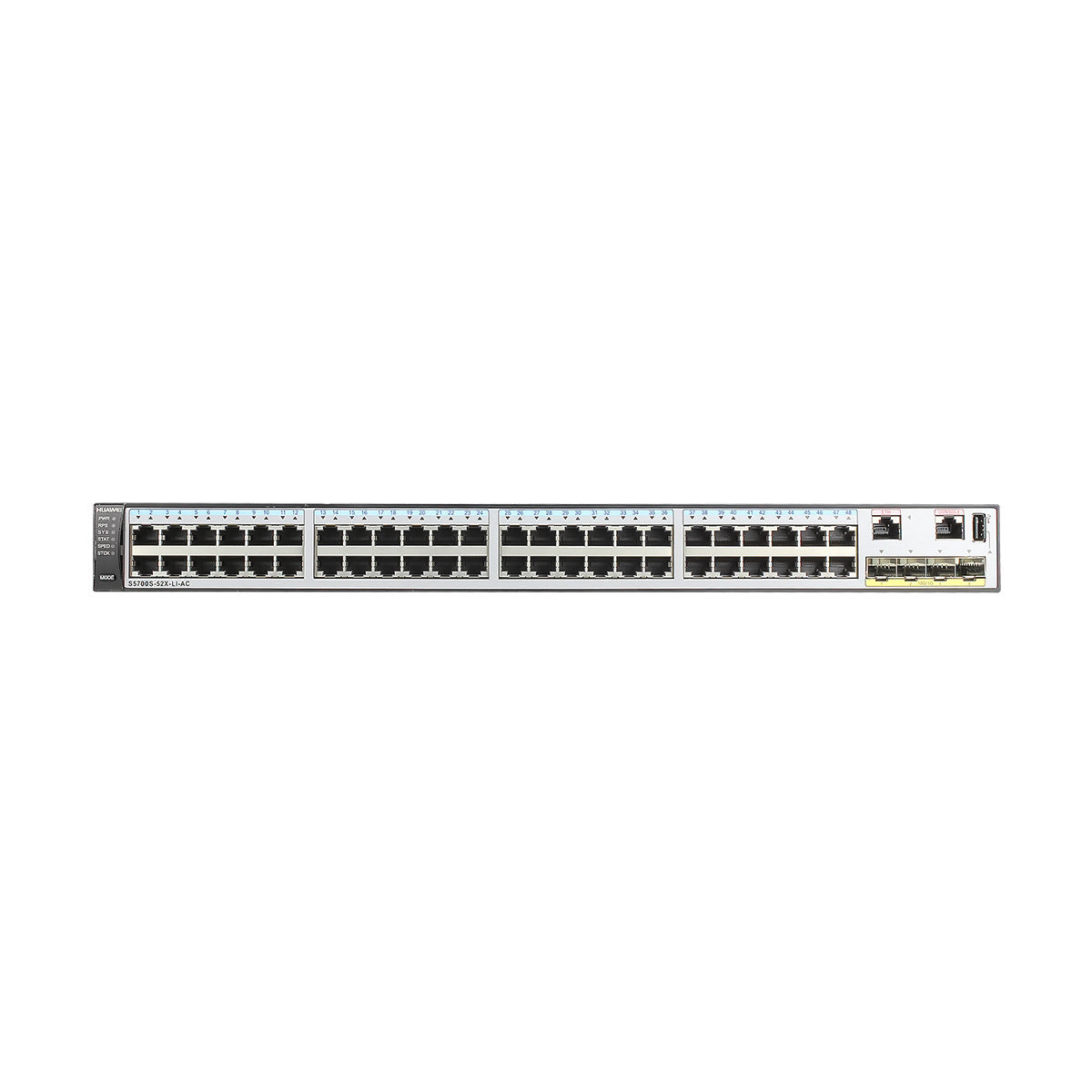

Appearance and Structure
|
1 |
Forty-eight 10/100/1000BASE-T ports |
2 |
Four 10GE SFP+ ports Applicable modules and cables:
NOTE:
If a port uses a GPON optical module, other 10GE SFP+ optical ports cannot be used. |
|
3 |
One ETH management port |
4 |
One console port |
|
5 |
One USB port |
6 |
Ground screw NOTE:
It is used with a ground cable.
|
|
7 |
RPS socket NOTE:
It is used with an RPS cable, which is not hot swappable. |
8 |
Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered with the switch.
|
|
9 |
AC socket NOTE:
It is used with an AC power cable. |
- |
- |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Attributes of a 10GE SFP+ port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
|
Working mode |
GE/10GE auto-sensing |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
512 MB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
86.64 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
|
Dimensions (H x W x D) |
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) |
|
Weight (with packaging) |
5 kg (11.02 lb) |
|
Stack ports |
Four uplink 10GE SFP+ ports |
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
54.7 W |
|
Typical power consumption (30% of traffic load)
|
34.4 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 50.2 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
02350HED |
