S5720-52X-SI-AC Hardware Description
Introduction
Huawei S5720-52X-SI-AC switch with 48*10/100/1000BASE-T ports, 4* 10GE SFP+ ports, 2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
S5720-SI Flexible Gigabit Ethernet switches that provide resilient, high-density Layer 3 switching for data centers. Features include multiple-terminals, HD video security, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream ports and IPv6 forwarding enable use as aggregation switches in enterprise campus networks.
Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total Cost of Ownership (TCO).
Key Features
48*10/100/1000BASE-T ports
4* 10GE SFP+ ports
Memory (RAM) 512MB
Flash 512MB

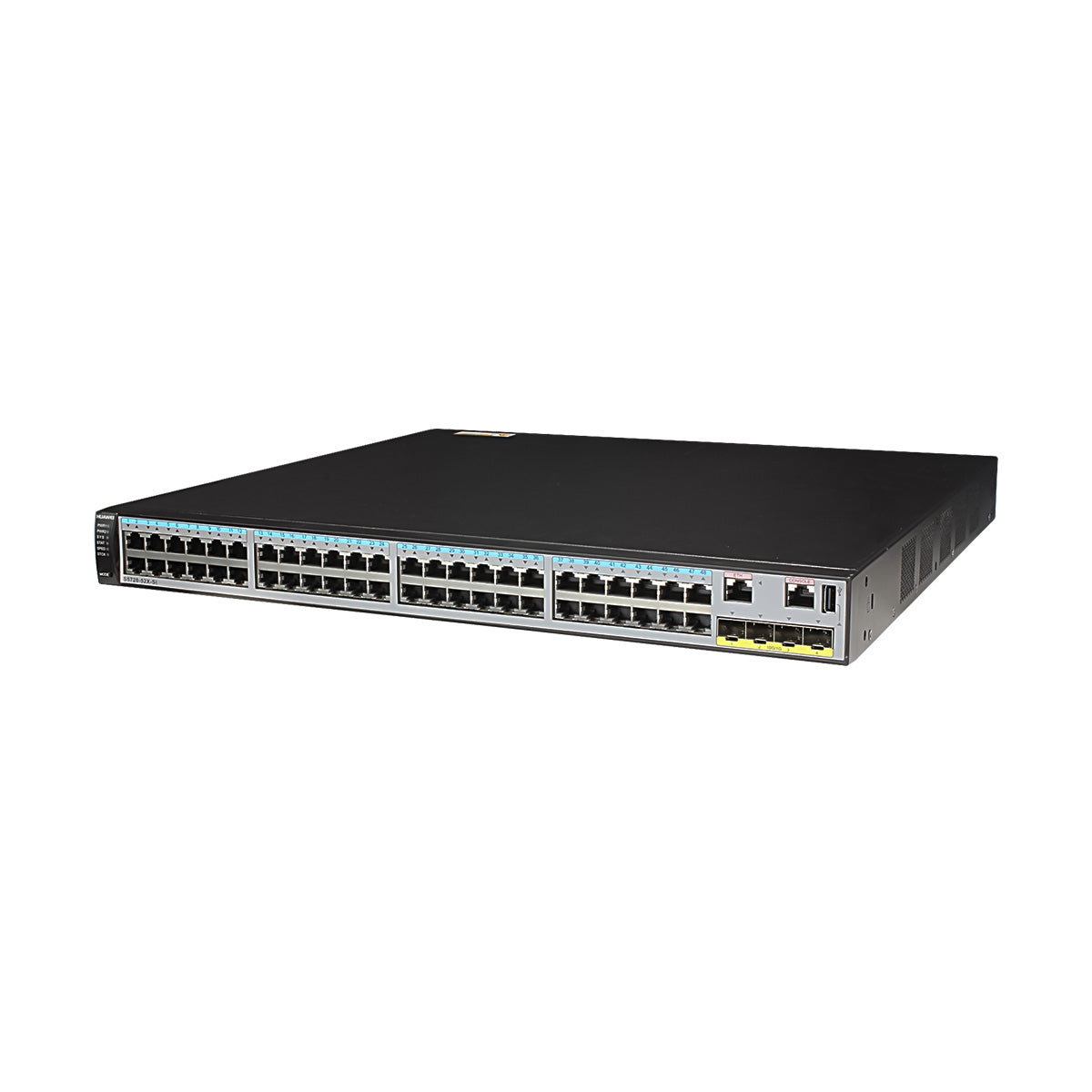

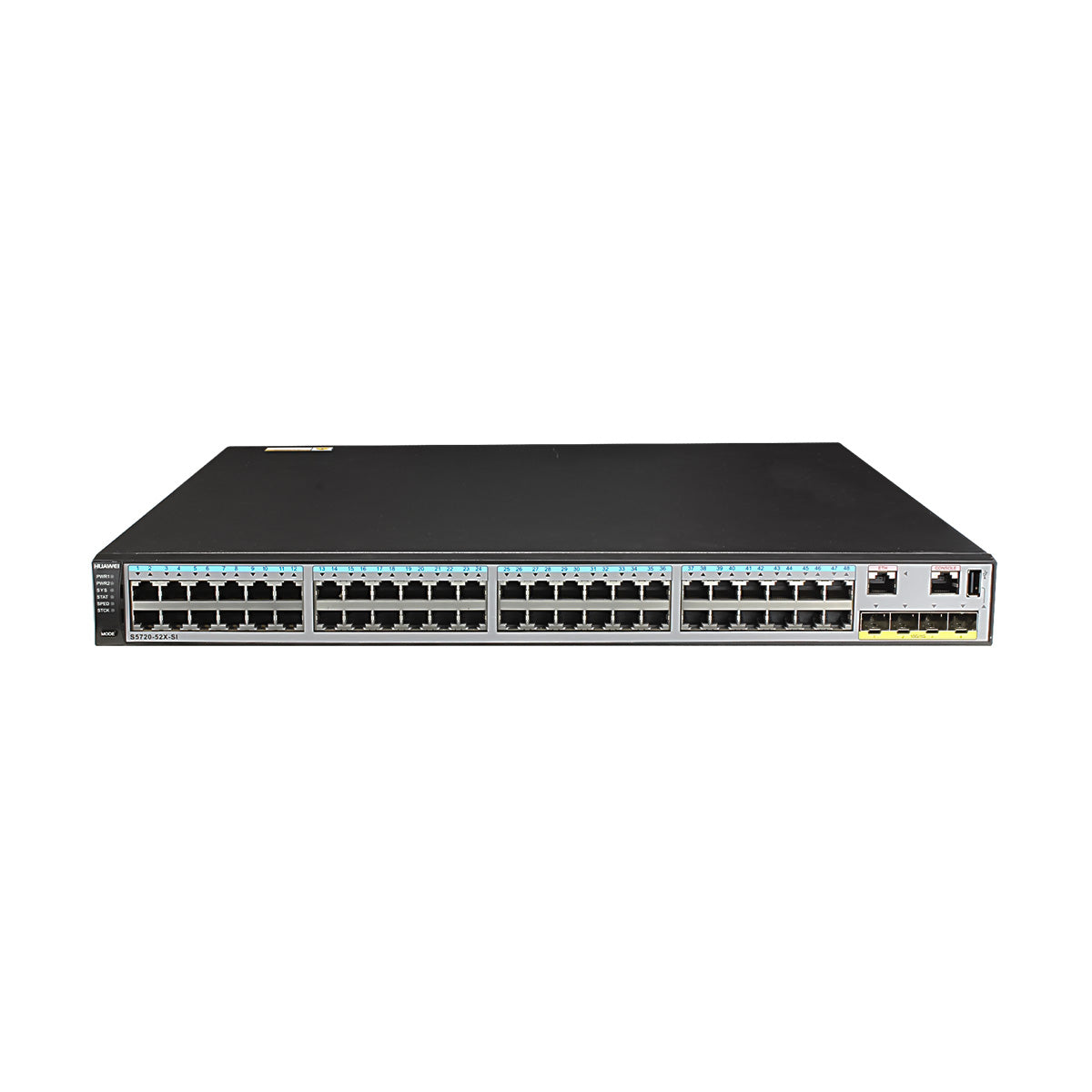

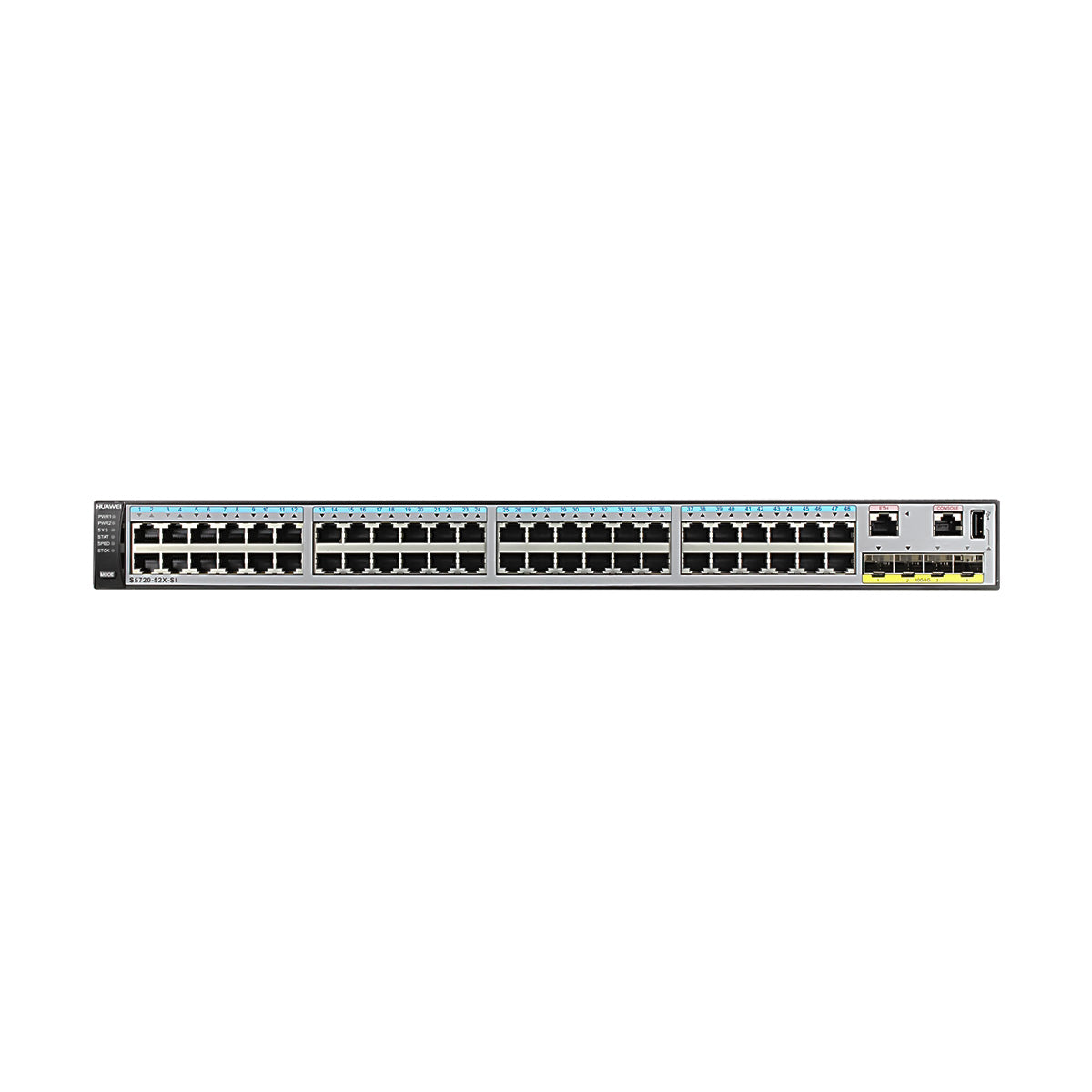

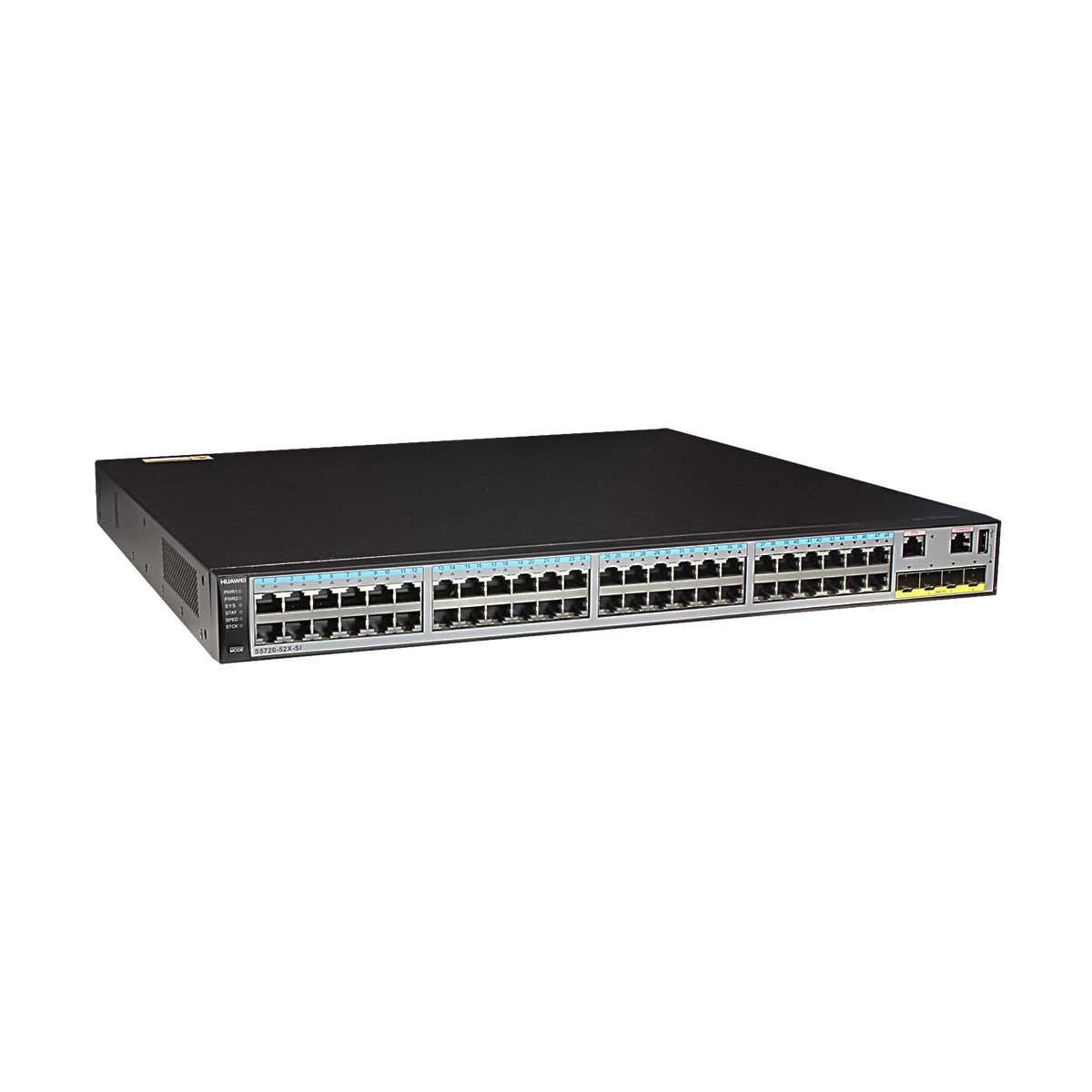

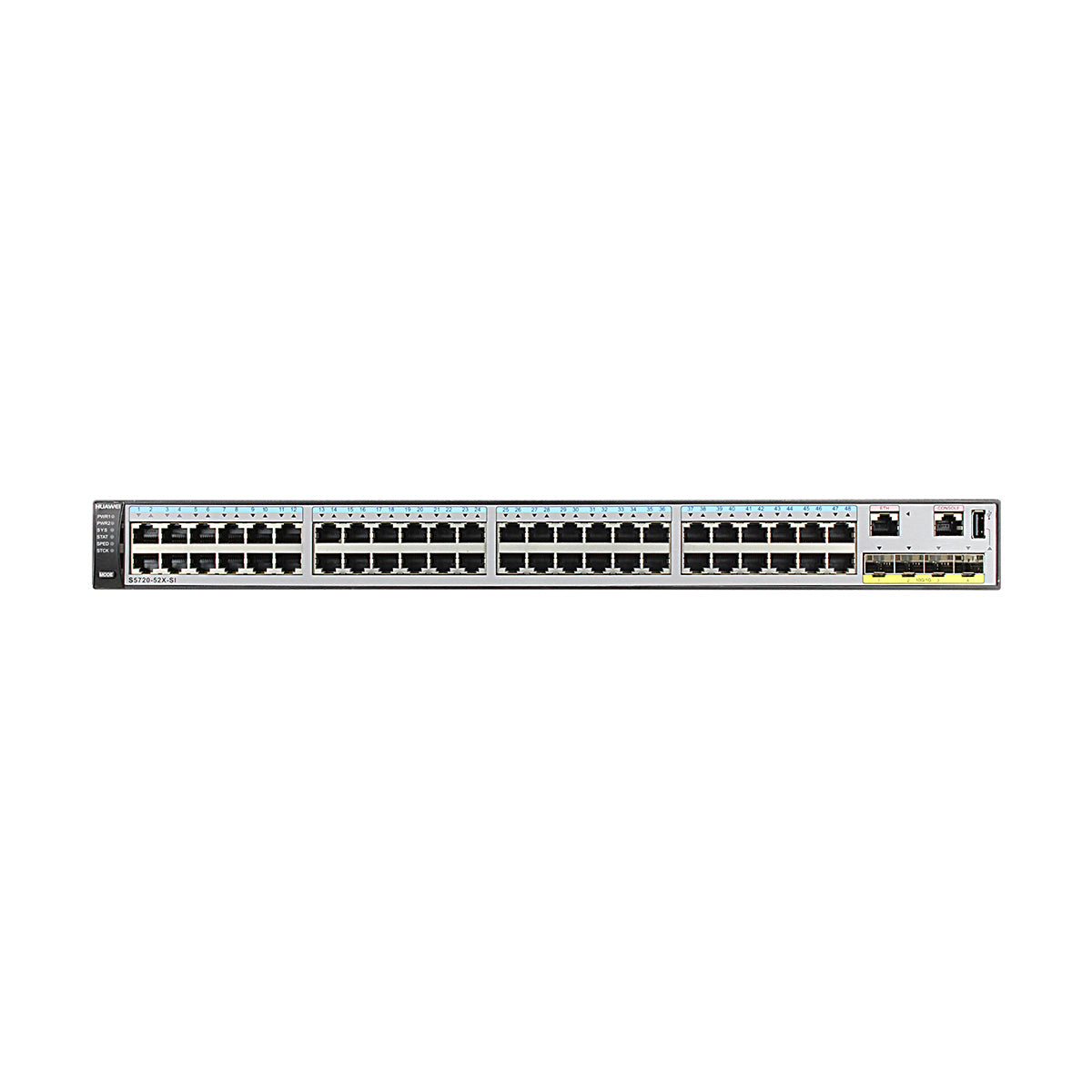

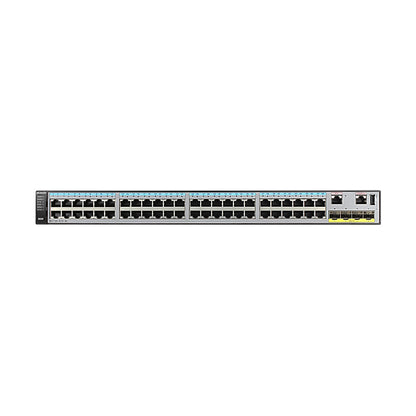

Appearance and Structure
|
1 |
Forty-eight 10/100/1000BASE-T ports |
2 |
Four 10GE SFP+ ports Applicable modules and cables:
NOTE:
If a port uses a GPON optical module, other 10GE SFP+ optical ports cannot be used. |
|
3 |
One ETH management port |
4 |
One console port NOTE:
It is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed. |
|
5 |
One USB port |
6 |
Ground screw NOTE:
It is used with a ground cable.
|
|
7 |
ESN label NOTE:
You can draw it out to view the ESN and MAC address of the switch. |
8 |

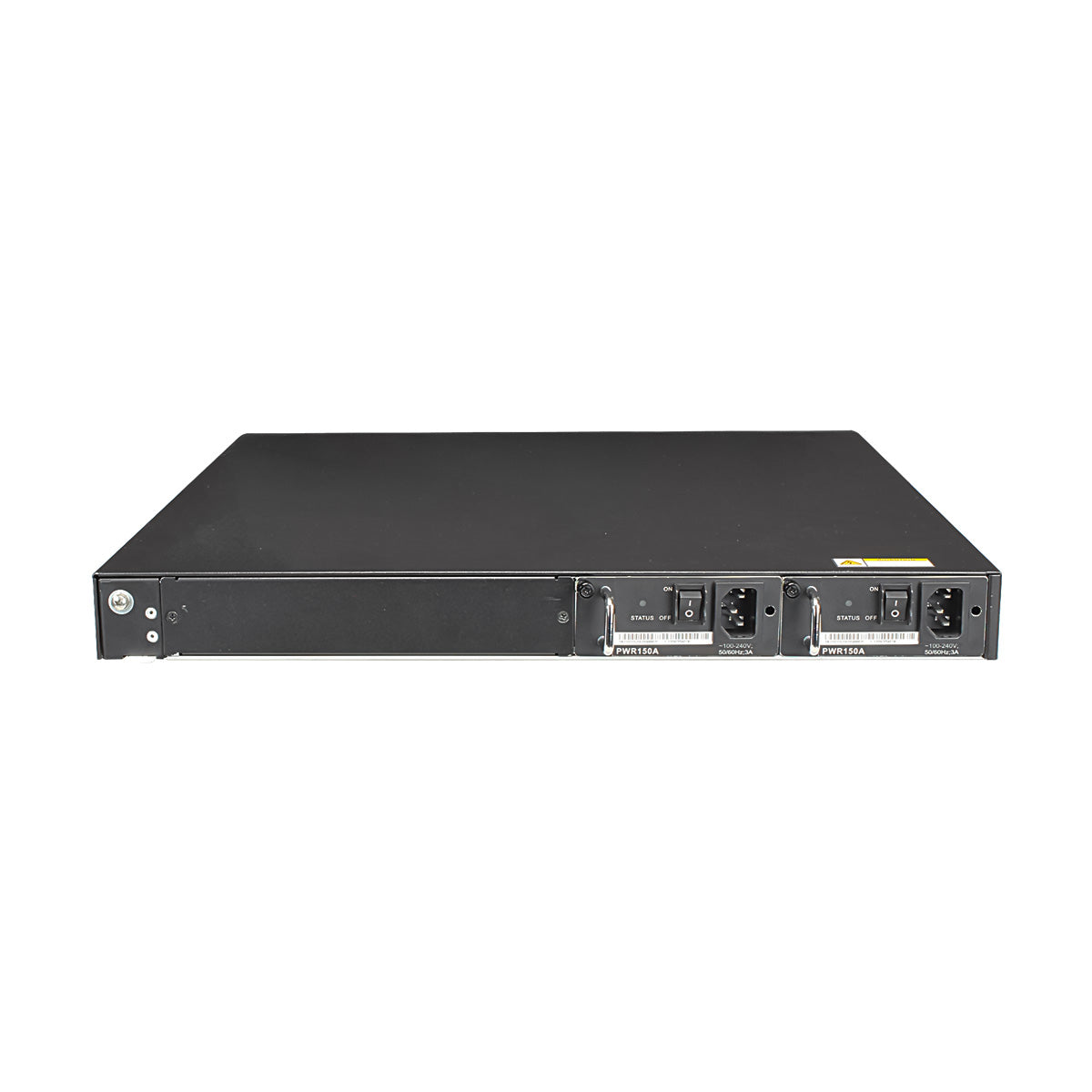

Power module slot 2 NOTE:
Applicable power modules:
|
|
9 |
Power module slot 1 NOTE:
Applicable power modules:
|
- |
- |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Attributes of a 10GE SFP+ port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
|
Working mode |
GE/10GE auto-sensing |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
512 MB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
73.23 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
|
|
Weight (with packaging) |
9.5 kg (20.95 lb) |
|
Stack ports |
GE electrical ports and 10GE SFP+ optical ports on the front panel |
|
RTC |
Supported |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
56.8 W |
|
Typical power consumption (30% of traffic load)
|
33.8 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Short-term operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 52 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
|
|
Certification |
|
|
Part number |
02350DLV |
