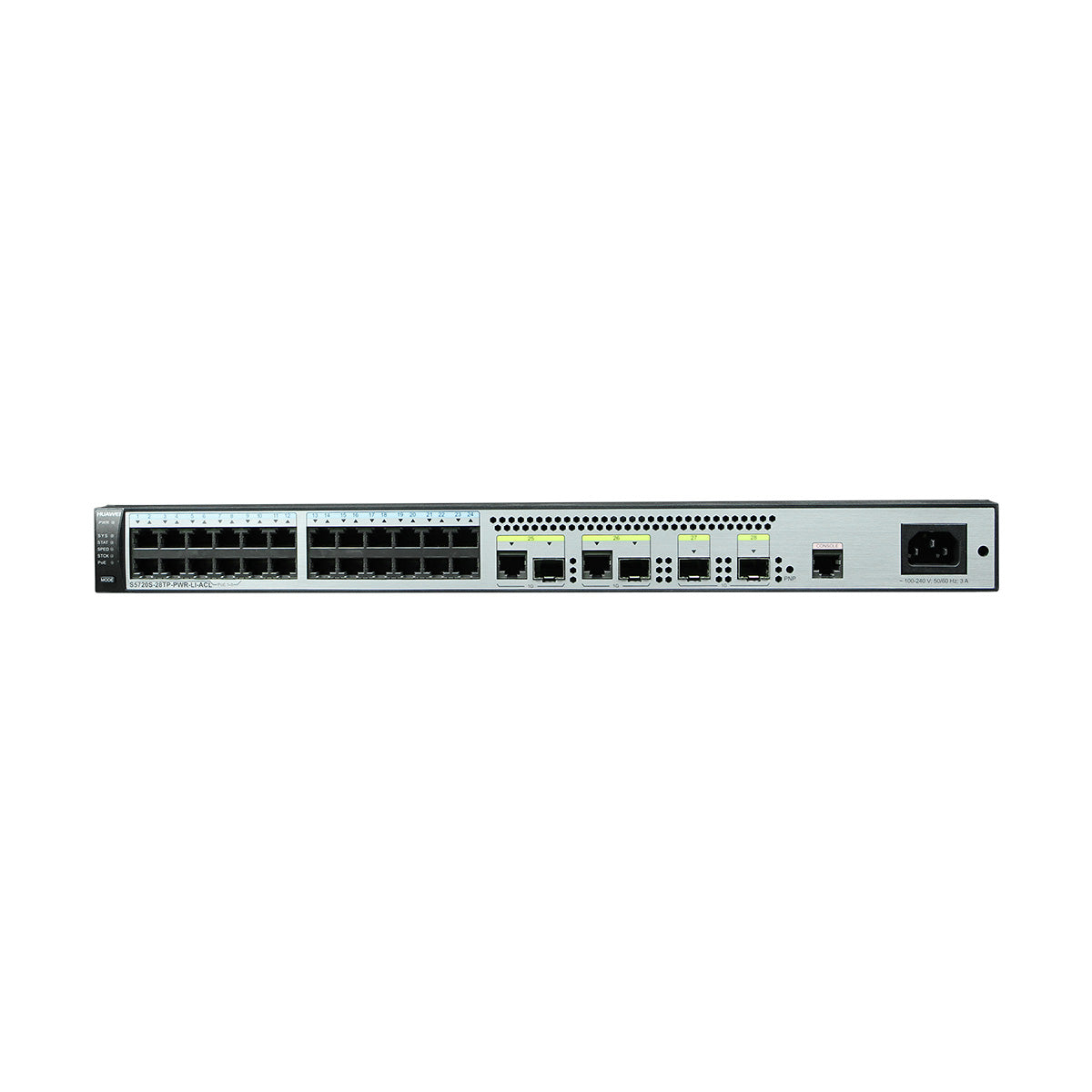

HuaweiHuawei S5720S-28TP-PWR-LI-ACL Switch
S5720S-28TP-PWR-LI-ACL
S5720-12TP-LI-AC
HuaweiHuawei S5720-12TP-LI-AC Switch
S5720S-12TP-PWR-LI-AC
$0.00
$0.00

S5720S-12TP-PWR-LI-AC Hardware Description



Introduction

Huawei S5720S-12TP-PWR-LI-AC switch with 8* PoE+ 10/100/1000BASE-T ports, 2* combo ports (10/100/1000BASE-T + 100/1000BASE-X), 2*1000BASE-X ports,1*AC power input fixed.


The S5720-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5720S-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios.The models with front power sockets can be installed in the 300 mm deep cabinet. They can be maintained through the front panel, saving space in small equipment rooms. The models that use a fan-free design reduce power consumption and noise.



Key Features

8* PoE+ 10/100/1000BASE-T ports

2* combo ports (10/100/1000BASE-T + 100/1000BASE-X)

2*1000BASE-X ports

Memory (RAM)  512MB

Flash 512MB



Appearance and Structure

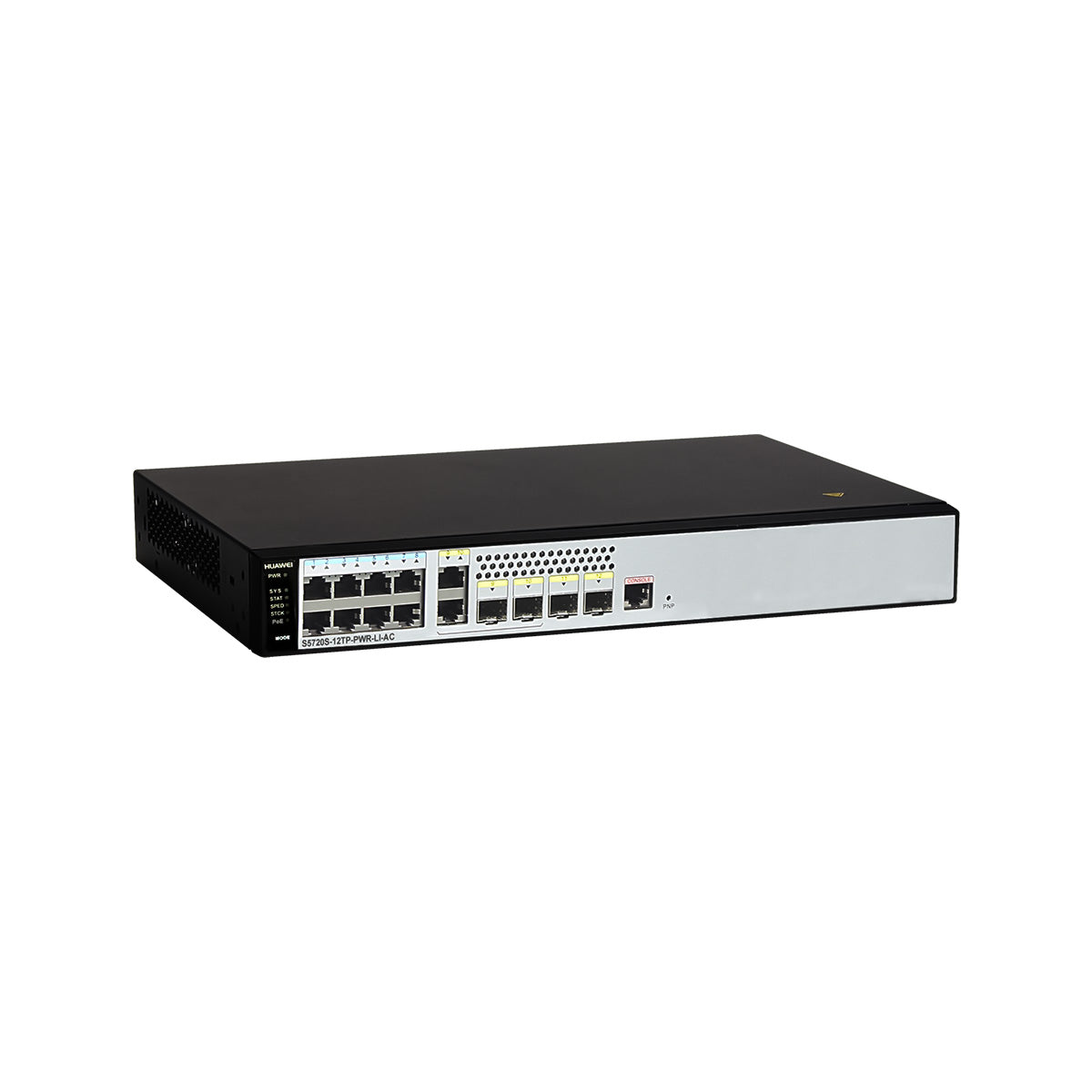

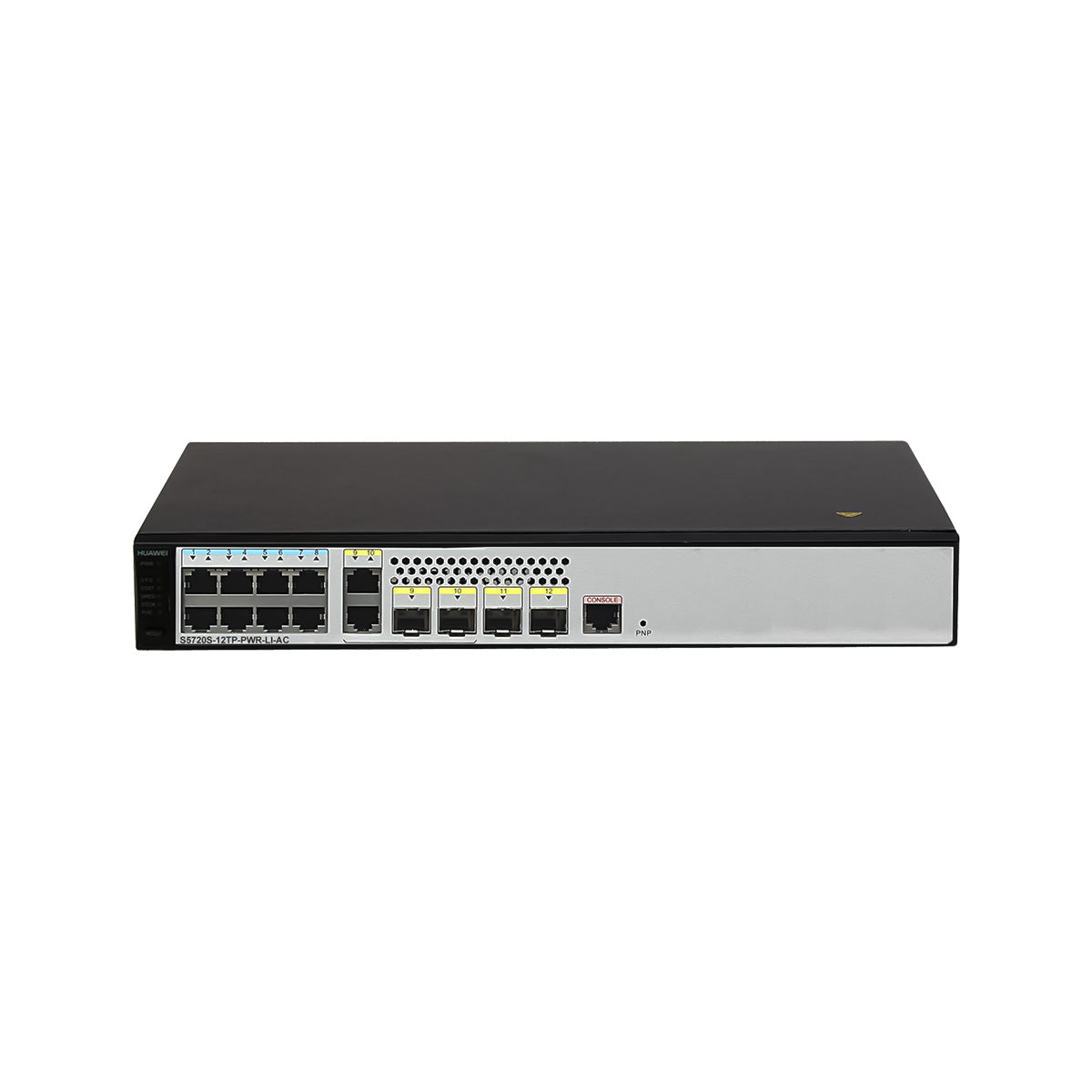

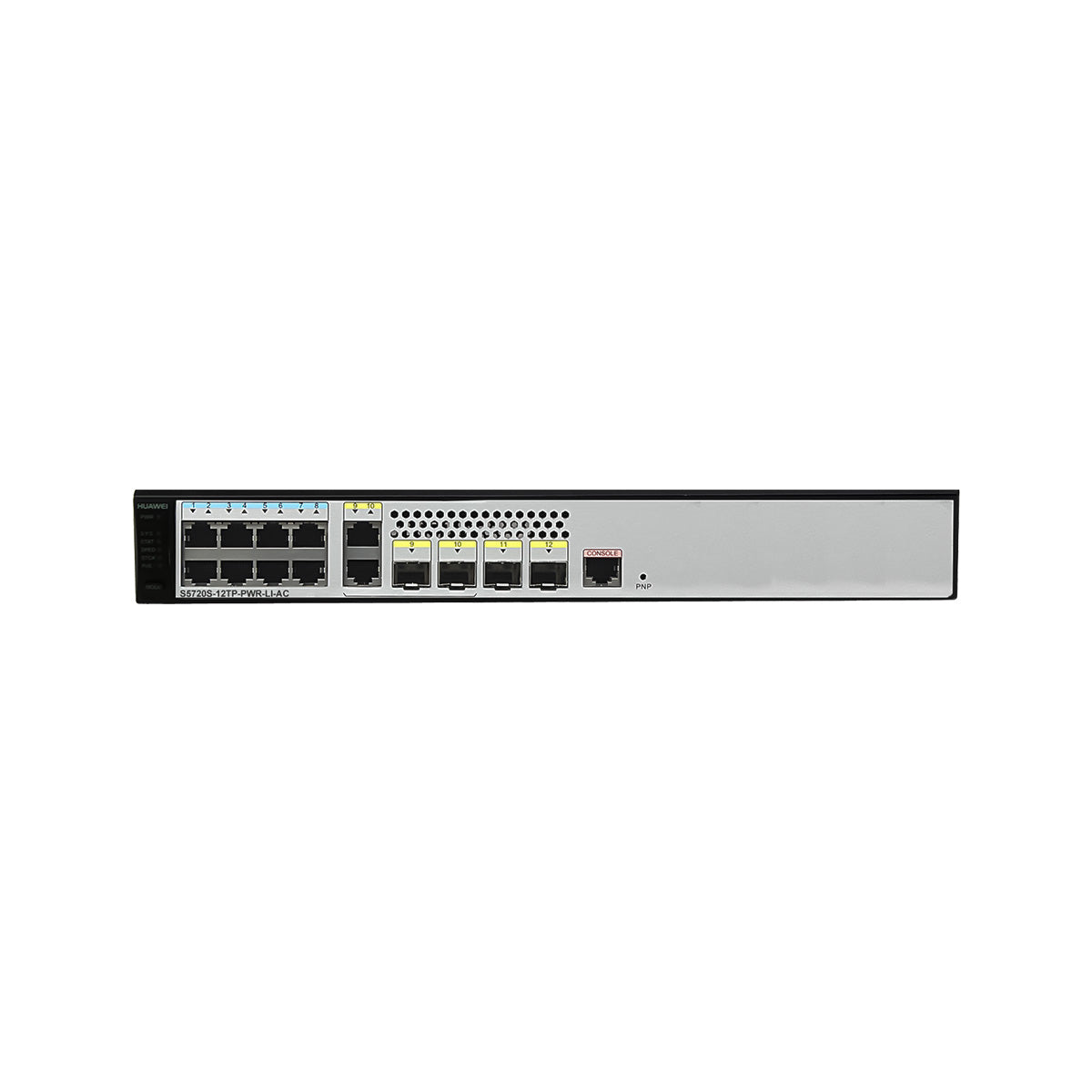

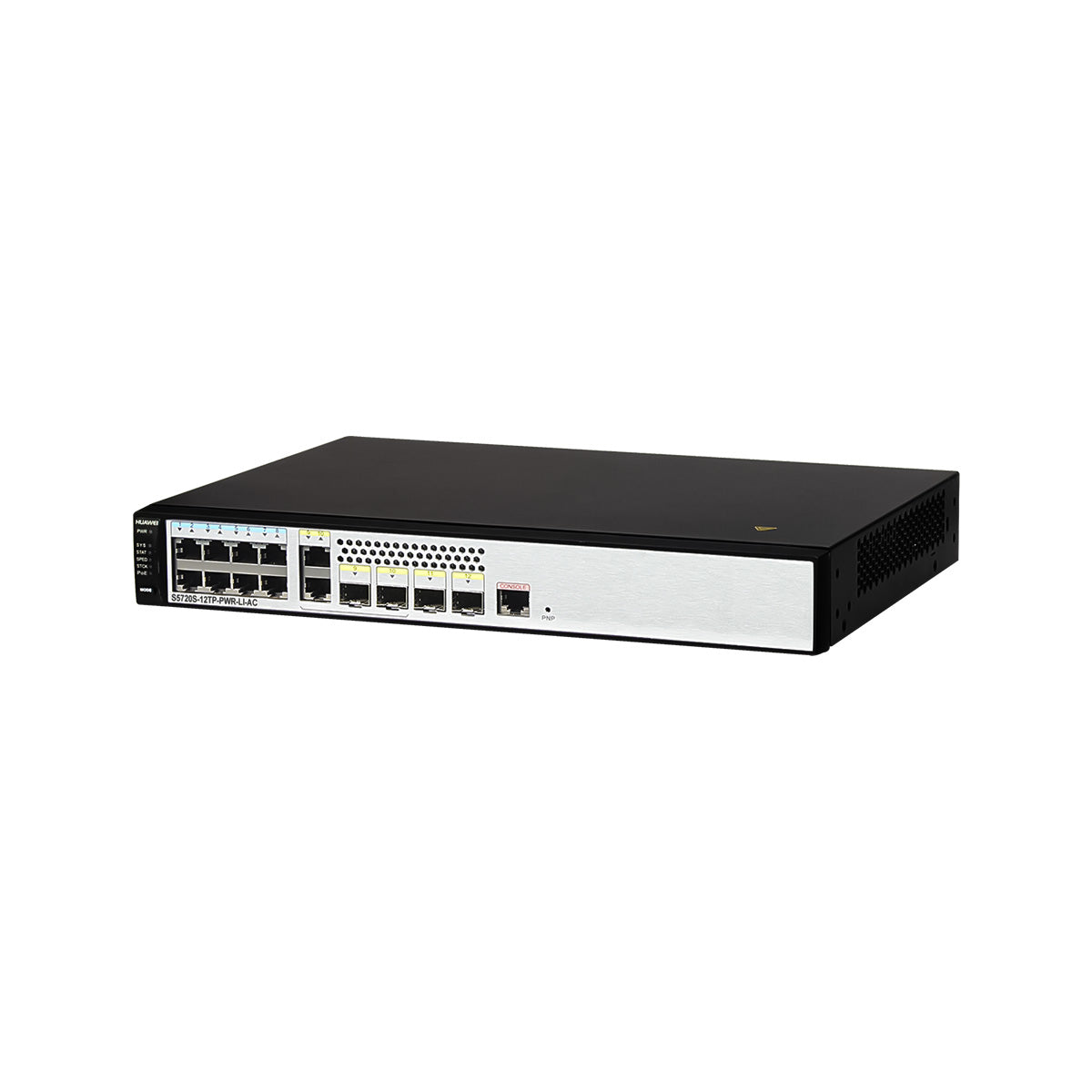

S5720S-12TP-PWR-LI-AC Appearance

1

Eight PoE+ 10/100/1000BASE-T ports

2

Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)

Modules applicable to combo optical ports:
  • FE optical module
  • GE optical module (the maximum transmission distance cannot exceed 40 km)

3

Two 1000BASE-X ports

Applicable modules:
  • GE optical module (the maximum transmission distance cannot exceed 40 km)
  • GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)
  • Stack optical module (only applicable to stack ports)
  • 1 m, 3 m, 5 m, 10 m SFP+ high-speed copper cables (only applicable to stack ports)
  • 3 m and 10 m AOC cables (only applicable to stack ports)
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions)
  • H87MMA5671A2 GPON optical module (applicable in V200R012C00 and later versions)
NOTE:

If a port uses a GPON optical module, other 1000BASE-X optical ports cannot be used.

4

One console port

5

One PNP button

NOTICE:

Applicable in V200R012C00 and later versions:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

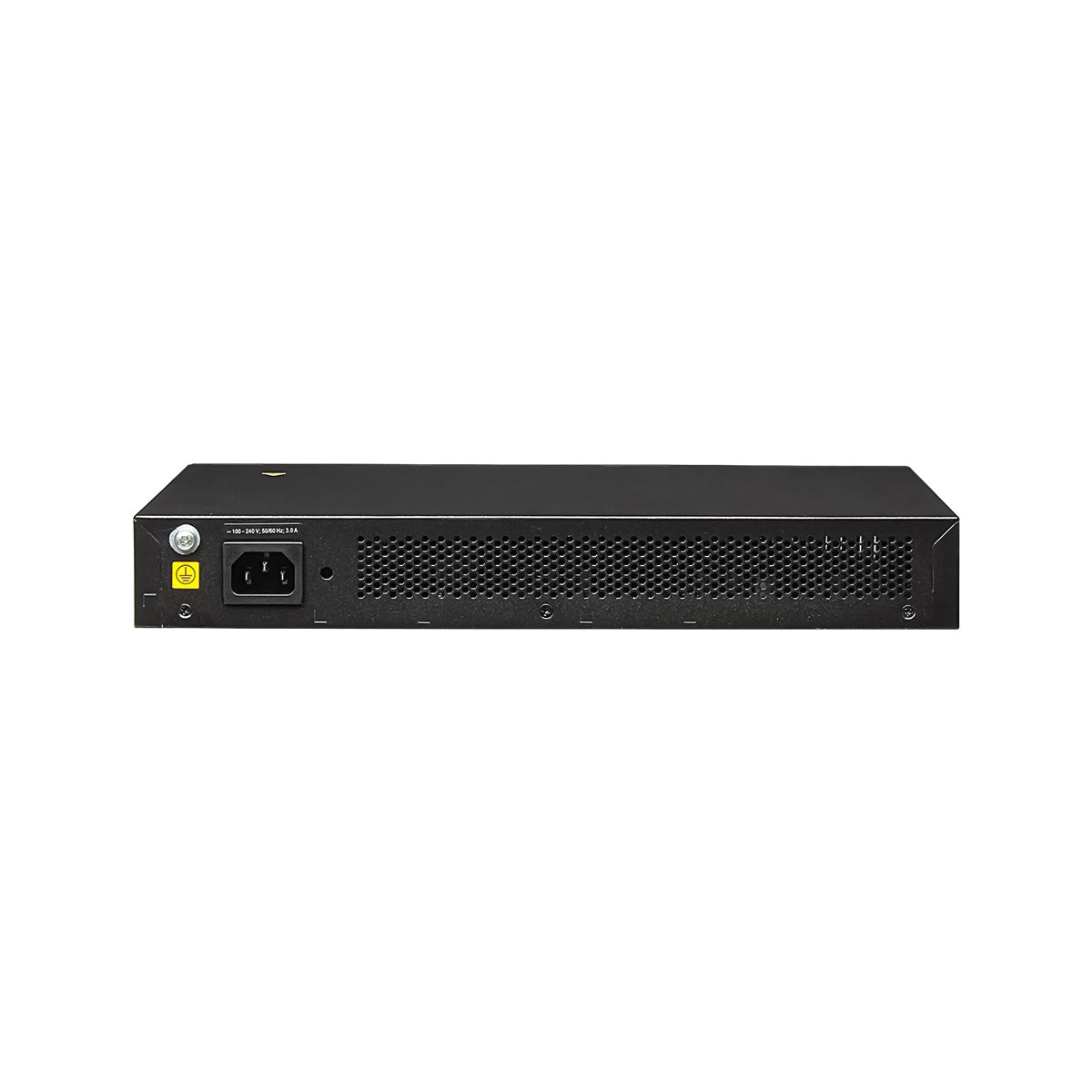

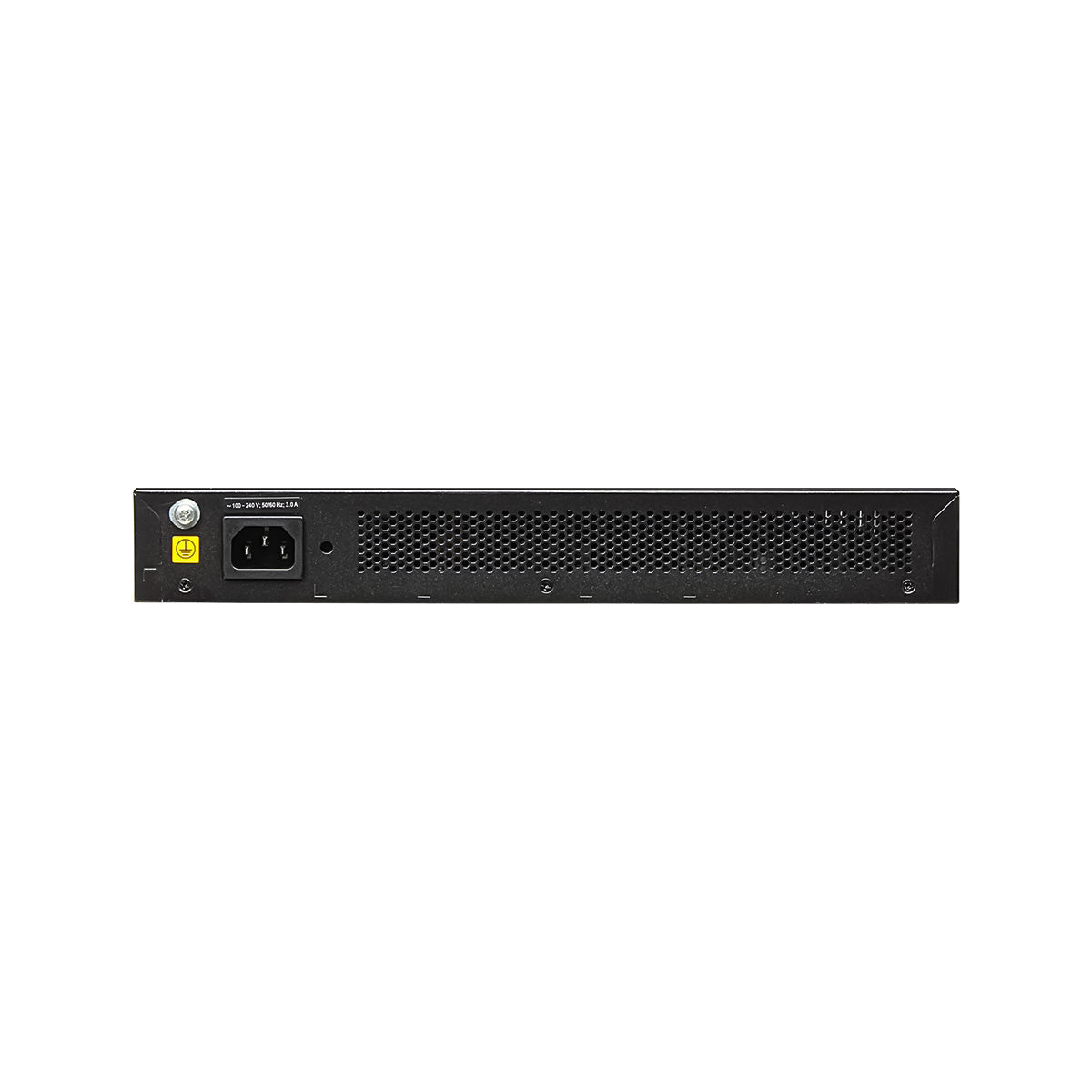

6

Ground screw

NOTE:
It is used with a ground cable.

7

AC socket

NOTE:

It is used with an AC power cable.

8

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.


Port Description​​​​​​​​​​​​​

Attributes of a 10/100/1000BASE-T Ethernet electrical port

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3, IEEE802.3u, IEEE802.3ab

Working mode

10/100/1000 Mbit/s auto-sensing

Maximum transmission distance

100 m



 Attributes of a 1000BASE-X Ethernet optical port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the module used

Standards compliance

IEEE802.3z

Technical specifications

Item

Description

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

23.8 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 220.0 mm (1.72 in. x 12.6 in. x 8.7 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 228.3 mm (1.72 in. x 12.6 in. x 8.99 in.)

Weight (with packaging)

3 kg (6.62 lb)

Stack ports

Eight 10/100/1000BASE-T ports and two 1000BASE-X ports

RTC

Not supported

RPS

Not supported

PoE

Supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput)
  • Not providing the PoE function: 15.61 W
  • 100% PoE loads: 160.5 W (system power consumption: 37.3 W, PoE: 123.2 W)
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption

14.57 W

Operating temperature
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The operating temperature of the switch is 0°C to 40°C (32°F to 104°F) when it uses GE SFP optical modules with 40 km transmission distance.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

Noise-free (no fans)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

98010571
