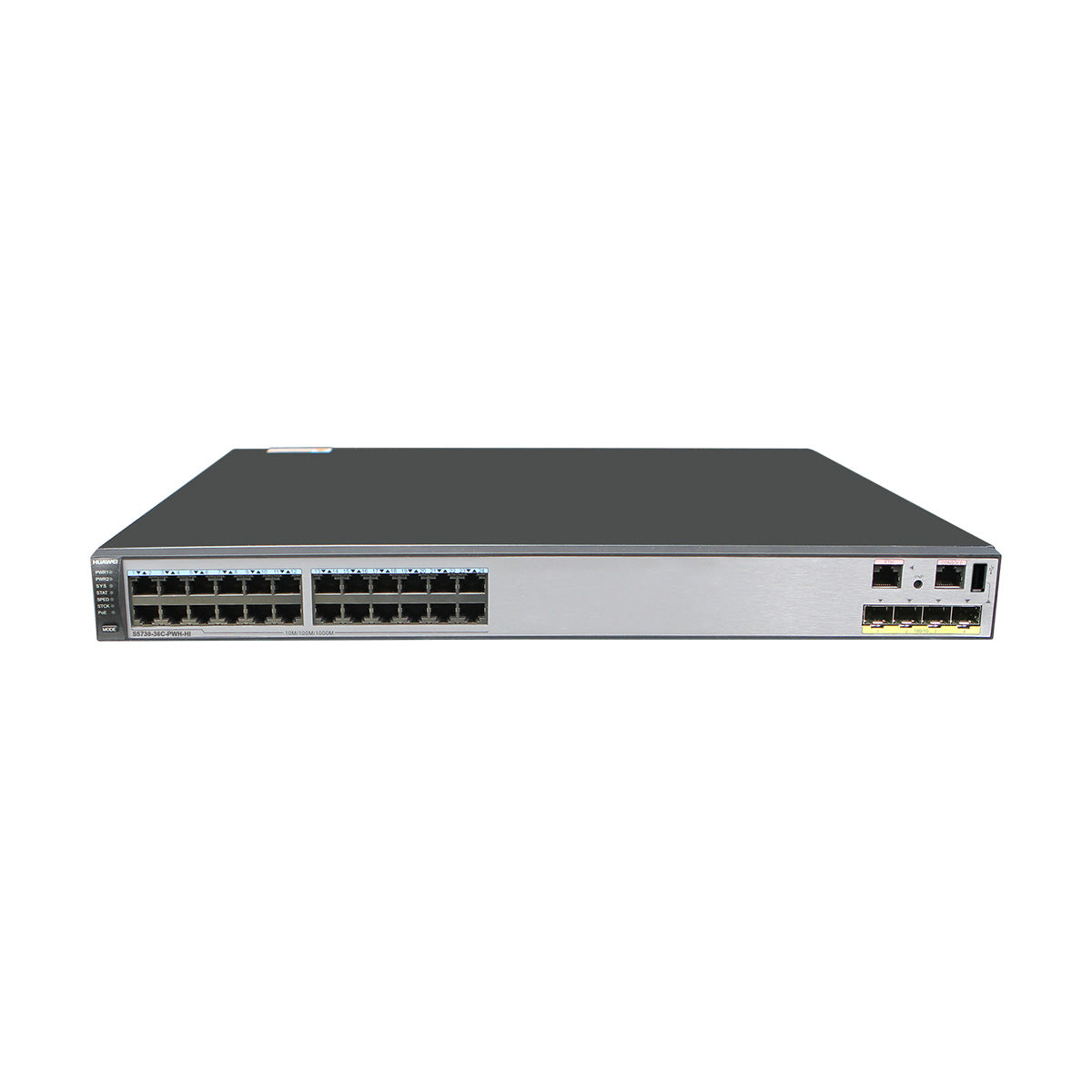

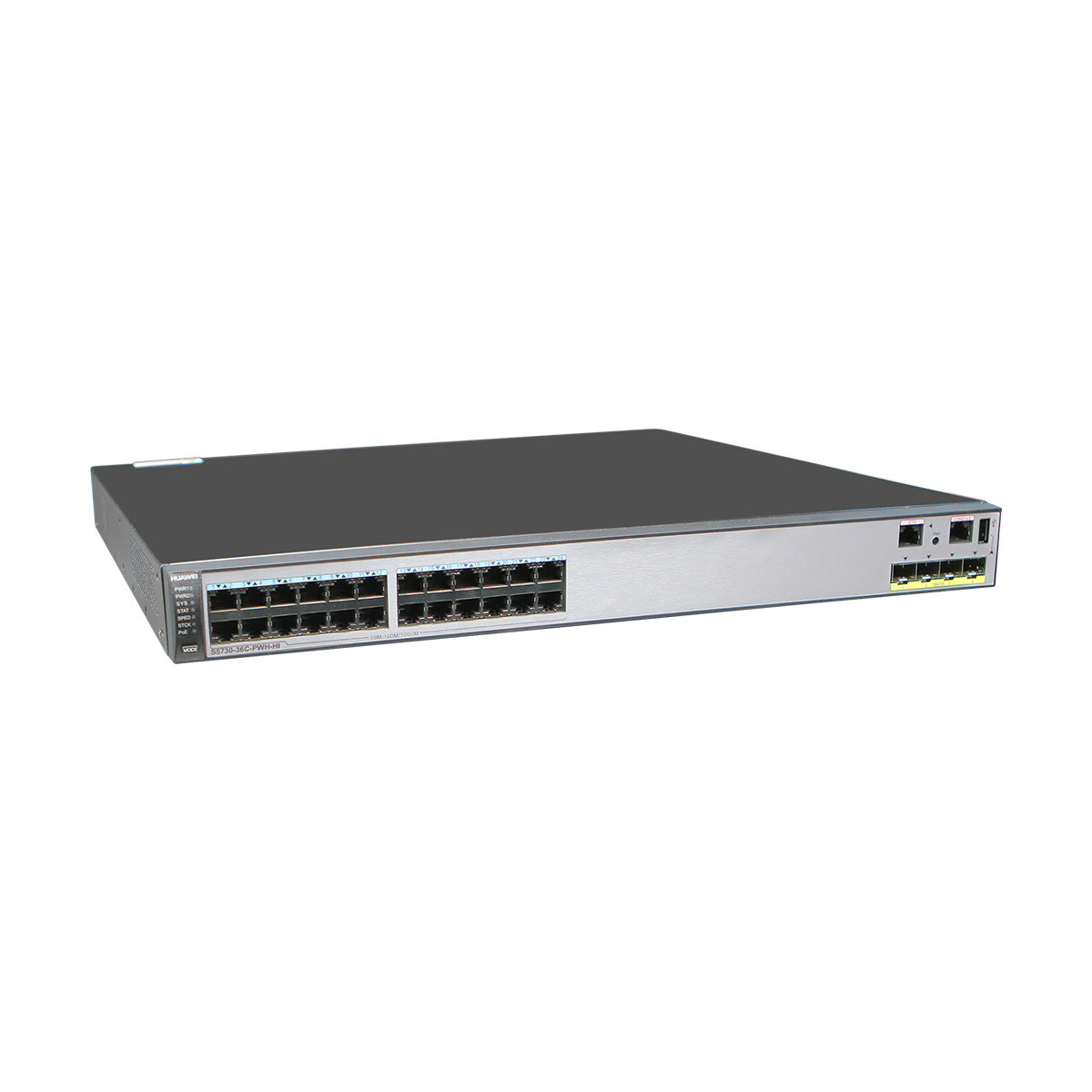

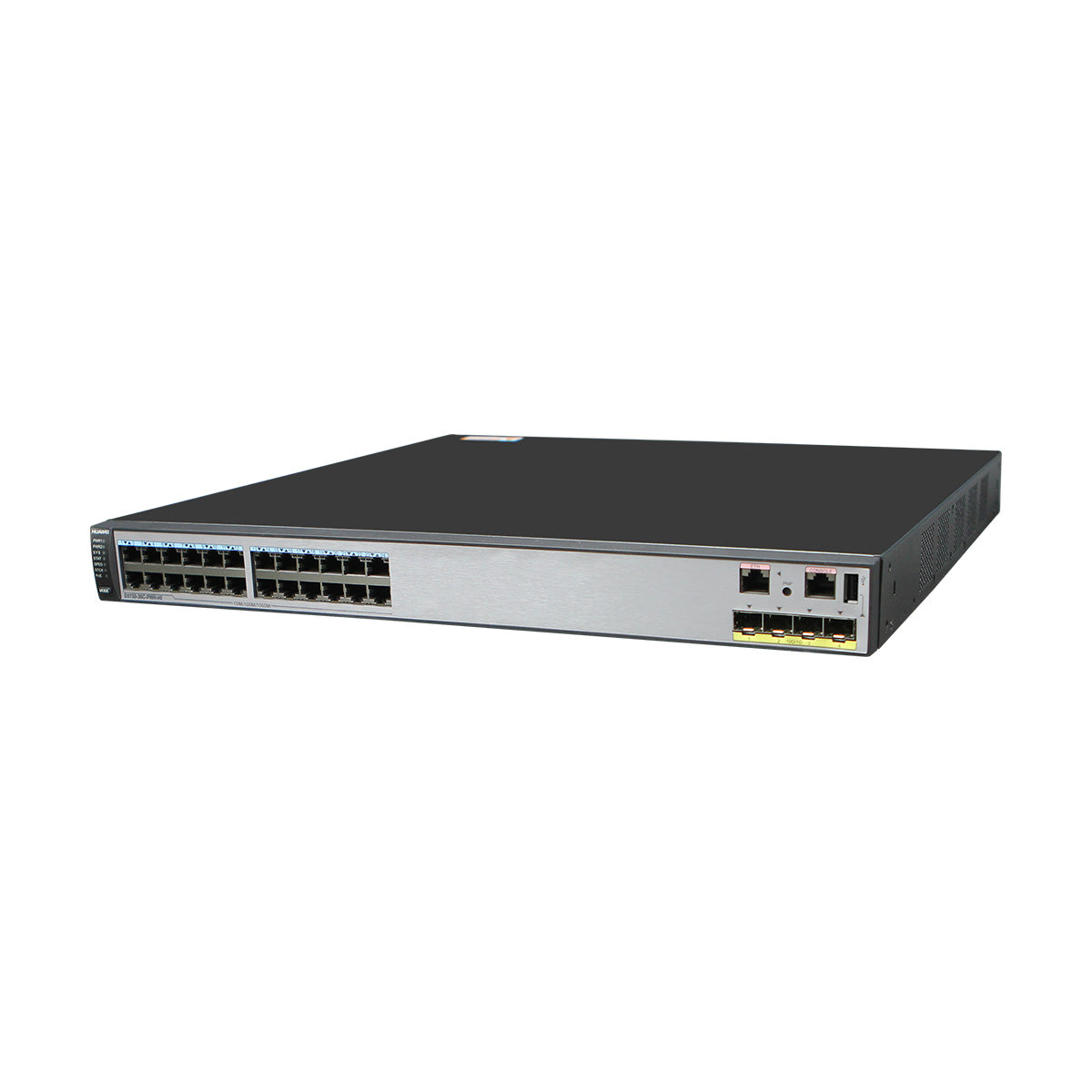

Huawei S5730-36C-PWH-HI Switch
Couldn't load pickup availability
S5730-36C-PWH-HI Hardware Description
Introduction
S5730-36C-PWH-HI with 24*PoE++10/100/1000BASE-T ports, 4*10GE SFP+ ports,2 power module slots, hot-swappable power modules are optional: 2*AC, 2*DC, 1*AC+1*DC, 1*AC or 1*DC.
Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
Key Features
24*PoE++10/100/1000BASE-T ports
4*10GE SFP+ ports
Memory (RAM) 4GB
Flash 1GB

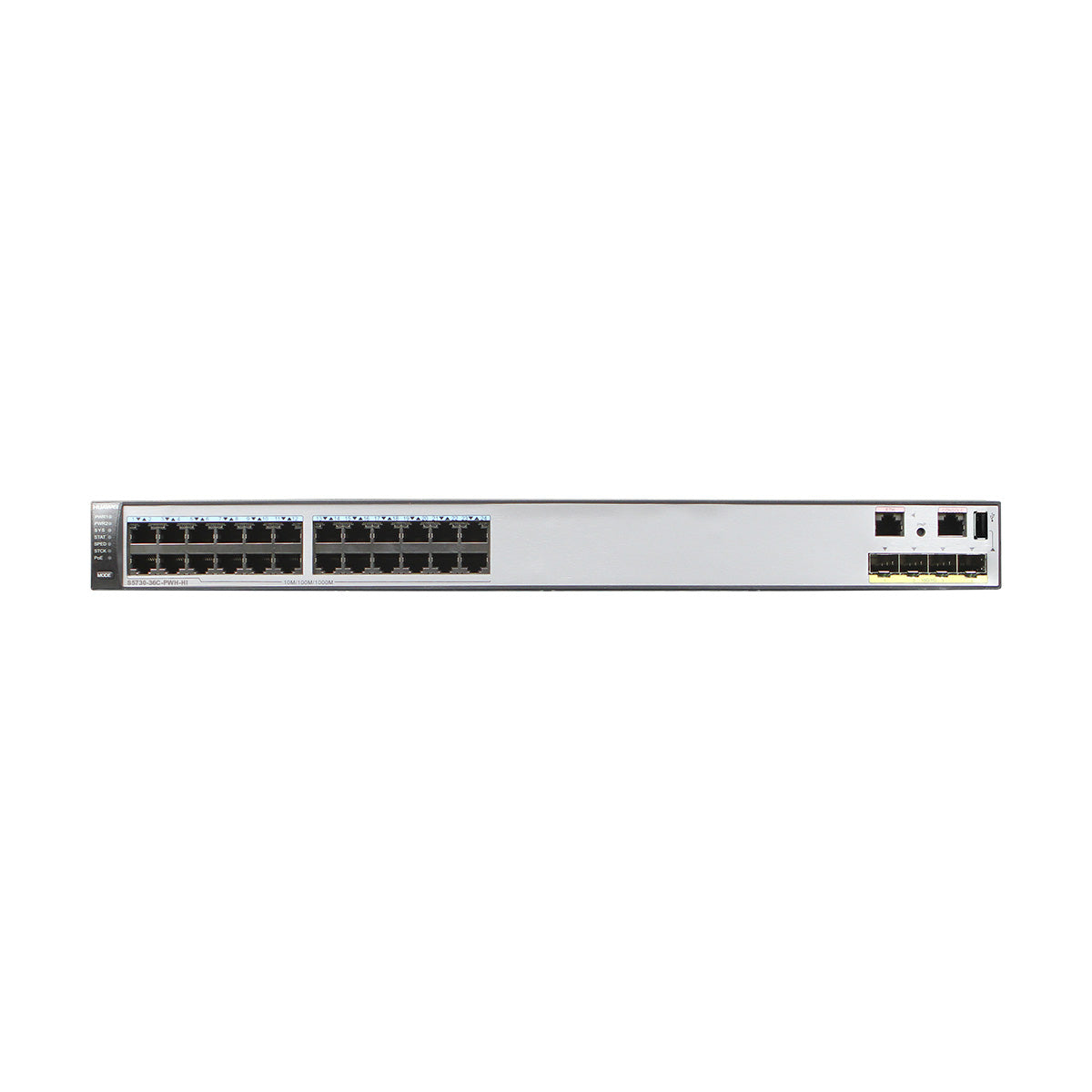

Appearance and Structure
|
1 |
Twenty-four PoE++ 10/100/1000BASE-T ports |
2 |
Four 10GE SFP+ ports Applicable modules and cables:
|
|
3 |
One ETH management port |
4 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
|
5 |
One console port |
6 |
One USB port |
|
7 |
Ground screw NOTE:
It is used with a ground cable.
|
8 |
ESN label NOTE:
You can draw it out to view the ESN and MAC address of the switch. |
|
9 |
SSD card slot NOTE:
Pluggable SSD card supported: SSD-240GB |
10 |

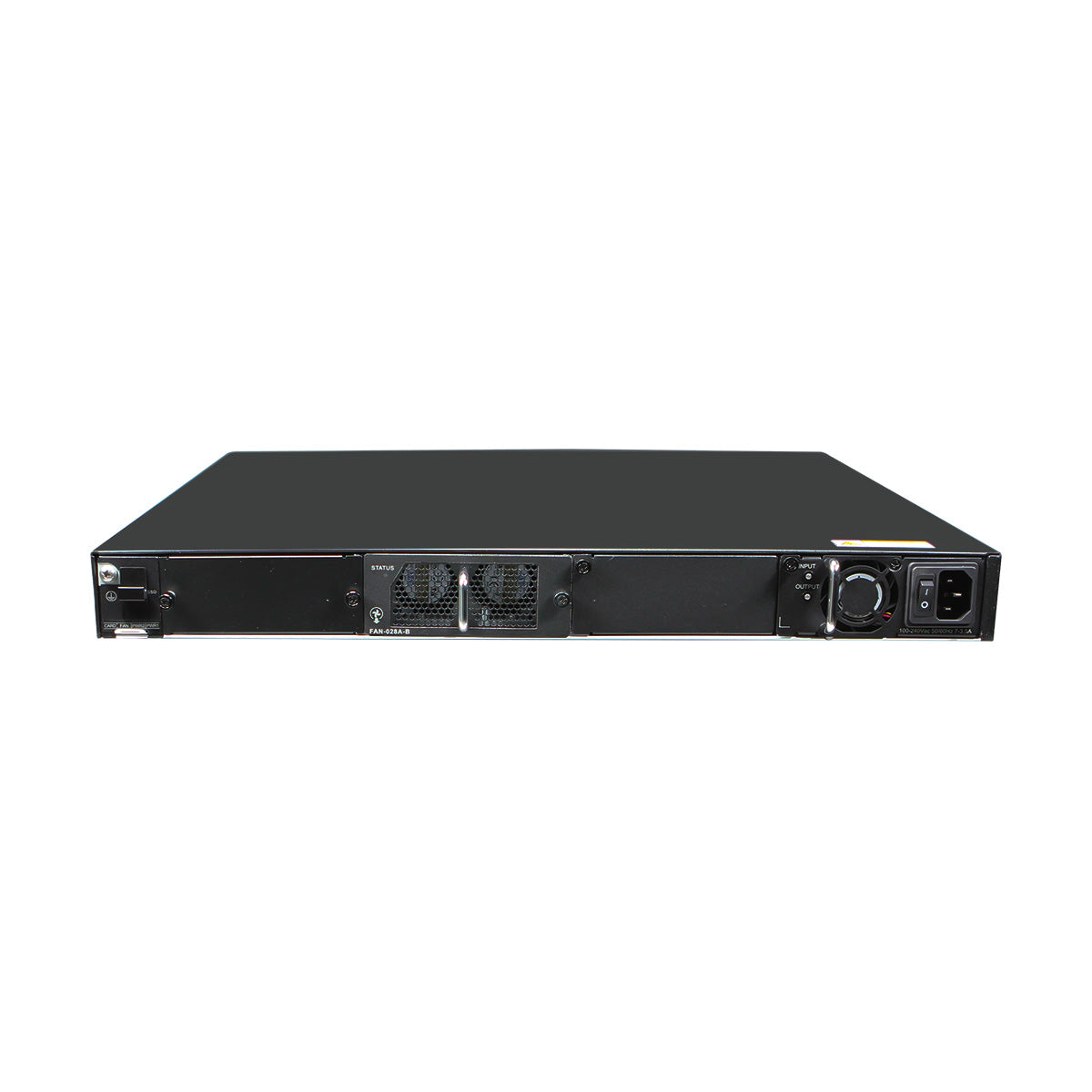

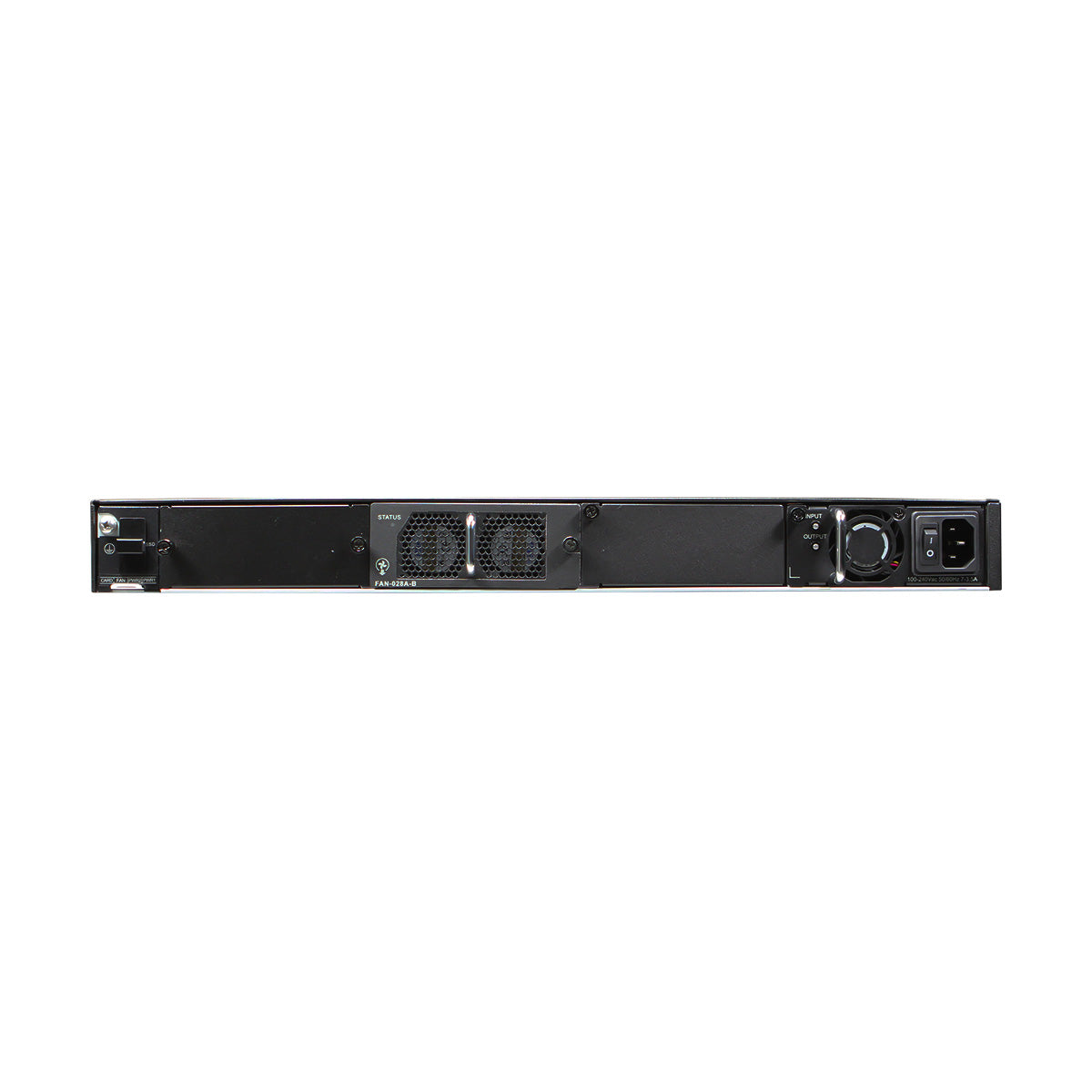

Rear card slot NOTE:
Cards supported:
|
|
11 |
Fan slot NOTE:
Applicable fan module: FAN-028A-B |
12 |
Power module slot 2 NOTE:
Applicable power modules:
|
|
13 |
Power module slot 1 NOTE:
Applicable power modules:
|
- |
- |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Attributes of a 10GE SFP+ port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
|
Working mode |
GE/10GE auto-sensing |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
4 GB |
|
Flash |
1 GB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
53.93 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±7 kV |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.). |
|
Weight (with packaging) |
8.8 kg (19.40 lb) |
|
Stack ports |
10GE SFP+ ports on the front panel, or 10GE ports or 40GE QSFP+ ports on the rear card |
|
RTC |
Supported |
|
RPS |
Not supported |
|
PoE |
Supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
Using 650 W DC or 500 W AC power modules: 66 W (without card) Using 1150 W AC or 1000 W AC power modules: 73 W (without card) |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 69 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
02351MQN |
