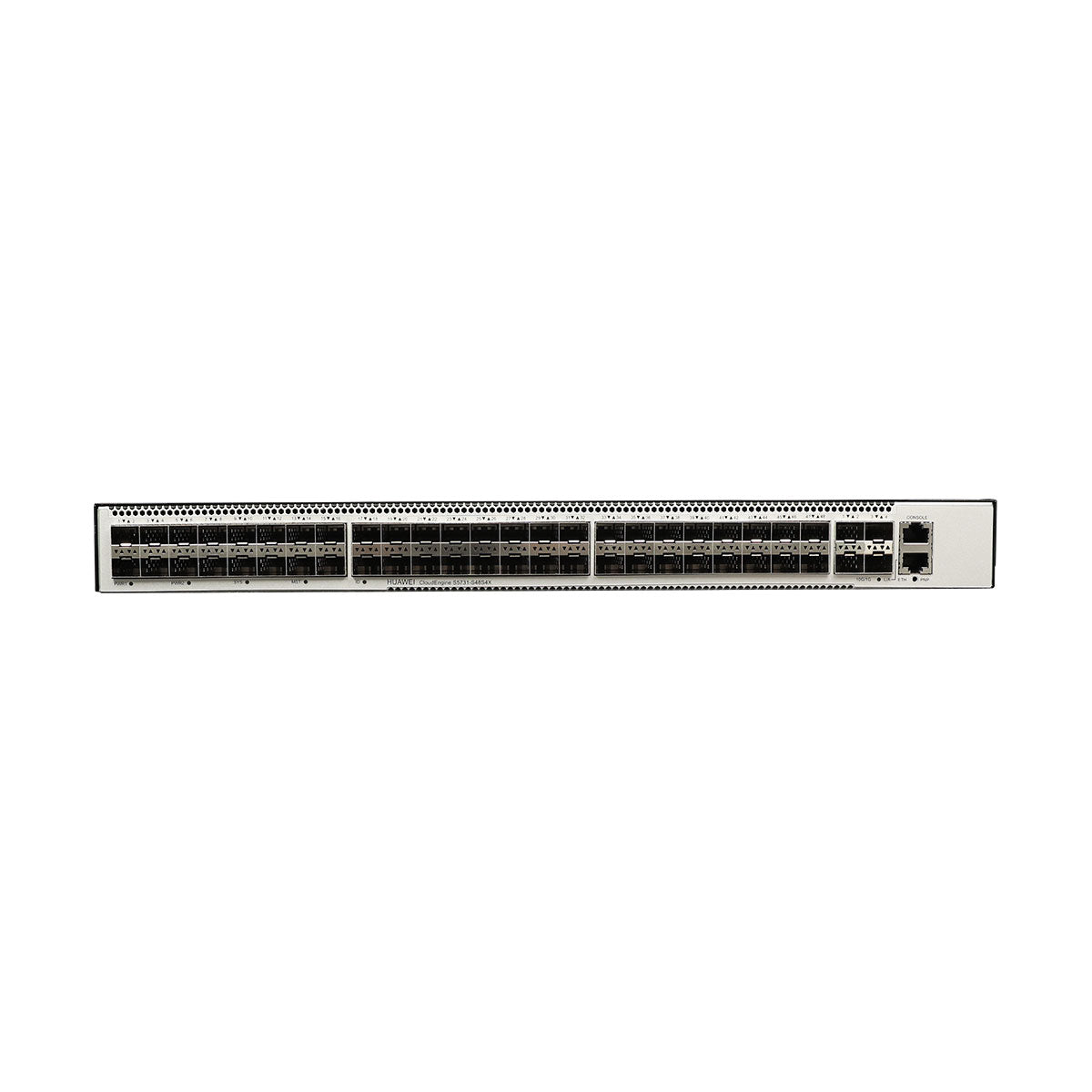

HuaweiHuawei S5731-S48S4X Switch
S5731-S48S4X
S5731-S32ST4X-A

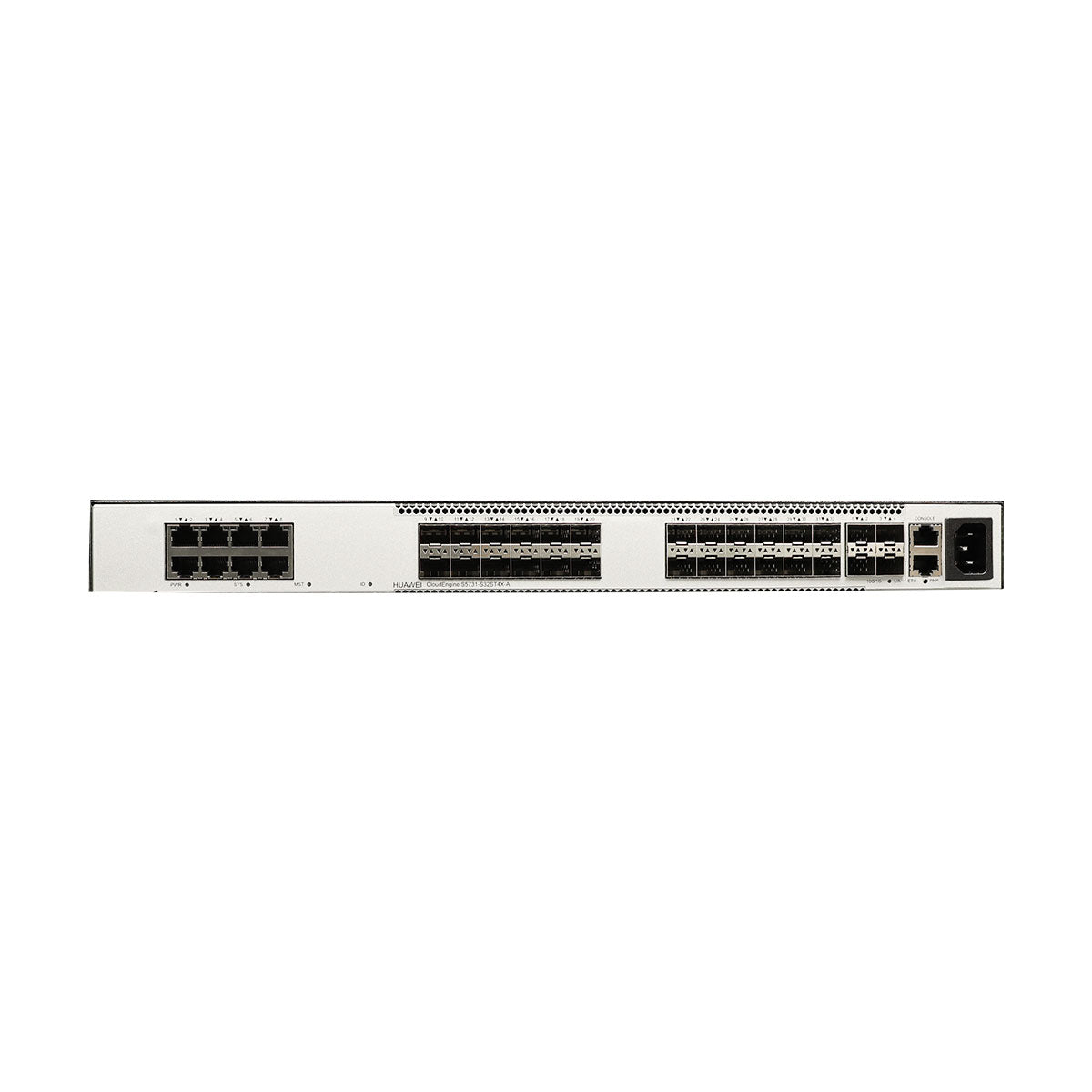

HuaweiHuawei S5731-S32ST4X-A Switch
S5731-S32ST4X-D
$0.00
$0.00

S5731-S32ST4X-D Hardware Description



Introduction

Huawei S5731-S32ST4X-D switch supports 8*10/100/1000BASE-T ports, 24* 100/1000BASE-X ports, 4*10GE SFP+ ports, 1*DC power input fixed.

The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.



Key Features

24*100/1000BASE-X ports

4*10GE SFP+ ports

8*10/100/1000BASE-T ports

Memory (RAM)  2GB

Flash  1GB



Appearance and Structure

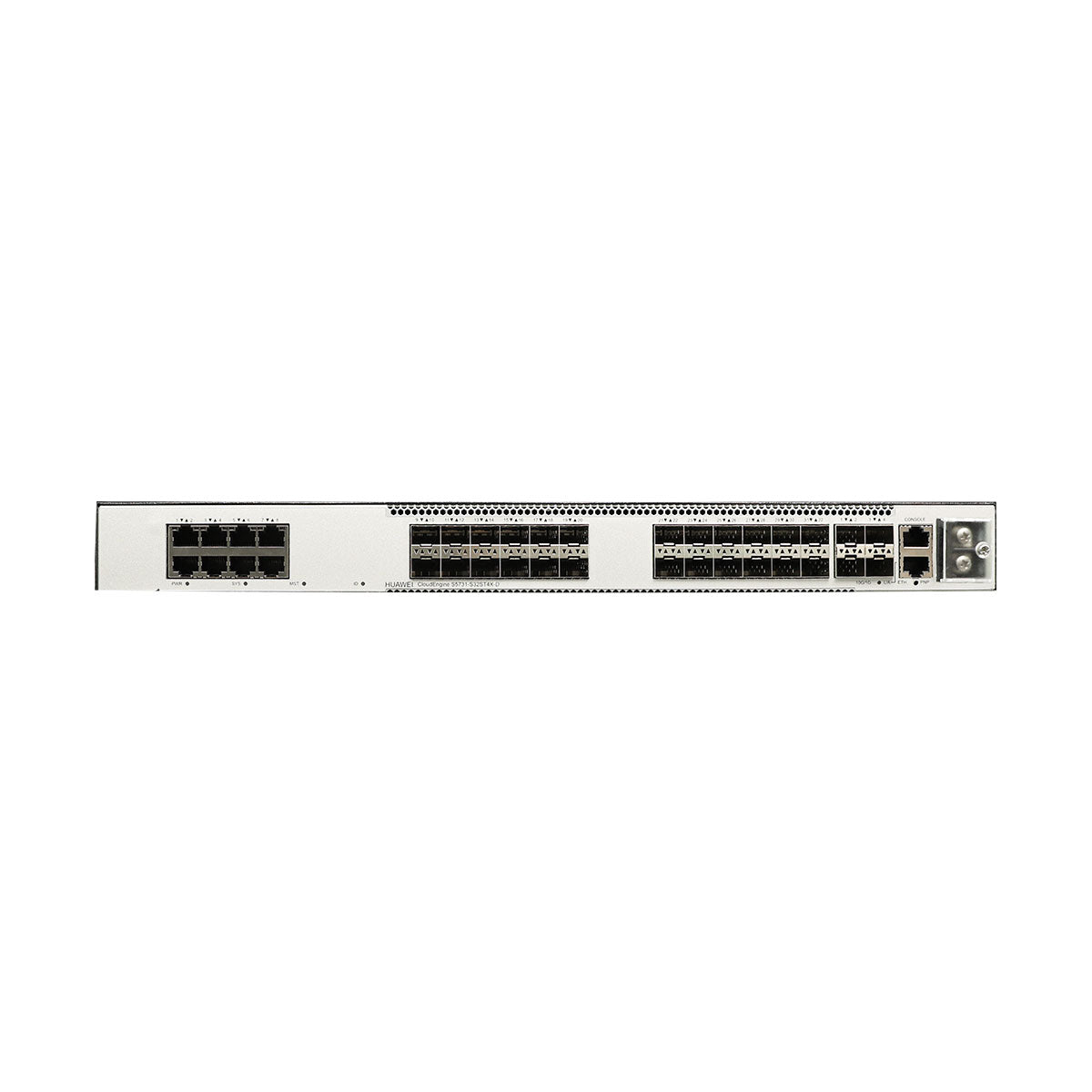

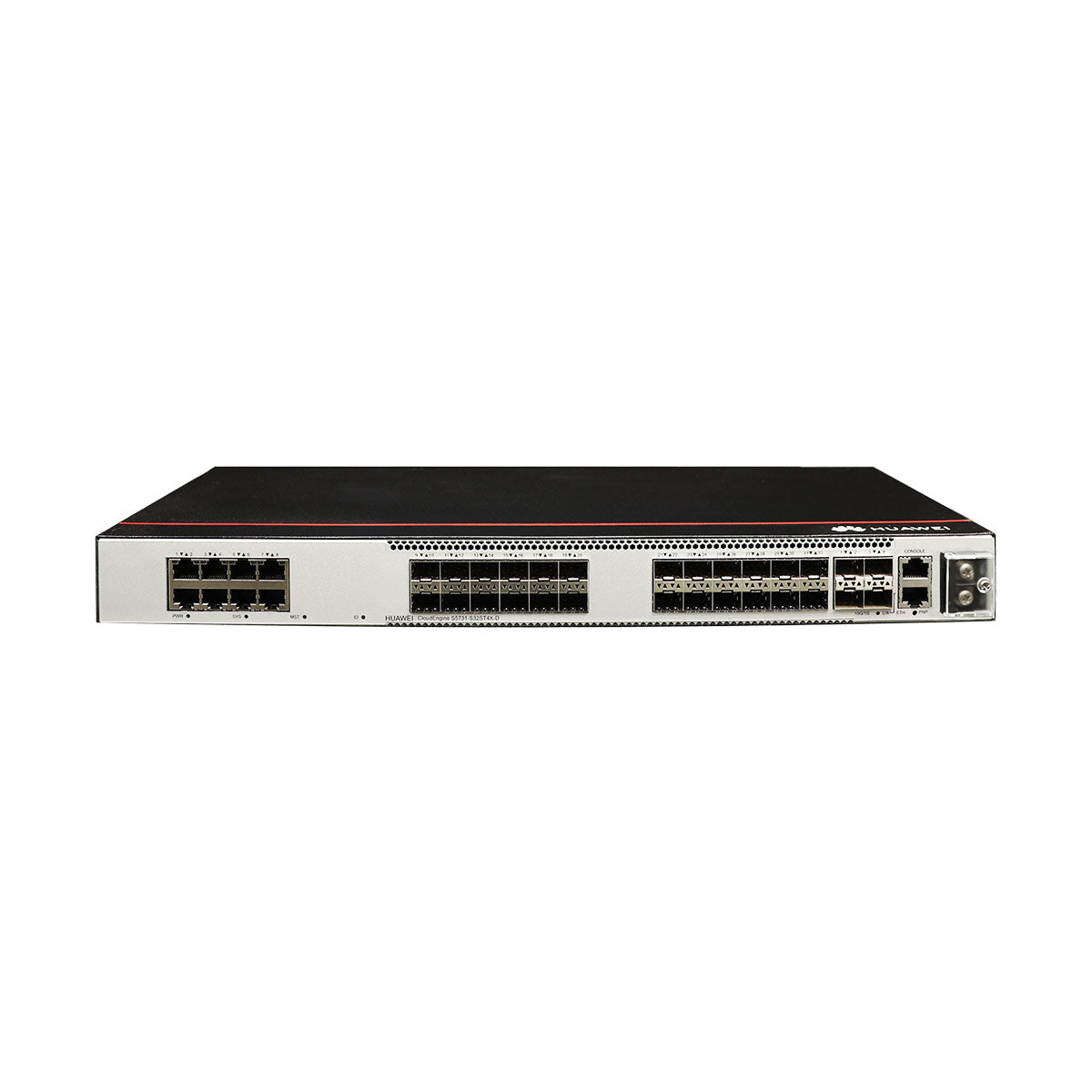

S5731-S32ST4X-D Appearance

1

Eight 10/100/1000BASE-T ports

2

Twenty-four 100/1000BASE-X ports

NOTE:

In V200R023C00 and later versions, 100/1000BASE-X ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.

3

Four 10GE SFP+ ports

4

One console port

5

One ETH management port

6

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

7

DC power terminal

NOTE:

It is used with DC Power Cable.

8

Ground screw

NOTE:
It is used with a ground cable.

Port Description

Ports on the S5731-S32ST4X-D

Port Connector Type Description Available Components
10/100/1000BASE-T port RJ45 A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s.

Ethernet cable
100/1000BASE-X port SFP

A 100/1000BASE-X port can send and receive data at 100 Mbit/s, 1000 Mbit/s, or 2.5 Gbit/s.

In V200R023C00 and later versions, 100/1000BASE-X ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command.
  • FE SFP/eSFP optical modules
  • GE eSFP optical modules
  • GE-CWDM eSFP optical modules
  • GE-DWDM eSFP optical modules
  • GE SFP copper module
  • 2.5GE eSFP Optical Modules (supported in V200R023C00 and later versions)
10GE SFP+ optical port SFP+ A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s.
  • GE eSFP optical modules
  • GE-CWDM eSFP optical modules
  • GE-DWDM eSFP optical modules
  • GE SFP copper module
  • 10GE SFP+ optical modules (OSXD22N00 not supported)
  • 10GE-CWDM SFP+ optical modules
  • 10GE-DWDM SFP+ optical modules
  • PEN remote optical modules (V200R024C00 and later versions)
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack cables (only for zero-configuration stacking)
Console port RJ45 The console port is connected to a console for on-site configuration.

Console cable
ETH management port RJ45

You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely.

You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port.

Ethernet cable

​​​​​​

Technical specifications
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.40 in. x 9.29 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 355.0 mm (3.54 in. x 21.65 in. x 13.98 in.)
Chassis height [U] 1 U
Chassis material Metal
Weight without packaging [kg(lb)] 2.98 kg (6.57 lb)
Weight with packaging [kg(lb)] 4.34 kg (9.57 lb)
Typical power consumption [W] 69.46 W
Typical heat dissipation [BTU/hour] 237.00 BTU/hour
Maximum power consumption [W] 93.39 W
Maximum heat dissipation [BTU/hour] 318.66 BTU/hour
Static power consumption [W] 41.42 W
MTBF [years] 32.56 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 41.42 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.74 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

  • The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.
  • The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
  • The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode DC built-in
Rated input voltage [V] –48 V DC to –60 V DC
Input voltage range [V] –38.4 V DC to –72 V DC
Maximum input current [A] 6 A
Memory 2 GB
Flash memory The physical space is 1 GB. You can run the display version command to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Not supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±2 kV in differential mode; ±4 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification

EMC certification

Safety certification

Manufacturing certification
