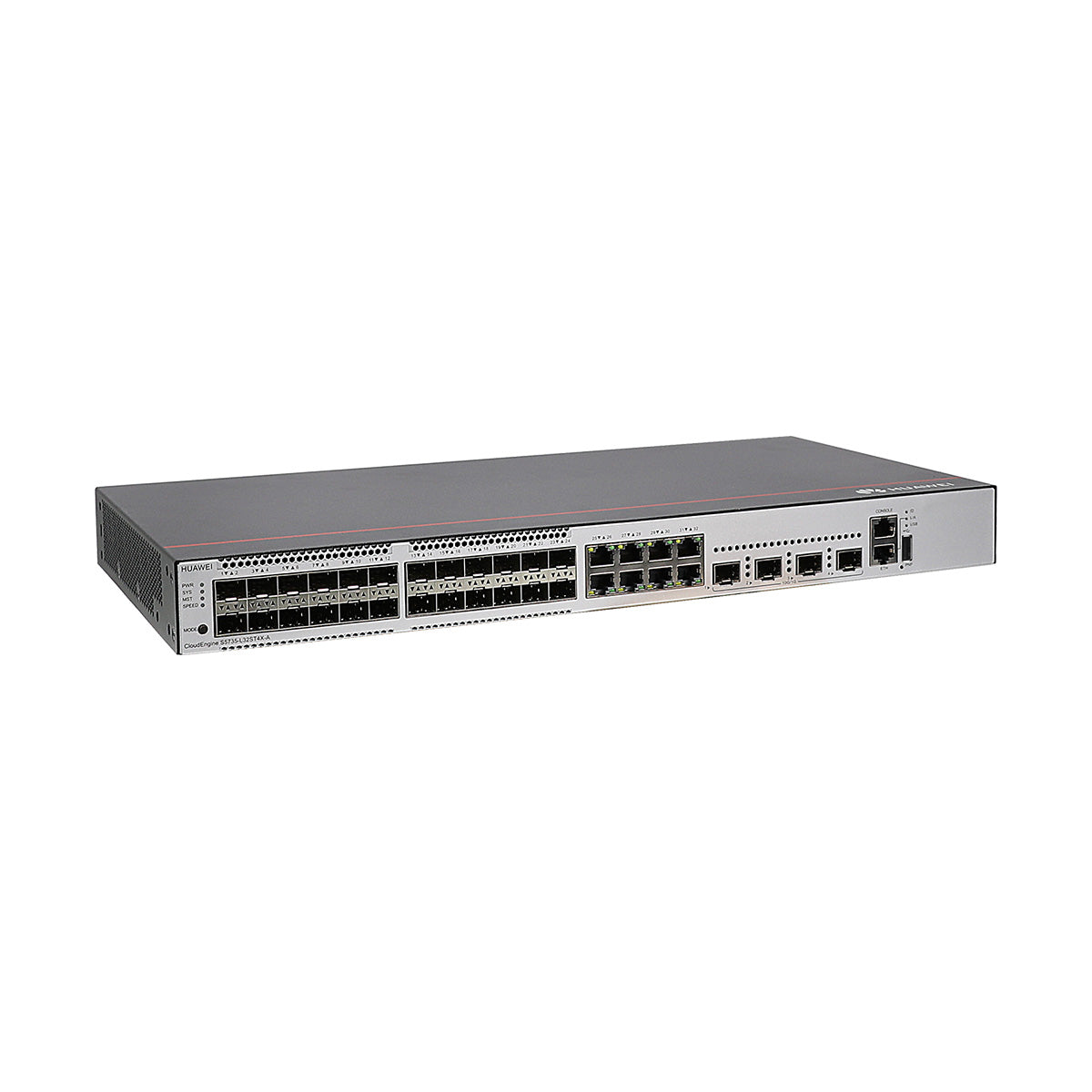

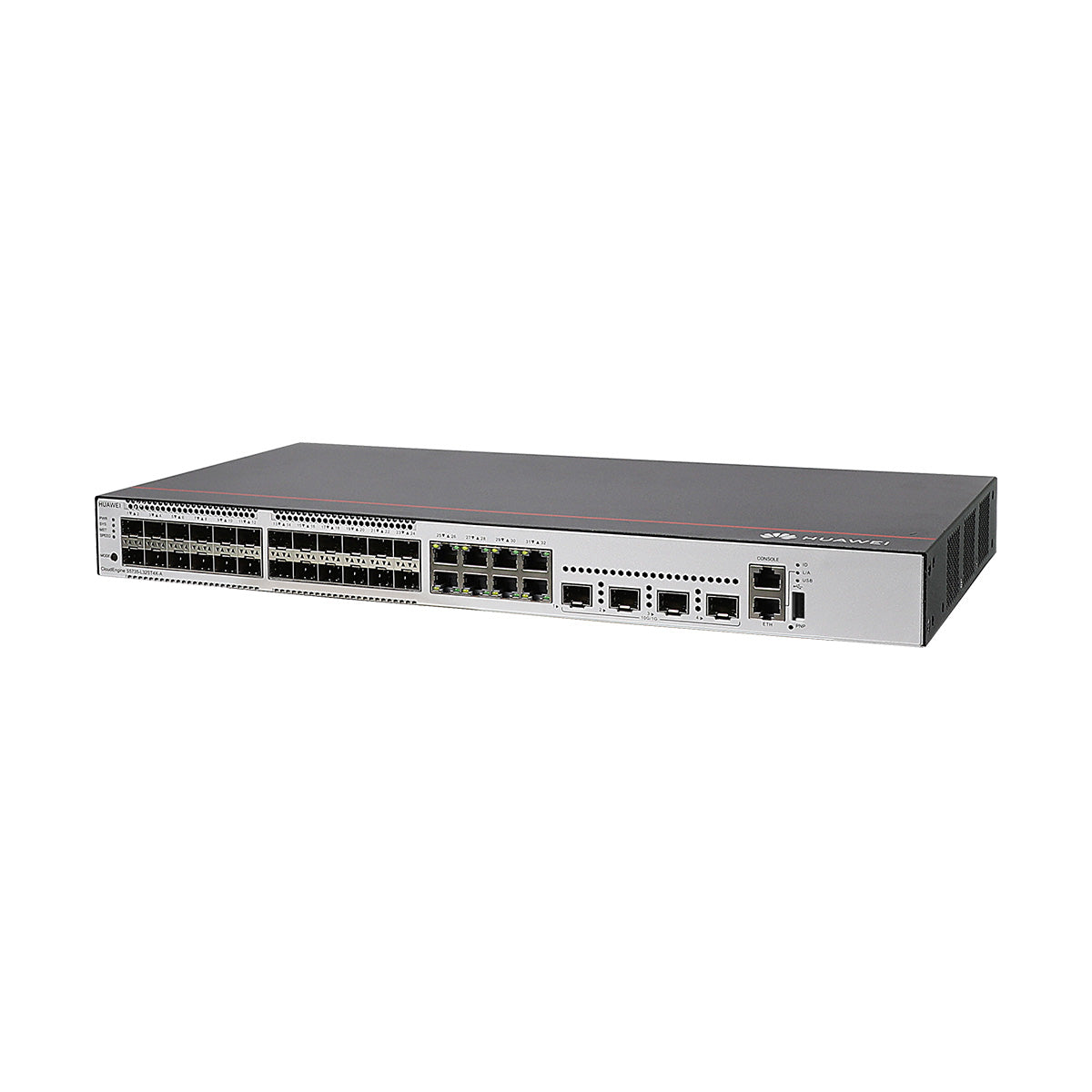

Huawei S5735-L32ST4X-A Switch

$0.00
$0.00
Availability: 100 in stock
SKU: 98010929
Tags:
Collections:
HuaweiHuawei S5735-L48T4S-A Switch
S5735-L48T4S-A
S5735-L24P4X-A
HuaweiHuawei S5735-L24P4X-A Switch
S5735-L32ST4X-A
$0.00
$0.00

S5735-L32ST4X-A Hardware Description



Introduction

This Huawei switch with 24*100/1000BASE-X ports, 8*10/100/1000BASE-X ports, 4*10 GE SFP+ ports, 1*AC power input fixed

Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



Key Features

24*100/1000BASE-X ports

8*10/100/1000BASE-X ports

4*10 GE SFP+ ports

Memory (RAM) 1GB

Flash 512MB

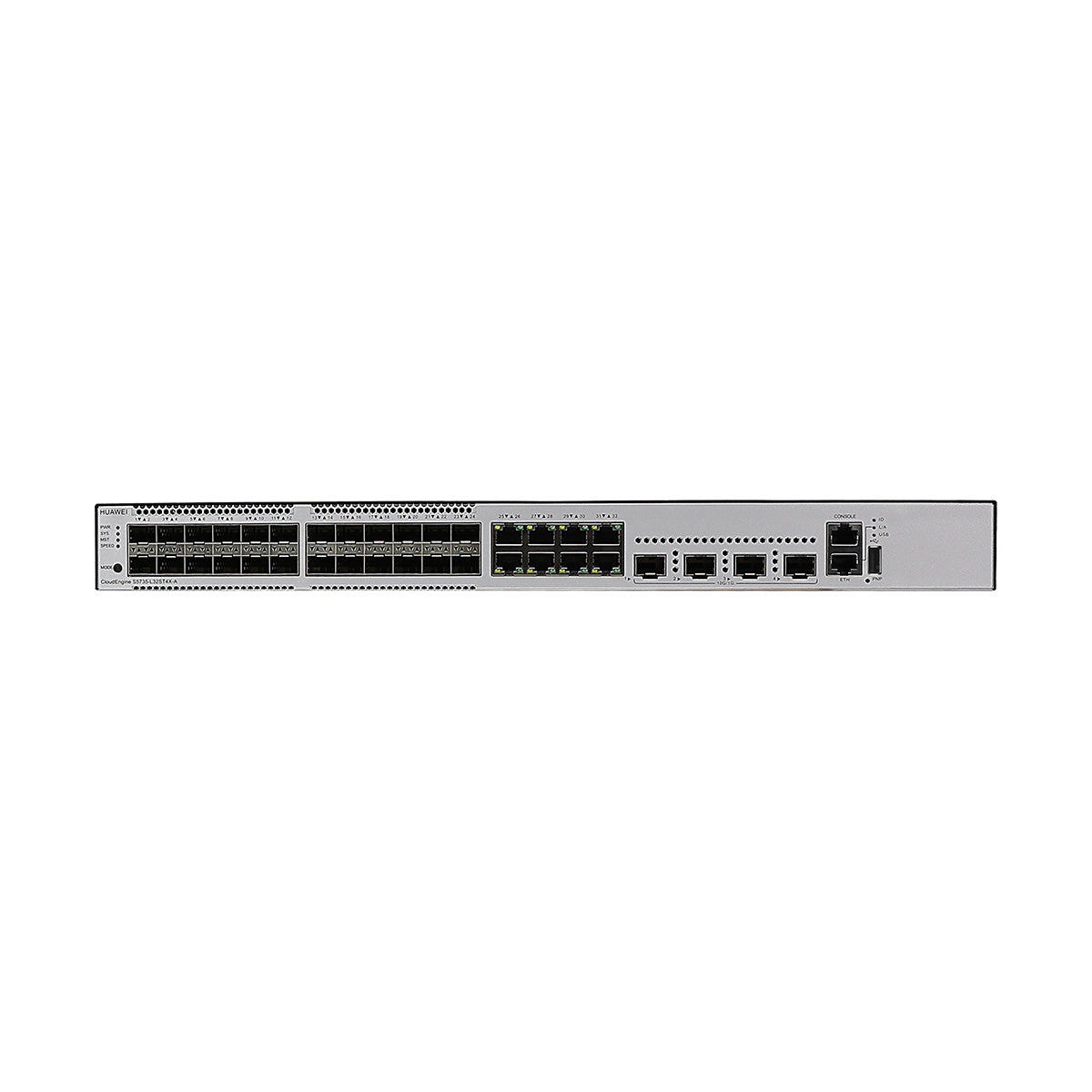

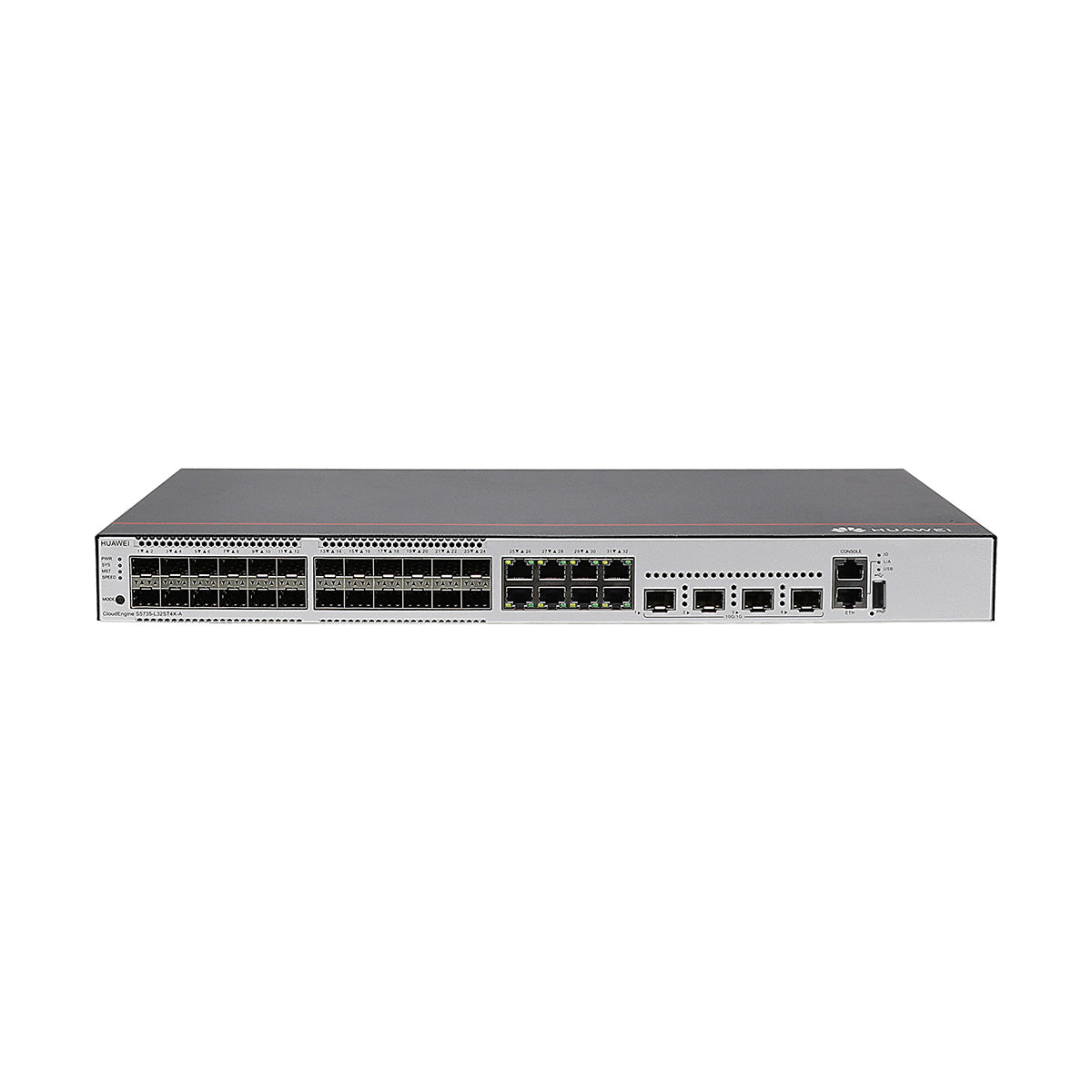

Appearance and Structure
S5735-L32ST4X-AAppearance and Structure

1

Twenty-four 100/1000BASE-X ports

Applicable modules:
  • FE optical module
  • GE optical module (maximum transmission distance ≤ 40 km)
  • GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)

2

Eight 10/100/1000BASE-T ports

3

Four 10GE SFP+ ports

Applicable modules and cables:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (100M/1000M auto-sensing)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m and 3 m SFP+ high-speed copper cables
  • 3 m and 10 m SFP+ AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in V200R019C10 and later versions)

4

One console port

5

One ETH management port

6

One USB port

7

One PNP button

NOTICE:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

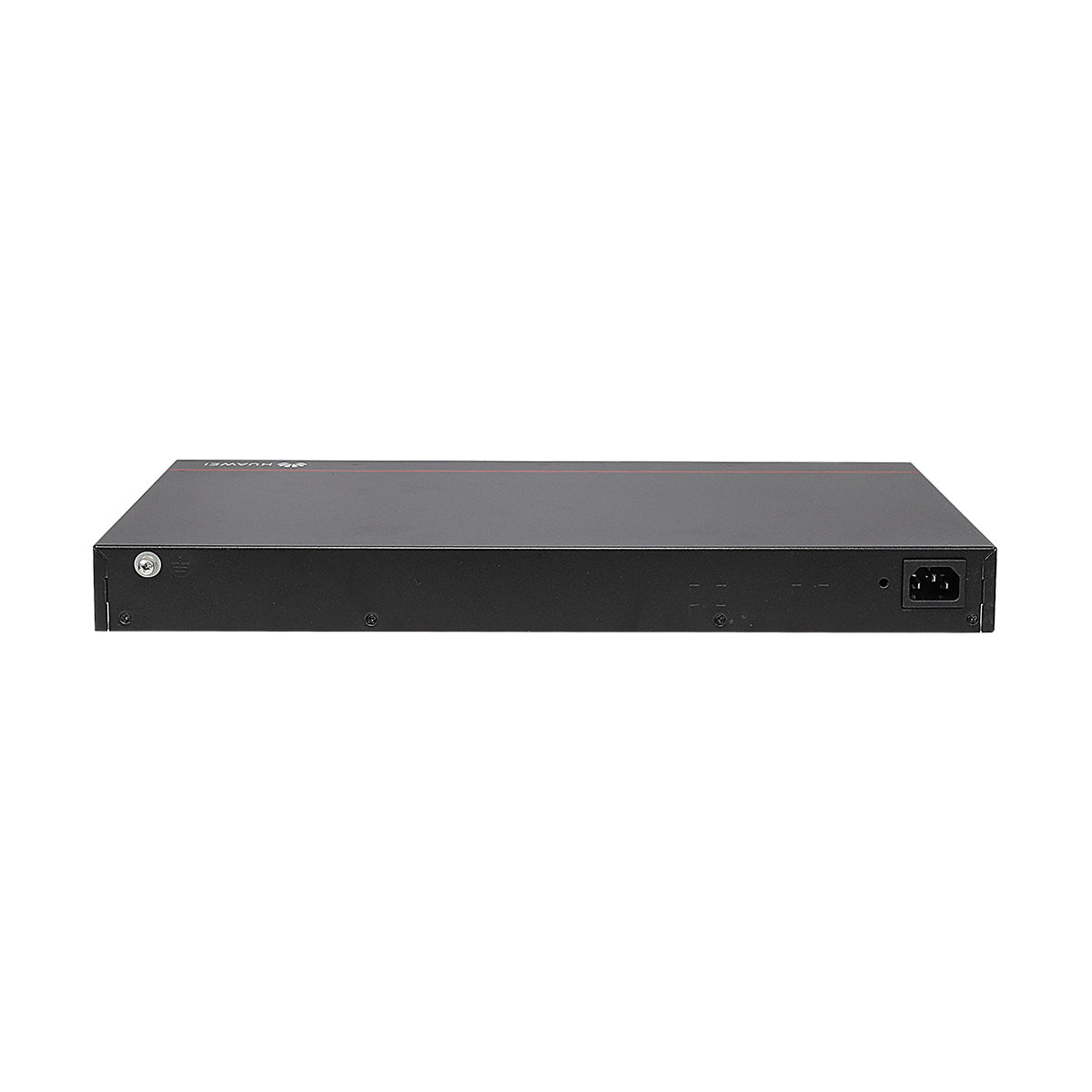

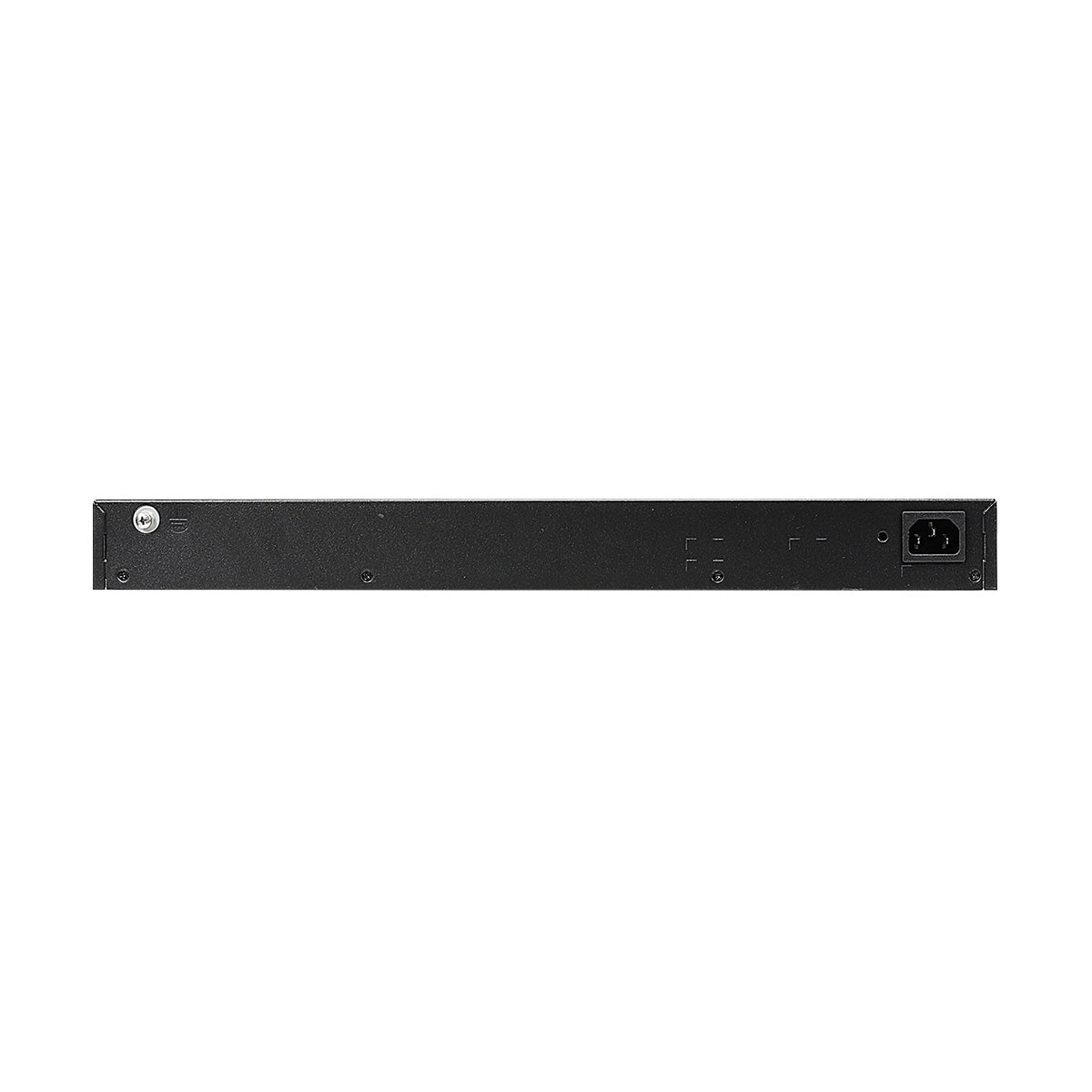

8

Ground screw

NOTE:
It is used with a ground cable.

9

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.

10

AC socket

NOTE:

It is used with an AC power cable.

Port Description

Attributes of a 100/1000BASE-X port

Attribute

Description

Connector type

LC/PC

Optical interface attributes

Depend on the optical module used

Standards compliance

IEEE802.3z

Working mode

100/1000 Mbit/s auto-sensing

​​

 Attributes of a 10/100/1000BASE-T Ethernet electrical port

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3, IEEE802.3u, IEEE802.3ab

Working mode

10/100/1000 Mbit/s auto-sensing

Maximum transmission distance

100 m

​

 Attributes of a 10GE SFP+ port

Attribute

Description

Connector type

LC/PC

Optical port attributes

Depend on the optical module used

Standards compliance

IEEE802.3ae

Working mode

GE/10GE auto-sensing

​​​

​Technical specifications

Item

Description

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

85.87 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Weight (with packaging)

4.31 kg (9.5 lb)

Stack ports

Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions)

RTC

Not supported

RPS

Not supported

PoE

Not supported

Rated voltage range
  • AC input: 100 V AC to 240 V AC, 50/60 Hz
  • High-Voltage DC input: 240 V DC

Maximum voltage range
  • AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
  • High-Voltage DC input: 190 V DC to 290 V DC

Maximum power consumption (100% throughput, full speed of fans)

65 W
Typical power consumption (30% of traffic load)
  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption

46 W

Operating temperature
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

Short-term operating temperature

-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
  • The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
  • The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
  • The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.

The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 53.3 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

98010929
