S5736-S48S4X-A Hardware Description
Introduction
This Huawei switch comes with 48*100/1000BASE-X ports, 4*10GE SFP+ ports, 1*AC power input fixed.
Huawei Cloud Engine S5736-S series switches are next-generation standard all-optical GE access switches that provide 24-port and 48-port models and provide four 10GE ports and one extended slot(optional)
Huawei Cloud Engine S5736-S series all-optical GE access switches are developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP), support enhanced Layer 3 features simplified operations and maintenance (O&M), flexible Ethernet networking, and mature IPv6 features. Cloud Engine S5736-S switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Key Features
48*100/1000BASE-X ports
4*10GE SFP+ ports
Memory (RAM) 2GB
Flash 1GB

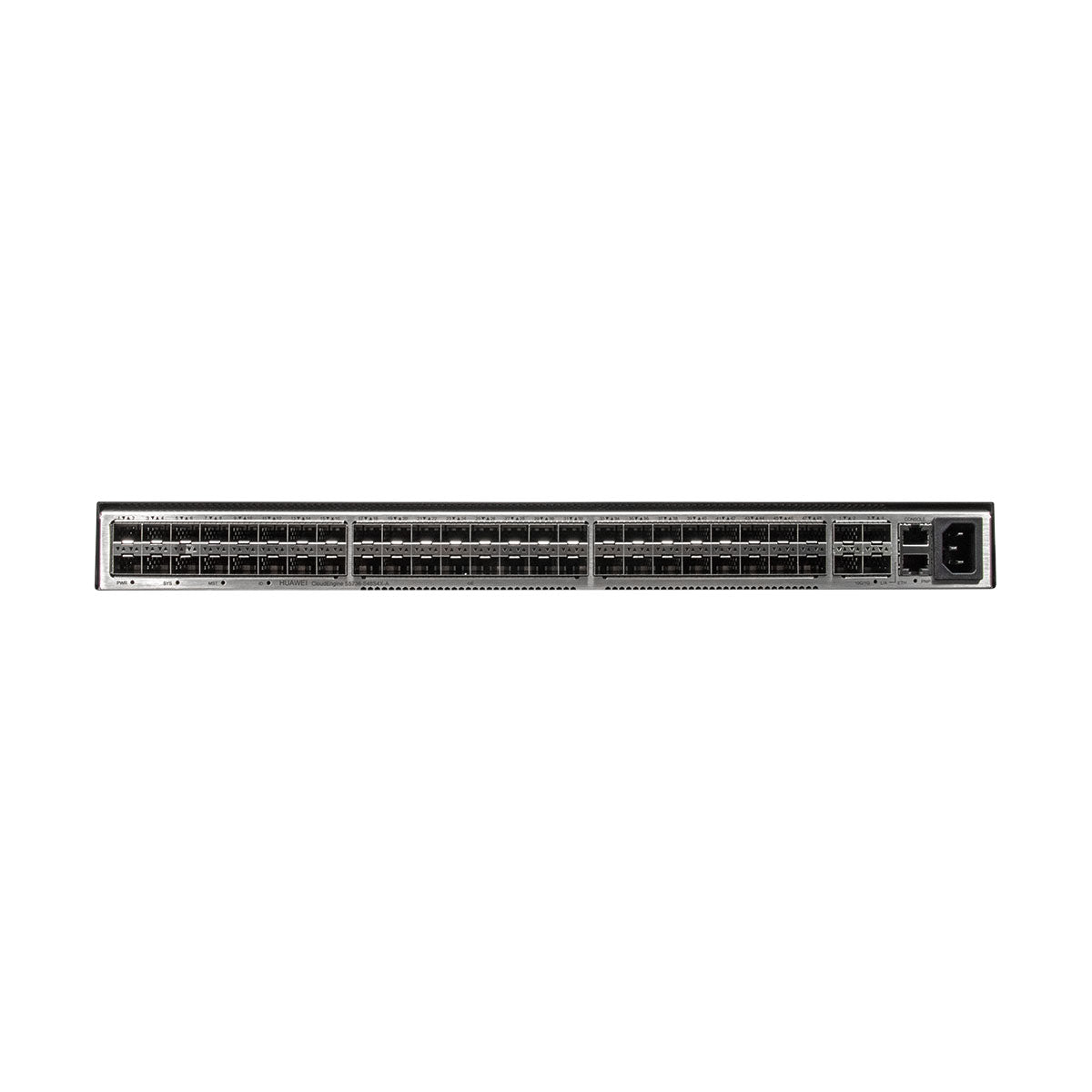

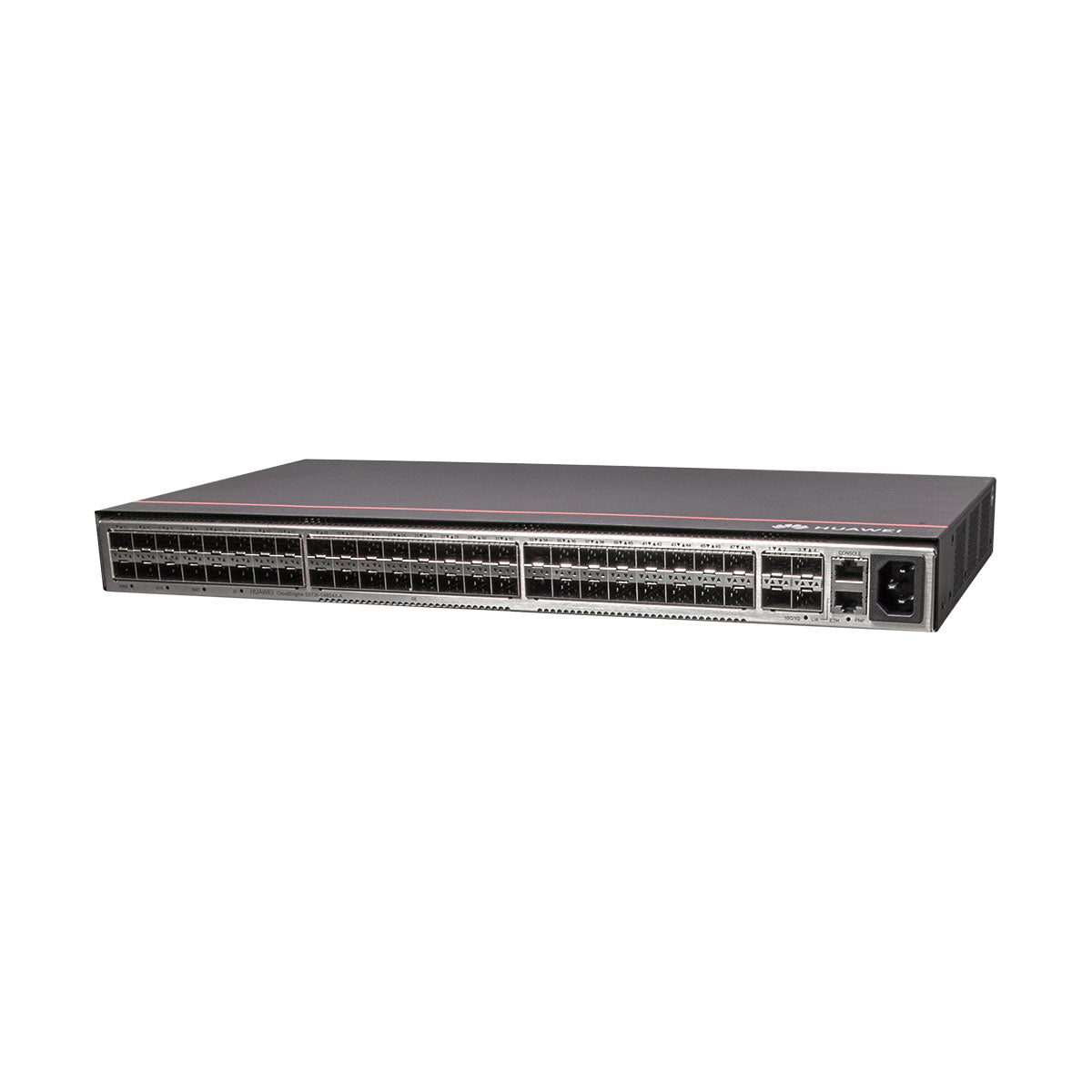

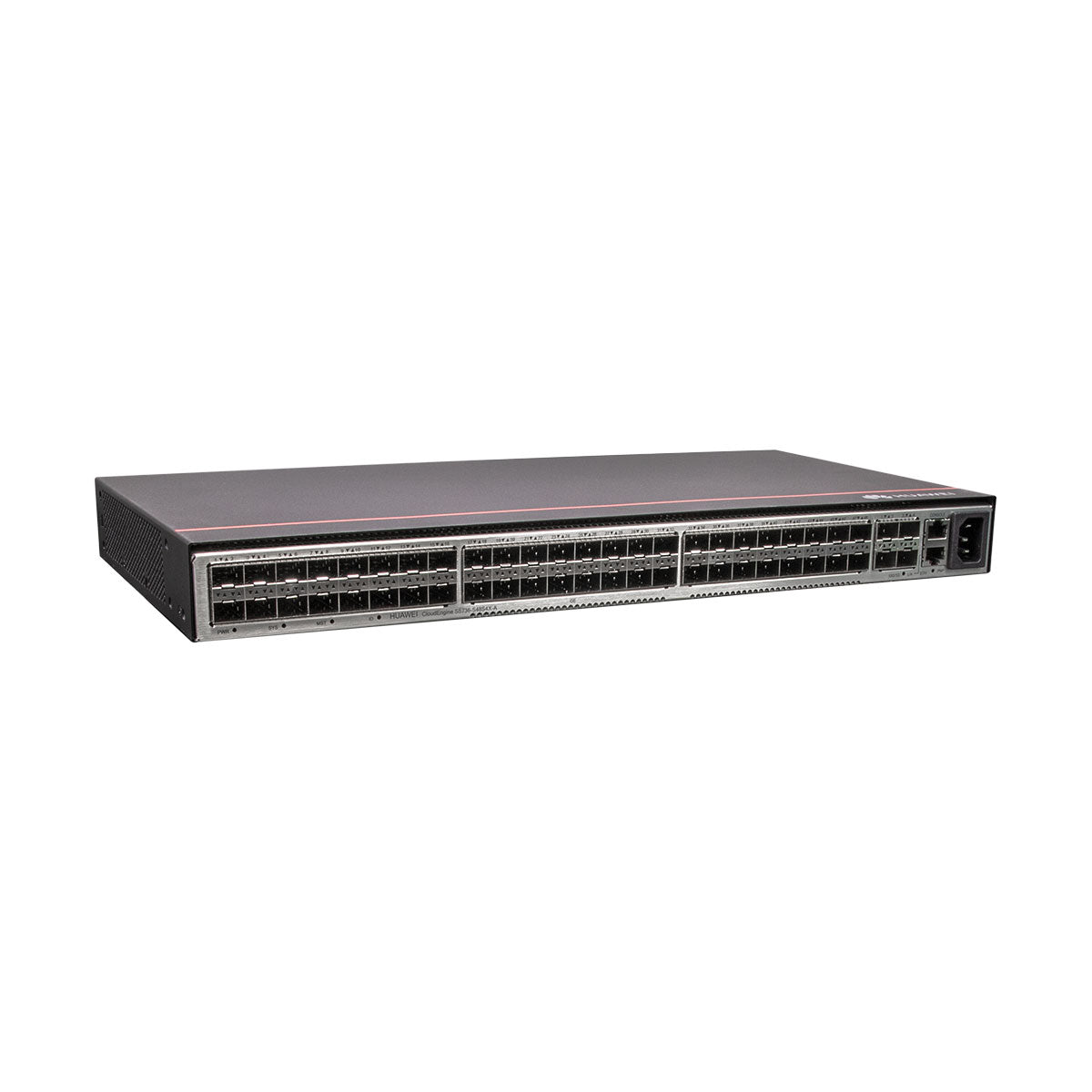

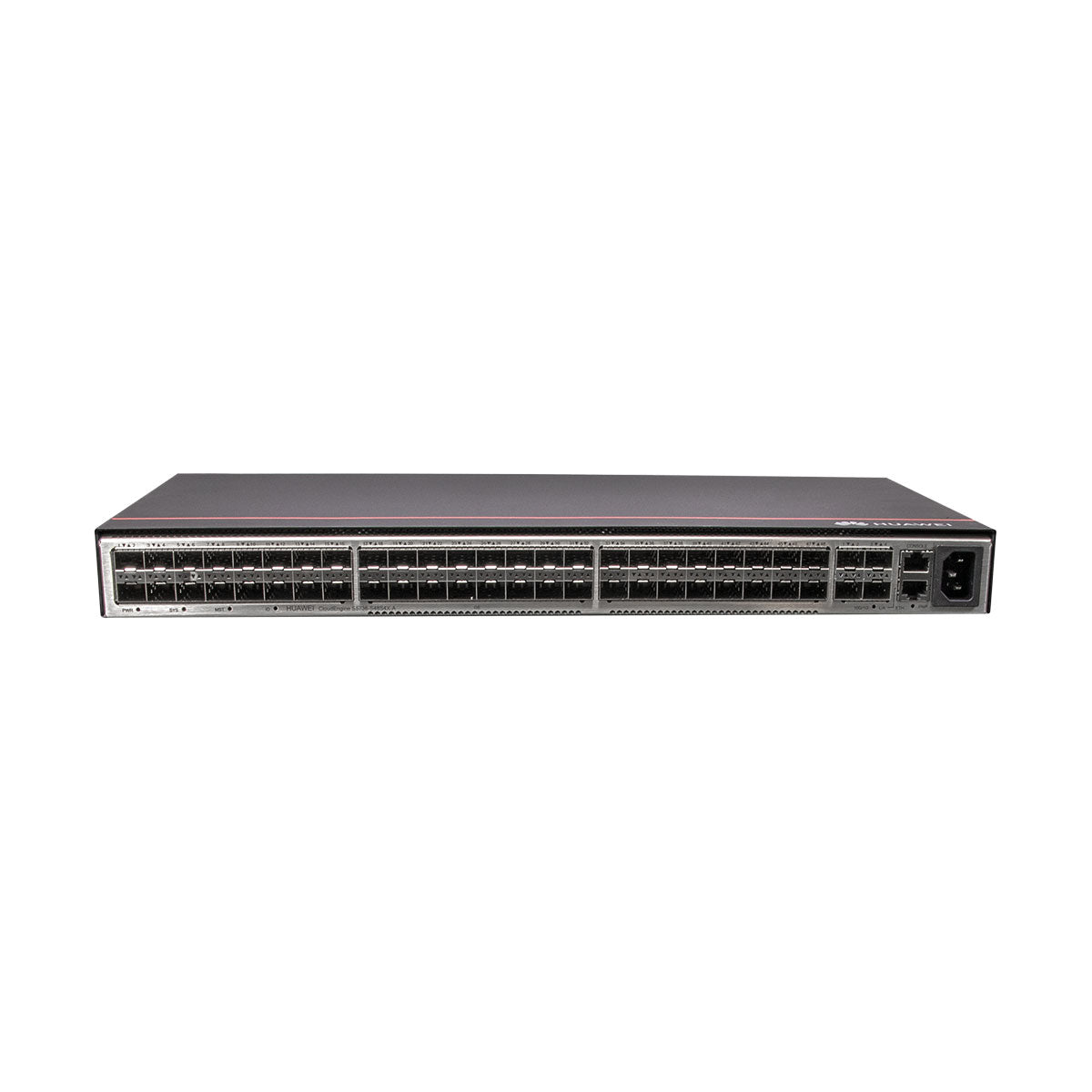

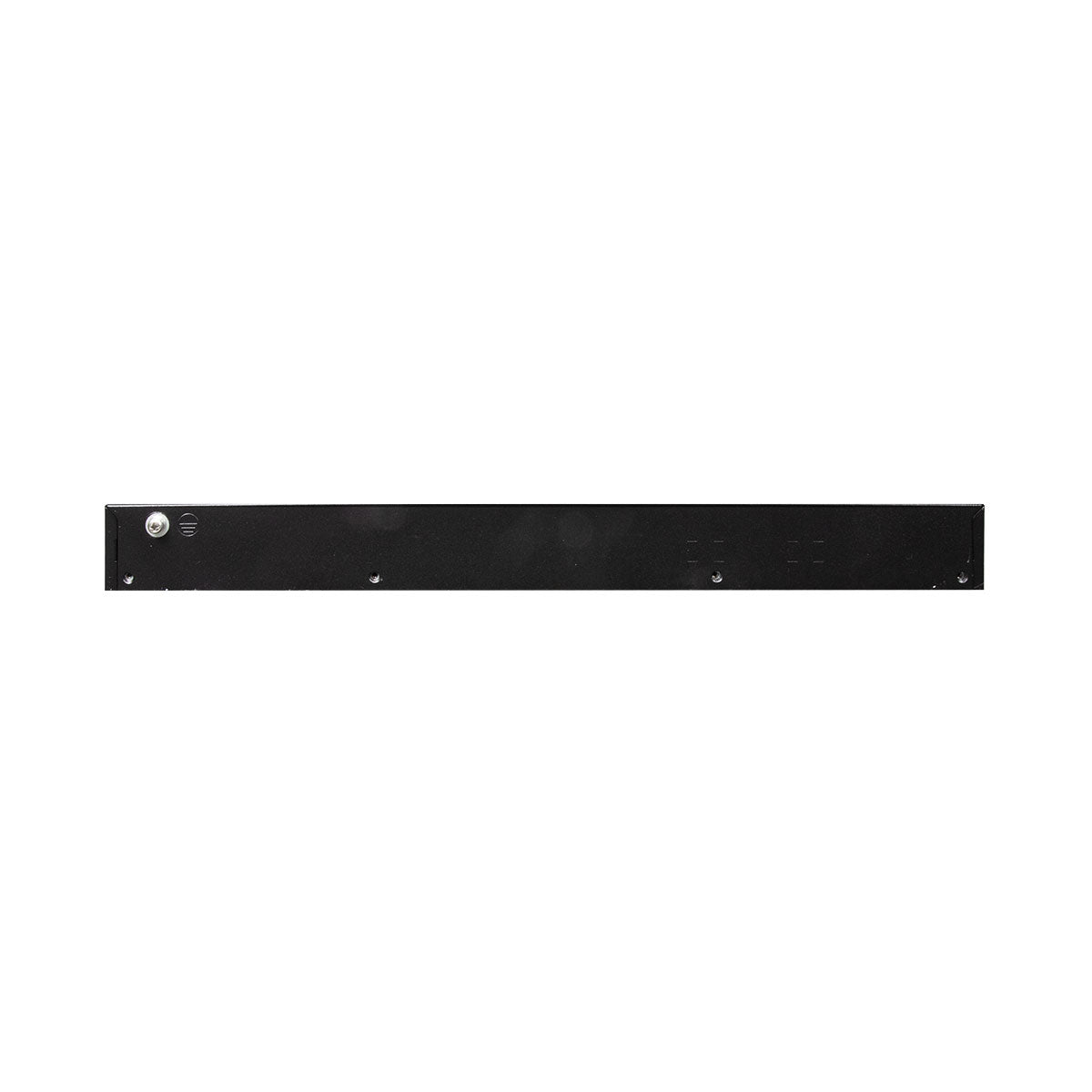

Appearance and Structure
|
1 |
Forty-eight 1000BASE-X ports NOTE:
A RTU license (L-P1GUPG10G-S57S) can be loaded to increase the port rate to 10 Gbit/s. In V200R024C00 and later versions, 1000BASE-X ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command. |
2 |
Four 10GE SFP+ optical ports NOTE:
In V200R024C00 and later versions, 10GE SFP+ ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command. |
|
3 |
One console port |
4 |
One ETH management port |
|
5 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
6 |
AC socket NOTE:
It is used with an AC power cable. |
|
7 |
Ground screw NOTE:
It is used with a ground cable. |
- |
- |
Port Description
Ports on the S5736-S48S4X-A
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 1000BASE-X port | SFP |
A 1000BASE-X port can send and receive data at 1000 Mbit/s. A license can be loaded to increase the port rate to 10 Gbit/s. In V200R024C00 and later versions, 1000BASE-X ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command. |
|
| 10GE SFP+ optical port | SFP+ |
A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. In V200R024C00 and later versions, 10GE SFP+ ports can be configured to work at 2.5 Gbit/s using the port mode 2.5ge command. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. |
Console cable |
| ETH management port | RJ45 |
You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. |
Ethernet cable |
Technical specifications
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.4 in. x 9.0 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 345.0 mm (3.54 in. x 21.85 in. x 13.58 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.6 kg (7.9 lb) |
| Weight with packaging [kg(lb)] | 4.7 kg (10.36 lb) |
| Typical power consumption [W] | 87 W |
| Typical heat dissipation [BTU/hour] | 296.85 BTU/hour |
| Maximum power consumption [W] | 111 W |
| Maximum heat dissipation [BTU/hour] | 378.74 BTU/hour |
| Static power consumption [W] | 39 W |
| MTBF [years] | 41.97 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 56.8 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 44.8 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 3 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6.0 A |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Not supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
