2200 W DC Power Distribution Box Hardware Description
Introduction

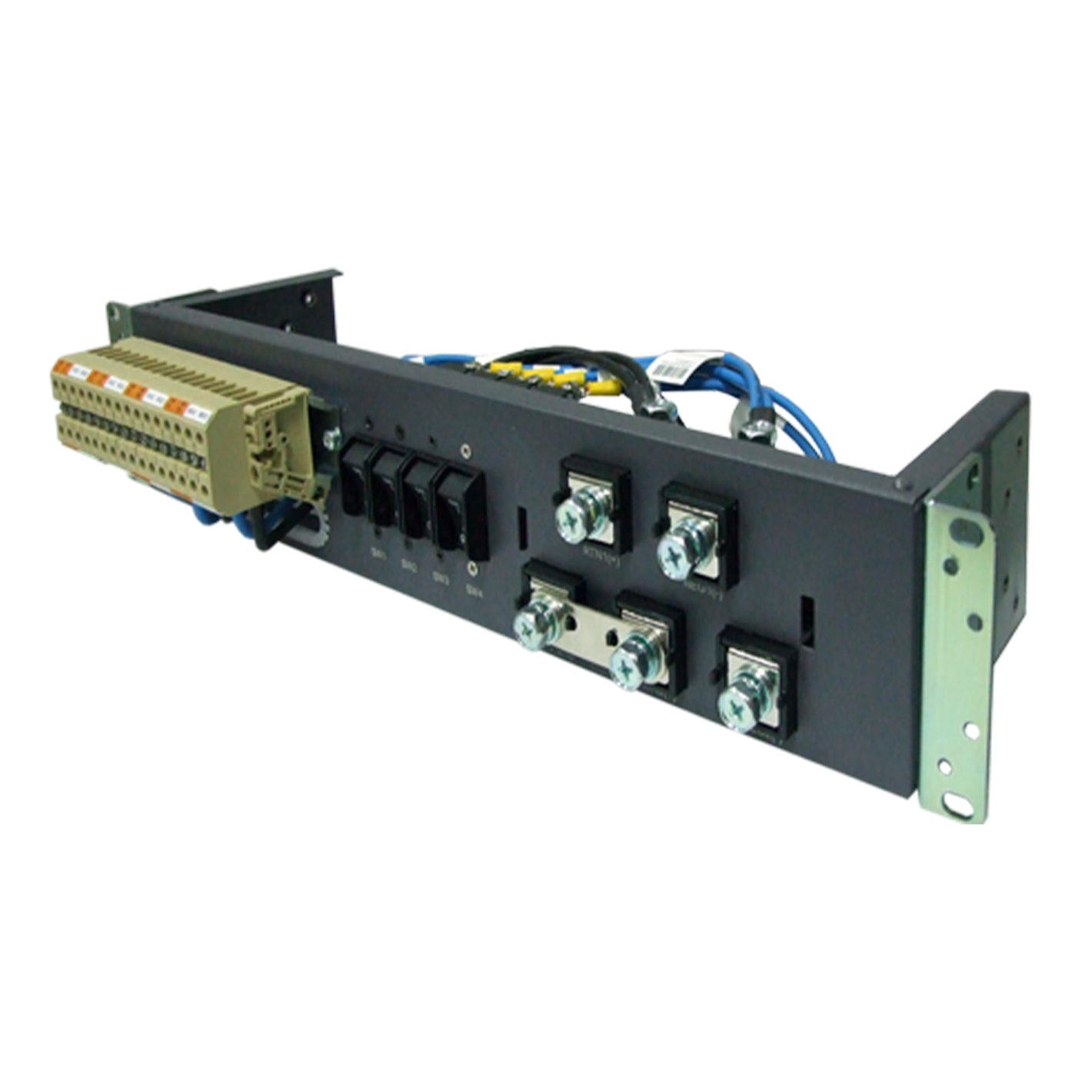

Huawei 2200 W DC Power Distribution Box. A 2200 W DC power distribution box can use -48 V two-way short-circuiting bars, each of which provides JG input terminals. A -48 V two-way short-circuiting bar allows a maximum of 120 A input current and converts one input into two outputs to circuit breakers. A 2200 W DC power distribution box provides short-circuit protection and overload protection.
Specifications of a 2200 W DC power distribution box
Item |
Description |
|
---|---|---|
Input |
Rated input voltage |
-48 V DC/-60 V DC |
Input voltage |
-38.4 V DC to -72 V DC |
|
Input mode |
Eight DC inputs by default (Short-circuiting bars can convert the eight inputs into four.) |
|
Maximum input current |
60 A per input (120 A per input when short-circuiting bars are used) |
|
Input terminal |
Cord end terminal, allowing power cables with a maximum of 35 mm2 diameter (When short-circuiting bars are used, M6 OT terminals are used for -48 V input and cord end terminals are used for RTN input.) |
|
Output |
Rated output voltage |
-48 V DC to -60 V DC |
Output voltage |
-38.4 V DC to -72 V DC |
|
Number of outputs |
Eight |
|
Current of each circuit breaker |
63 A |
|
Output protection |
Overcurrent protection (Power supply needs to be restored manually once the power distribution box enters the overcurrent protection state.) |
|
Output terminal |
Cord end terminal, allowing power cables with a maximum of 35 mm2 diameter |
|
Environment specifications |
Operating temperature |
-25°C to +55°C (-13°F to +131°F) |
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Relative humidity |
≤ 95% |
|
Standard atmospheric pressure |
70 kPa to 106 kPa |
|
Dimensions (H x W x D) |
110 mm x 442 mm x 89.2 mm (4.33 in. x 17.40 in. x 3.51 in.) |
|
Model |
EH1M00PDBS01 |
|
Part number |
02355419 |
