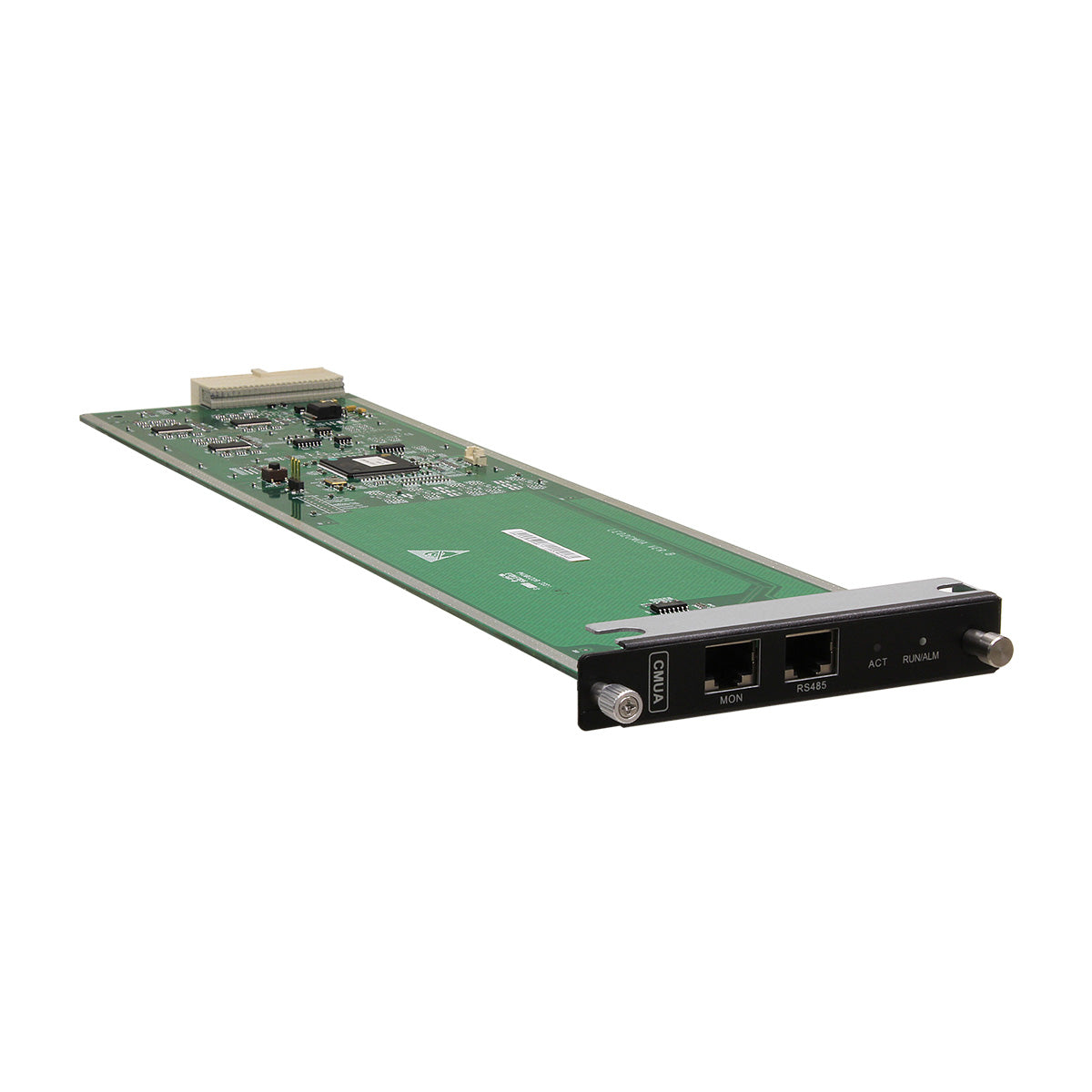

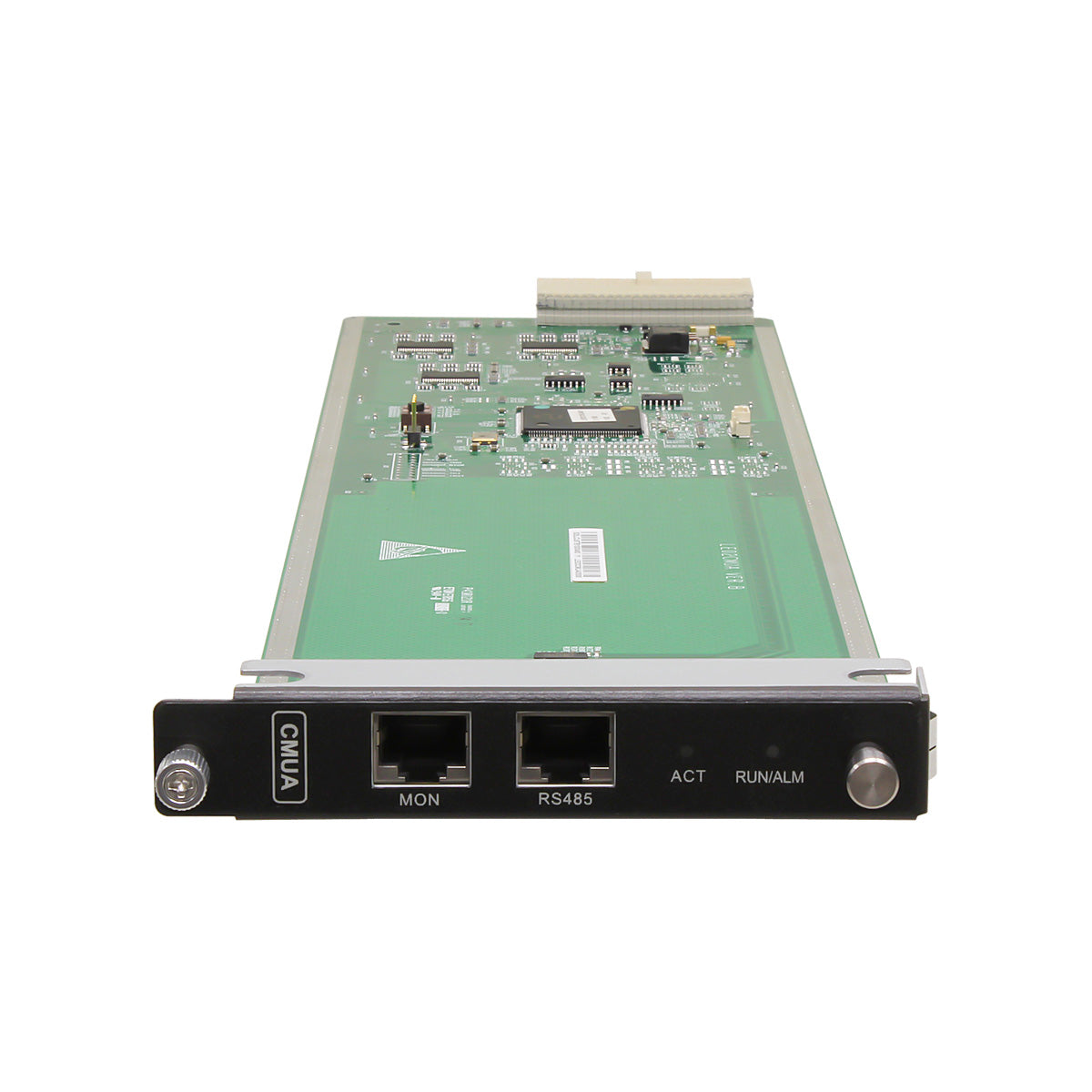

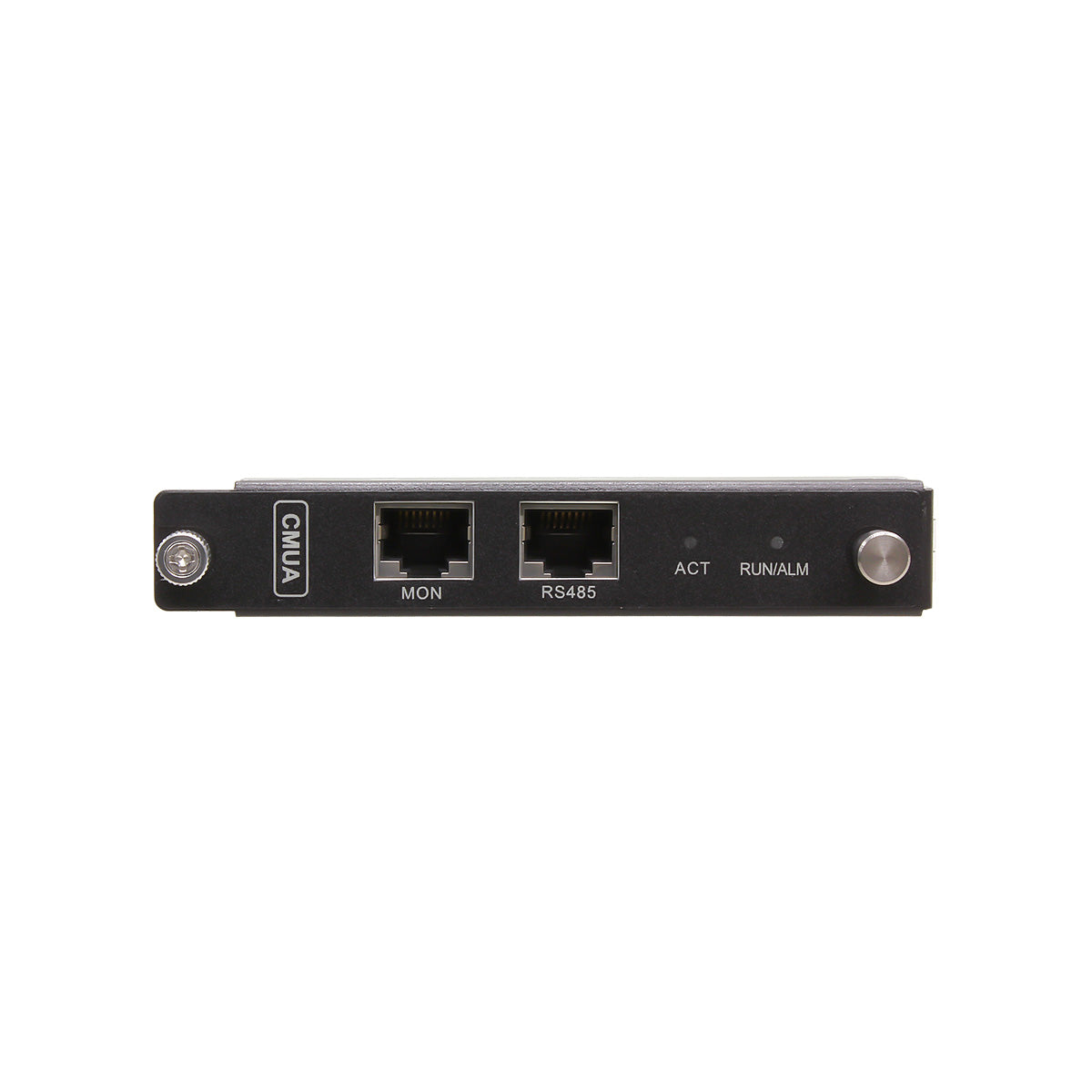

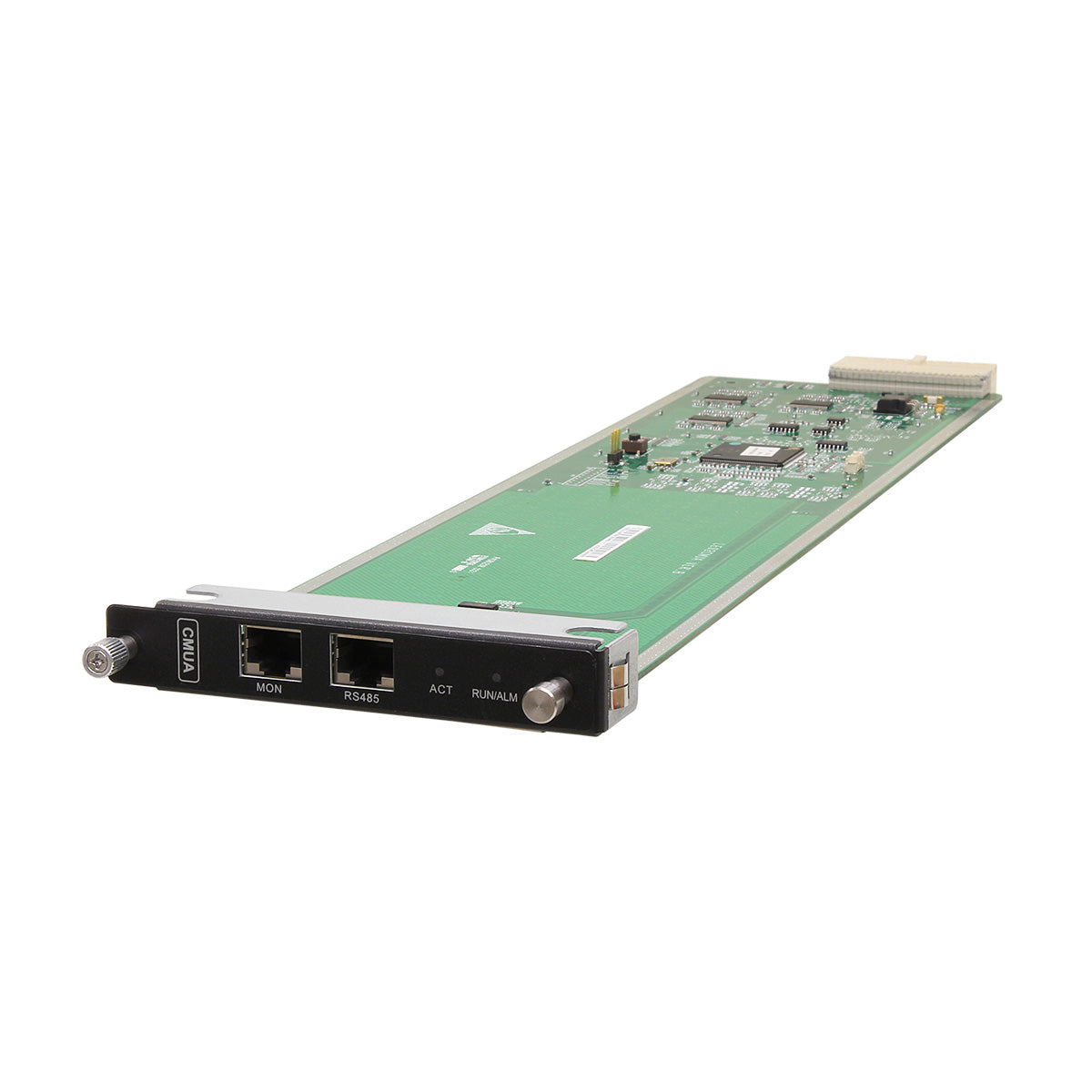

Huawei EH1D200CMU00 Centralized Monitoring Unit

$0.00
$0.00
Availability: In stock
Tags:
Collections:
HuaweiHuawei LE0DCMUA0000 Centralized Monitoring Unit

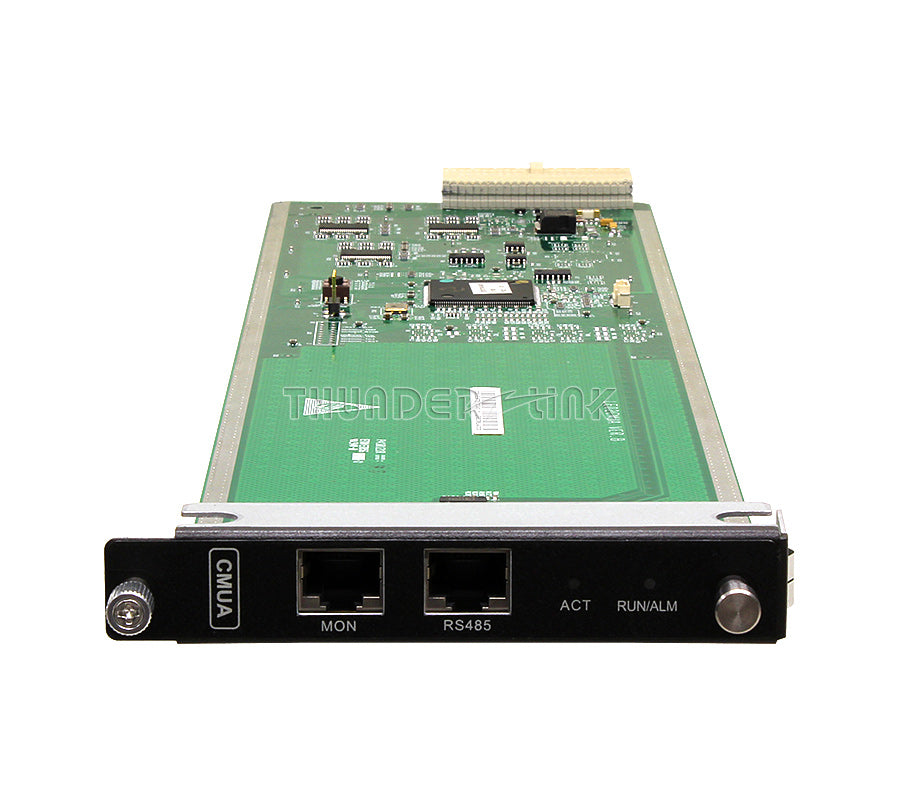

02-Front_looking-down
ES1M00FBX001
HuaweiHuawei ES1M00FBX000 Fan Box

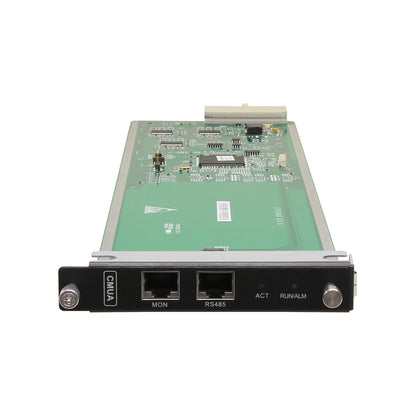

EH1D200CMU00-1
$0.00
$0.00

EH1D200CMU00 Hardware Description

Introduction

The EH1D200CMU00 can be installed in:

Functions

The EH1D200CMU00 consists of the following modules:

  • Device management module: sends interface control signals for device management.
  • Backplane interface module: provides management channels for power modules, fan modules, and communication channels between the active and standby EH1D200CMU00 cards.

The EH1D200CMU00 manages power modules and fan modules in a chassis. The EH1D200CMU00 is hot swappable. Two EH1D200CMU00 cards can be installed in a chassis to work in active/standby mode.

Fan module management

The EH1D200CMU00 provides the following fan module management functions:

  • Fan module presence detection
  • Fan module registration management
  • Fan speed monitoring
  • Fan speed control
  • Management and report of fan module alarms
  • Query of fan module electronic labels

The EH1D200CMU00 supports real-time fan module presence detection. Fan modules in the chassis register with the EH1D200CMU00. After they register, the EH1D200CMU00 obtains electronic labels of the fan modules and saves the electronic labels for users to query. Meanwhile, the EH1D200CMU00 monitors the speed and alarms of the fan modules in real time.

When detecting an alarm about a fan module, the EH1D200CMU00 reports the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.

When the EH1D200CMU00 receives a fan speed adjustment instruction from the MPU, it delivers the instruction to the fan modules. The fan modules then adjust their speed according to the instruction. If a chassis has no EH1D200CMU00 installed, fans run at full speed.

Power module management
The EH1D200CMU00 manages power modules in either of the following ways:
  • Uses the RS485 bus to provide the following functions:
    • Power module presence detection
    • Power module registration management
    • Power module shutdown
    • Voltage and current monitoring
    • Management and report of power module alarms
    • Query of power module electronic labels
  • Uses the I2C bus to provide the following functions:
    • Power module presence detection
    • Power module registration management
    • Management and report of power module alarms
    • Query of power module electronic labels

Only 1600 W DC power modules are managed using the I2C bus, and all the other power modules are managed using the RS485 bus.

The EH1D200CMU00 supports real-time power module presence detection. Power modules in a chassis register with the EH1D200CMU00. After they register, the EH1D200CMU00 obtains electronic labels of the power modules and saves the electronic labels for users to query. Then the power modules are managed using the RS485 bus or I2C bus:
  • Using the RS485 bus:

    The EH1D200CMU00 queries the current and voltage of power modules in real-time.

    When detecting an alarm about a power module, the EH1D200CMU00 sends the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.

    When the switch is working in deep energy saving mode, the EH1D200CMU00 automatically shuts down redundant power modules to save power. You can set the deep energy saving mode using the set power manage mode command.

  • Using the I2C bus:

    When detecting an alarm about a power module, the EH1D200CMU00 sends the alarm to the MPU. When the alarm is cleared, the EH1D200CMU00 reports alarm clearance to the MPU.

 Specifications of the EH1D200CMU00

Item

Description

Physical specifications
  • Dimensions (H x W x D): 19.8 mm x 112.9 mm x 412.7 mm (0.78 in. x 4.44 in. x 16.25 in.)
  • Weight: 0.22 kg (0.49 lb)
  • Maximum power consumption: 1 W
