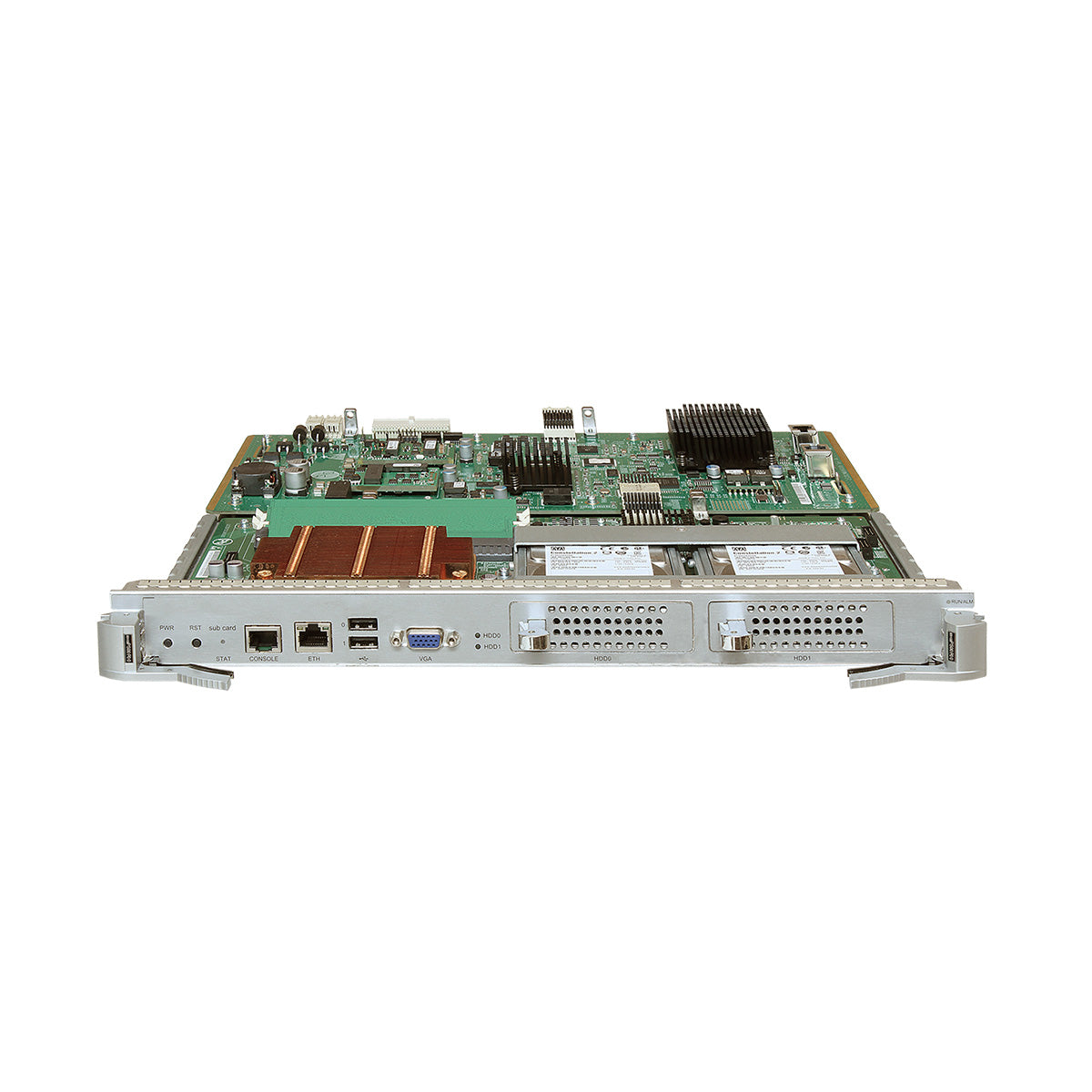

HuaweiHuawei ES1D2PS00P00 Open Service Platform Unit
ES1D2PS00P00-1
LE0D0VAMPA00-1

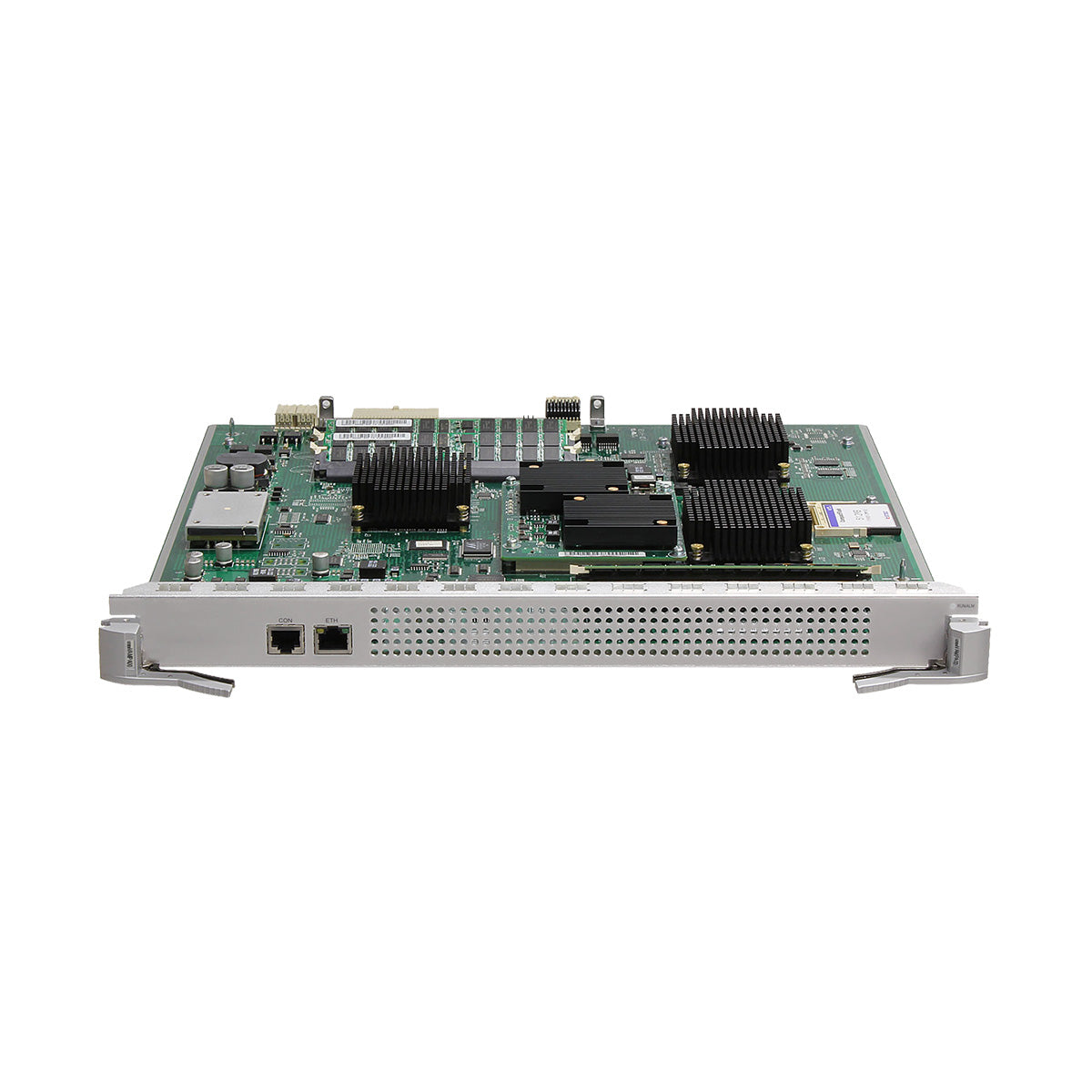

HuaweiHuawei LE0D0VAMPA00 Value-Added Service Unit
EH1D2PS00P00-1
$0.00
$0.00

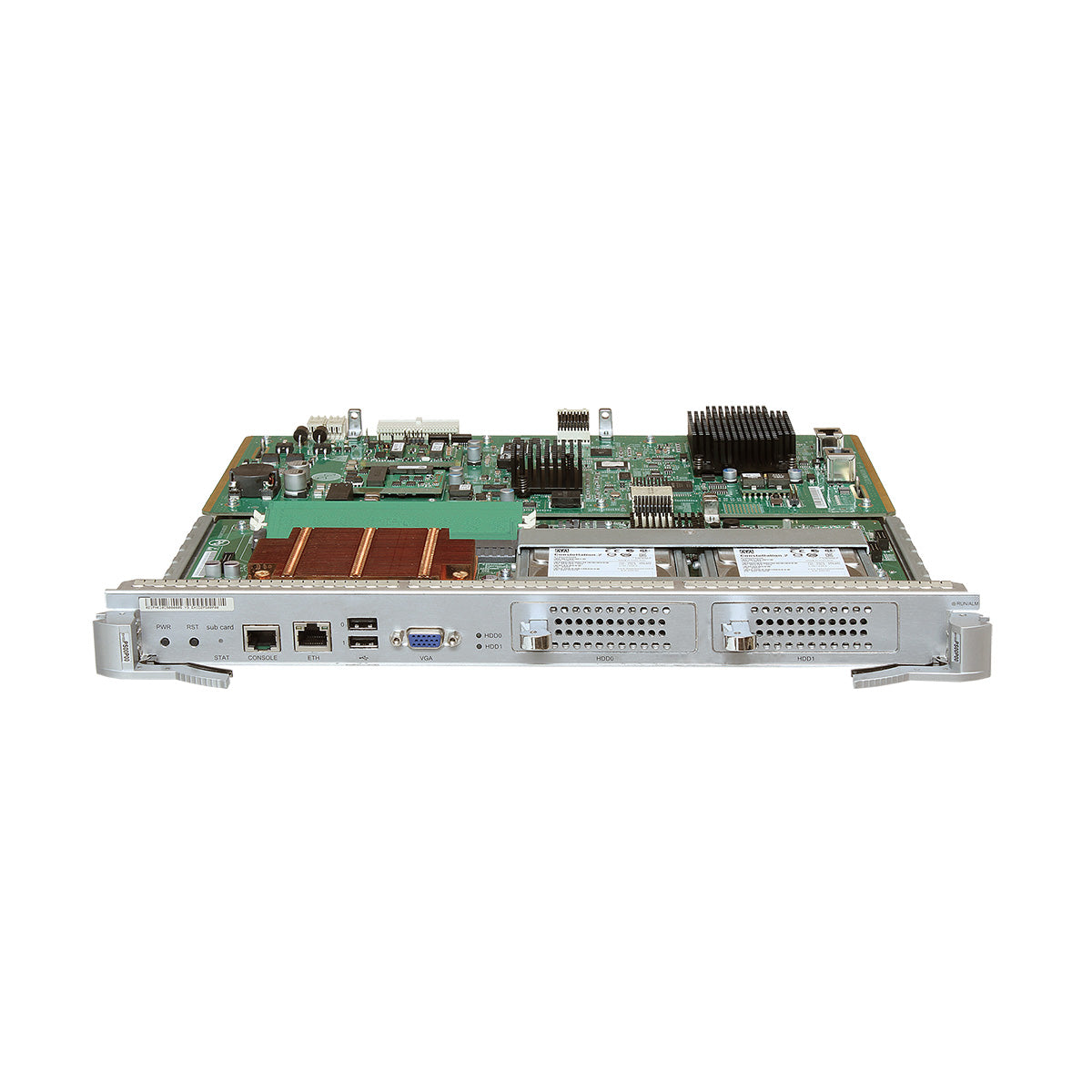

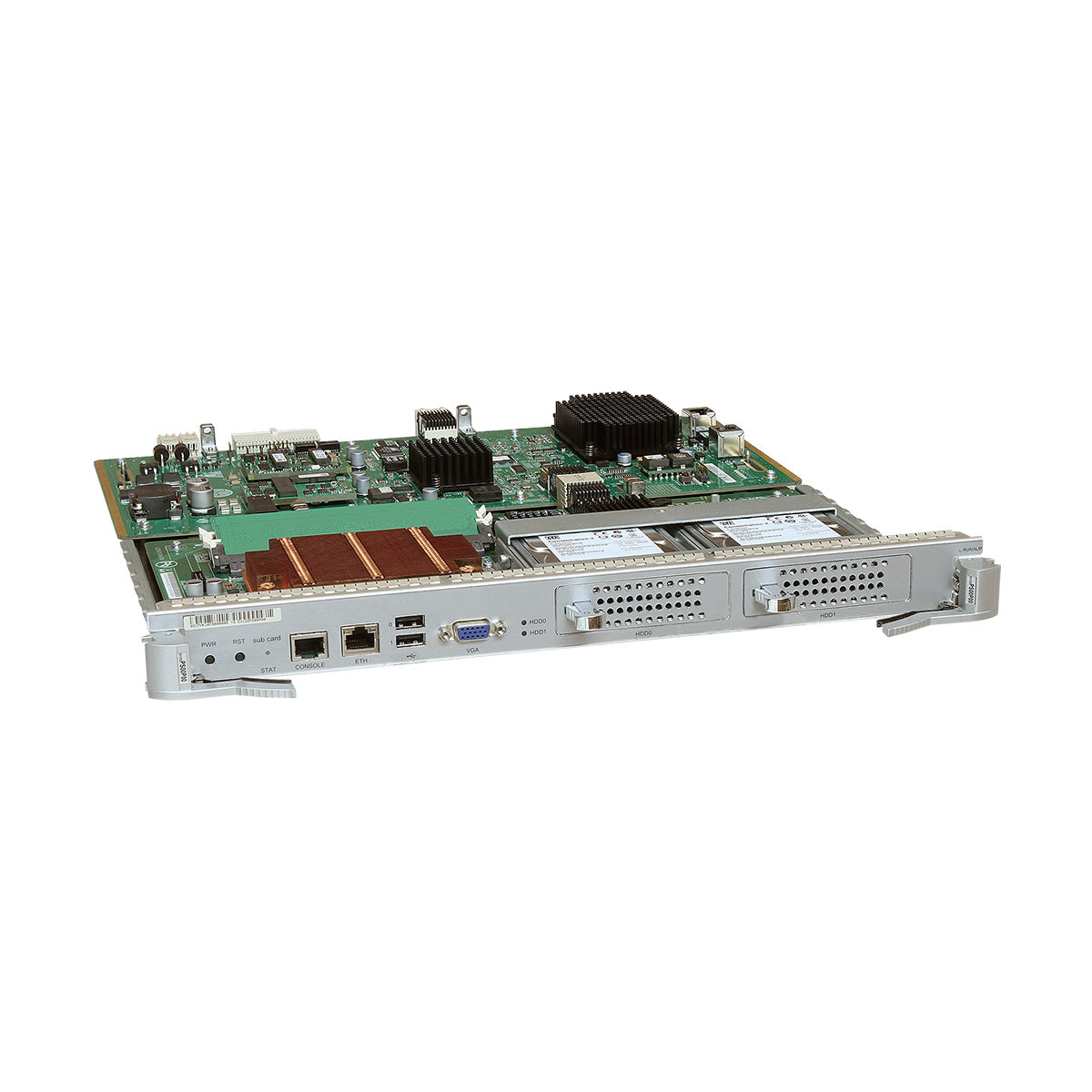

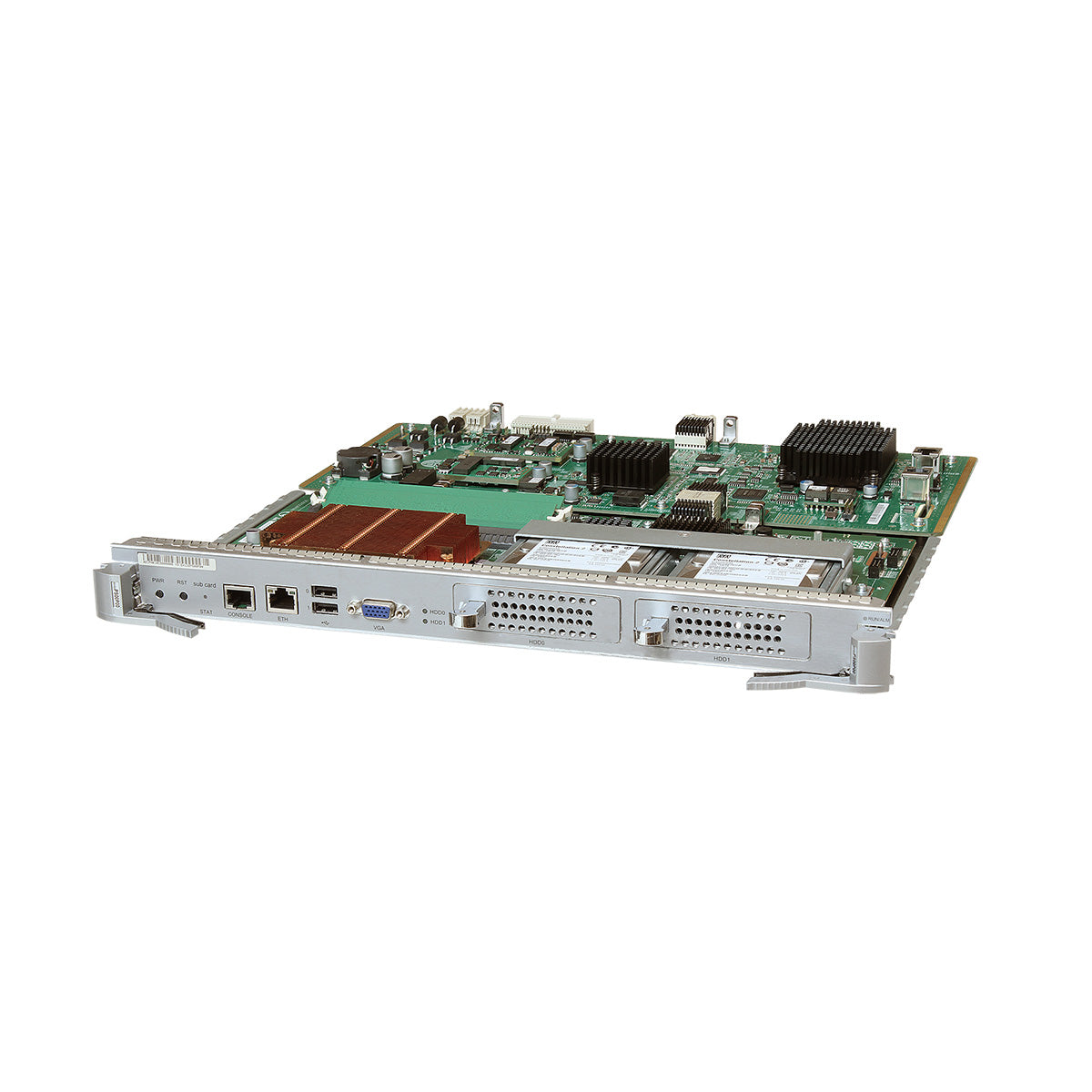

EH1D2PS00P00 Hardware Description

Introduction

The EH1D2PS00P00 can be installed in:

Functions

In addition to processing and forwarding service data, the EH1D2PS00P00 can also provide certain functions using specific operating system and application software.

The EH1D2PS00P00 supports intrusion prevention system (IPS) software.

The IPS software provides the following security functions:

  • Detects attacks based on a signature database. The IPS software can identify attacks that target vulnerabilities of commonly used applications (such as Microsoft Office) and operating systems (such as Microsoft Windows), and abnormalities of these applications and operating systems.
  • Identifies behaviors that violate RFC standards through application identification, protocol decoding, and state detection, and prevents applications that may use vulnerabilities of protocols to initiate attacks from running.
  • Detects attacks to HTTPS traffic and takes measures to protect the traffic.
  • Automatically updates and updating the signature database to defend against vulnerabilities of applications and operating systems in advance.
  • Supports periodic and emergent update of the signature database and allows users to add customized signatures.
  • Implements highly precise intrusion prevention using the default security policy and provides the bypass function.

The IPS software also provides comprehensive management functions:

  • Fine-grained rights management: The IPS manages user rights based on different user levels, including monitoring level, configuration level, and management level.
  • System management based on the web system, command line interface (CLI), and simple network management protocol (SNMP).
  • Reports on logs and alarms: The IPS uses log analysis software to collect and analyze logs and alarms accurately, and provides various reports on the logs and alarms. Users can customize reports.
Functions of the EH1D2PS00P00 running application software

Function

Description

Application software

IPS and other application software

CPU

Intel Core processor, 2.1 GHz, 4 cores, 6 MB cache

Memory
  • DDR3-1066/1333 MT/s
  • Standard configuration: two 2 GB memory cards (total capacity of 4 GB)
  • Maximum configuration: two 8 GB memory cards (total capacity of 16 GB)

Built-in flash memory

8 GB

Hard disk
  • Provides two 2.5-inch 500 GB enterprise Serial Advanced Technology Attachment (SATA) hard disks.
  • Supports RAID 0 and RAID 1.
  • Supports hot swapping.
NOTICE:

Huawei-certified hard disks are required. Reliability of non-Huawei-certified hard disks cannot be ensured. Huawei is not responsible for any problems caused by non-Huawei-certified hard disks and will not fix such problems.

Hard disks provided by Huawei are certified.

Service port

Two 10GE ports

NOTE:
  • The two ports are not on the card panel.

  • You can run the interface interface-type interface-number command to enter the view of the two service ports. The interface-type indicates the interface type and the interface-number indicates the interface number that is 0 or 1.

Management port

  • One VGA port supports:

    • Hot swapping
    • Standard DB15 socket

  • Two USB ports support:

    • Hot swapping
    • USB 2.0 High-Speed
    • USB Specification Rev.2.0
  • One serial port: UART port
  • One GE port: 10M/100M/1000M auto-sensing, RJ45 connector. The port enters sleeping state when no link is established.

Energy-saving
  • Dynamic voltage and frequency scaling for CPU
  • Sleeping of idle ports
  • Card power detection

Functions of the EH1D2PS00P00 for service data processing and forwarding

Function

Description

Basic function

Service data processing and forwarding

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Hot swapping

The EH1D2PS00P00 is hot swappable.

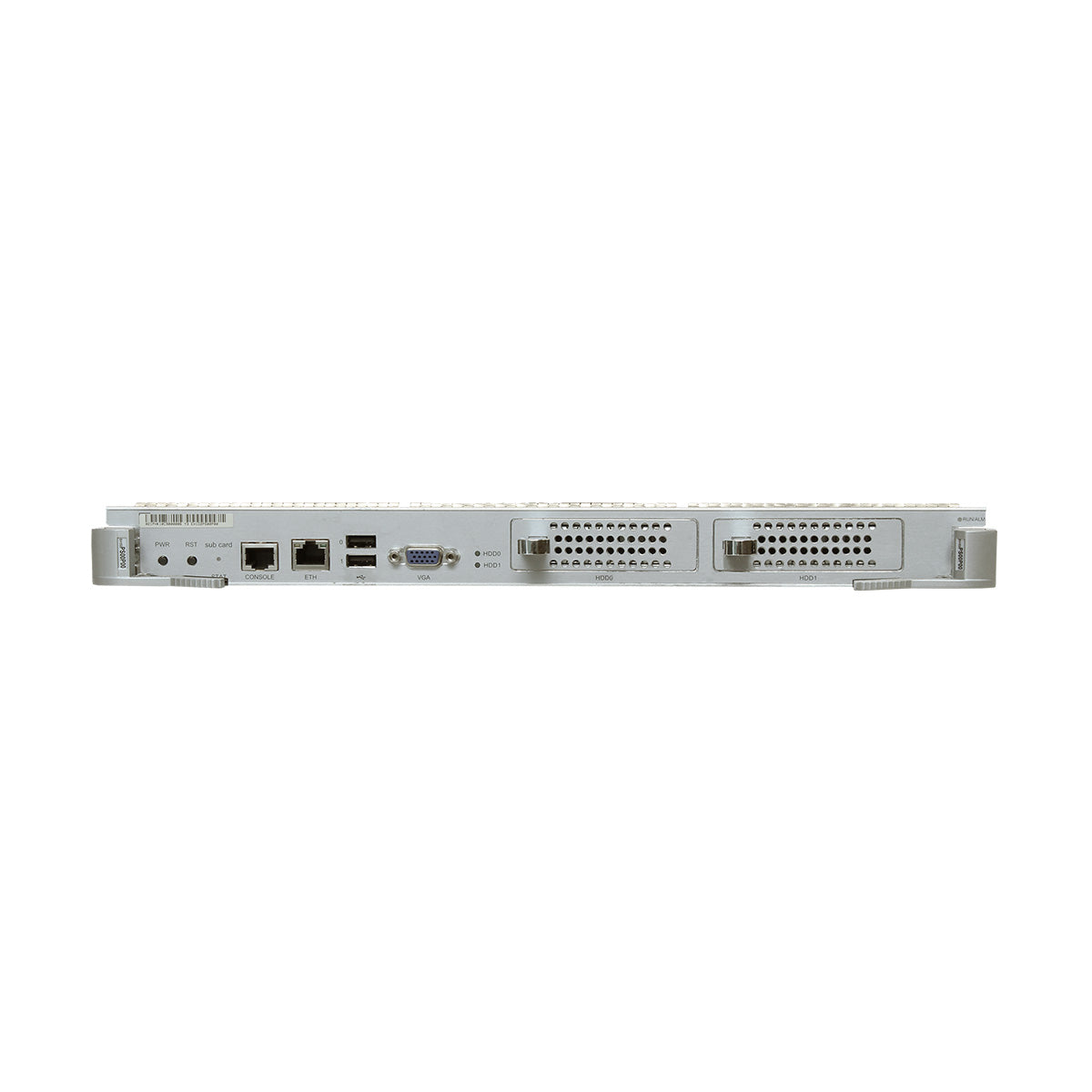

Ports on the EH1D2PS00P00 panel

1

One console management port. A configuration terminal can connect to this port to implement onsite configuration.

2

One ETH management port (10M/100M/1000M BASE-T auto-sensing). A configuration terminal or network management workstation can connect to this port to set up a local or remote configuration environment.

3

Two USB ports. Peripherals such as a USB mouse or keyboard can connect to USB ports.

4

One VGA port. A monitor can connect to this port.

5

Two hard disk slots.

ETH management port

A switch can connect to a configuration terminal or network management workstation through the ETH management port for onsite or remote configuration.

ETH management port attributes

Attribute

Description

Connector type

RJ45

Standards compliance

IEEE802.3

Working mode

10/100/1000 Mbit/s auto-sensing

Full-duplex

Maximum transmission distance

100 m

Console management port

A configuration terminal or network management workstation connects to the console management port for onsite configuration.

Console management port attributes

Attribute

Description

Connector type

RJ45

Working mode

Duplex Universal Asynchronous Receiver/Transmitter (UART)

Standards compliance

RS232

Baud rate

9600 bit/s to 115200 bit/s

Default value: 9600 bit/s

 Specifications of the EH1D2PS00P00

Item

Description

Physical specifications
  • Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.)
  • Weight: 5.50 kg (12.13 lb)
  • Maximum power consumption: 137.5 W
