LSS7G48TX6E0 Hardware Description
Introduction

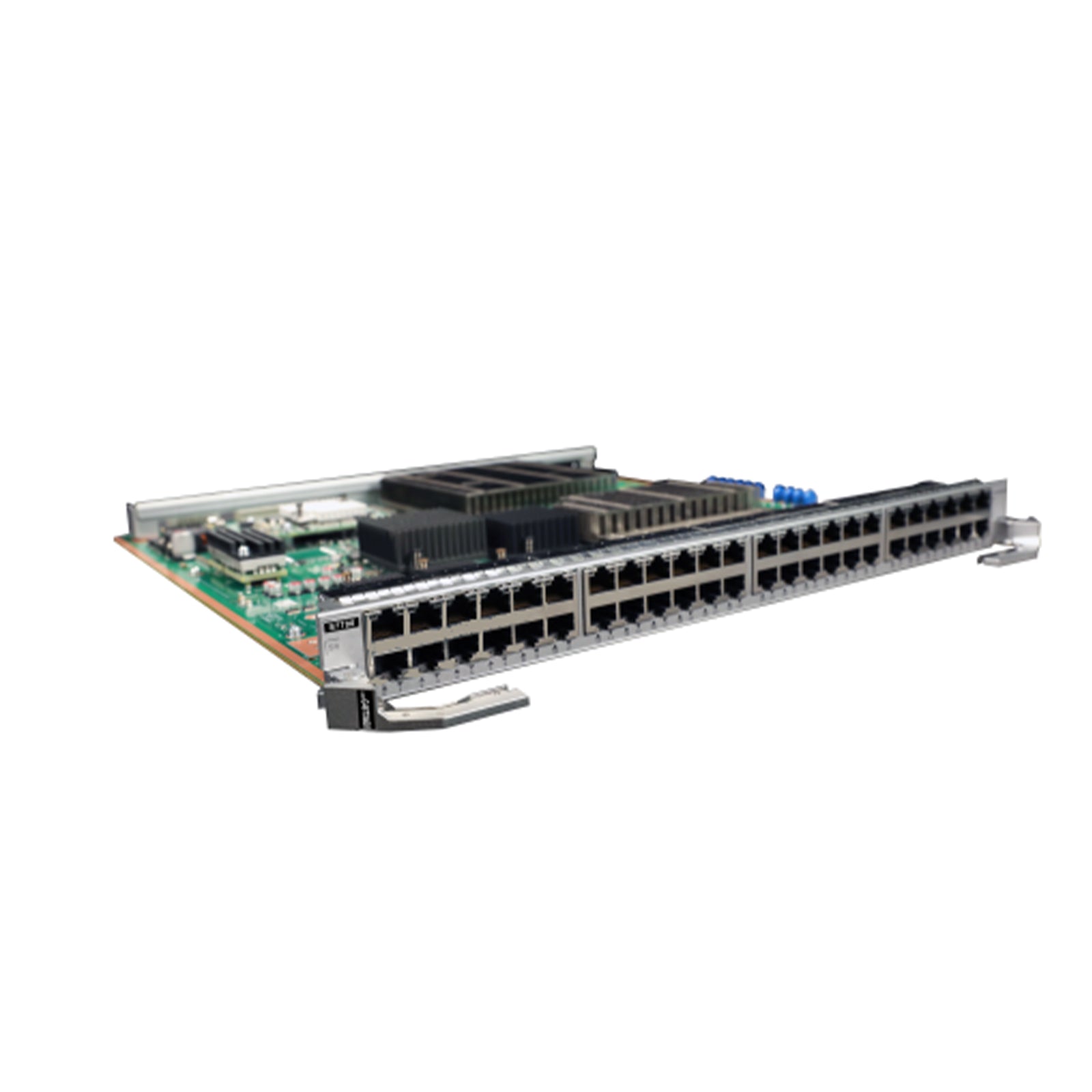

This card is Huawei S7700 switch 48-port 100/1000BASE-T interface card (X6E,RJ45).
Ports on the LSS7G48TX6E0
Port | Connector Type | Description | Available Components |
---|---|---|---|
100/1000BASE-T electrical port | RJ45 |
A 100/1000BASE-T electrical port sends and receives service data at 100/1000 Mbit/s. In V200R022C10 and later versions, the rate of the first 24 100/1000BASE-T electrical ports can be automatically reduced to 10 Mbit/s. |
Ethernet cable |
Functions and features of the LSS7G48TX6E0
Functions and Features | Description |
---|---|
Basic function | The card provides forty-eight 100/1000BASE-T ports for data transmission and switching. |
Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
Hot swapping | Supported |
Technical specifications of the LSS7G48TX6E0
Item | Specification |
---|---|
Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
Dimensions with packaging (H x W x D) [mm(in.)] | 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.) |
Weight without packaging [kg(lb)] | 3.70 kg (8.16 lb) |
Weight with packaging [kg(lb)] | 5.75 kg (12.68 lb) |
Typical power consumption [W] | 140 W |
Typical heat dissipation [BTU/hour] | 477.69 BTU/hour |
Maximum power consumption [W] | 144 W |
Maximum heat dissipation [BTU/hour] | 491.34 BTU/hour |
Memory | 1 GB |
