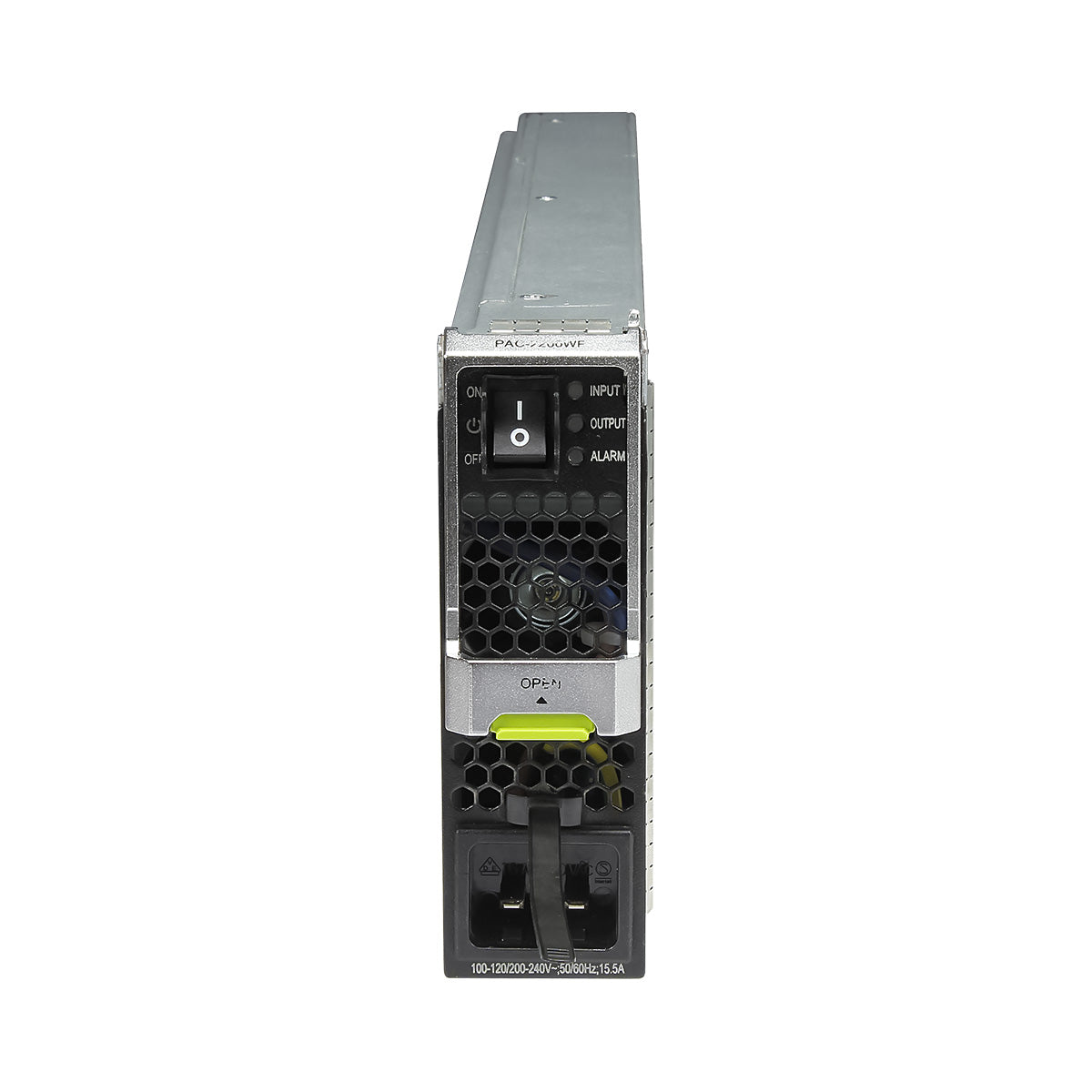

HuaweiHuawei PAC-2200WF Power Module
PAC-2200WF-1
W2PSA0800-1
HuaweiHuawei W2PSA0800 Power Module

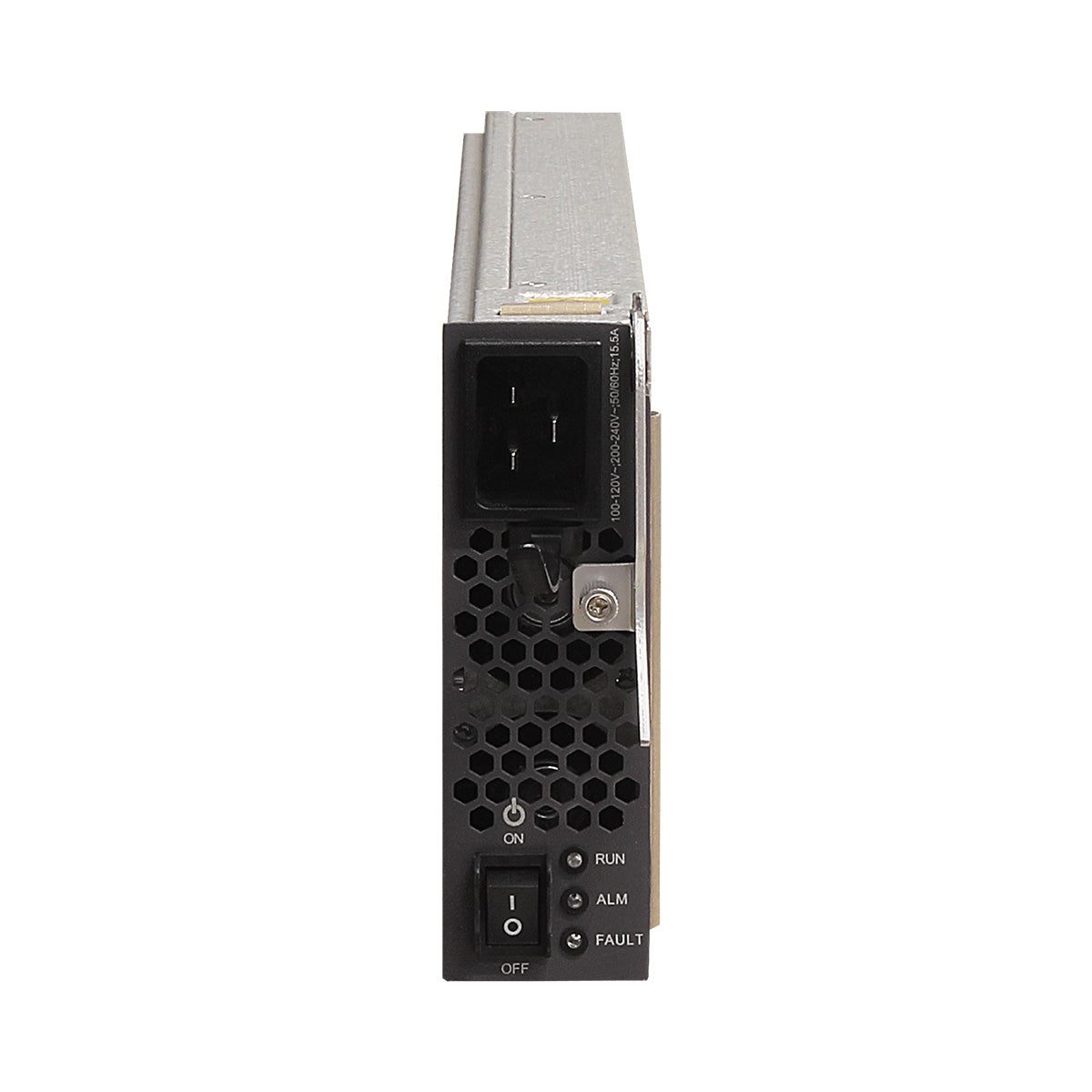

W2PSA2230-1
$0.00
$0.00

W2PSA2230 Hardware Description

Introduction

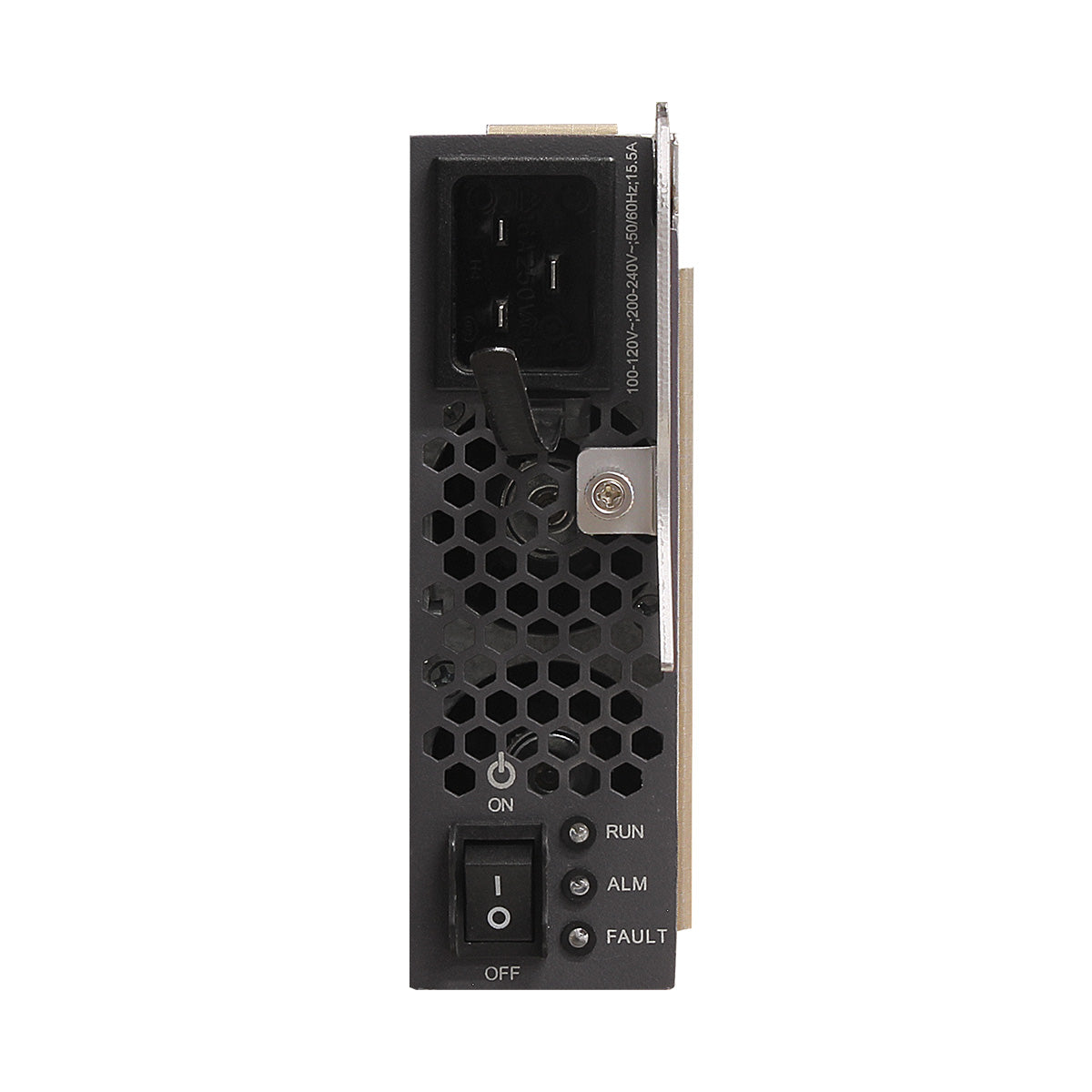

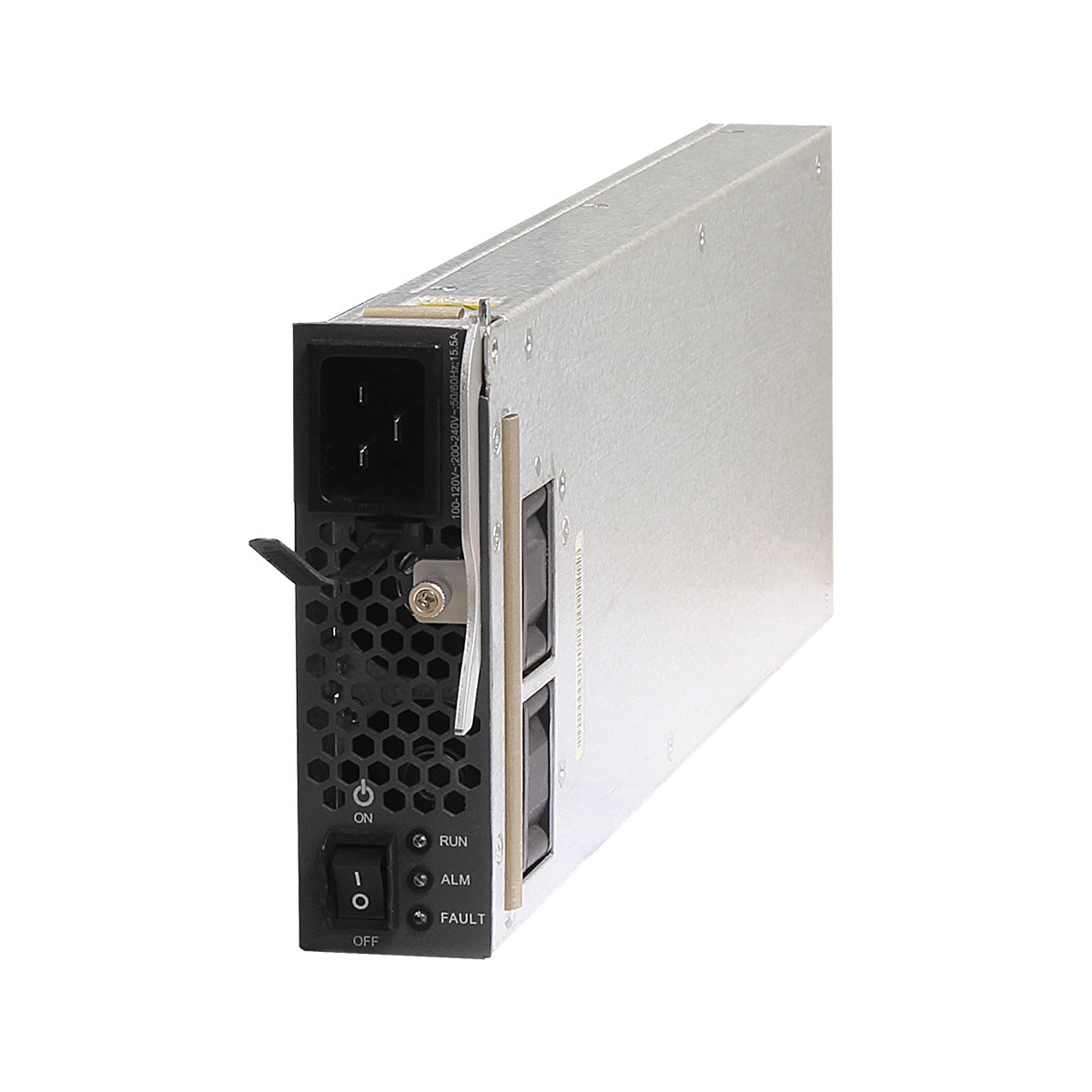

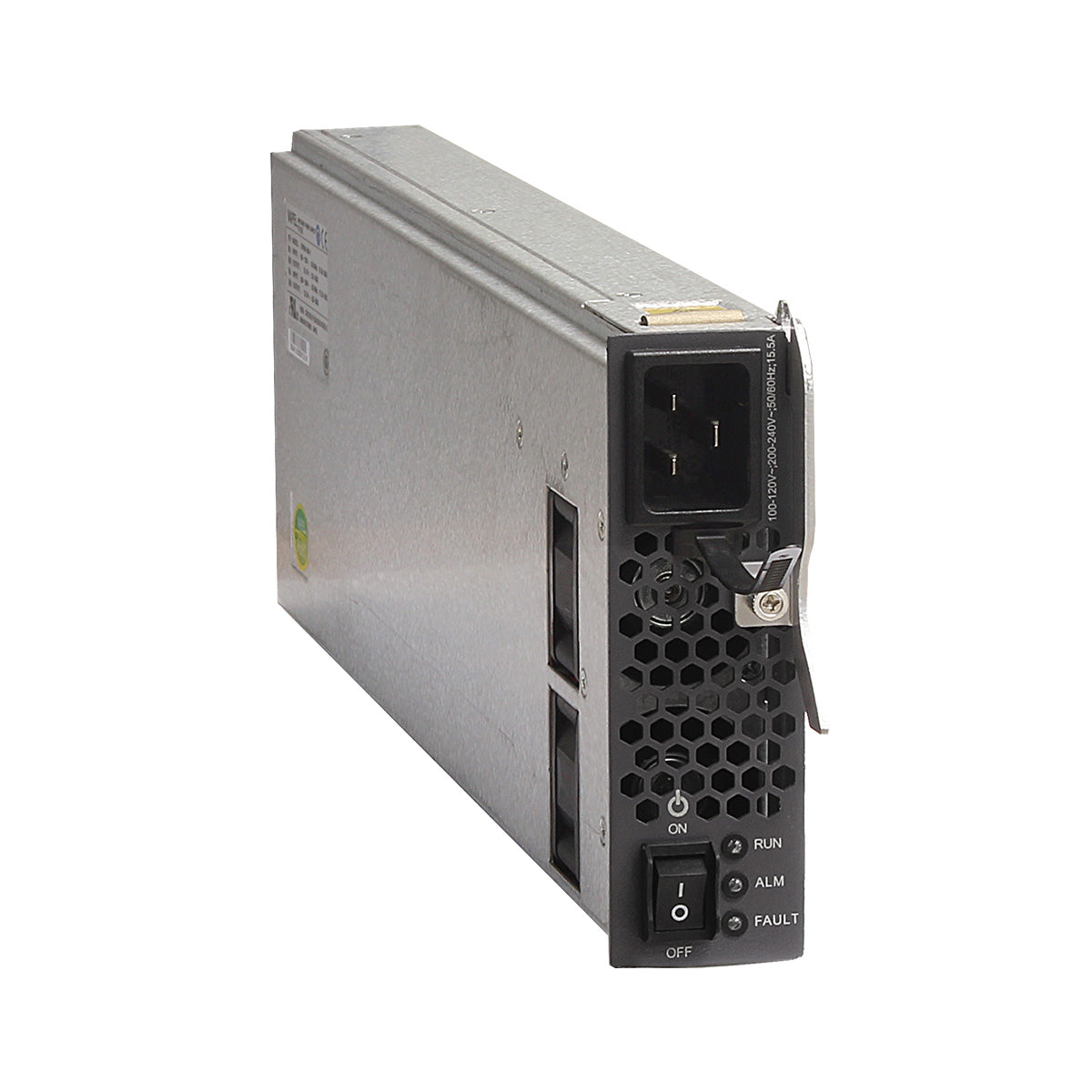

Huawei W2PSA2230 2200 W AC Power Module, can be installed in card slot on S7703, S7706, S7712 switch.

Functions and Features

Function

Description

Input protection

Input undervoltage protection

In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.

Input overcurrent protection

In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.

Output protection

Output overvoltage protection

In this protection state:

  • If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again.
  • If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.

Output overcurrent protection

In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.

Output short-circuit protection

In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.

Overtemperature protection

When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.

Hot swapping

The power module is hot swappable.

Technical specifications
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] 130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight without packaging [kg(lb)] < 2.5 kg
Number of inputs 1
Rated input voltage [V] 220 V AC/110 V AC; 50/60 Hz
Input voltage range [V] 90 V AC to 290 V AC; 47 Hz to 63 Hz
Maximum input current [A] 15.5 A
Rated output voltage [V] 53.5 V DC
Rated output current [A] 42 A (220 V AC input)/21 A (110 V AC input)
Rated output power [W] 2200 W (220 V AC input)/1100 W (110 V AC input)
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported
