Huawei S9312E Switch
Couldn't load pickup availability
S9312E Introduction
Huawei S9300 Series Switch S9312E 2* SRUs, 12* LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode
The S9312E chassis is 15 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 663.9 mm x 442 mm x 585 mm.

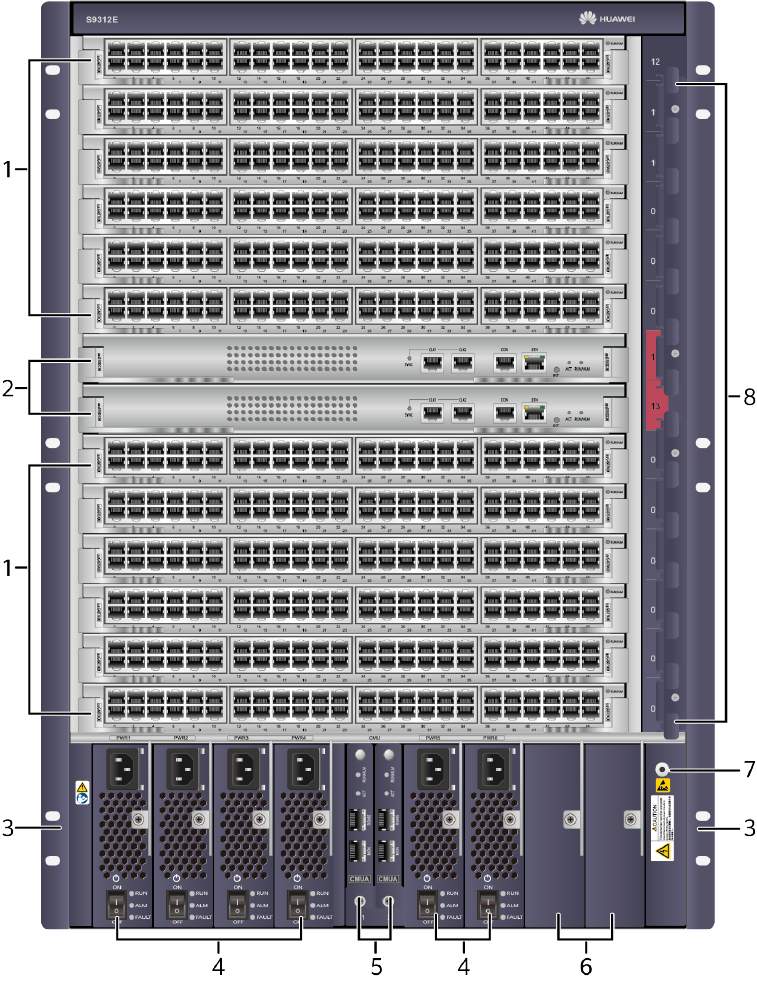

Apperance of the S9312E
|
1. Twelve of the following service cards can be installed:
|
2. Two MPUs |
3. A pair of mounting brackets NOTE:
The mounting brackets are used to secure the chassis in the cabinet. |
|
4. Six power modules |
5. Two LE0DCMUA0000-Centralized Monitoring Unit |
6. Reserved slot NOTE:
Install a filler panel in the reserved slot. |
|
7. Front ESD jack NOTE:
The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded. |
8. Cable management frames NOTE:
Cable management frames are used to route cables. |
- |
S9312E slot configuration
|
Slot Type |
Slot ID |
Module Supported |
Remarks |
|---|---|---|---|
|
MPU slot |
SLOT13 and SLOT14 |
MPUs |
The SRUs work in active/standby mode. |
|
LPU slot |
SLOT01 to SLOT12 |
|
NOTE:
The cards supported by a switch depend on the software version. For details, see Info-Finder. |
|
Power slot |
PWR1 to PWR6 |
power modules |
- |
|
CMU slot |
CMU1 and CMU2 |
LE0DCMUA0000 |
The CMUs work in active/standby mode. |
|
Fan module slot |
FAN1 to FAN4 |
Fan Module |
- |
Technical specifications of the S9312E
|
Item |
Description |
|---|---|
|
LPU slots |
12 |
|
MCU slots |
2 |
|
Fan slots |
4 |
|
Power slots |
6 |
|
Maximum port density |
|
|
Installation |
In an N66E or N68E cabinet, one cabinet for one chassis |
|
CSS |
Service port clustering |
|
Maximum power consumption (fully configured) NOTE:
The heat dissipation value of a chassis equals the current power consumption of the chassis. |
4906 W |
|
Power specifications |
|
|
Dimensions (W x D x H, without rack-mounting brackets) |
|
|
Weight (empty/fully configured) |
37 kg/116 kg (81.6 lb/255.7 lb) |
|
Reliability and availability |
NOTE:
The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product. |
|
Environment specifications |
|
|
Noise at normal temperature (acoustic power) |
≤ 72 dB(A) |
|
Certification |
|
|
Part number |
02113479 |
