Huawei EPS30-4815AF-30A Power Converter

$0.00
$0.00
Availability: In stock
SKU: 02102316-1
Tags:
Collections:
HuaweiHuawei ETP4830-A1 (R4815N) Power Converter
ETP4830-A1-1
EPS30-4815AF-15A-1
HuaweiHuawei EPS30-4815AF-15A Power Converter
EPS30-4815AF-30A-1
$0.00
$0.00
EPS30-4815AF-30A Hardware Description
Introduction

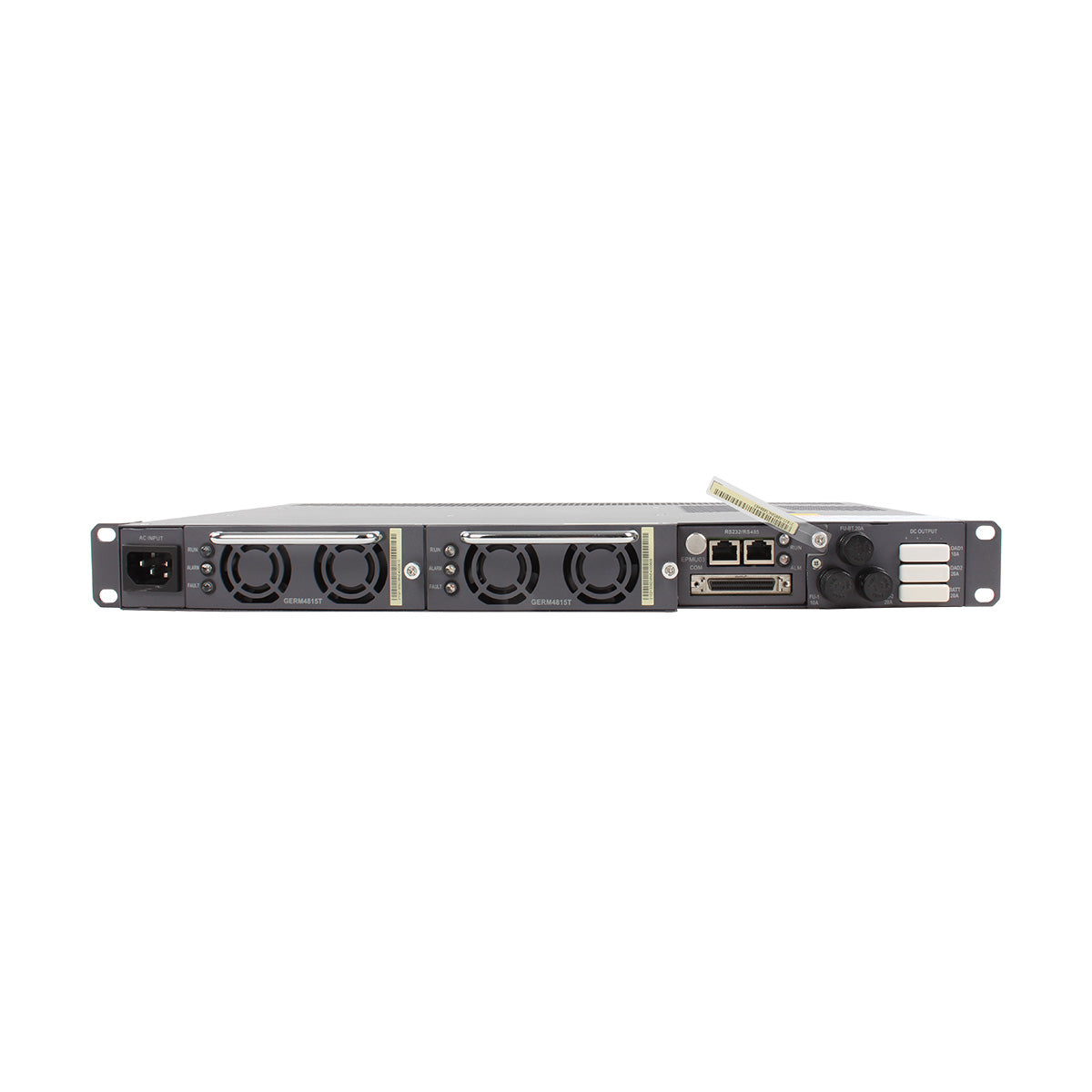

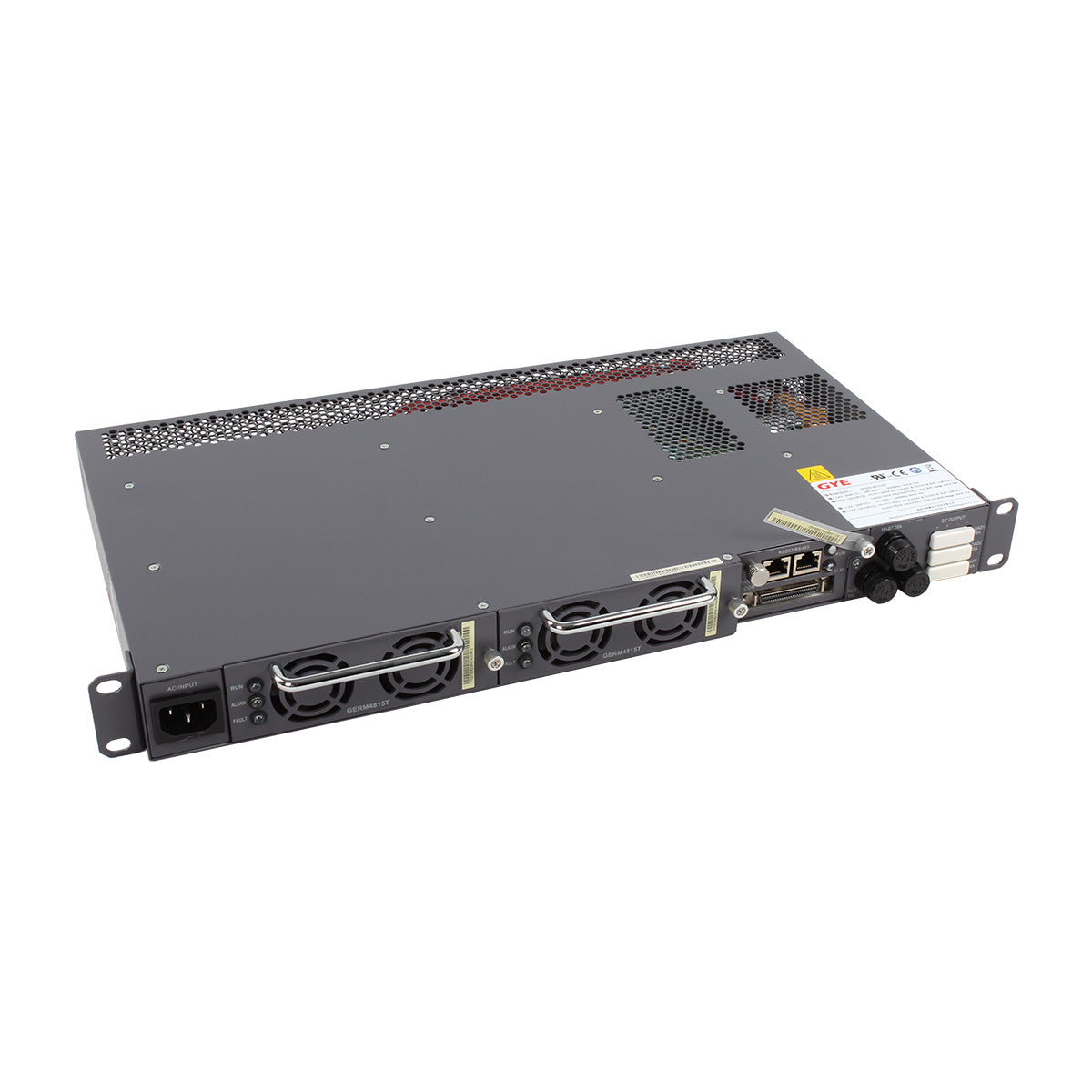

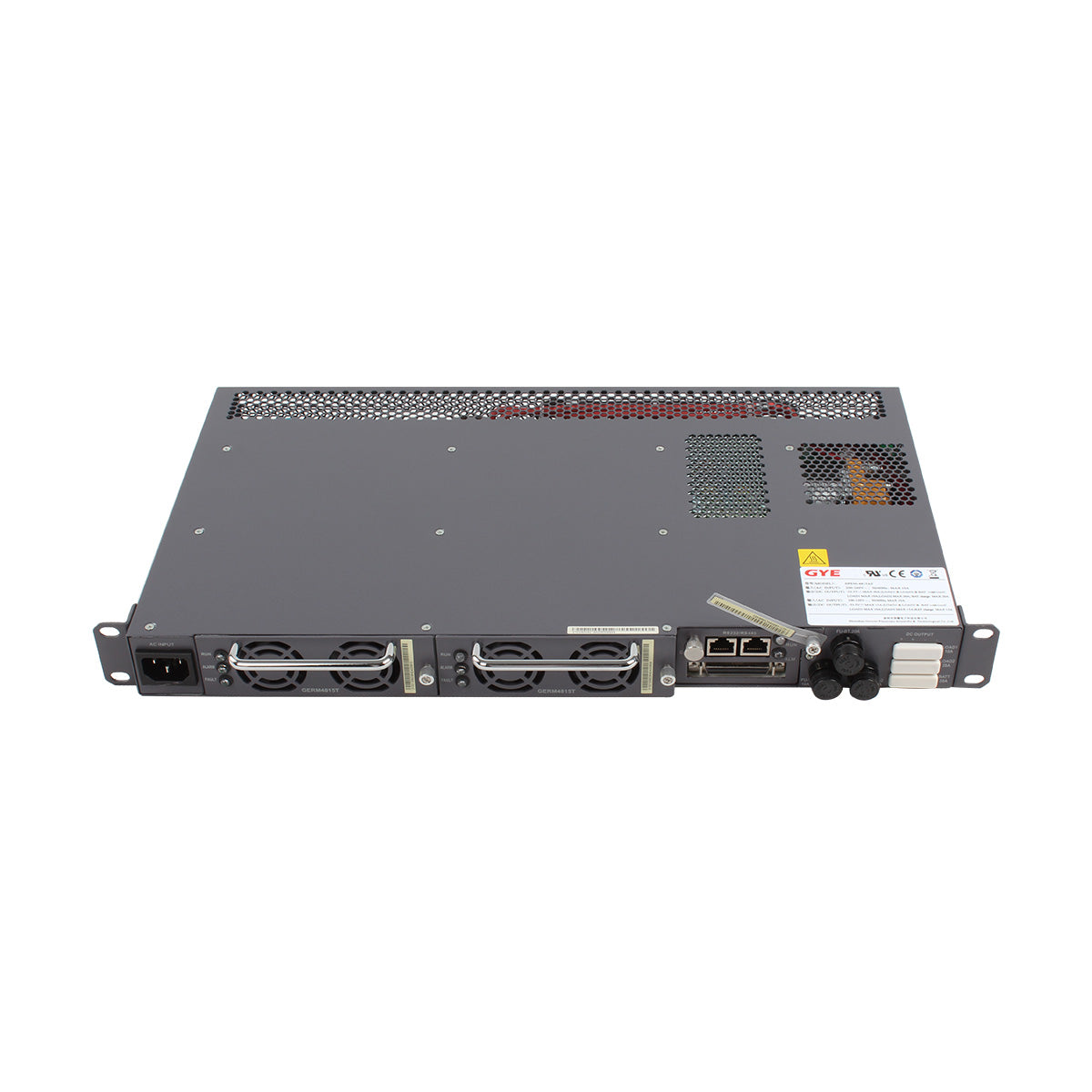

Huawei EPS30-4815AF-30A power converter with 1xDCDU-05 1xPMU 2xPSU.

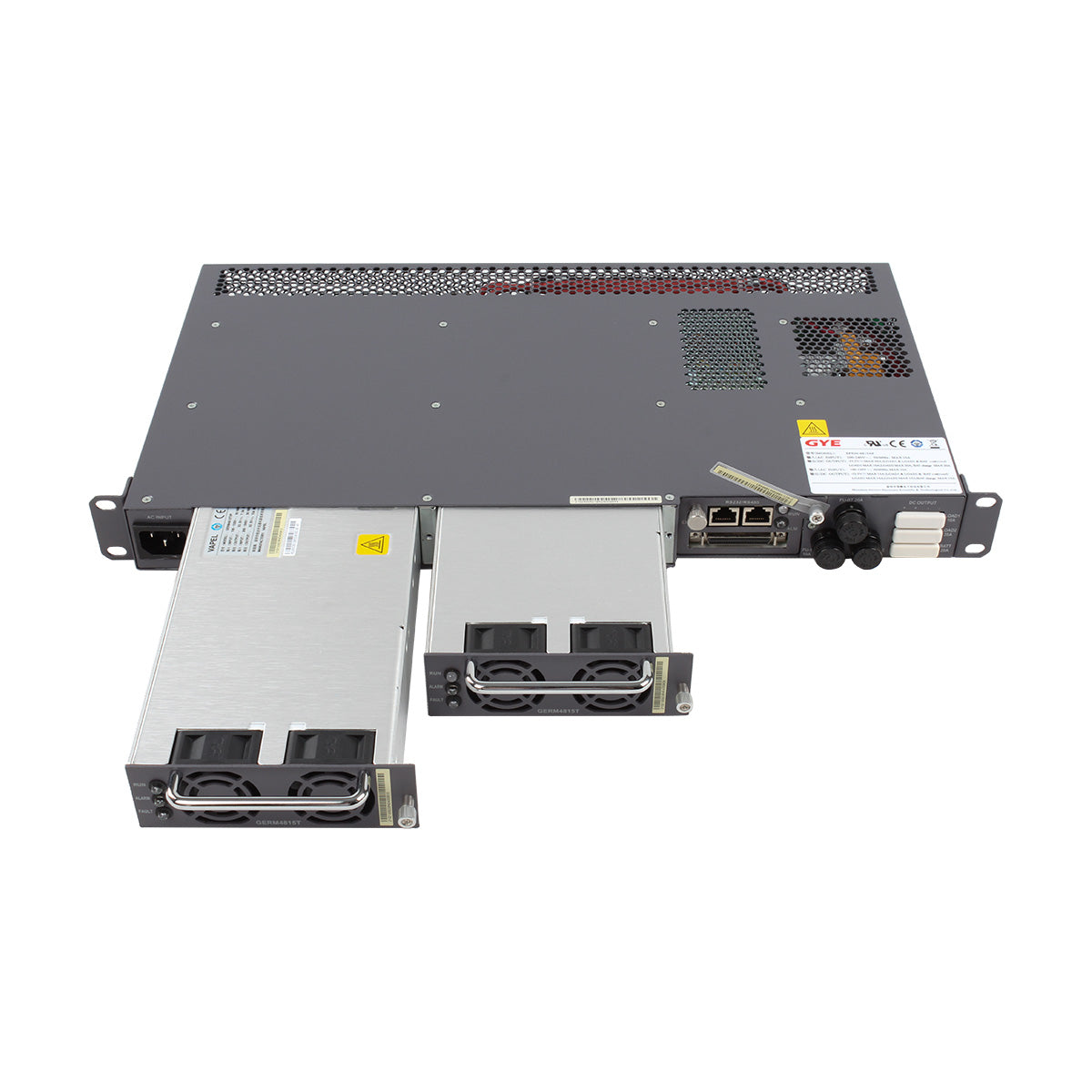

EPS30-4815AF-30A subrack composed by 1xDCDU-05, PMU(EPMU03), 2xPSU(GERM4815T), max output 30A

Maximum output power: 1600W

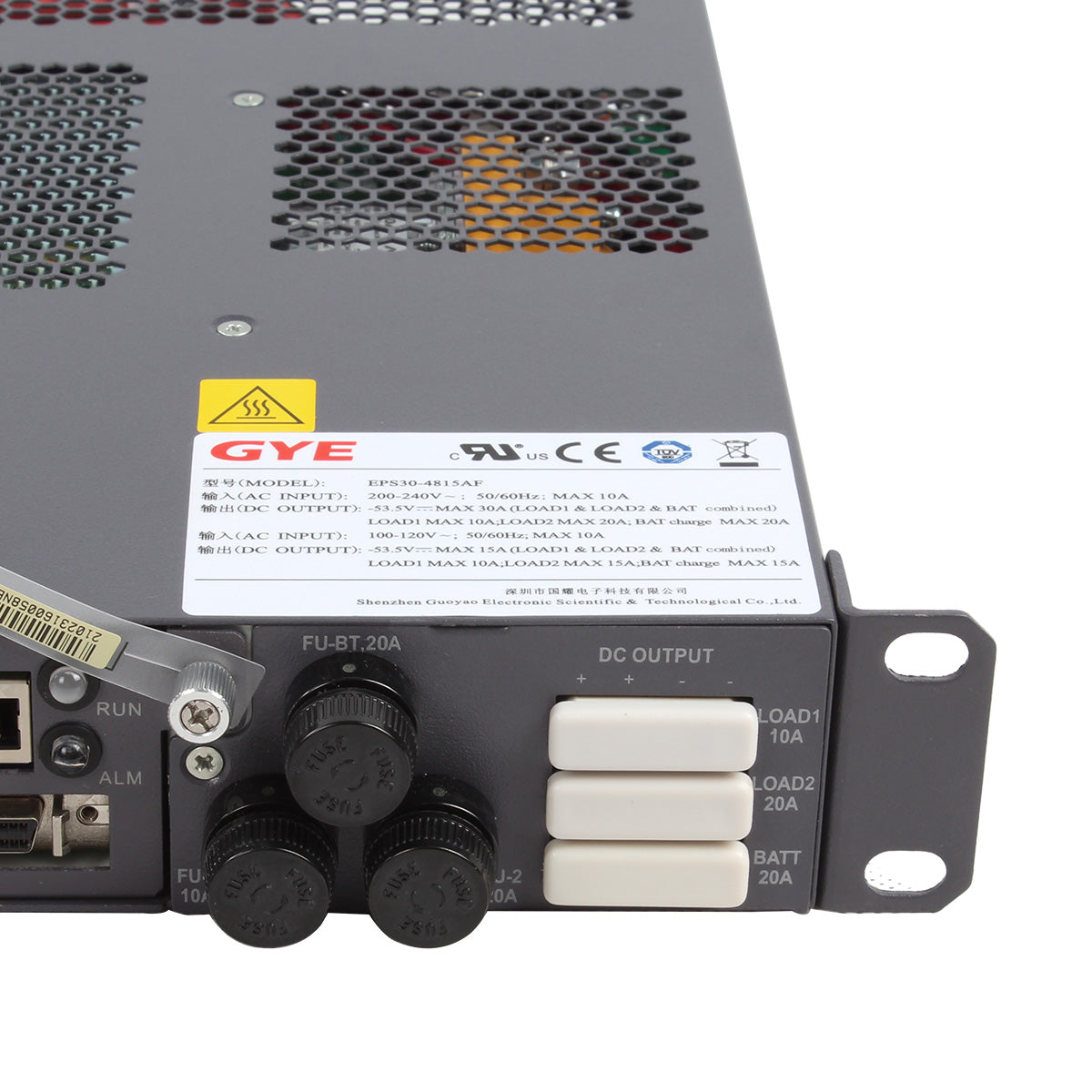

3 Power output port on EPS30-4815AF-30A subrack, Load1(10A), Load2(20A), BATT(20A)

Output power cable should connect via a XH2.54 connector

With battery port

Power supply typically to Huawei MA5683T, MA5680T

EPS30-4815AF-30A is a carrier-class AC/DC power converter, convert 220V/110V AC power to -48V DC power, MAX output 30A. EPS30-4815AF-30A have 3 output, 10A, 20A and BATT 20A. if combine output together can provide MAX 30A output.
EPS30-4815AF-30A Datasheet
Specification
Input voltage 220 V AC single-phase voltage range: 176 V AC to 290 V AC
110 V AC dual-live-wire voltage range: 90/180 V AC to 135/270 V AC
Input voltage frequency 45 Hz to 65 Hz
Output voltage Voltage range: -42 V DC to -58 V DC
Output current 15 A for the 220 V AC single-phase input power
7.5 A for the 110 V AC dual-live-wire input power
Maximum output power (W) 1600W
Surge protection capability 2 kV in differential mode
4 kV in common mode
