By Huawei

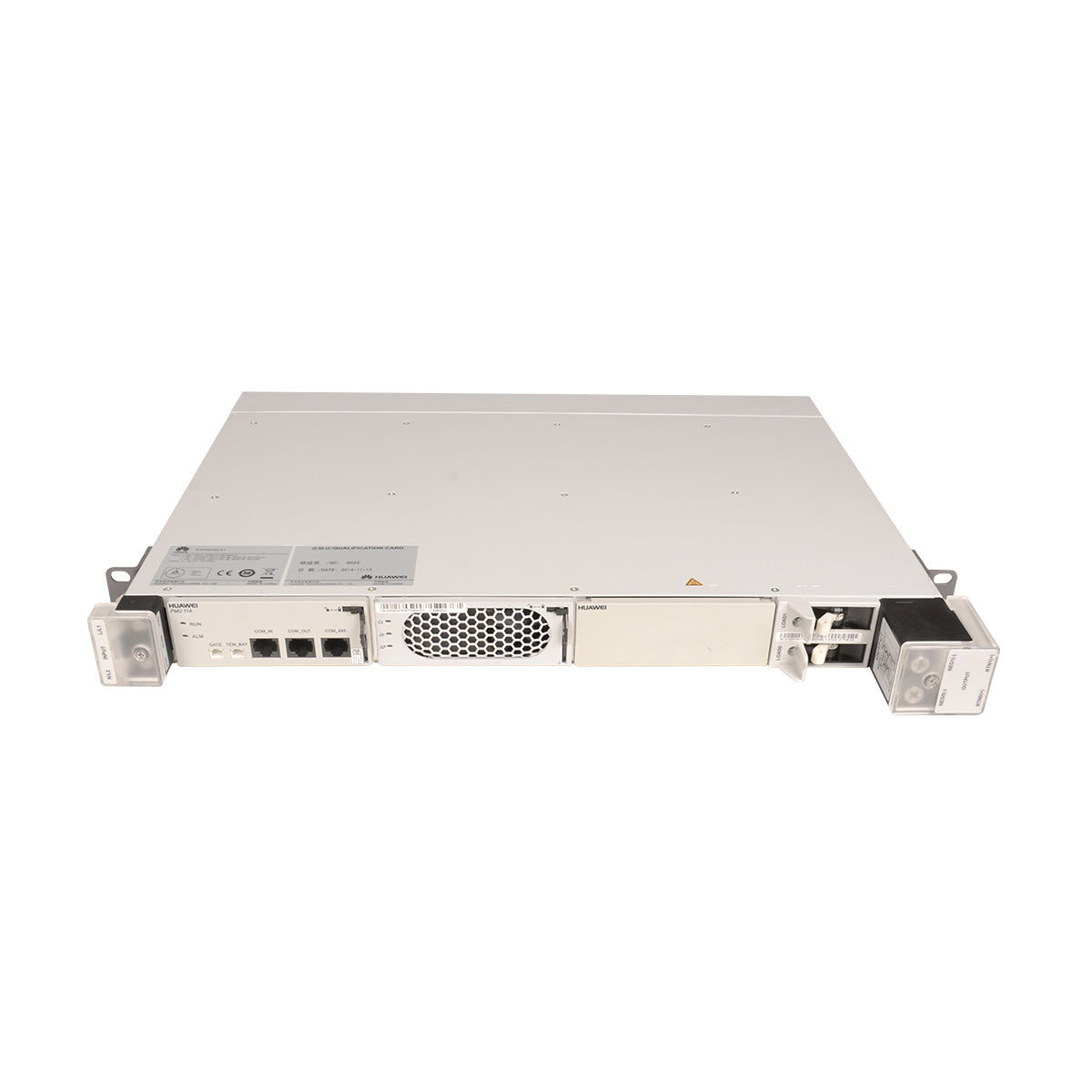

Huawei ETP23006-C1A1 Inverter

Regular price $0.00
Regular price Sale price $0.00
Availability: In stock
Regular price $0.00
Regular price Sale price $0.00
ETP23006-C1A1 Hardware Description
Introduction
Huawei ETP23006-C1A1 DC to AC Inverter.

ETP23006-C1A1, Huawei DC to AC Embedded Inverter

1U height

Supports N+l backup

MAX Supports 3*I23003G Inverter Module

MAX Supoorts 6kVA output capacity

Supports remote management

Hot swap and online replacement

Apply to Communication site with AC equipment

Huawei ETP23006-C1A1 is a DC to AC embedded power supply, converts DC power into 220V AC power to provide high performance and uninterrupted AC power supply for AC devices.
ETP23006-C1A1 Datasheet
Item ETP23006-C1A1 ETP23012-C2A1 ETP23018-C3A1
Dimensions (H x W x D) 43.6 mm x 442.6 mm x 330 mm 87.9 mm x 442.6 mm x 330 mm 132.1 mm x 442.6 mm x 330 mm
Weight < 5 kg < 10 kg < 16 kg
Cabling Routed in and out from the front Routed in and out from the front Routed in and out from the front
Rated output capacity I23002G1: 3 x 2000 VA/3 x 1600 W I23002G1: 6 x 2000 VA/6 x 1600 W I23002G1: 9 x 2000 VA/9 x 1600 W
I23003G1: I23003G1: I23003G1:
3 x 3000 VA/3 x 2400 W (52–58V DC) 6 x 3000 VA/6 x 2400 W (52–58V DC) 9 x 3000 VA/9 x 2400 W (52–58V DC)
3 x 2500 VA/3 x 2000 W (42–52V DC) 6 x 2500 VA/6 x 2000 W (42–52V DC) 9 x 2500 VA/9 x 2000 W (42–52V DC)
DC input Rated voltage 53.5 V DC 53.5 V DC 53.5 V DC
Rated current 120 A 2 x 120 A 3 x 120 A
AC output Output voltage 230 V AC±3% 230 V AC±3% 230 V AC±3%
Output frequency 50Hz±1% 50Hz±1% 50Hz±1%
Number of outputs One 63 A AC output (circuit breaker: 63 A/1P x 2) Two 63 A AC output (circuit breaker: 63 A/1P x 4) Three 63 A AC output (circuit breaker: 63 A/1P x 6)
