CE6875-48S4CQ-EI Hardware Description
Introduction

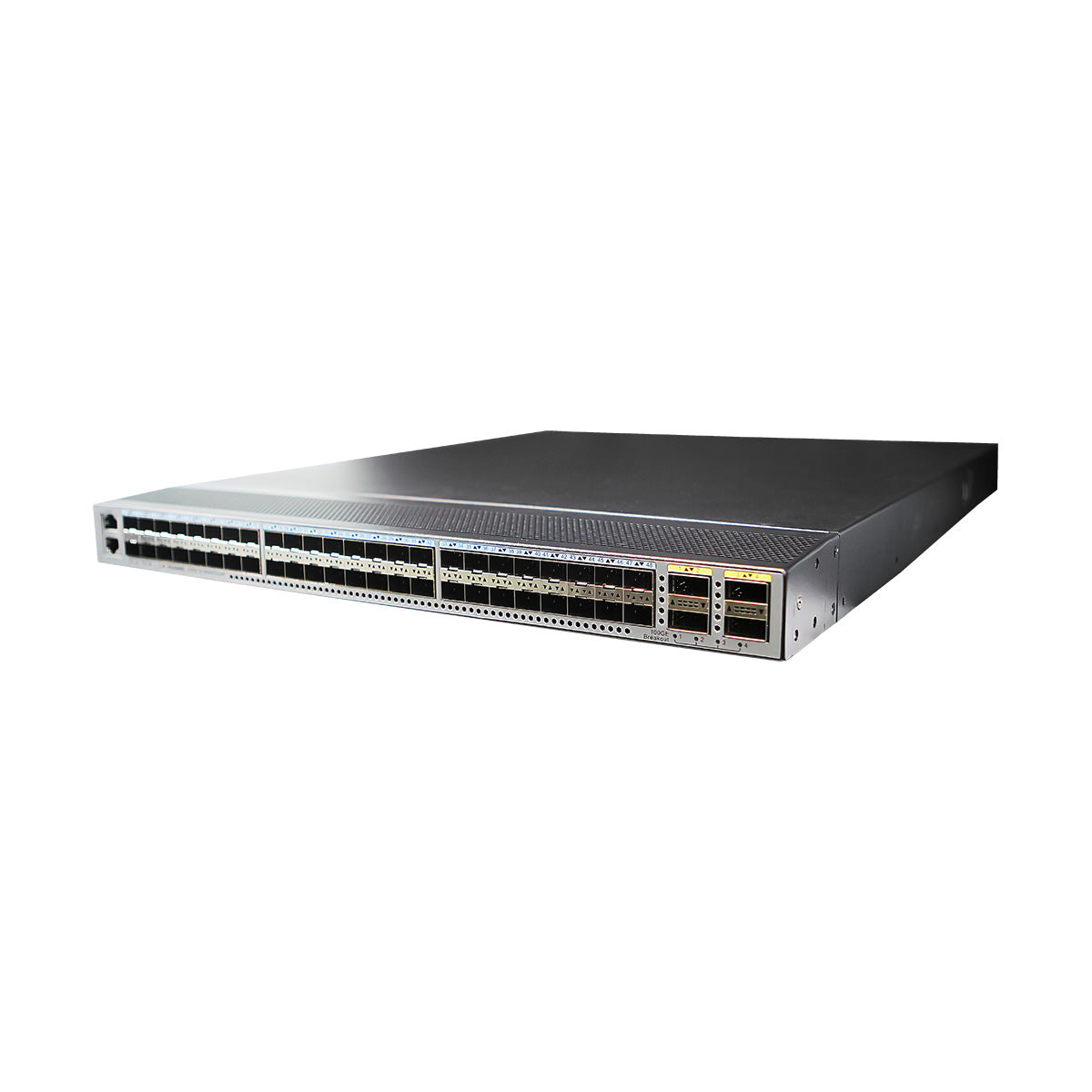

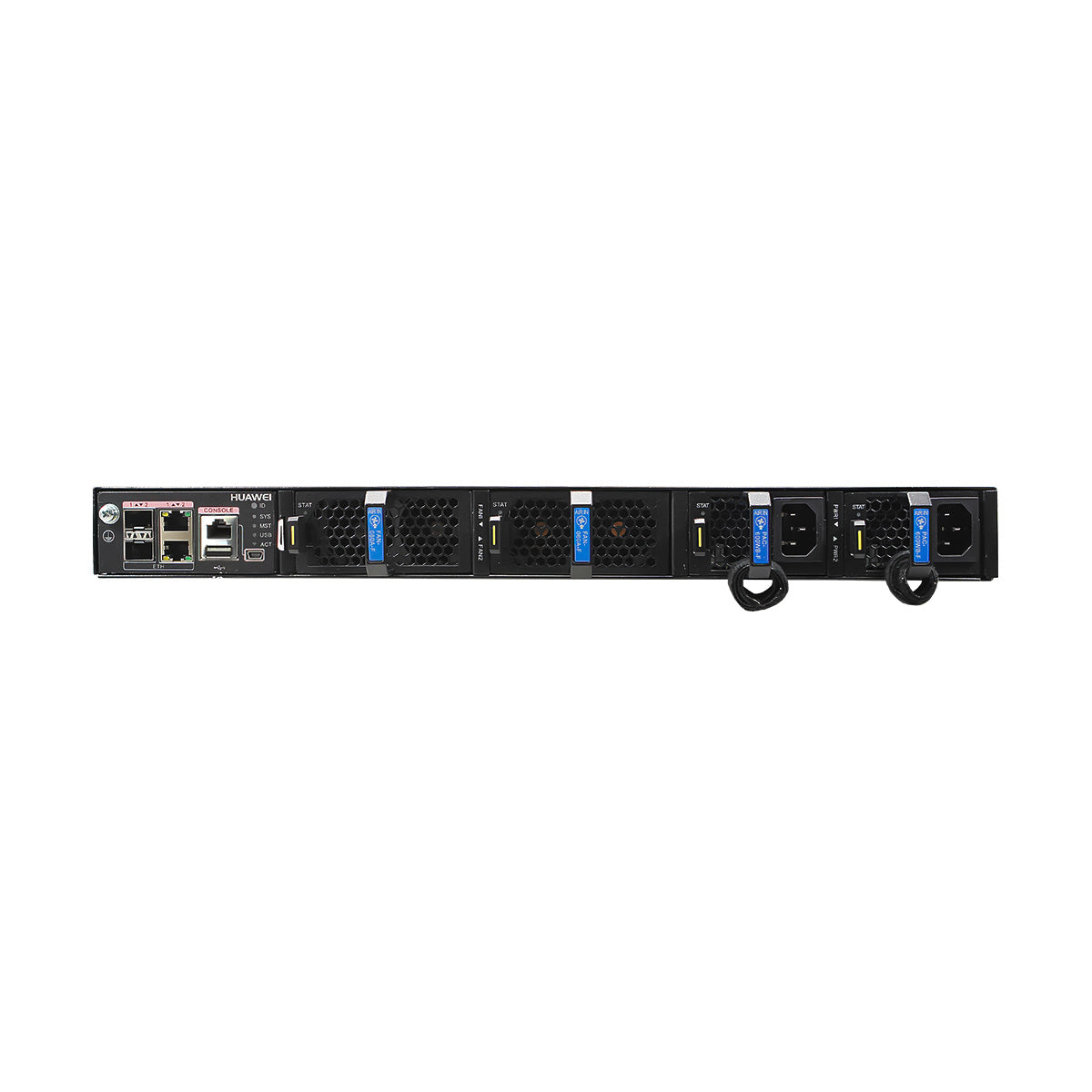

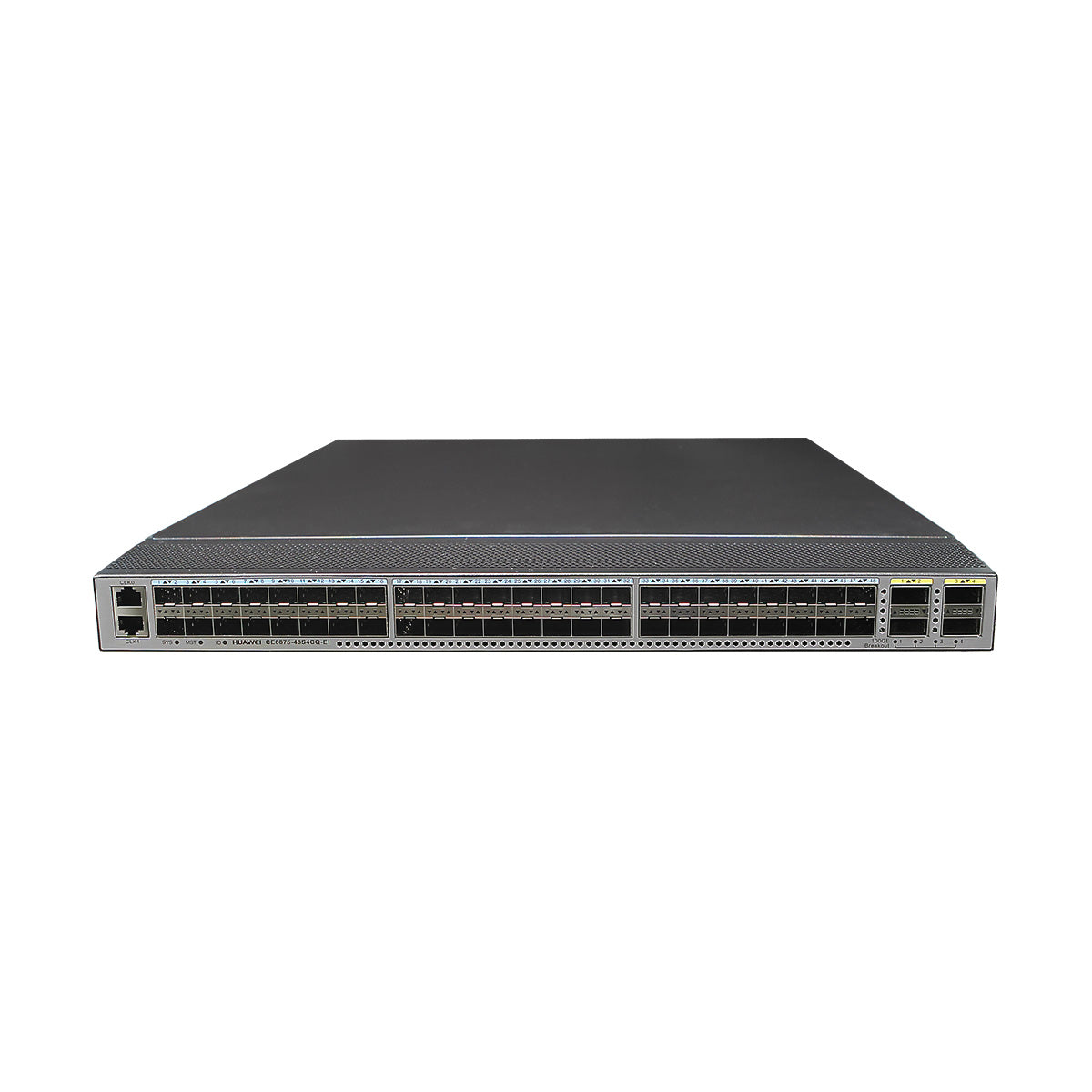

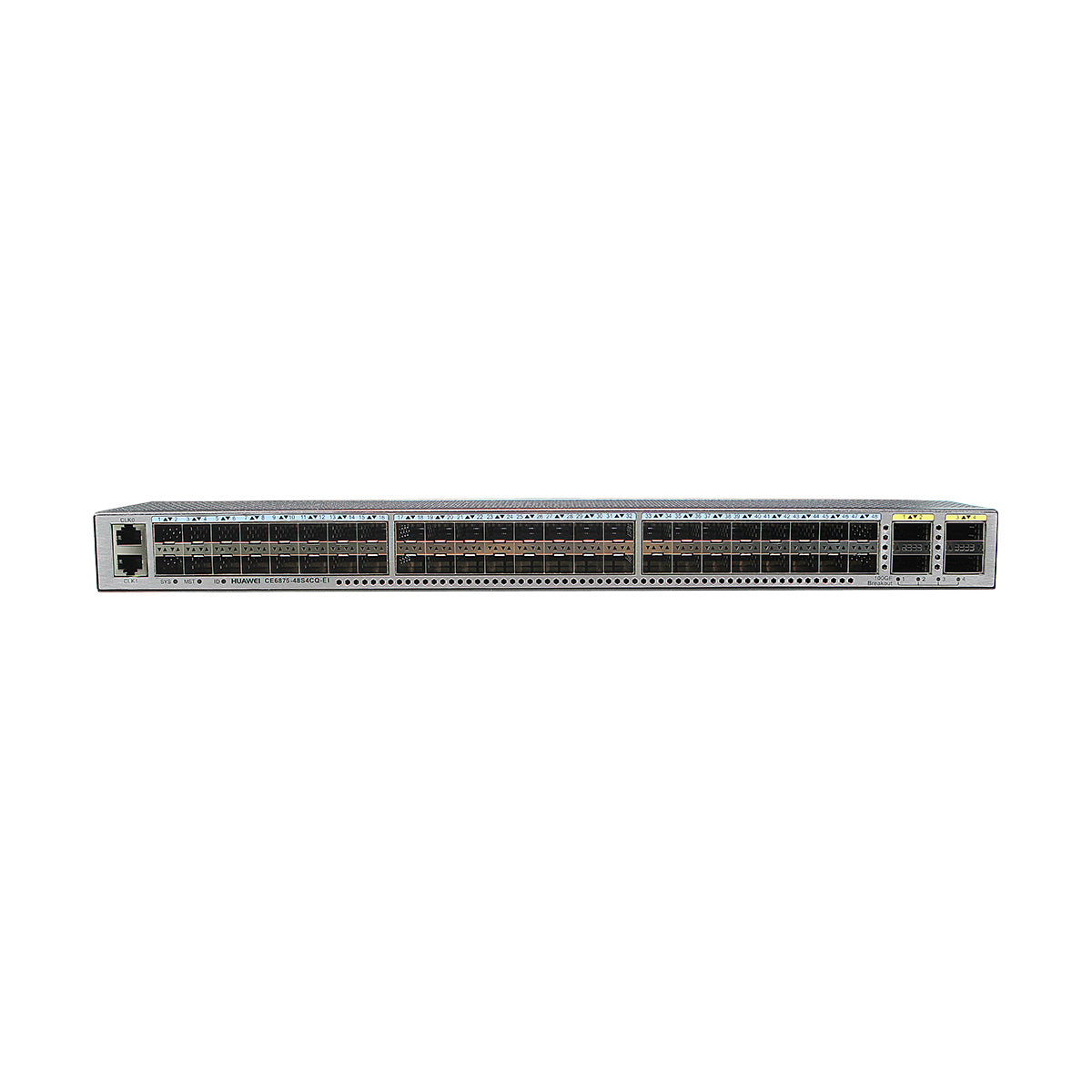

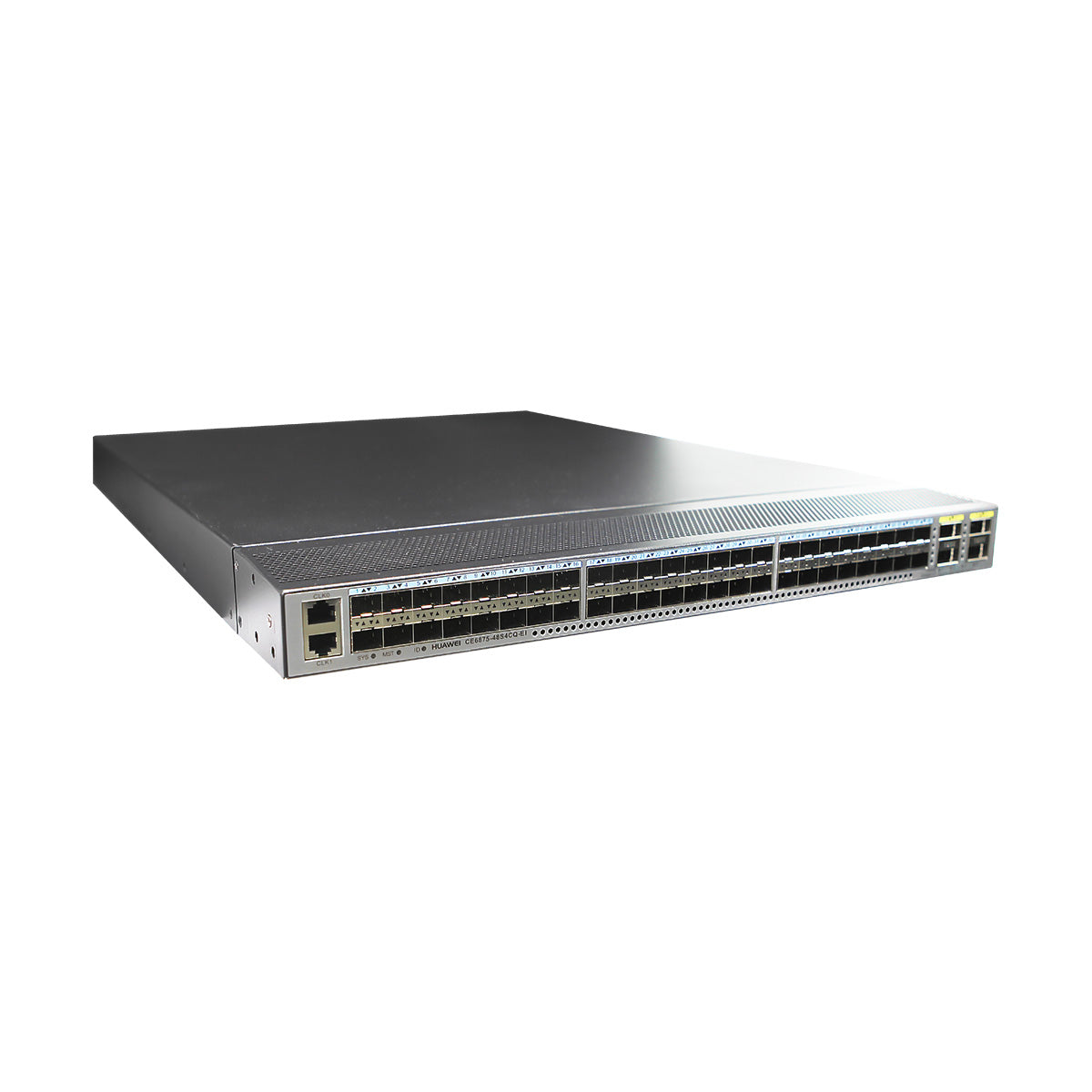

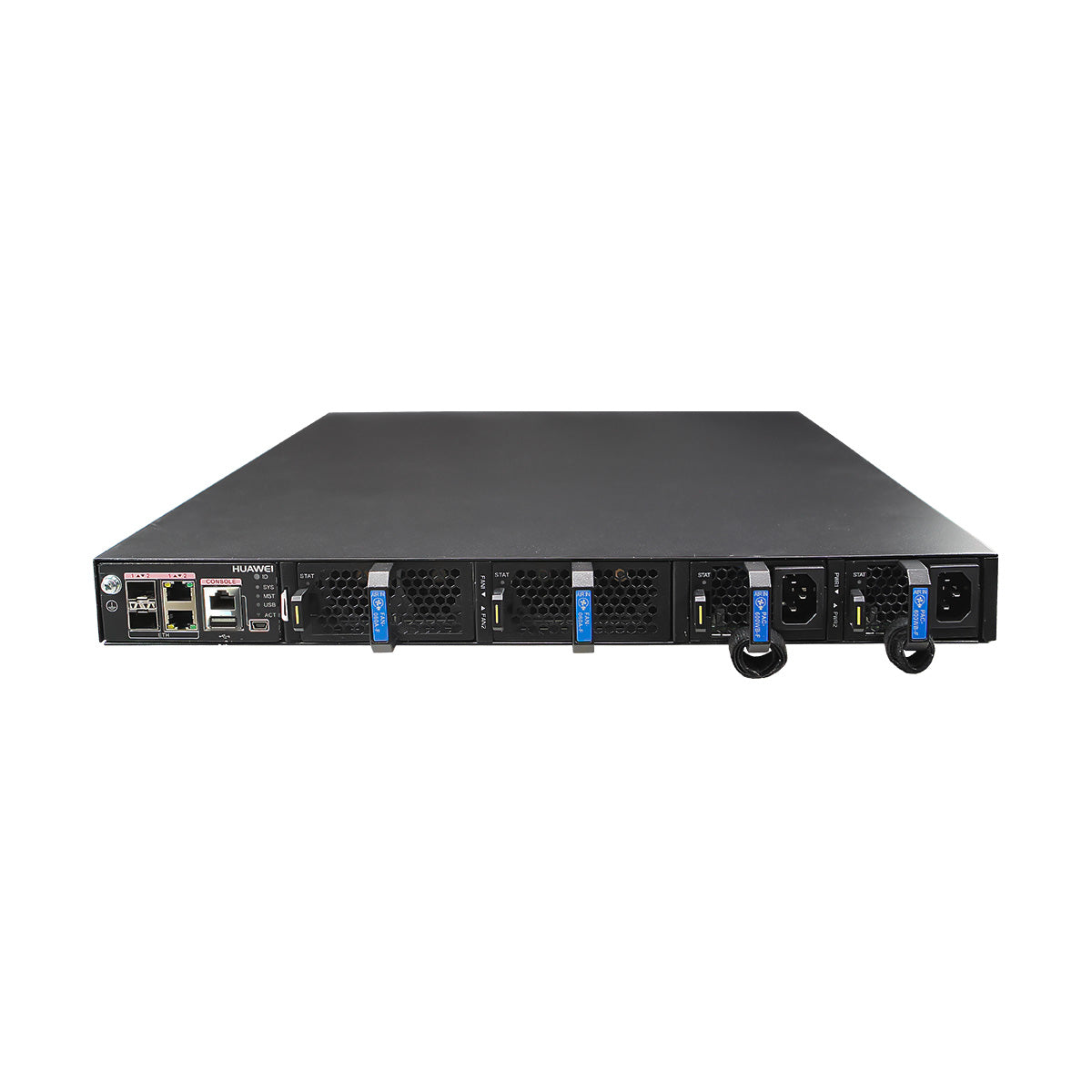

Huawei CE6800 Series Switch CE6875-48S4CQ-EI support 48-Port 10GE SFP+, 4-Port 100GE QSFP28.
Ports on the CE6875-48S4CQ-EI
| Attribute | Description |
|---|---|
| Connector type | LC |
| Optical attributes | Depending on the module or cable in use |
| Standards compliance | IEEE802.3ae |
| Working mode | Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing Full-duplex |
| Attribute | Description |
|---|---|
| Connector type | Depending on the optical module |
| Optical attributes | Depending on the module or cable in use |
| Standards compliance | IEEE802.3ba |
| Working mode | Full-duplex |
Technical specifications of the CE6875-48S4CQ-EI
| Item | Description | |
|---|---|---|
| Physical specifications |
 | |
| Environment parameters | Temperature |
 |
| Relative humidity | 5% RH to 95% RH, noncondensing | |
| Altitude | < 5000 m (16404 ft.) | |
| Noise (sound pressure, 27°C) |
 | |
| Power specifications | Power source type | AC/DC/high-voltage DC |
| AC power input |
 | |
| DC power input |
 | |
| High-voltage DC power input |
 | |
| Rated input current |
 | |
| Chassis power consumption | Maximum power consumption | 407 W |
| Typical power consumption | 273 W (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 4 ports, double power modules) | |
| Chassis heat dissipation | Maximum heat dissipation | 1389 BTU/hr |
| Typical heat dissipation | 932 BTU/hr (100% throughput, SFP+ cables on 48 ports and QSFP+ cables on 4 ports, double power modules) | |
| Surge protection | Power module:

 | |
| Heat dissipation | Heat dissipation mode | Air cooling |
| Airflow | Front-to-back or back-to-front, depending on the fan modules and power modules | |
| Reliability and availability | Power module backup | 1+1 backup |
| Fan module backup | Not supported | |
| Hot swap | Supported by all power modules and fan modules | |
| Mean time between failures (MTBF) | 36.8 years | |
| Mean time to repair (MTTR) | 1.89 hours | |
| Availability | 0.99999339538 | |
| Technical specifications | Processor | 1.5 GHz, eight-core |
| DRAM Memory | 8 GB | |
| NOR Flash | 32 MB | |
| NAND Flash | 2 GB | |
| Stack | Service port supporting the stack function | 10GE optical ports and 100GE optical ports |
| Certification |
 | |
