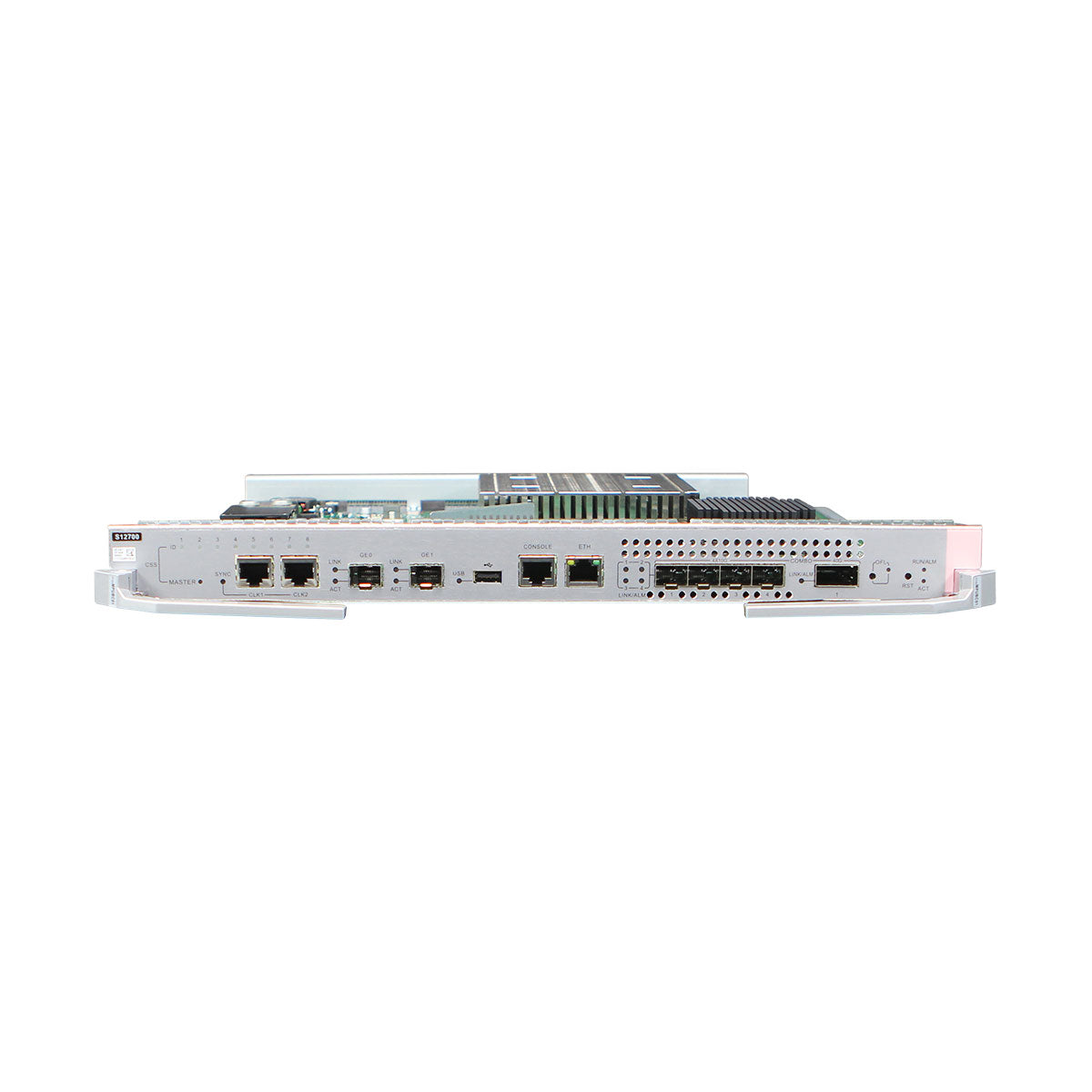

Huawei ET1D2MPUDC00 Main Processing Unit
Couldn't load pickup availability
ET1D2MPUDC00 Hardware Description
Introduction

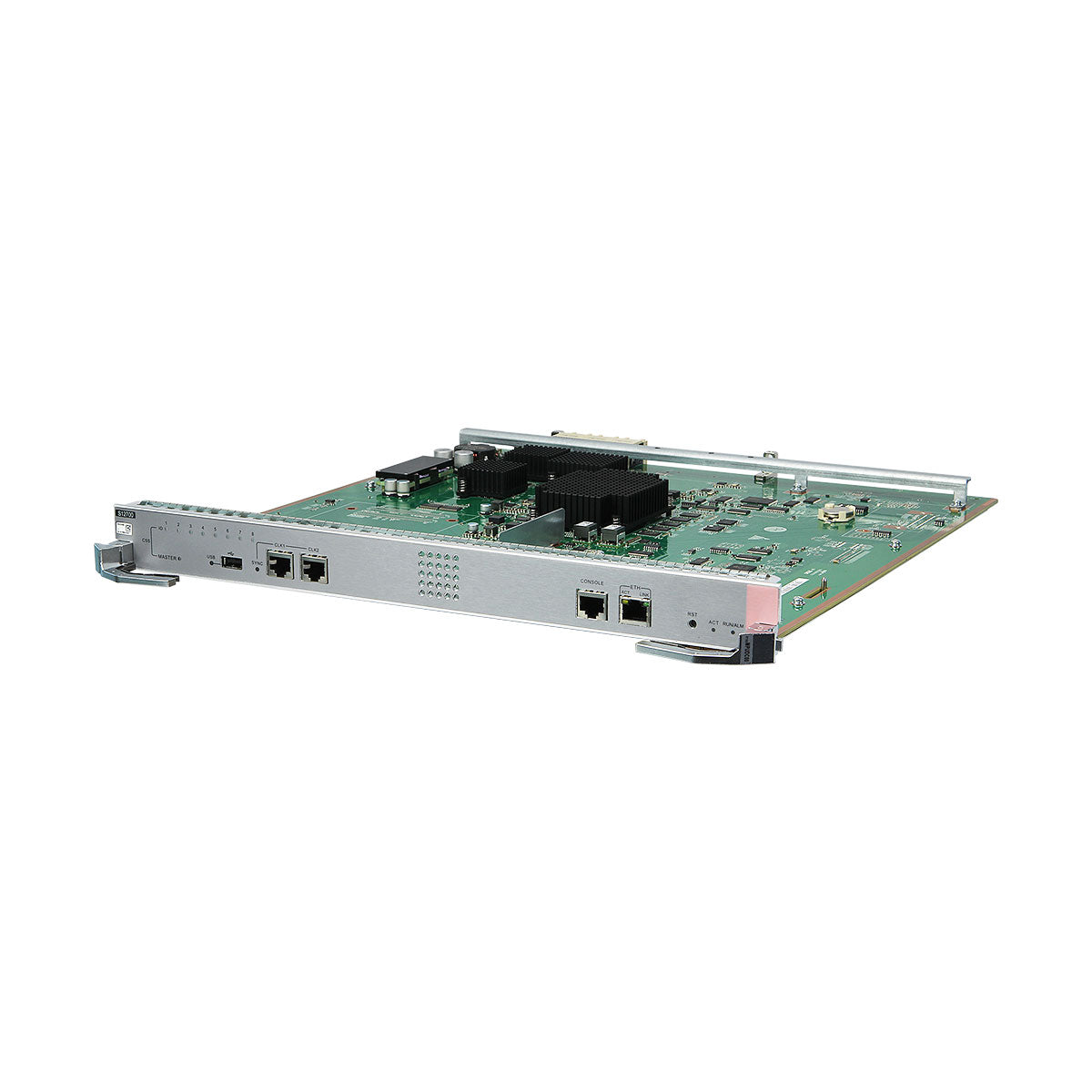

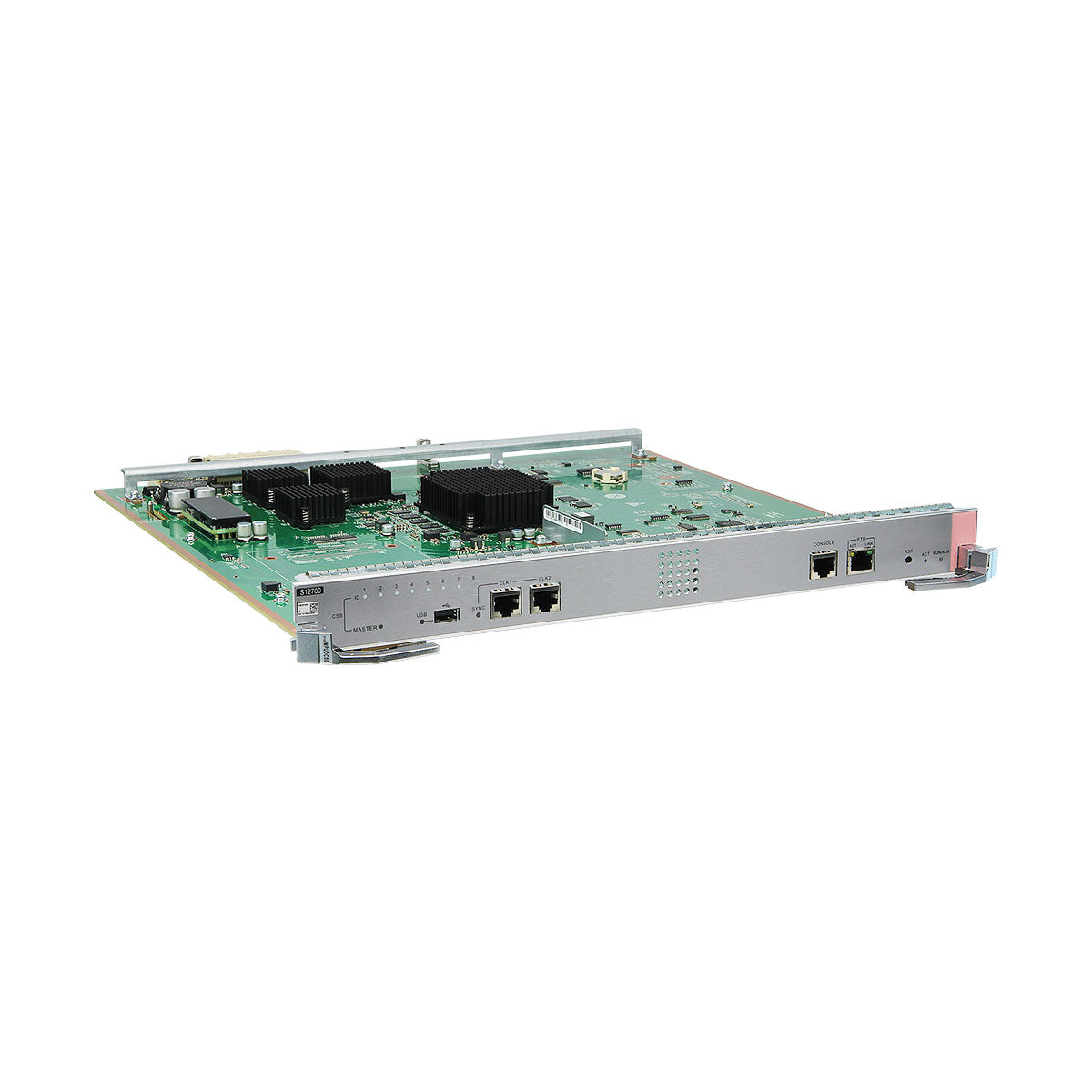

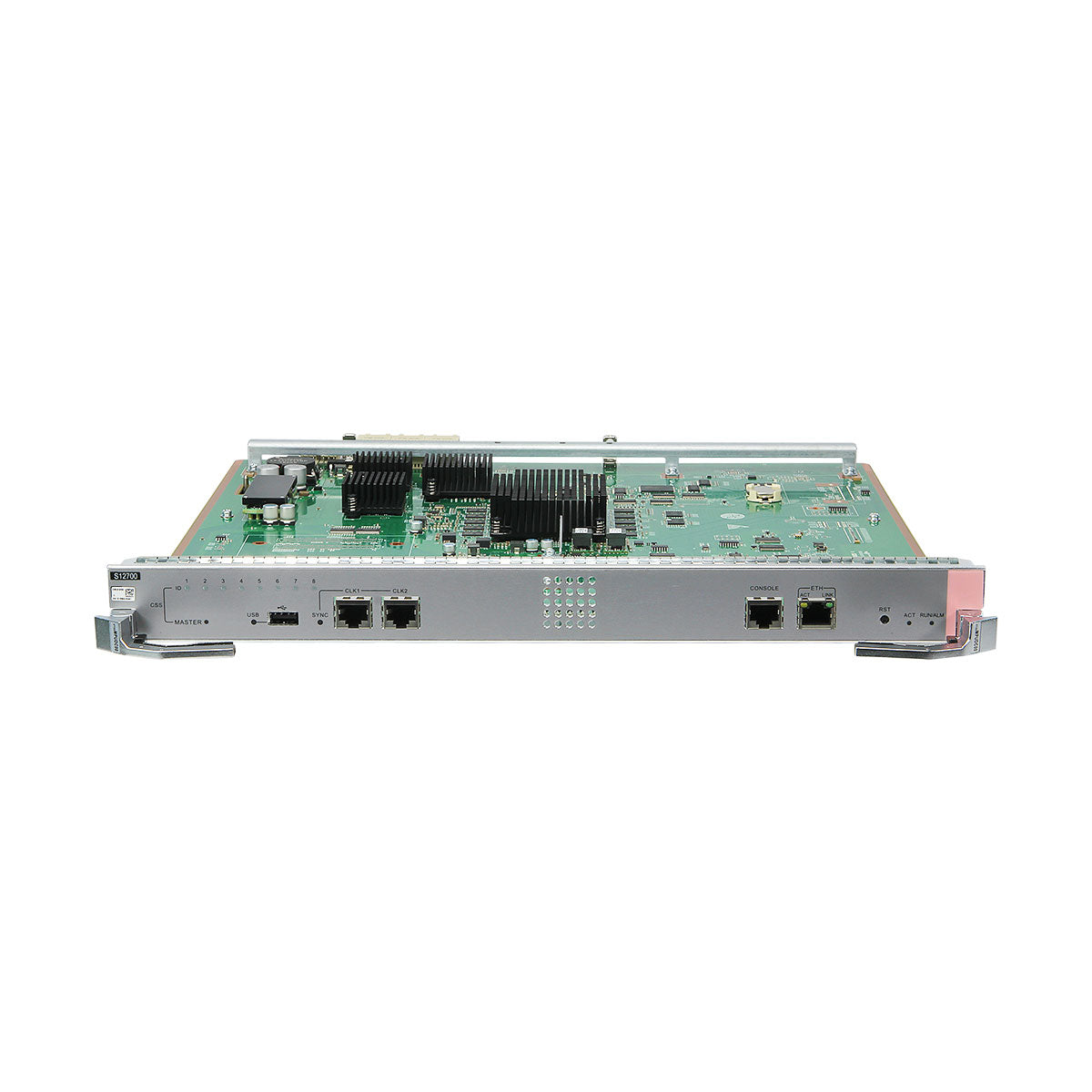

Huawei S12700 ET1D2MPUDC00 Main Processing Unit D.
The ET1D2MPUDC00 is the main control unit for the S12704, S12708 and S12712. It provides the control plane and management plane for the entire system and reserves a slot for clock daughter card.
Functions of the ET1D2MPUDC00
The ET1D2MPUDC00 provides the control plane and management plane for the entire system.
- The control plane provides functions such as protocol processing, service processing, route calculation, forwarding control, service scheduling, traffic statistics collection, and system security.
- The management plane is responsible for system status monitoring, environment monitoring, log and alarm processing, system software loading, and system upgrades.
The ET1D2MPUDC00 consists of the following functional modules:
- Control module: functions as the control and management plane for the ET1D2MPUDC00 and the entire system, implementing protocol processing, route calculation, forwarding control, system management, and system security.
- Local clock module: provides the working clock for the chips of the control module, and device management and monitoring module on the ET1D2MPUDC00.
- Device management and monitoring module: provides functions of a controller area network (CAN) bus module to monitor the ET1D2MPUDC00 and manage the CAN bus modules of LPUs.
- Power supply module: provides power supply for the ET1D2MPUDC00.
- Value-added service module: provides enhanced services such as operation, administration and maintenance (OAM) and bidirectional forwarding detection (BFD).
|
Function |
Description |
|---|---|
|
Basic functions |
The ET1D2MPUDC00 is the system control and management unit for the S12704, S12708 and S12712. It integrates the main control unit, clock unit, and system maintenance unit. |
|
OAM |
The ET1D2MPUDC00 supports the following OAM functions:
|
|
Memory |
8 GB |
|
NAND Flash |
2 GB The system configuration data, startup files, system software package, and system logs are saved in the NAND Flash by default. |
|
Redundancy backup |
1+1 hot standby Main control board is mandatory for switches. Each switch must be configured with one or two main control boards. When one main control board is configured for a switch, the main control board can be installed in either main control board slot of the switch. When two main control boards are configured, the two main control boards work in hot standby mode to improve reliability of the switch. The active and standby main control boards monitor the status of each other. If the active main control board fails, the standby main control board automatically becomes active to ensure uninterrupted services. |
|
Hot swapping |
Supported Before removing the active card, perform an active/standby switchover. |
Ports on the ET1D2MPUDC00
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Working mode |
Clock synchronization mode: full-duplex Time synchronization mode: half-duplex |
|
Frame format |
|
|
Standards compliance |
|
|
Cable used |
Time synchronization mode: straight-through Ethernet cable (RS422 signal) Clock synchronization mode: E1/T1 cable (120-ohm balanced cable) For details about cable parameters, see Clock Cable. |
Specifications of the ET1D2MPUDC00
|
Item |
Description |
|---|---|
|
Physical specifications |
|
