By Huawei

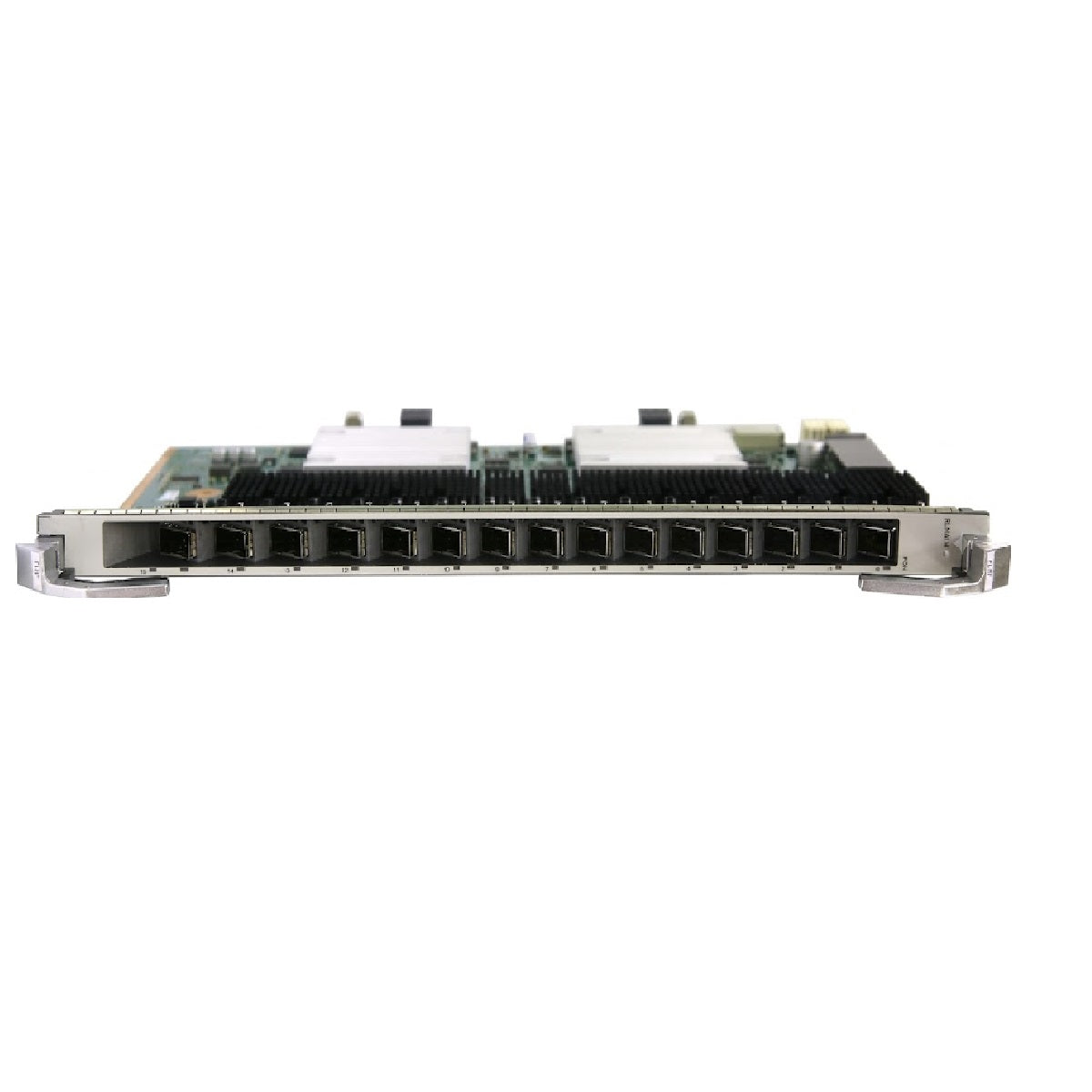

Huawei H902FLHF Board

Regular price $0.00
Regular price Sale price $0.00
Regular price $0.00
Regular price Sale price $0.00
Huawei H902FLHF Board Overview

The H902FLHF board is a 16-port Flex-PON OLT interface board. It can support GPON, XG(S)-PON, and XG(S)-PON&GPON Combo access now. It works together with the optical network unit (ONU) to provide XG(S)-PON and GPON access services.

H902FLHF can be applied to the Huawei MA5800 series OLT MA5800-X2/MA5800-X7/MA5800-X15/MA5800-X17

The H902FLHF board port supports gpon, xg-pon, xgs-pon, combo-pon (xg/g), combo-pon (xgs/g) mode.

  • By default, the port of the board is in gpon mode, and can be directly used after a GPON optical module is installed without loading a license to the NMS.
  • To upgrade the port, you can run the port flex-mode command to set the port mode to xg-pon, xgs-pon, combo-pon (xg/g), or combo-pon (xgs/g), insert the corresponding optical module, and load a license to the NMS to enable the port.

The H902FLHF card will come with 16pcs GPON C+ module by default, NO LICENSE IS LOADED.

16* XG(S)PON & GPON ports (SFP+) Max. split radio: 1:256



H902FLHF application scenario table

Technical Specifications of Huawei H902FLHF Board
Function
Rate mode Asymmetric rate
Symmetric rate
T-CONTs per PON port GPON: 1024
XG(S)-PON: 2048
Service flows per PON board 16352
Maximum frame size 2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port (board capability) 40 km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection (single-homing) Supported
Type B protection (dual-homing) Supported
Type C protection (single-homing) Supported
Type C protection (dual-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
Operating temperature -40°C to +55°C
Power consumption Static: 51 W
Maximum: 107 W



H902FLHF Supported PON Optical Module
Optical Module Type Encapsulation Type Port Rate
GPON Optical Module (gpon mode) SFP Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON Optical Module (xg-pon mode) SFP+ Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
XGS-PON Optical Module (SFP+) (xgs-pon mode) SFP+ Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s
XG-PON&GPON Combo PON Optical Module (SFP+)
(combo-pon (xg-pon) mode)
SFP+ GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
XGS-PON&GPON Combo PON Optical Module (SFP+)
(combo-pon (xgs-pon) mode)
SFP+ GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XGS-PON channel:
Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s
