Huawei S5720-50X-EI-DC Switch
Couldn't load pickup availability
S5720-50X-EI-DC Hardware Description
Introduction
Huawei S5720-50X-EI-DC with 46*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2* QSFP+ stack optical ports,1*DC power input fixed.
The S5720 series switches are energy-saving gigabit Ethernet switches, building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720 series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.
Key Features
46*10/100/1000BASE-T ports
4*10GE SFP+ ports
2* QSFP+ stack optical ports
Memory (RAM) 2GB
Flash 512MB

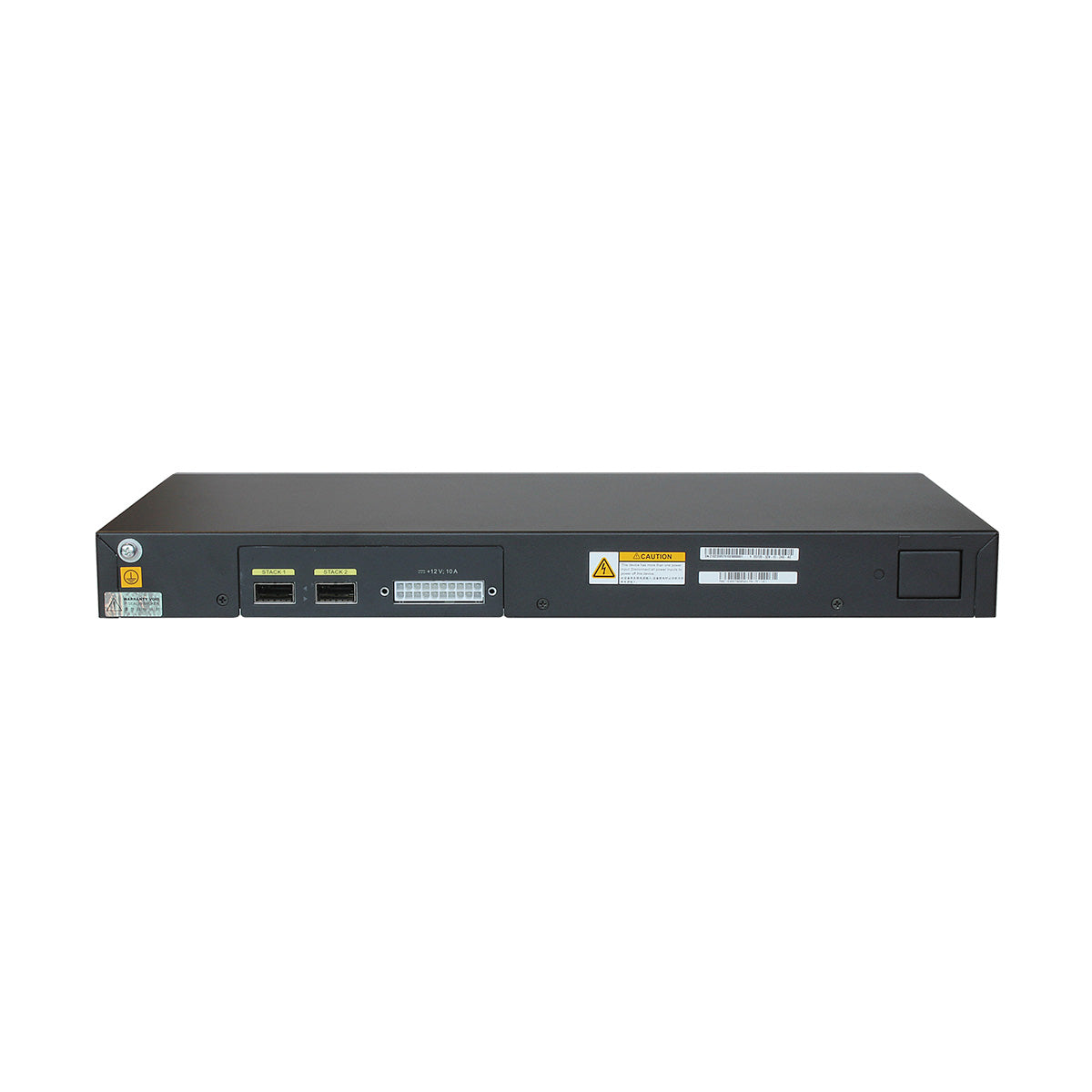

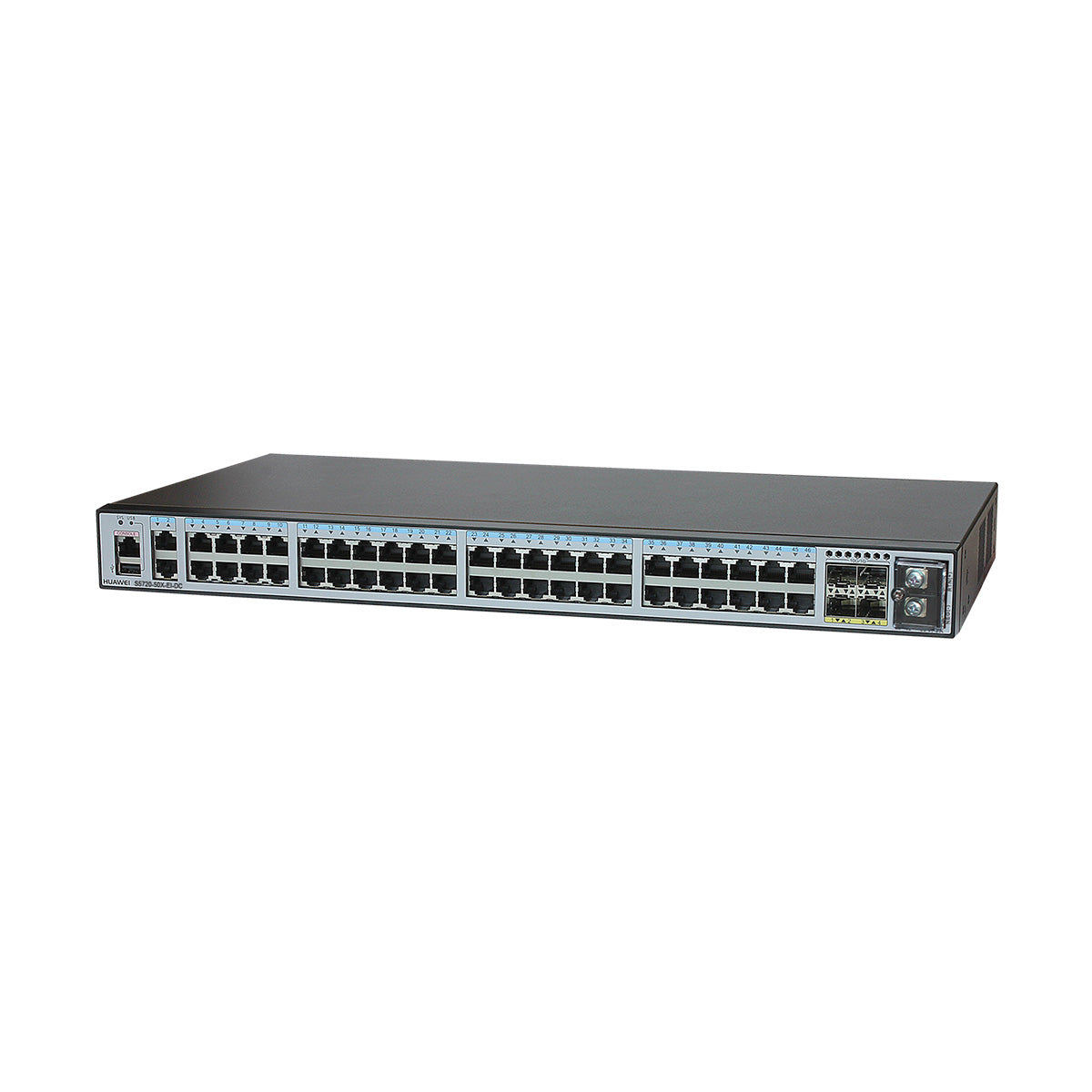

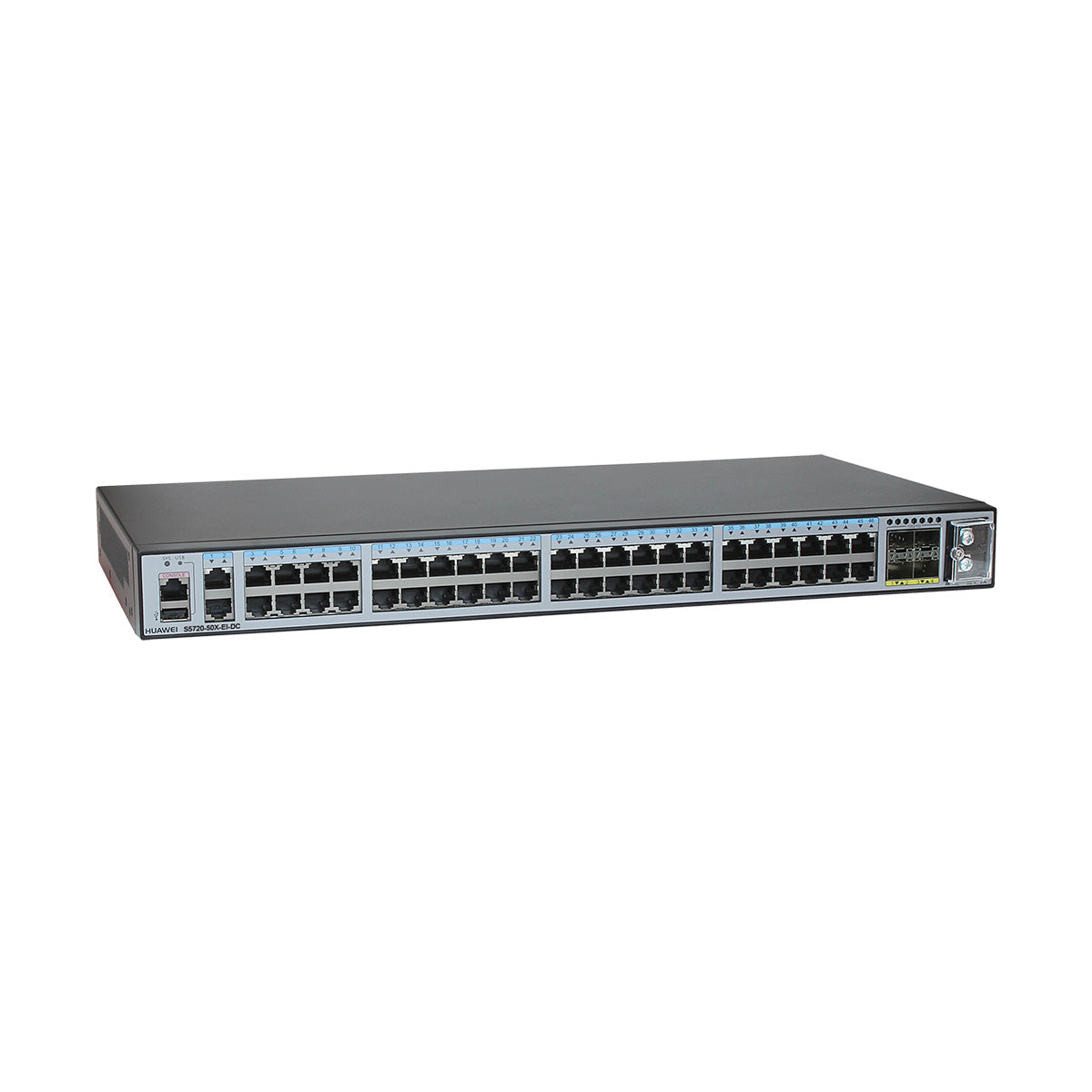

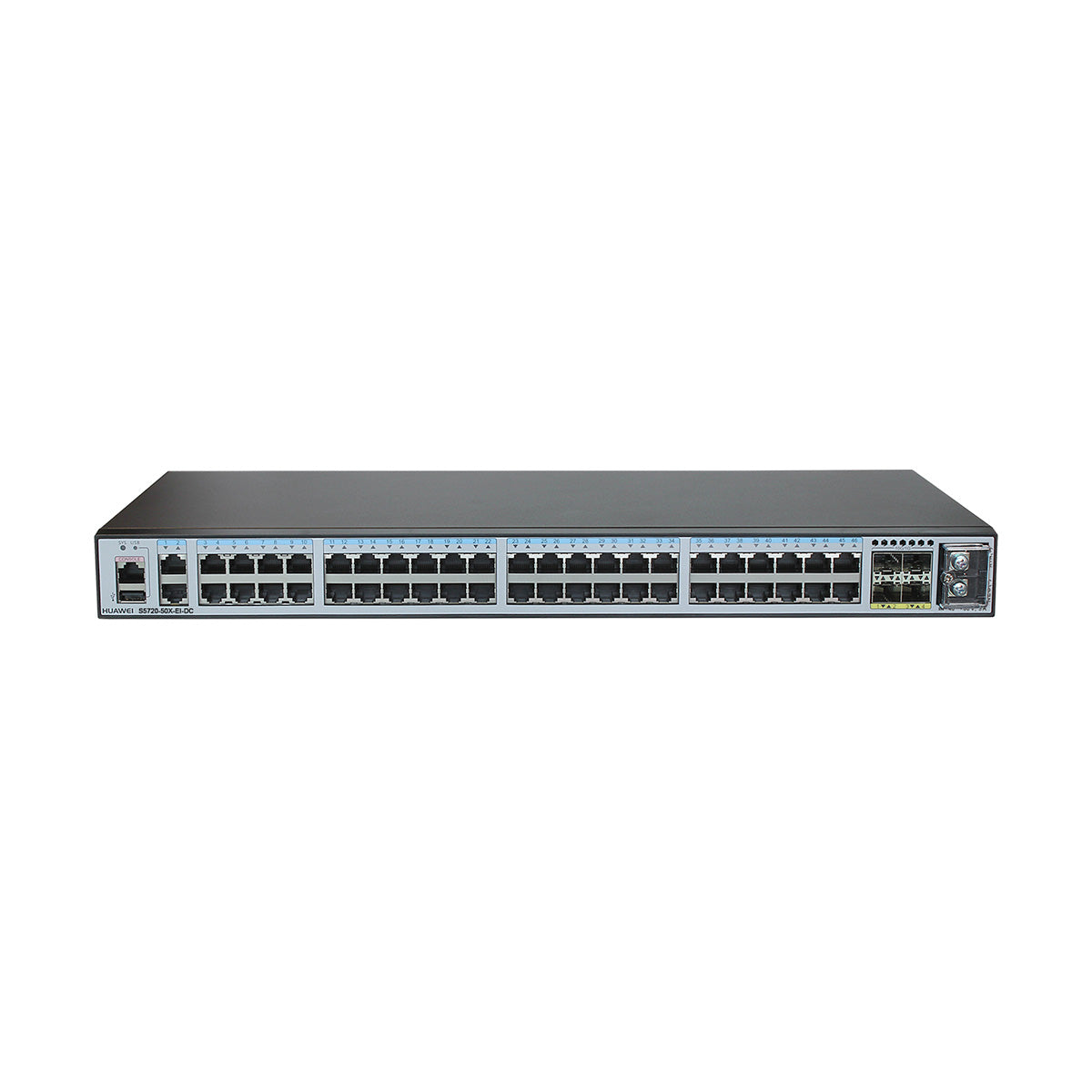

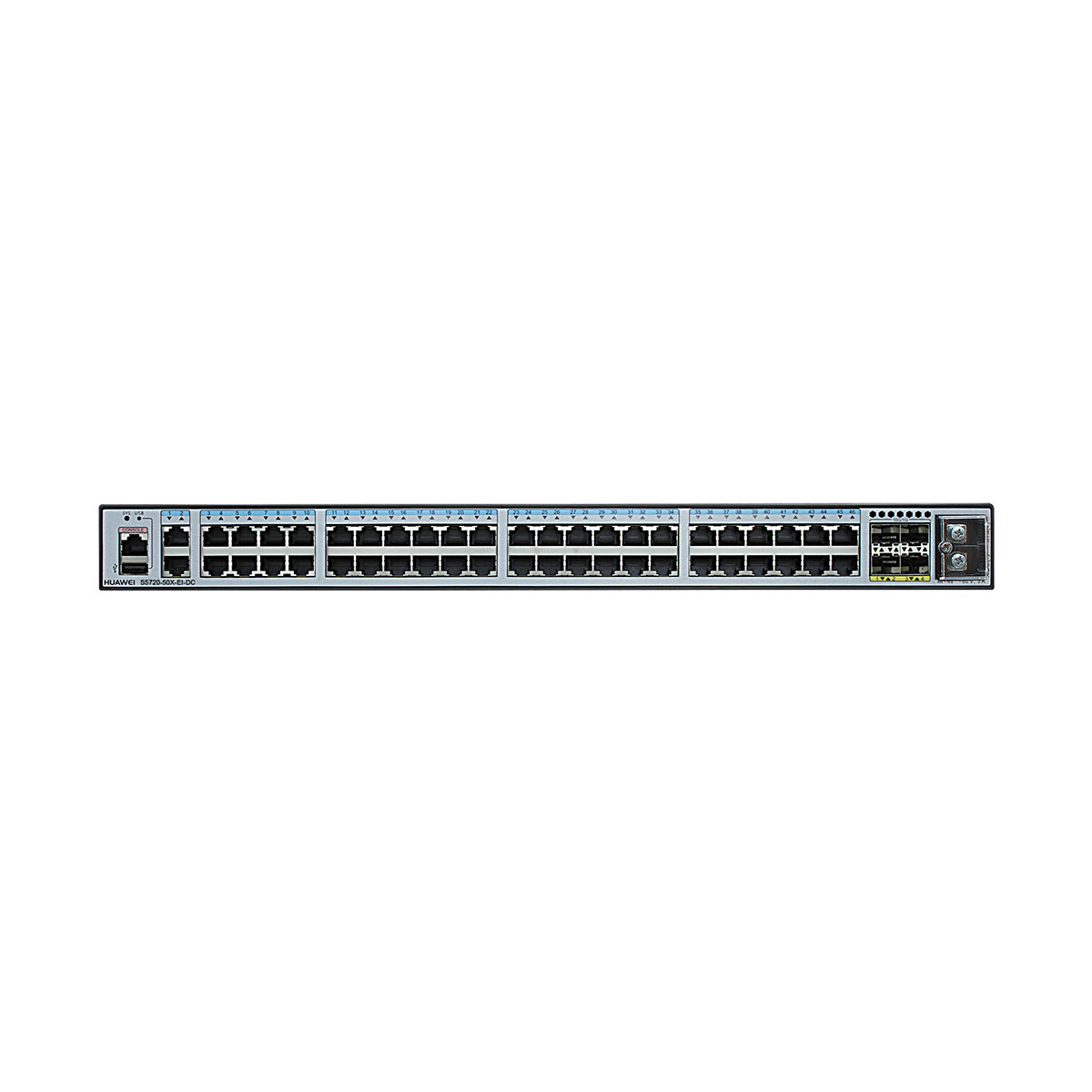

Appearance and Structure
|
1 |
One console port NOTE:
It is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed. |
2 |
One USB port |
|
3 |
Forty-six 10/100/1000BASE-T ports |
4 |
Four 10GE SFP+ ports Applicable modules and cables:
|
|
5 |
DC power terminal NOTE:
It is used together with a DC Power Cable. |
6 |
Ground screw NOTE:
It is used with a ground cable.
|
|
7 |
Two QSFP+ stack optical ports Applicable modules and cables:
|
8 |
RPS socket NOTE:
It is used with an RPS cable, which is not hot swappable. |
Port Description
Attributes of a 10/100/1000BASE-T Ethernet electrical port
|
Attribute |
Description |
|---|---|
|
Connector type |
RJ45 |
|
Standards compliance |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
|
Working mode |
10/100/1000 Mbit/s auto-sensing |
|
Maximum transmission distance |
100 m |
Attributes of a 10GE SFP+ port
|
Attribute |
Description |
|---|---|
|
Connector type |
LC/PC |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
|
Working mode |
GE/10GE auto-sensing |
Attributes of a QSFP+ stack optical port
|
Attribute |
Description |
|---|---|
|
Connector type |
MPO |
|
Optical port attributes |
Depend on the optical module used |
|
Standards compliance |
IEEE802.3ae |
Technical specifications
|
Item |
Description |
|---|---|
|
Memory (RAM) |
2 GB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
74.31 years |
|
Mean time to repair (MTTR) |
2 |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±1 kV in differential mode, ±2 kV in common mode |
|
Dimensions (H x W x D) |
|
|
Weight (with packaging) |
4.7 kg (10.36 lb) |
|
Stack ports |
|
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Not supported |
|
Rated voltage range |
-48 V DC to -60 V DC |
|
Maximum voltage range |
-36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
55.3 W |
|
Typical power consumption (30% of traffic load)
|
47.45 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 49.3 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-2000 m (0-6562 ft.) |
|
Certification |
|
|
Part number |
02350NHD |
