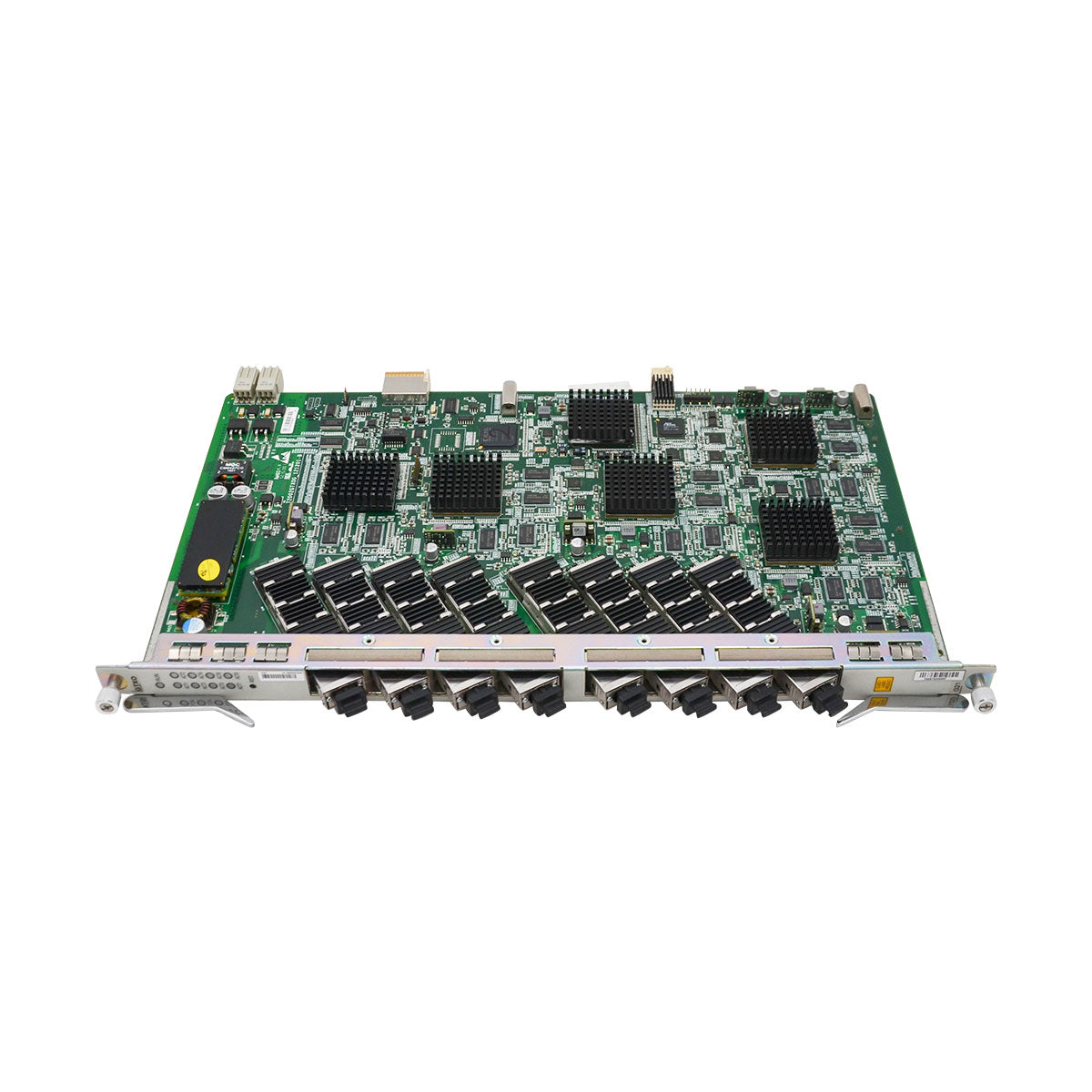

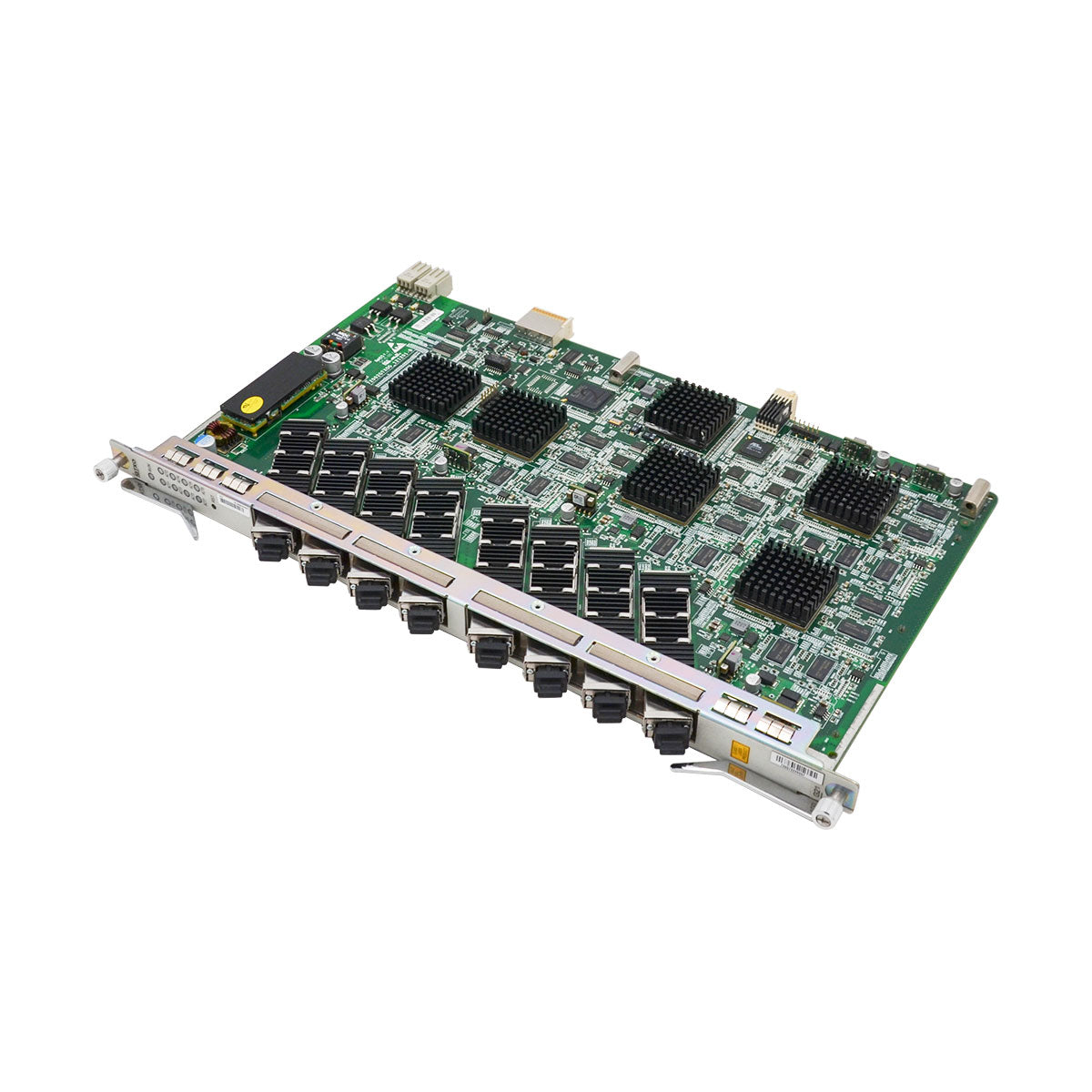

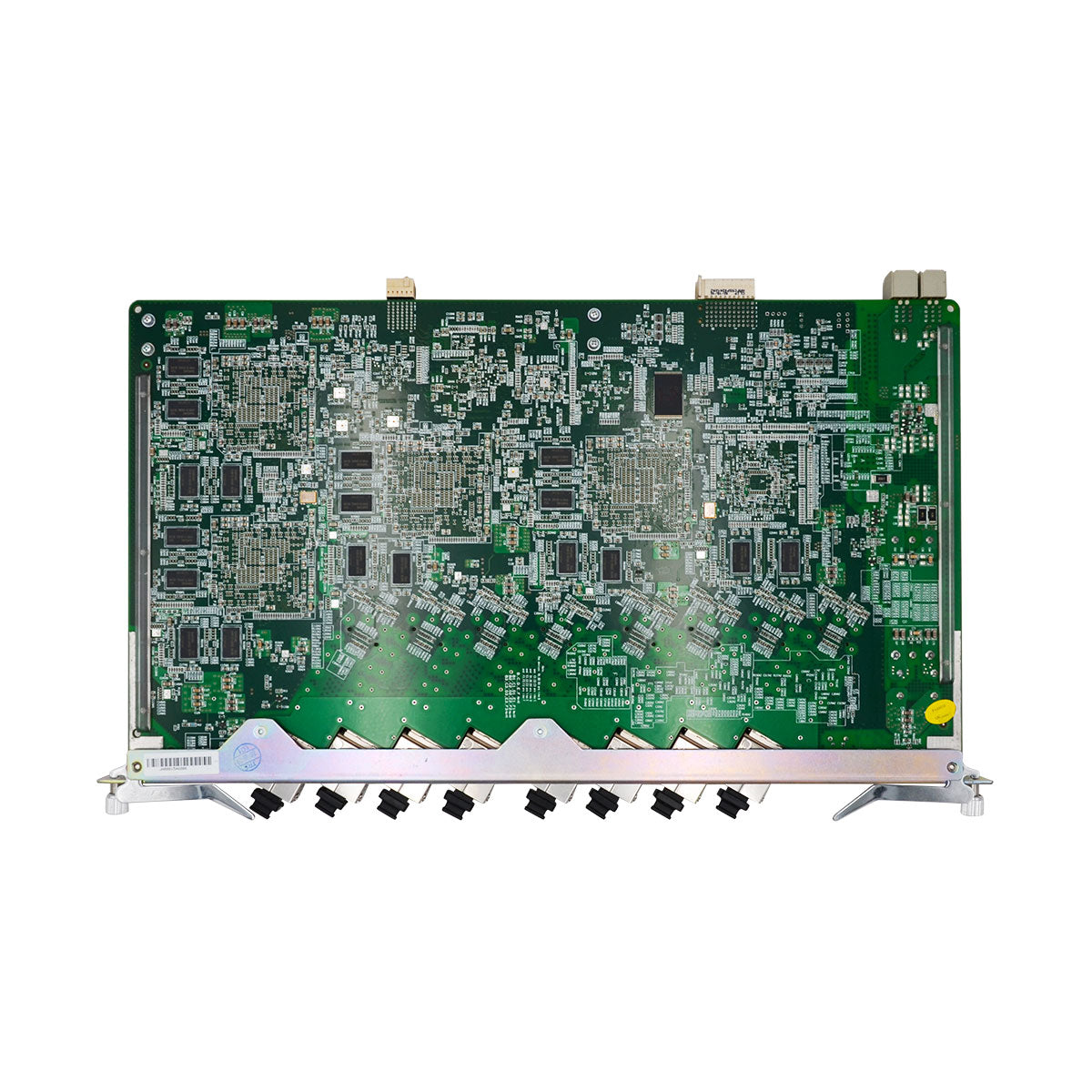

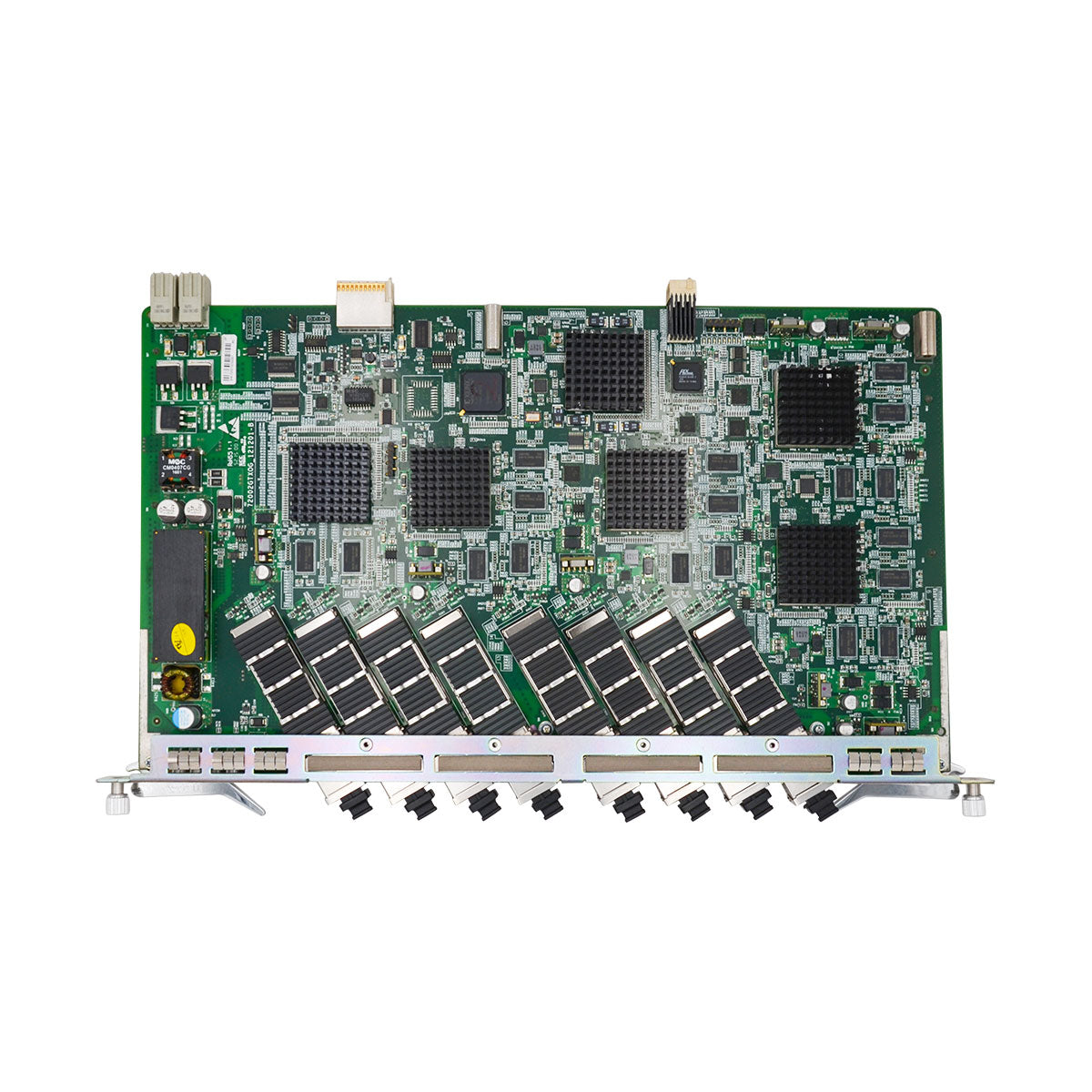

ZTE GTXO Card Overview
ZTE GTXO Service Board is an 8-Port XG-PON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.
ZTE GTXO Service Board is an 8-port 10G GPON OLT interface board, which cooperates with ONU to realize GPON access service.ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
Technical Specifications of The ZTE GTXO
Specification | |
Service ports | 8-port XG-PON |

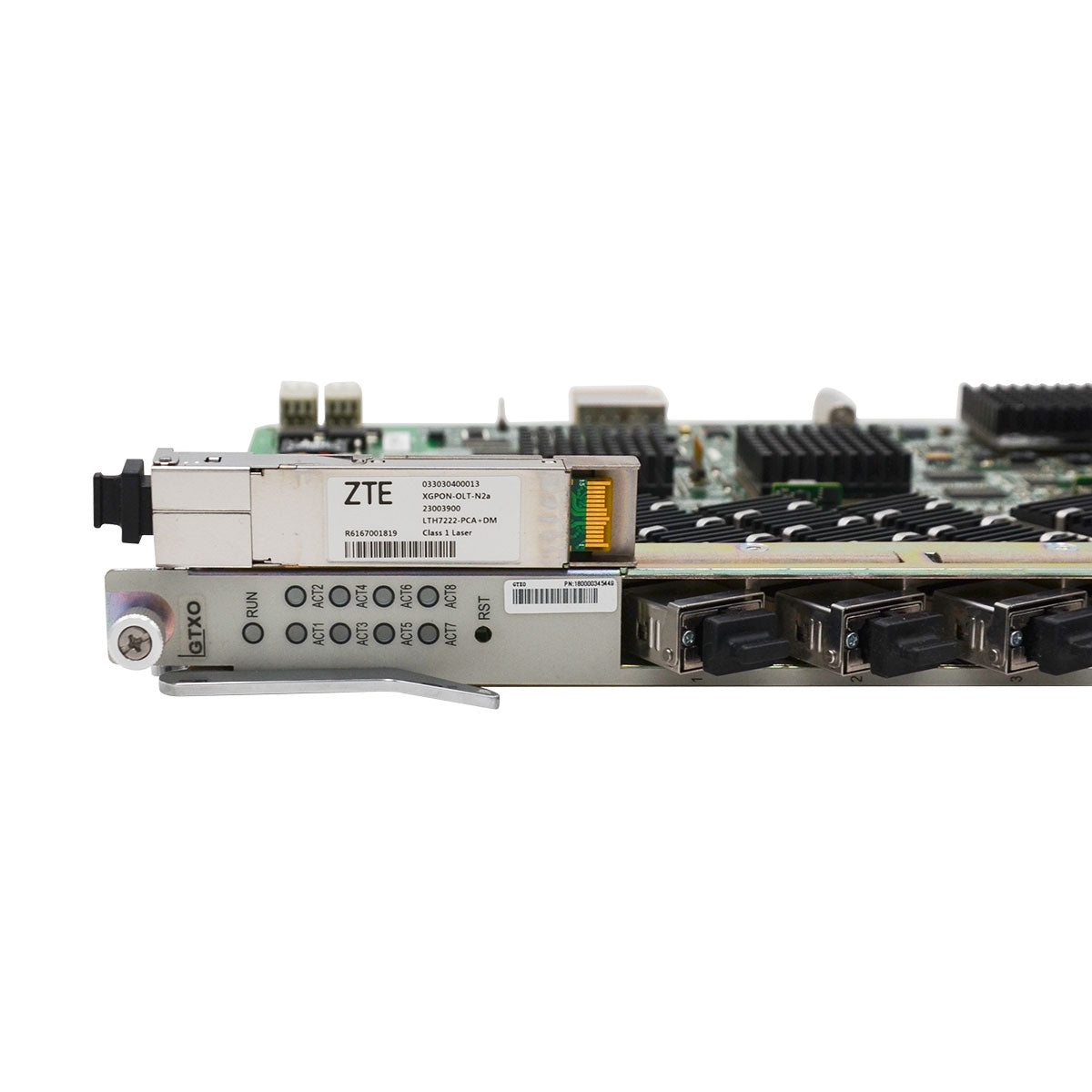

XG-PON1 Optical Module Specification
|
|
Type | Single Fiber Bidirectional Optical Module, N2a |
Operating Wavelength | Tx: 1577 nm, Rx: 1270 nm |
Encapsulation Type | XFP |
Port Rate | Tx: 10 Gbit/s; Rx: 2.488 Gbit/s |
Minimun Output Optical Power | 4 dBm |
Maximum Output Optical Power | 8 dBm |
Maximum Receiver Sensitivity | -29.5dBm |
Optical Connector Type | SC/UPC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | -9 dBm |
Extinction Ratio | 8.2 dB |
Device Specifications | |
Power consumption | 5 W (static), 75 W (maximum), 65 W (typical) |
Weight | 1.185 kg |
Dimensions (W x D x H) | 22.5 mm x 225 mm x 395.5 mm |
